- AcePro-CE50-1
- AcePro HDMI Over Cat6 Extender with IR - 120m
■ Extends HDMI signals up to 394ft (120m) to a distant display over economical Cat6 cabling ■ Features direct 1-to-1 connection or 1-to-many connection through unmanaged dedicated Gigabit ethernet routers or switches. With HDBitT® transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. Note: Additional Receivers, part # AcePro-CE84-1, sold separately ■ Delivers crystal clear Full HD video content up to 1080p@60Hz resolution ■ IR remote control pass-through feature allows you to remotely control the HDMI source device at the display location ■ High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation ■ Plug-n-Play installation, no software installation required ■ Built-in power led indicator provides easy power status monitoring
Highlights

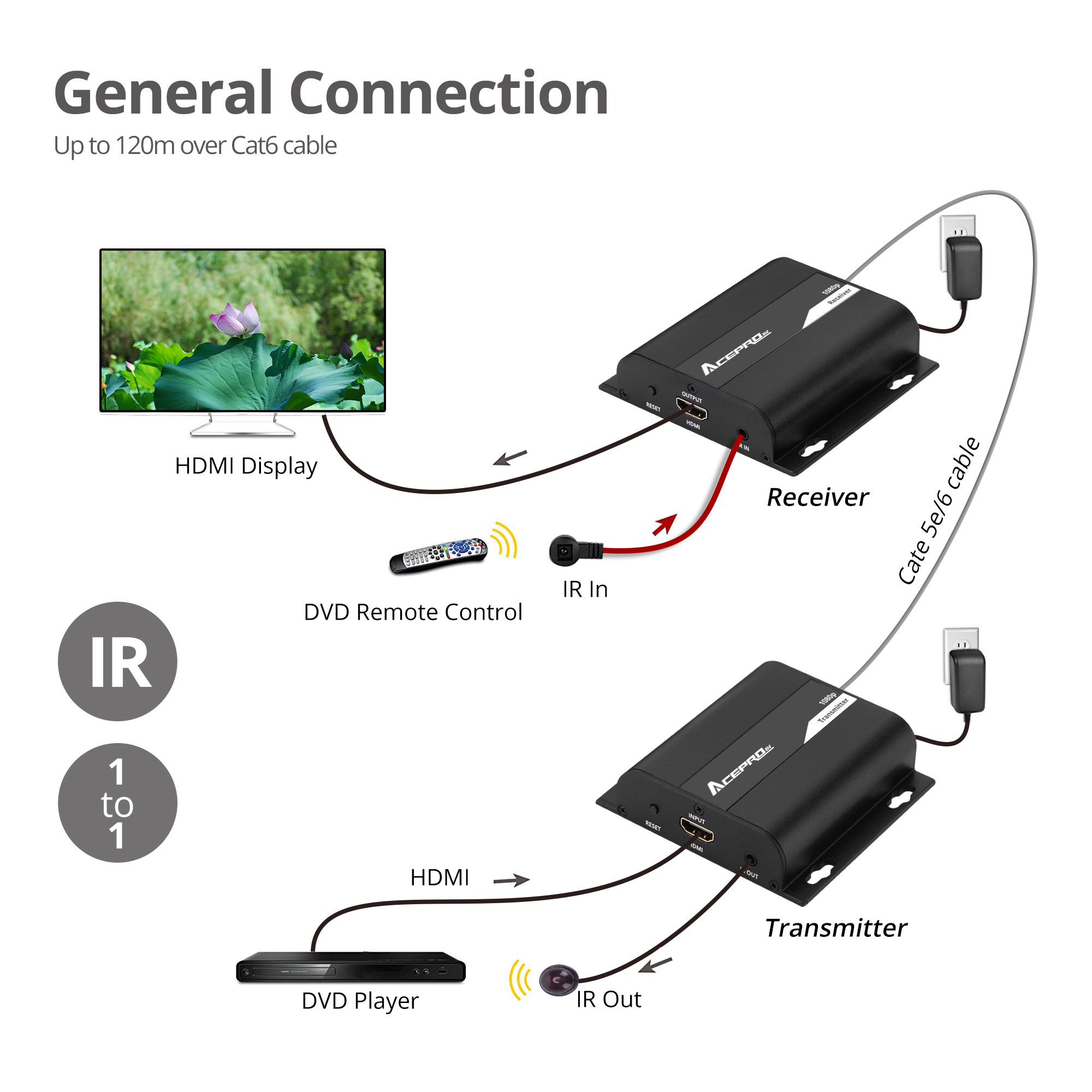

Extends HDMI signals up to 394ft (120m)
Extends HDMI signals up to 394ft (120m) to a distant display over economical Cat6 cabling

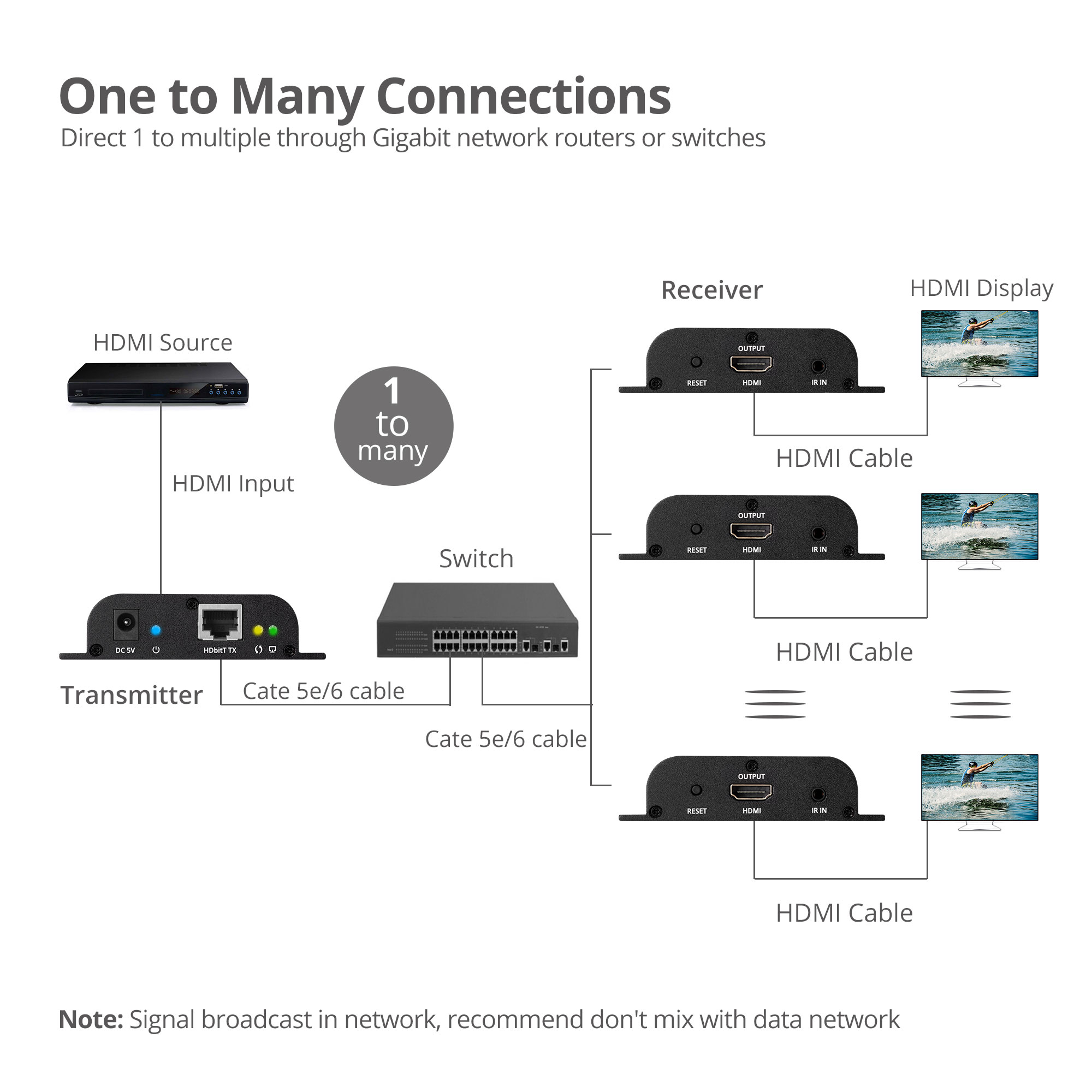

Connect up to 30 Receivers per Transmitter
Features direct 1-to-1 connection or 1-to-many connection through unmanaged dedicated Gigabit ethernet routers or switches. With HDBitT® transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. Note: Additional Receivers, part # AcePro-CE84-1, sold separately
Full HD video content
Delivers crystal clear Full HD video content up to 1080p@60Hz resolution
IR remote control over Cat6
IR remote control pass-through feature allows you to remotely control the HDMI source device at the display location
High quality metal housing
High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
Plug-n-Play installation
High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
Built-in power led indicator
Built-in power led indicator provides easy power status monitoring
Specification

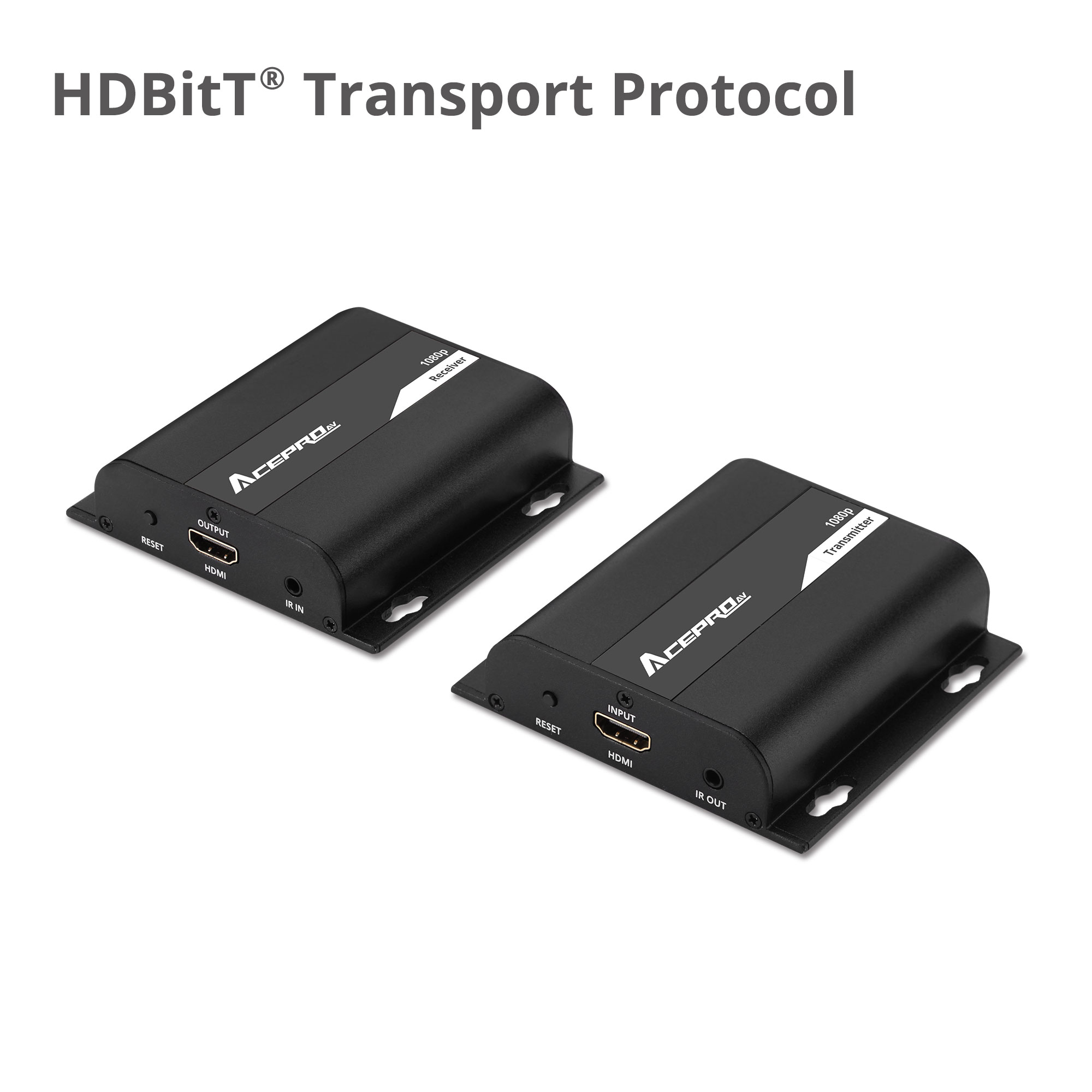

Transport protocol: HDbitT
Compliant with HDMI 1.3 and HDCP 1.2
Support connections:
■ 1-to-1 connection (Extender)
■ One-to-Many connection (Splitter)
■ Requires additional receivers, part # AcePro-CE84-1, sold separately
■ Requires dedicated network routers and/or switches
Supports 2-Ch PCM stereo audio
Supports full frequency IR signal from 20KHz to 60KHz
Resolution: 480p / 720p / 1080i / 1080p 60Hz
Aluminum housing with wall mount design
Product:
Transmitting unit (TX):
■ Dimensions: 3.70" (L) x 0.93" (H) x 3.81" (W)
■ Weight: 0.33 lbs

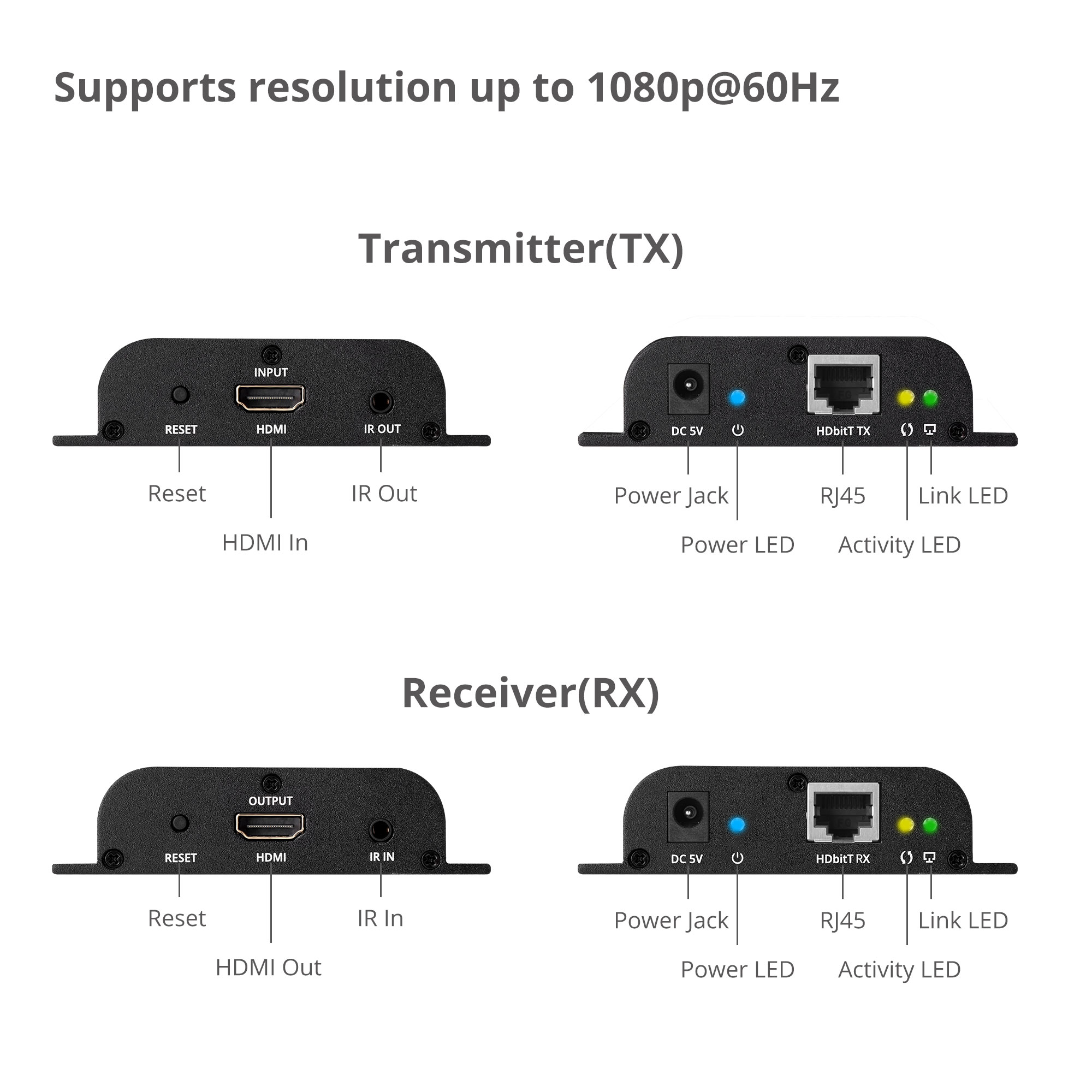

Connectors:
■ 1x 19-pin HDMI, Type A, Female, Input
■ 1x 3.5mm jack, IR Blaster
■ 1x 8-pin, RJ45, HDbitT signal output
■ 1x Power jack
■ 1x Reset button
Receiving unit (RX):
■ Dimensions: 3.70" (L) x 0.93" (H) x 3.81" (W)
■ Weight: 0.33 lbs
Connectors:
■ 1x 19-pin HDMI, Type A, Female, Output
■ 1x 3.5mm jack, IR Receiver
■ 1x 8-pin, RJ45, HDbitT signal input
■ 1x Reset button
■ 1x Power jack
Power adapter:
■ Input: 100-240V / 50-60Hz
■ Output: DC 5V/1A
■ UL listed: E335801 / Level: VI
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 2 year limited
Country of origin: China
