- AcePro-CE63-1
- AcePro Wireless HDMI 4K 60Hz Extender Kit - Long Range
■ Wirelessly transmits 4K signals with stereo audio to a distant HDMI display up to 200 meters Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum ■ Broadcast identical video content to up to two HDMI displays simultaneously when adding a 2nd receiver unit (part # AcePro-CE64-1) sold separately ■ Supports video resolutions up to UHD 4K@60Hz for stunning and crystal clear video quality ■ 5GHz dual antenna wireless technology prevents signal interference and provides optimal reception quality ■ IR extension modules allow remote controlling the HDMI source device at the distant display ■ Premium and durable metal housing ensures system stability during long hours of operation ■ Slim and low profile design easily adopts into versatile application environment, mounting brackets included for different installation requirements
Highlights
Wirelessly transmits 4K signals with stereo audio to a distant HDMI display up to 200 meters
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum
Broadcast identical video content
to up to two HDMI displays simultaneously when adding a 2nd receiver unit (part # AcePro-CE64-1) sold separately
Supports video resolutions up to UHD 4K@60Hz
for stunning and crystal clear video quality
5GHz dual antenna wireless technology
prevents signal interference and provides optimal reception quality
IR extension modules
allow remote controlling the HDMI source device at the distant display
Premium and durable metal housing
ensures system stability during long hours of operation
Slim and low profile design
easily adopts into versatile application environment, mounting brackets included for different installation requirements
Specification
Wireless technology: 5GHz

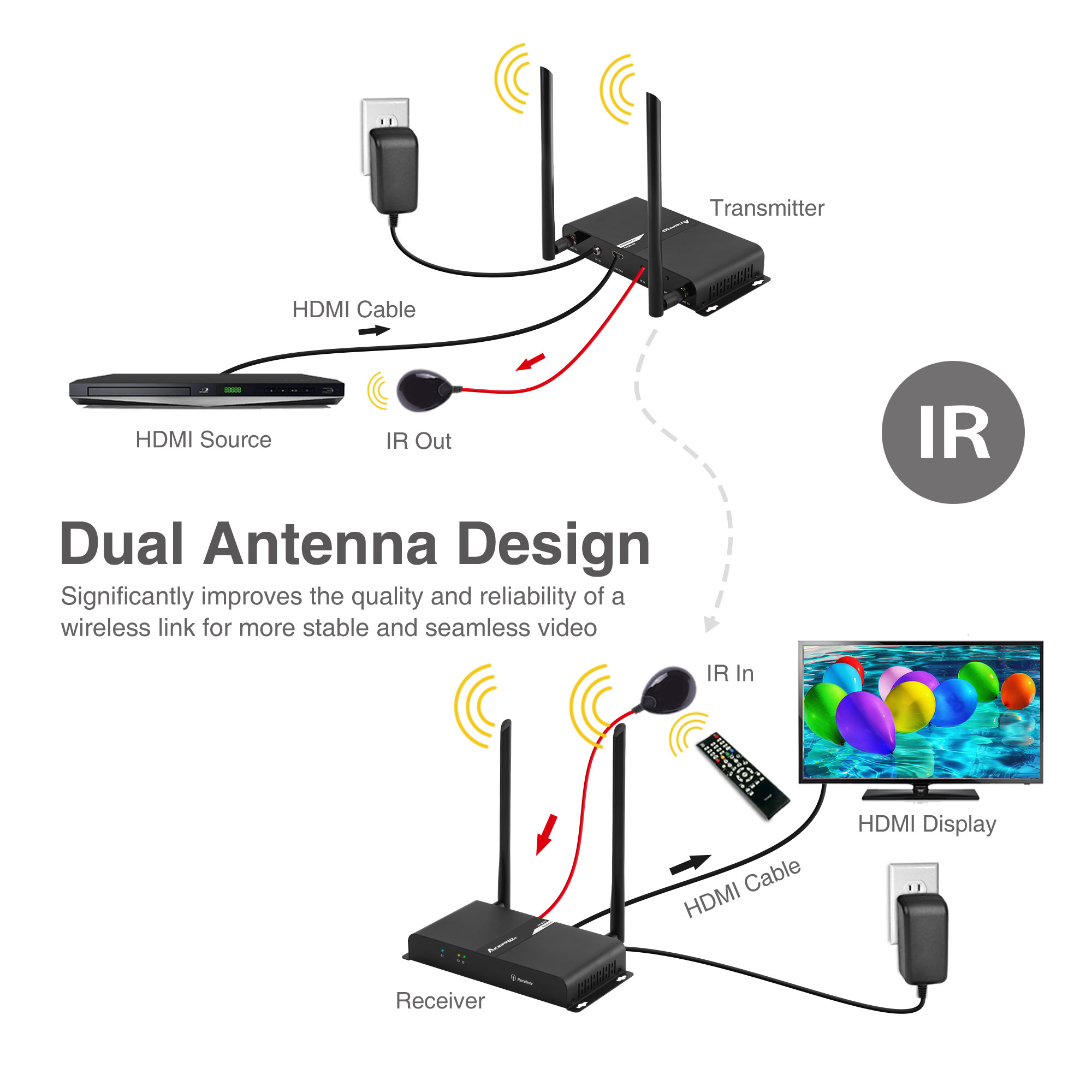

Supported topology:
■ Extender:
1 Transmitter (TX) to 1 Receiver (RX)

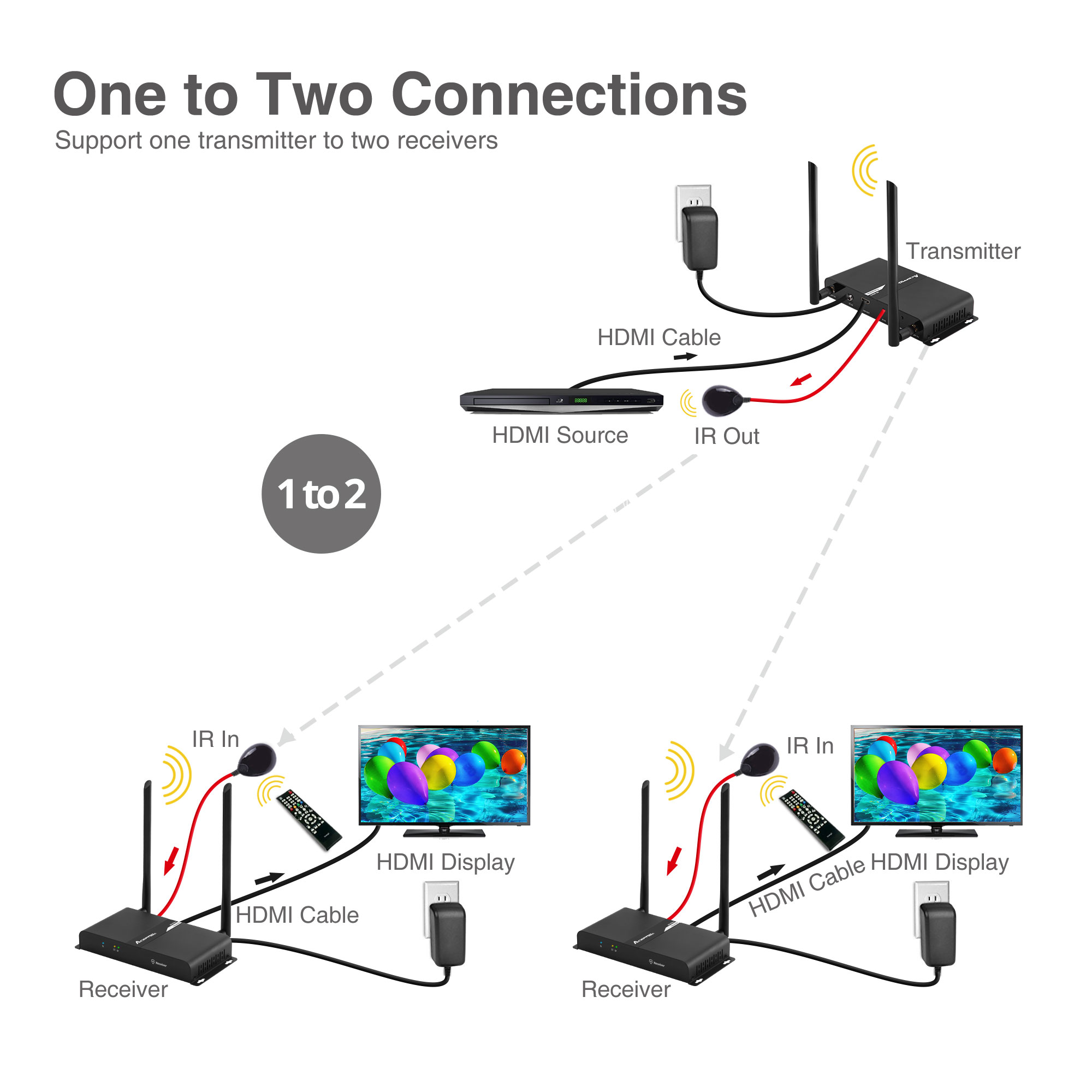

■ Splitter:
1 Transmitter (TX) to 2 Receivers (RX)
Additional Receiver unit, part # AcePro-CE64-1, sold separately
Video compression technology: HDbitT
Compliant with HDMI 2.0 and HDCP 2.2
Resolution: 480p / 720p / 1080i / 1080p @60Hz / 4Kx2K @30Hz / 4Kx2K @60Hz
Wireless transmission distance: Up to 200 meters (light-of-sight maximum)
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum
HDMI cable length: Up to 3 meters (Input & Output)
Audio: 2-Ch PCM stereo audio
IR frequency: 20KHz to 60KHz
Housing material: Metal
Housing color: Black

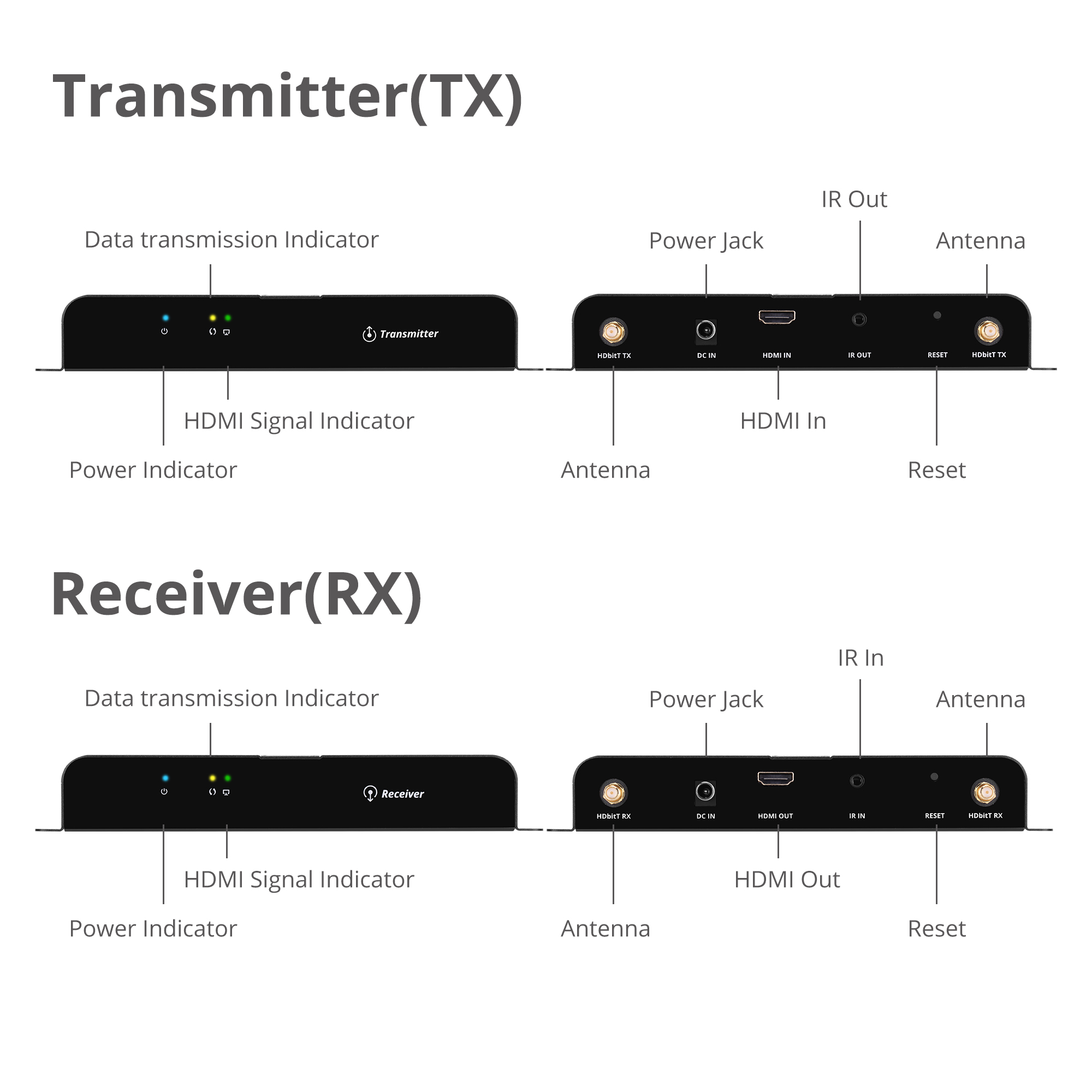

Product:
■ Transmitting unit (TX):
Dimensions: 8.15" (W) x 1.22" (H) x 3.86" (D)
Weight: 1.36 lbs
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 3.5mm jack, IR Blaster
2x Antenna
1x Power jack
1x Reset button
■ Receiver unit (RX):
Dimensions: 8.15" (W) x 1.22" (H) x 3.86" (D)
Weight: 1.37 lbs
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Receiver
2x Antenna
1x Power jack
1x Reset button
Power adapter:
■ Input: 100-240V / 50-60Hz
■ Output: DC 5V/3.1A
■ UL Listed: E335801 / Class VI
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 0% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 year limited
Country of origin: China
