- AcePro-CE67-1
- AcePro HDMI 2.0 4K 60Hz Over Cat6 Extender with IR - Receiver
■ Receives HDMI A/V signals from a transmitter unit up to 120M (396ft) away through a single Cat6 cable. Note: Requires HDMI 2.0 4K 60Hx HDbitT Over Cat6 Extender with IR -120m kit (part #AcePro-CE66-1) sold separately ■ Delivers crystal clear picture quality with resolution up to 4Kx2K @60Hz ■ Features 1-to-1 connection or 1-to-many connection through unmanaged Gigabit network routers or switches ■ Supports HDMI 2.0 and HDCP 2.2 specifications, and backwards compatible with earlier versions ■ IR extension allow you to remotely control the HDMI source device at the remote display side ■ High quality metal housing with ventilation panels provide efficient heat dissipation for system stability during long hours of operation ■ Premium design with wall mount support easily adapts into versatile application environment for different installation requirements
Highlights
Receives HDMI A/V signals from a transmitter unit up to 120M (396ft) away through a single Cat6 cable.
Note: Requires HDMI 2.0 4K 60Hx HDbitT Over Cat6 Extender with IR -120m kit (part # AcePro-CE66-1) sold separately

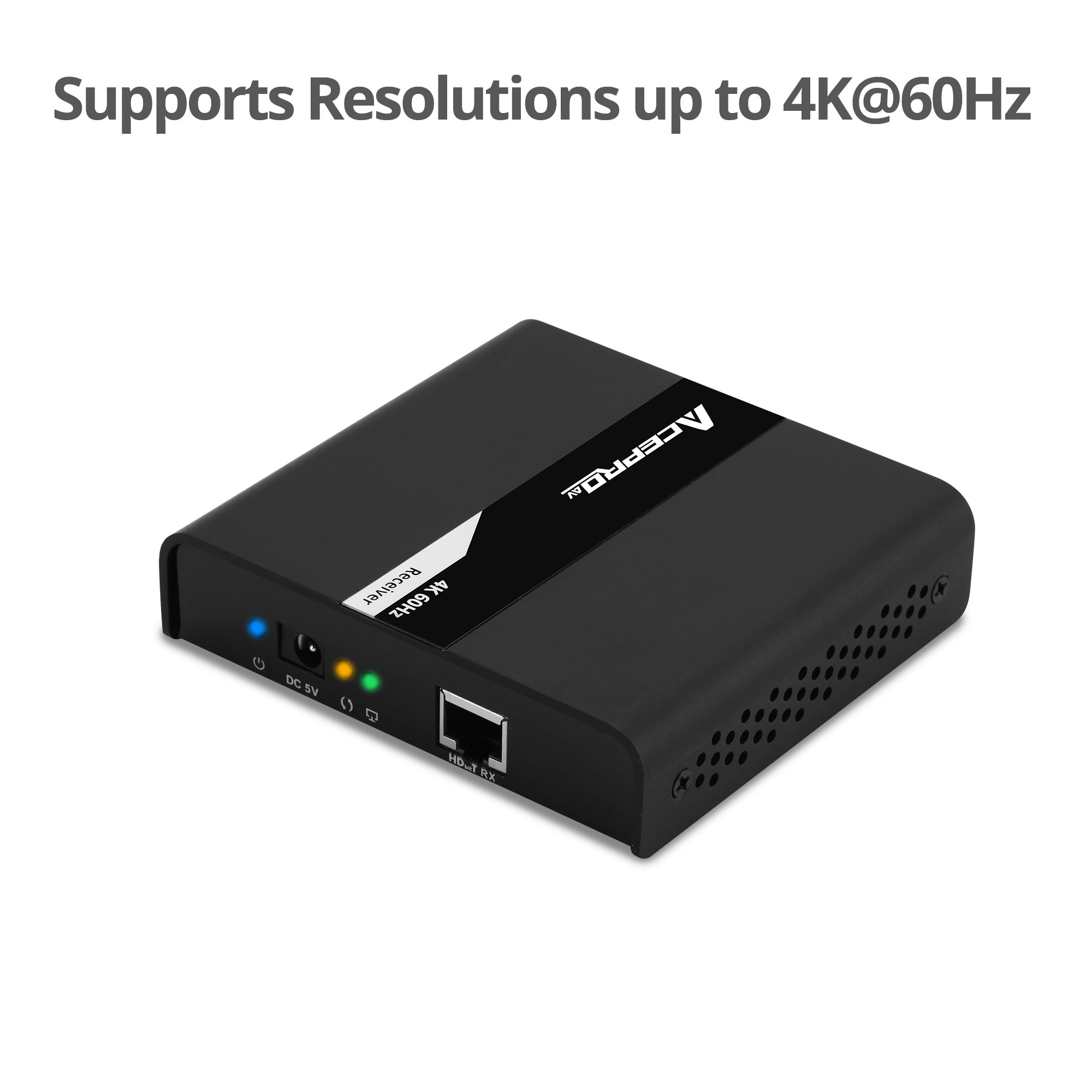

Delivers crystal clear picture quality
with resolution up to 4Kx2K @60Hz

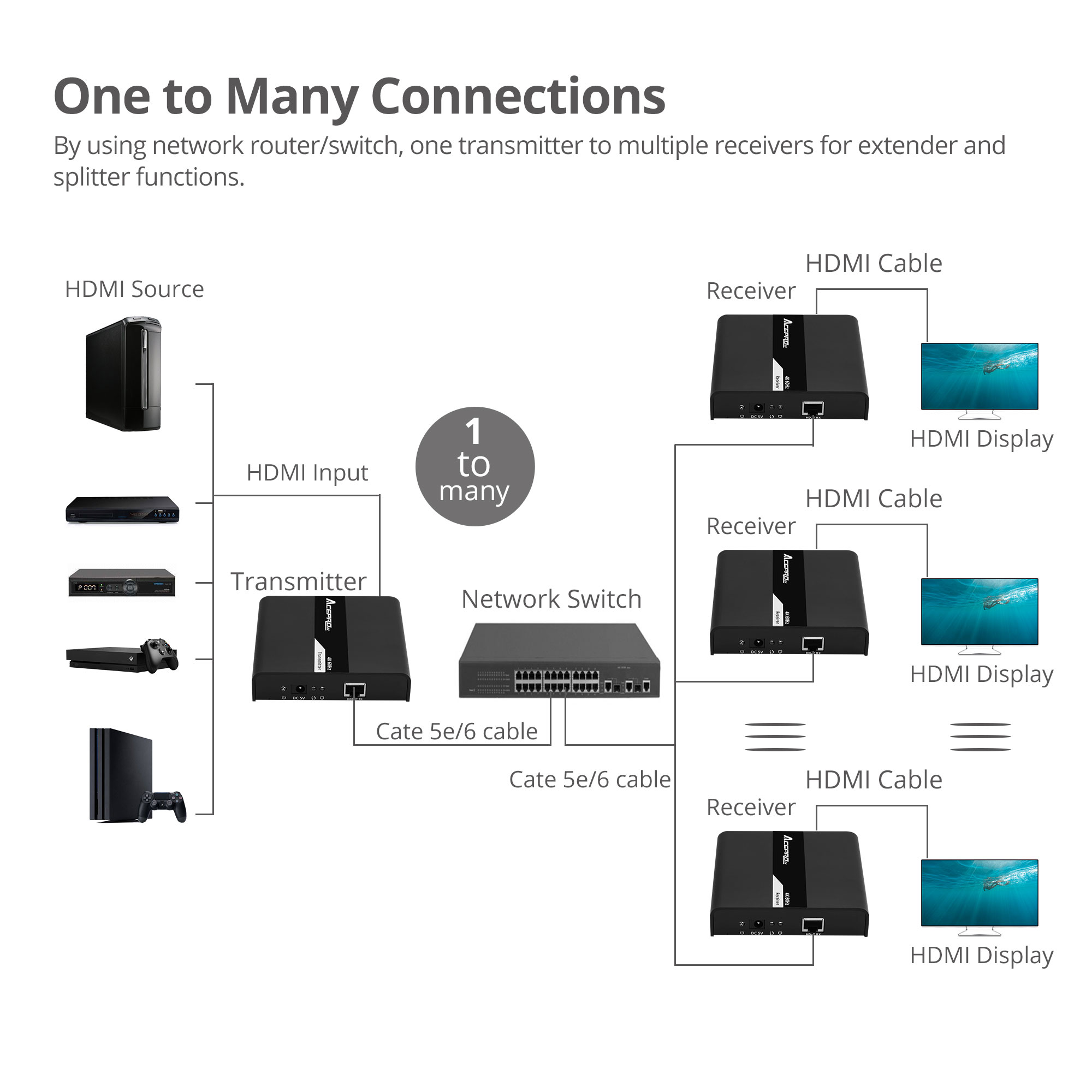

Features 1-to-1 connection or 1-to-many connection
through unmanaged Gigabit network routers or switches
Supports HDMI 2.0 and HDCP 2.2 specifications
and backwards compatible with earlier versions
IR extension
allow you to remotely control the HDMI source device at the remote display side

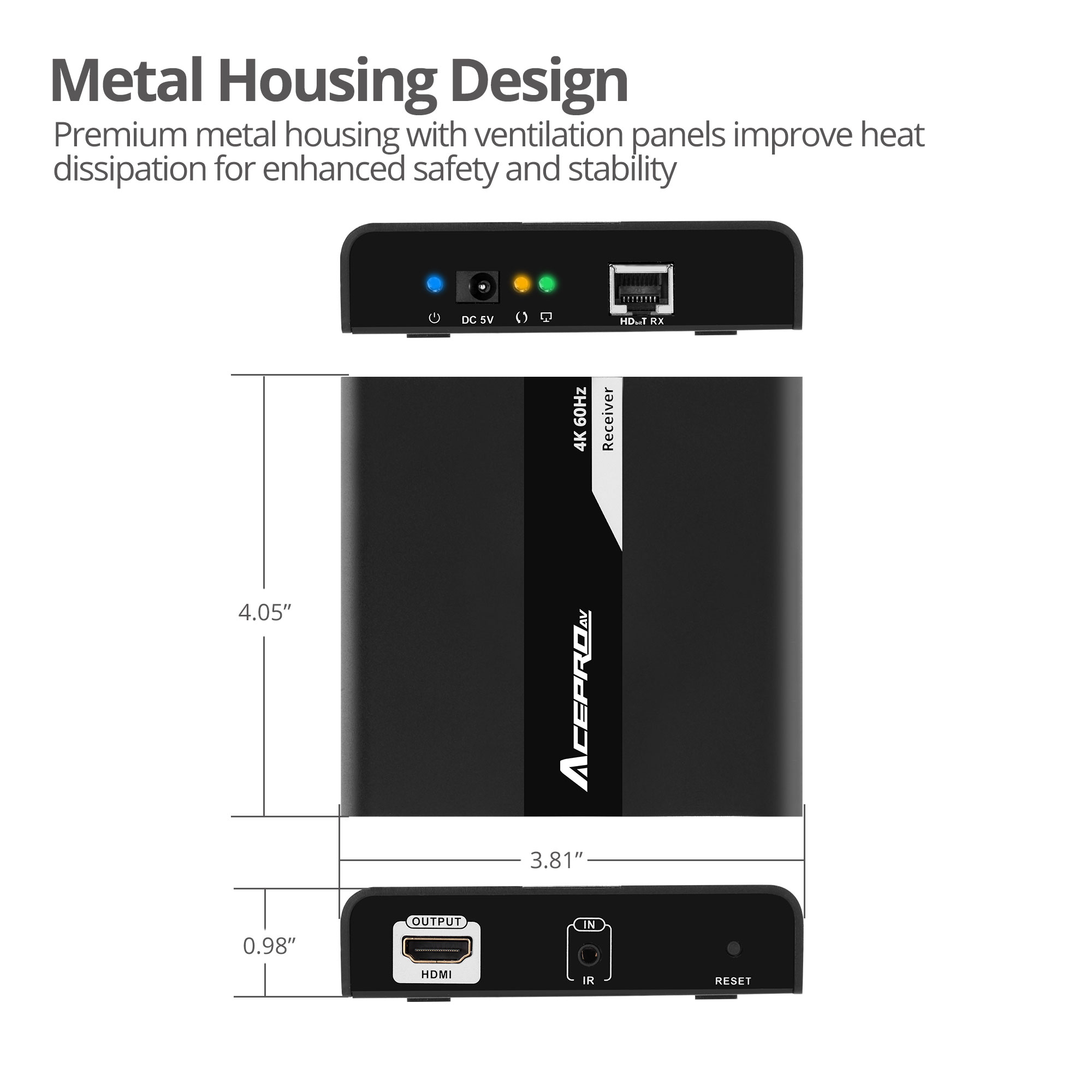

High quality metal housing
with ventilation panels provide efficient heat dissipation for system stability during long hours of operation
Premium design
with wall mount support easily adapts into versatile application environment for different installation requirements
Specification
Transport protocol: HDbitT
Compliant with HDMI 2.0 and HDCP 2.2
Supported connections: Works with HDMI 2.0 4K 60Hx HDbitT Over CAT6 Extender with IR-120m kit (part# AcePro-CE66-1), sold separately
■ 1-to-1 connection: up to 120m
■ 1-to-many connection (through dedicated Gigabit switch)
Note: Router connection (dedicated network router / repeater), realize unlimited extension
Supports audio: L/R stereo audio
Supports IR passback with 20KHz to 60KHz frequancy
Supports HDMI input resolution: 480i / 480p / 576p / 720p / 1080i / 1080p@50/60Hz / 4Kx2K @24/25/30/60Hz
Supports HDMI output resolution: 1080p @60, 4Kx2K @30/60Hz
Transmission distance:
■ Cat5: up to 80m
■ Cat5e: up to 100m
■ Cat6: up to 120m
HDMI cable length: 5m (Input) / 5m (Output)
Housing material: Aluminum
Receiving unit (RX):
■ Dimensions: 4.06"(W) x 1.10"(H) x 3.82"(D)
■ Weight: 0.56 lbs

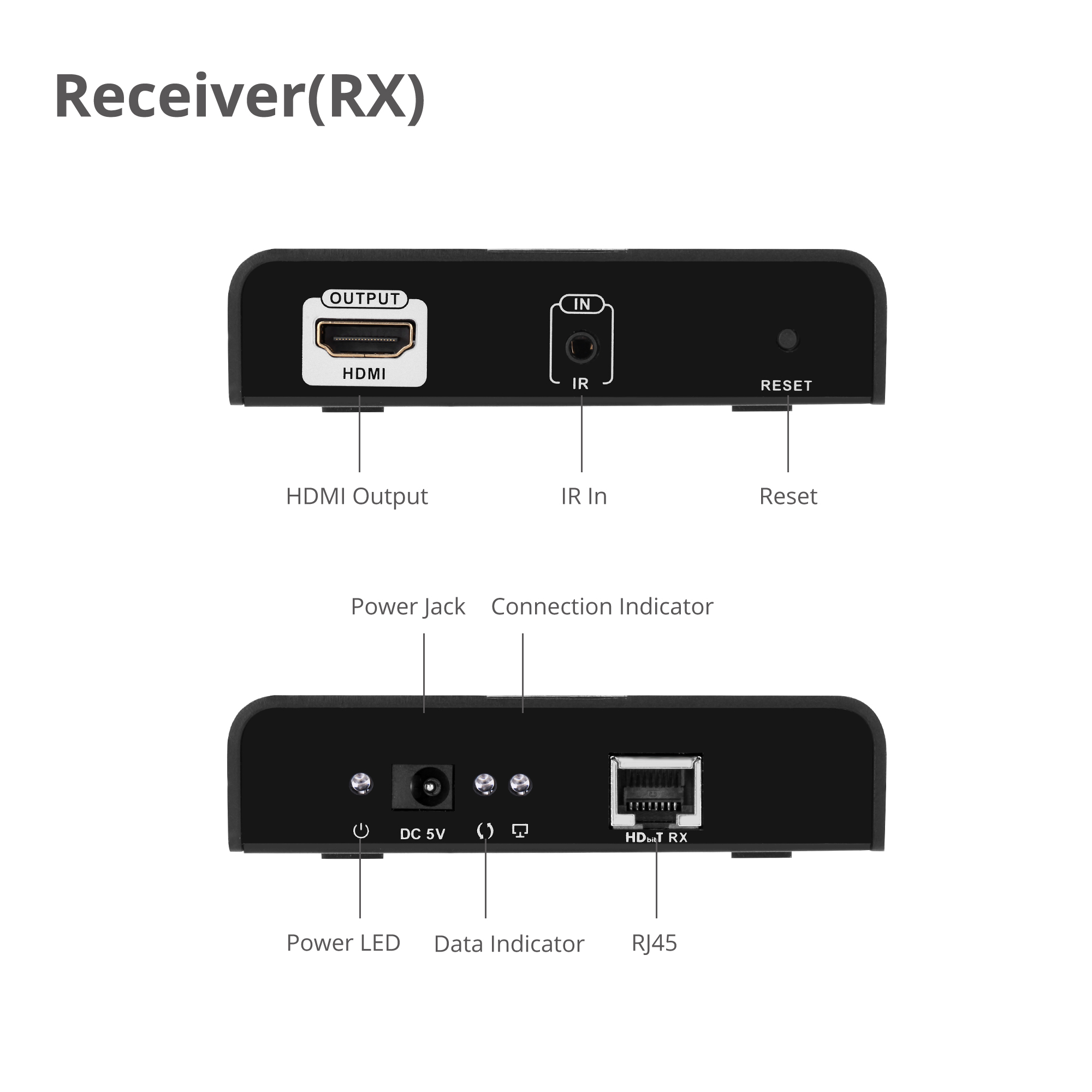

Connectors:
■ 1x 19-pin HDMI, Type A, Female, Output
■ 1x 3.5mm jack, IR Receiver
■ 1x 8-pin, RJ45, HDbitT signal, Input
■ 3x LED indicator (Power/Data/Connection)
■ 1x Reset button
■ 1x Power jack
Power adapter:
■ Input: 100-240V / 50-60Hz
■ Output: DC 5V/3A
■ UL listed: E335801 / Level: VI
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: % to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 year limited
Country of origin: China
