• AcePro-CE69-1
  • AcerPro 4x4 HDMI Matrix + video-wall processor

■ Allows any of the 4 HDMI sources to be displayed on any of the 4 HDMI displays and the advanced video wall processor offers flexible array windowing capabilities
■ Use as a conventional matrix switch, routing up to 4 different HDMI video sources to any monitor independently
■ Work as combo matrix, showing an individual input source in full-screen on one display while the other displays are working in video wall mode with another input source
■ The video wall processor can control by RS232, push button, Ethernet control
■ High quality metal housing with ventilation panels provides excellent heat dissipation, keeps the unit cooler, for system stability during long hours of operation
■ Premium design easily integrates into versatile application environments, mounting brackets included for various installation requirements

  • $0 $0

Highlights

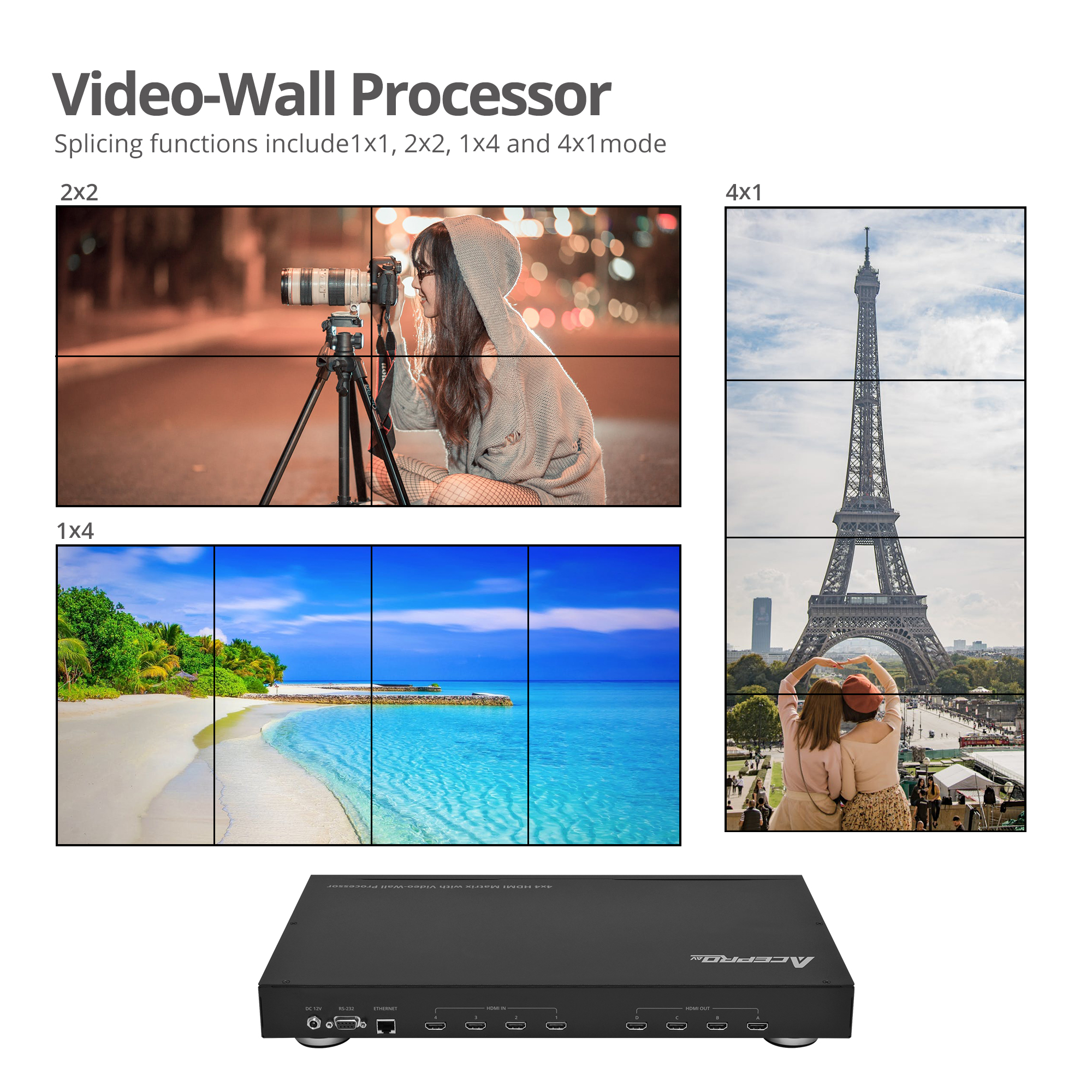

Flexible Array Windowing Capabilities
Allows any of the 4 HDMI sources to be displayed on any of the 4 HDMI displays and the advanced video wall processor offers flexible array windowing capabilities

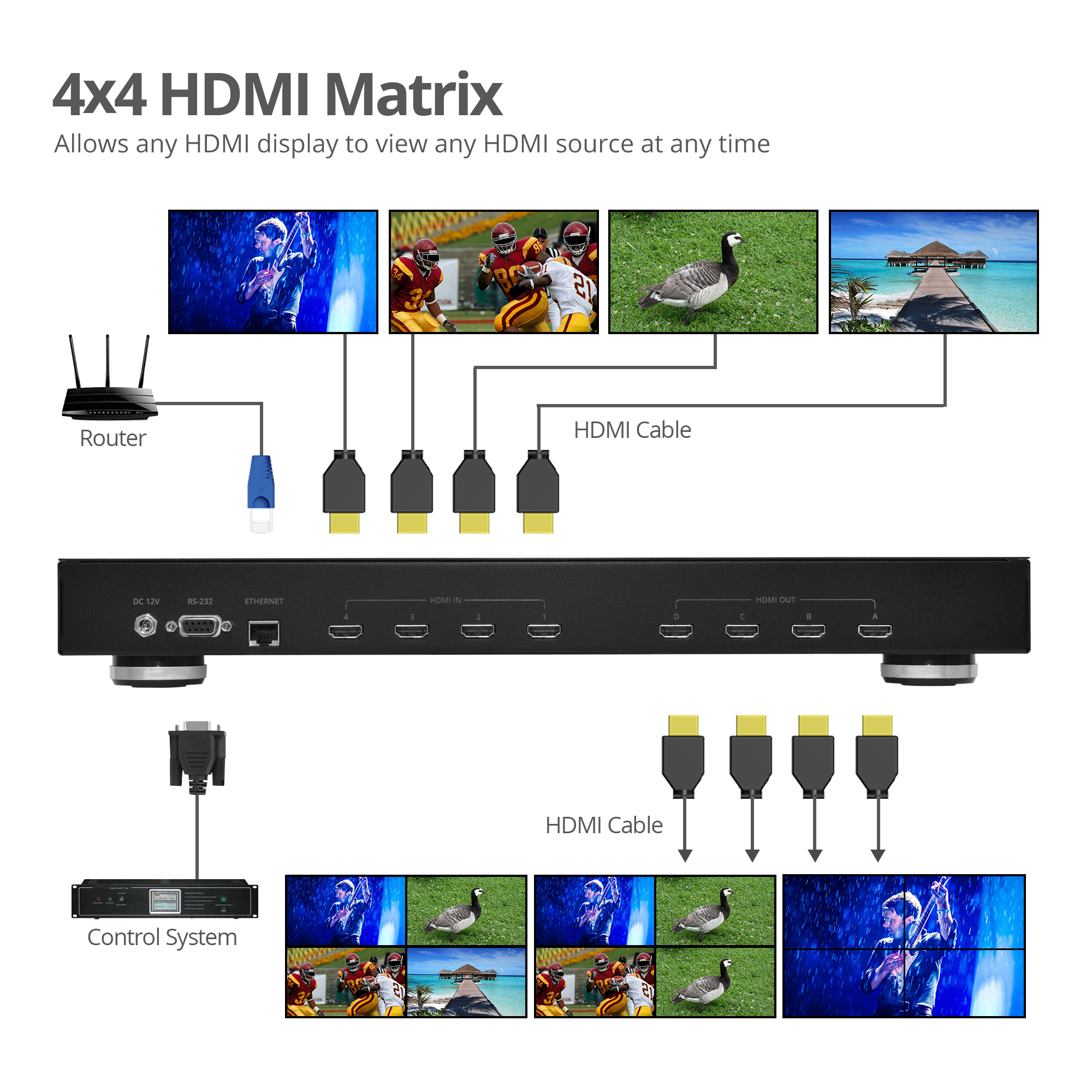

Matrix Switch
Use as a conventional matrix switch, routing up to 4 different HDMI video sources to any monitor independently

Combo Matrix
Work as combo matrix, showing an individual input source in full-screen on one display while the other displays are working in video wall mode with another input source

Control By RS232, Push Button, Ethernet Control
The video wall processor can control by RS232, push button, Ethernet control

High Quality Metal Housing
High quality metal housing with ventilation panels provides excellent heat dissipation, keeps the unit cooler, for system stability during long hours of operation

Premium Design
Premium design easily integrates into versatile application environments, mounting brackets included for various installation requirements

Specification

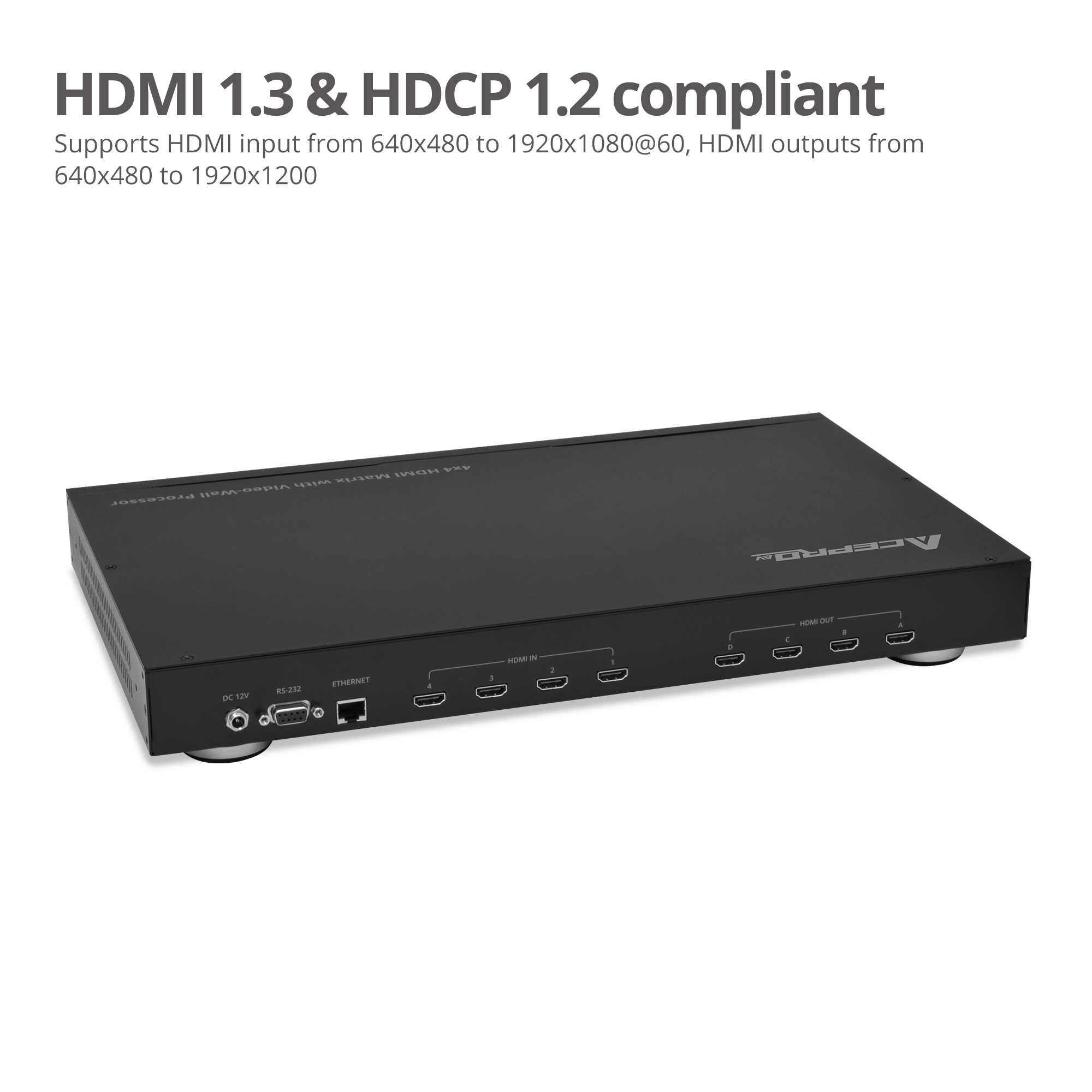

Compliant with HDMI 1.3 and HDCP 1.2a specification



Output resolutions: 480i / 480p / 720p 1080i /1920x1080@60 / 1920x1200@60 30-bit color



User-selectable output settings, up to 1920x1200



Supports HDMI input 640x480 to 920x1080@60, interlaced or progressive



Supports resize, position, zoom for each HDMI output



Each HDMI output has an independent controllable display area



Image parameters and layouts are automatically saved in flash memory to be recalled for later use



Firmware is flash upgradable allowing for new features and technological enhancements



Supports individual propagation delay on each display to deliver the best visual experience



ESD protection: ±15kV Air / ±8kV Contact



Power consumption: 15W



Product:
Dimensions: 17.30" (L) x 1.70" (H) x 10.10" (W)
Weight: 6.2 lbs
■ Colort: Black
■ Housing: Metal
Connectors:
■ 4x 19-pin HDMI, Type A, Female, Input
■ 4x 19-pin HDMI, Type A, Female, Loop-out
7x Push Button, Control
1x Push button, input select
1x 9-pin D-Sub RS232, control port
1x 8-pin RJ45, Ethernet control port





Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 12V/5A
UL listed: E163743 / Level: VI



Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20% to 90% RH (non-condensing)



TAA Compliant



Certifications/Standards: FCC, CE, RoHS



Warranty: 3 year limited



Country of origin: Taiwan
