- AcePro-CE72-1
- AcePro HDMI 2.0 4K HDR with Audio Extractor & ARC
■ Identifies and separates high quality audio track from an incoming HDMI signal and sends it to a 3.5mm stereo jack and Toslink S/PDIF port, allowing you to connect to speakers, AV receivers and entertainment systems that lack an HDMI connection ■ Works with multi-channel HDMI embedded audio ■ Supports PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1 audio ■ Supports audio extraction via stereo and Toslink ■ Supported Optical Audio Formats: PCM 2-CH and Dolby 5.1 ■ Supports ARC audio extraction via Toslink connection ■ Wall-mountable metal housing allows easy installation in any environment and provides better RF shielding and heat dissipation for dependable performance and long life ■ Plug and Play Installation - No driver or software installation required
Highlights
Separates High Quality Audio Signal
Identifies and separates high quality audio track from an incoming HDMI signal and sends it to a 3.5mm stereo jack and Toslink S/PDIF port, allowing you to connect to speakers, AV receivers and entertainment systems that lack an HDMI connection
Supports Mult-channel HDMI Audio
Works with multi-channel HDMI embedded audio

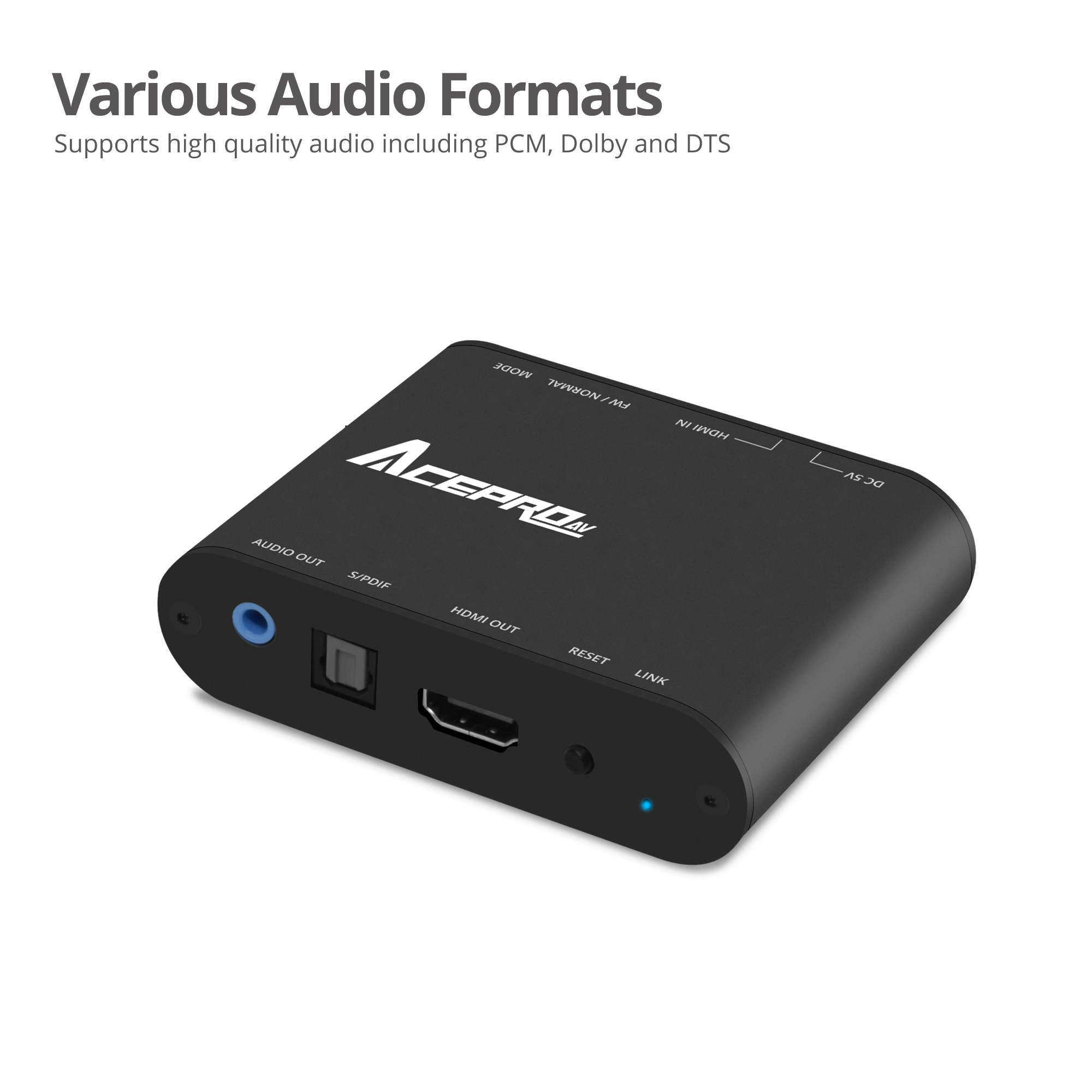

Supports PCM, DOLBY & DTS Audio
Supports PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1 audio

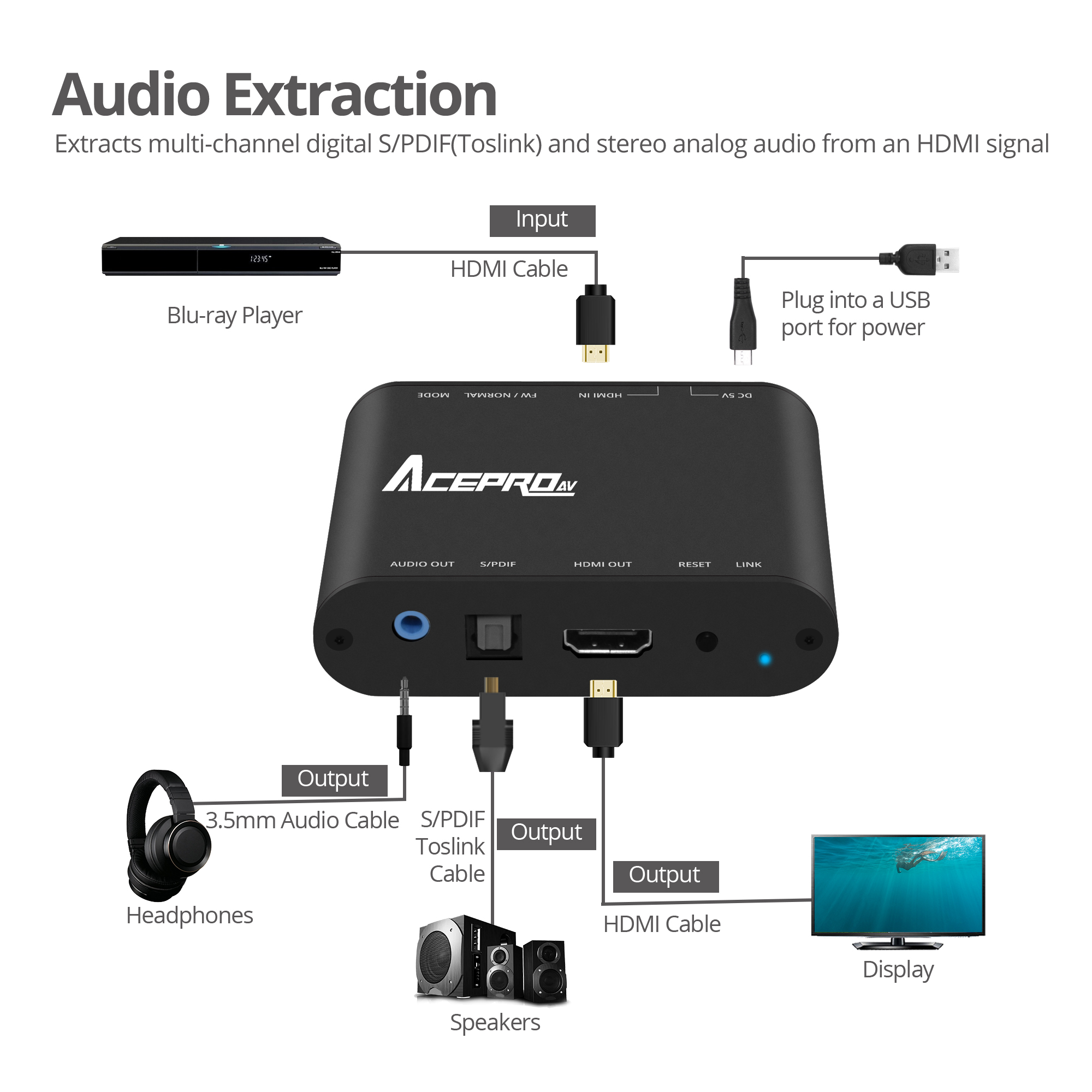

Supports Audio Extraction
Supports audio extraction via stereo and Toslink
Support Optical Audio Formats
Supported Optical Audio Formats: PCM 2-CH and Dolby 5.1

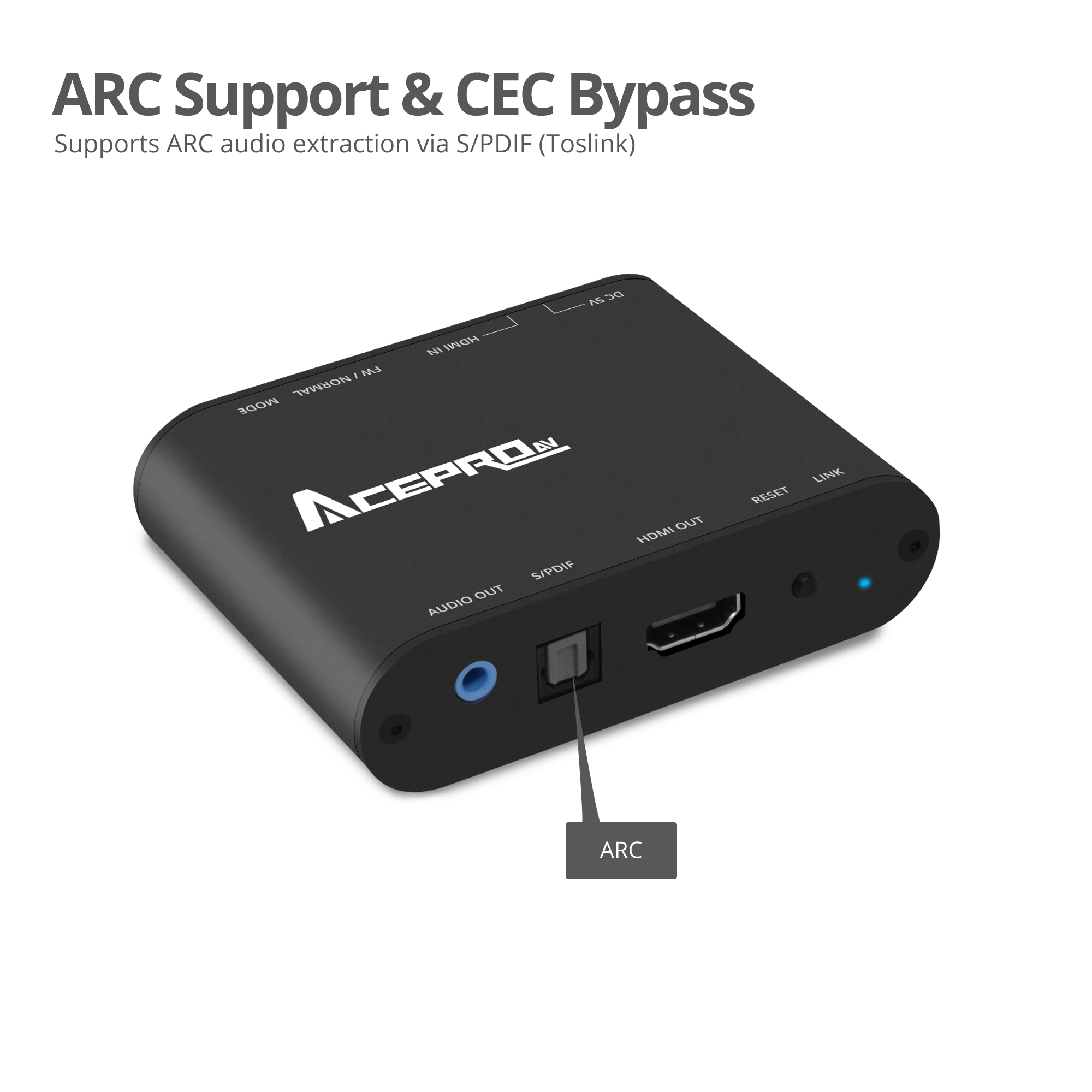

Supports ARC Audio Extraction
Supports ARC audio extraction via Toslink connection
Wall-mountable Metal Housing
Wall-mountable metal housing allows easy installation in any environment and provides better RF shielding and heat dissipation for dependable performance and long life
Plug & Play
Plug and Play Installation - No driver or software installation required
Specification
Compliant with HDMI 2.0a specification
Support HDCP 2.2, HDR and CEC bypass
Supports 4Kx2K@60 YUV 4:4:4 8bits and 4K HDR YUV 4:2:0 10bit
Video bandwidth up to 18Gbps (600MHz per channel)
Resolution: 480p / 720p / 1080i / 1080p / 4Kx2K @60Hz
Supports audio extraction via 3.5mm stereo jack and Toslink optical
Supports ARC audio extraction via Toslink
Supports audio format:
■ HDMI: PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1
■ Optical audio format: PCM 2, Dolby 5.1
Supports audio embedded via stereo and S/PDIF (Toslink)
ESD protection: ±15kV Air & ±8kV Contact
Metal housing with wall mount design
Power consumption: up to 3 watts
Product:
■ Dimensions: 3.54" (L) x 0.94" (H) x 2.56" (W)
■ Weight: 0.49 lbs
■ Color: Black
■ Housing material: Metal, wall mountable

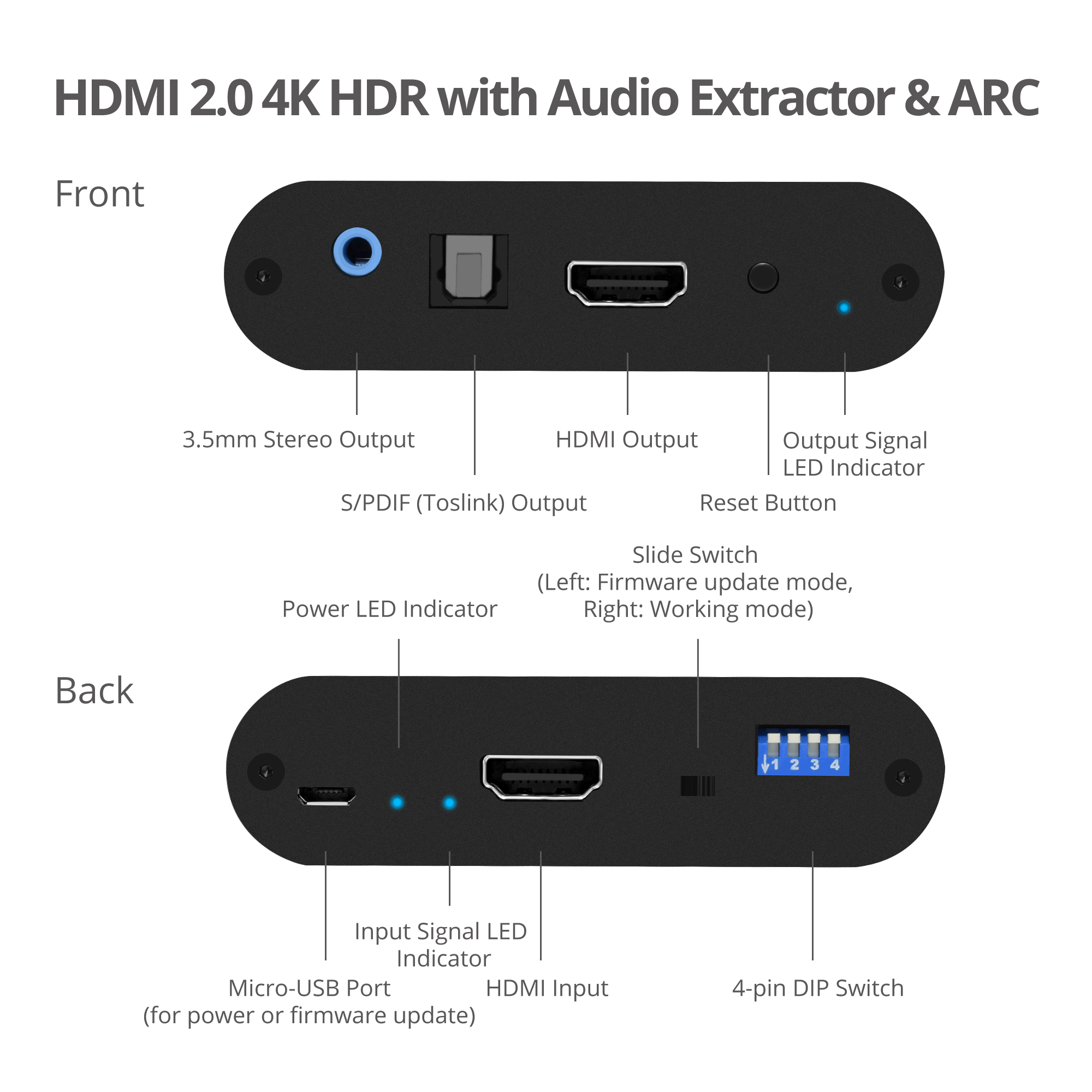

■ Connector:
■ 1x 19-Pin HDMI, Type A, Female, Input
■ 1x 19-Pin HDMI, Type A, Female, Output
■ 1x 5-Pin Micro USB, Power or Firmware update
■ 1x 3.5mm, Stereo audio, Input
■ 1x S/PDIF, Toslink audio, Input
■ 1x 4-Pin Mode Switch
■ 1x Slider switch, Firmware update / Working mode
■ 1x Push button, factory reset
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: 20% to 90% RH (non-condensing)
TAA Compliant
Certifications/Standards: FCC, CE, RoHS
Warranty: 3 years limited
Country of origin: Taiwan
