- AcePro-CE77-1

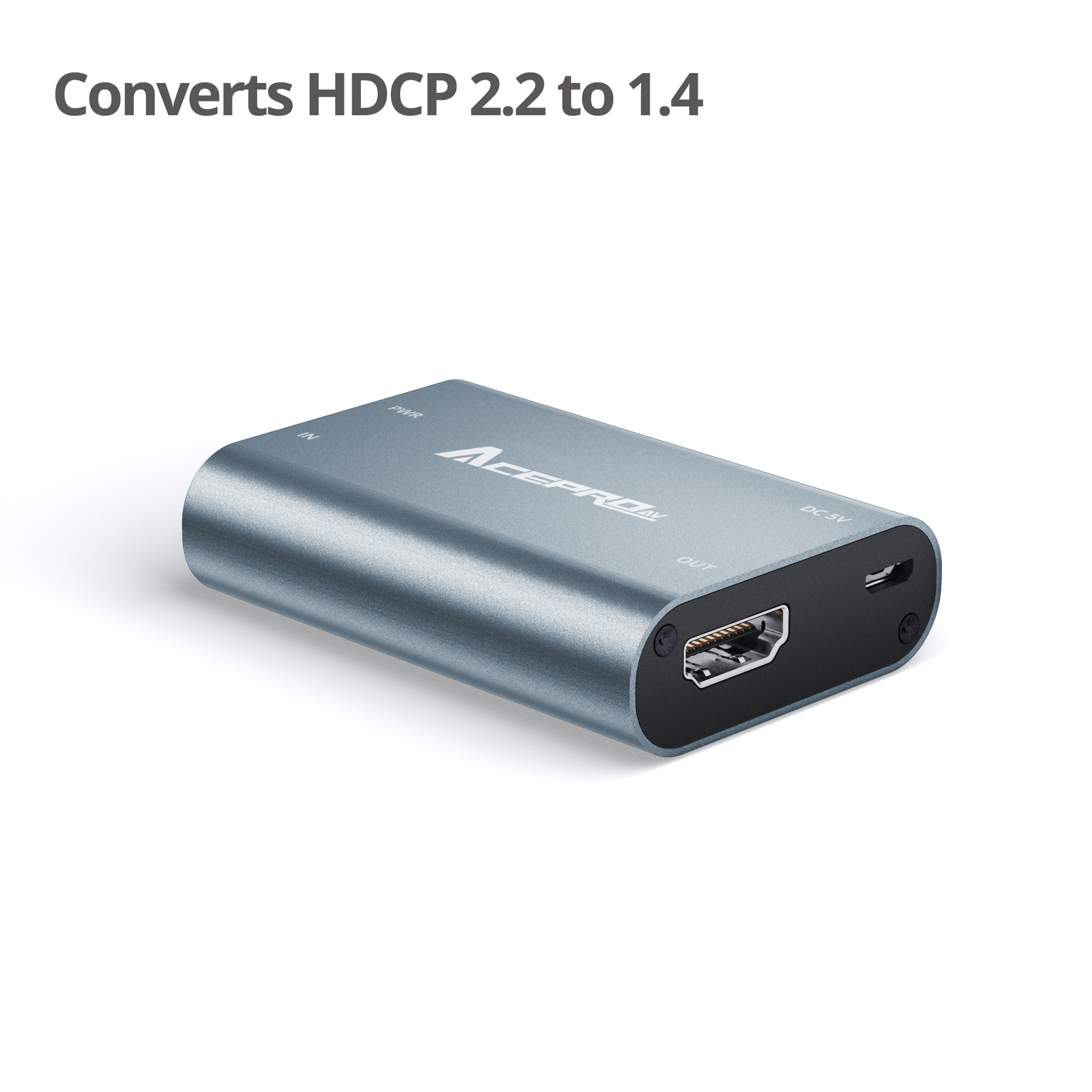

- AcePro HDCP Converter

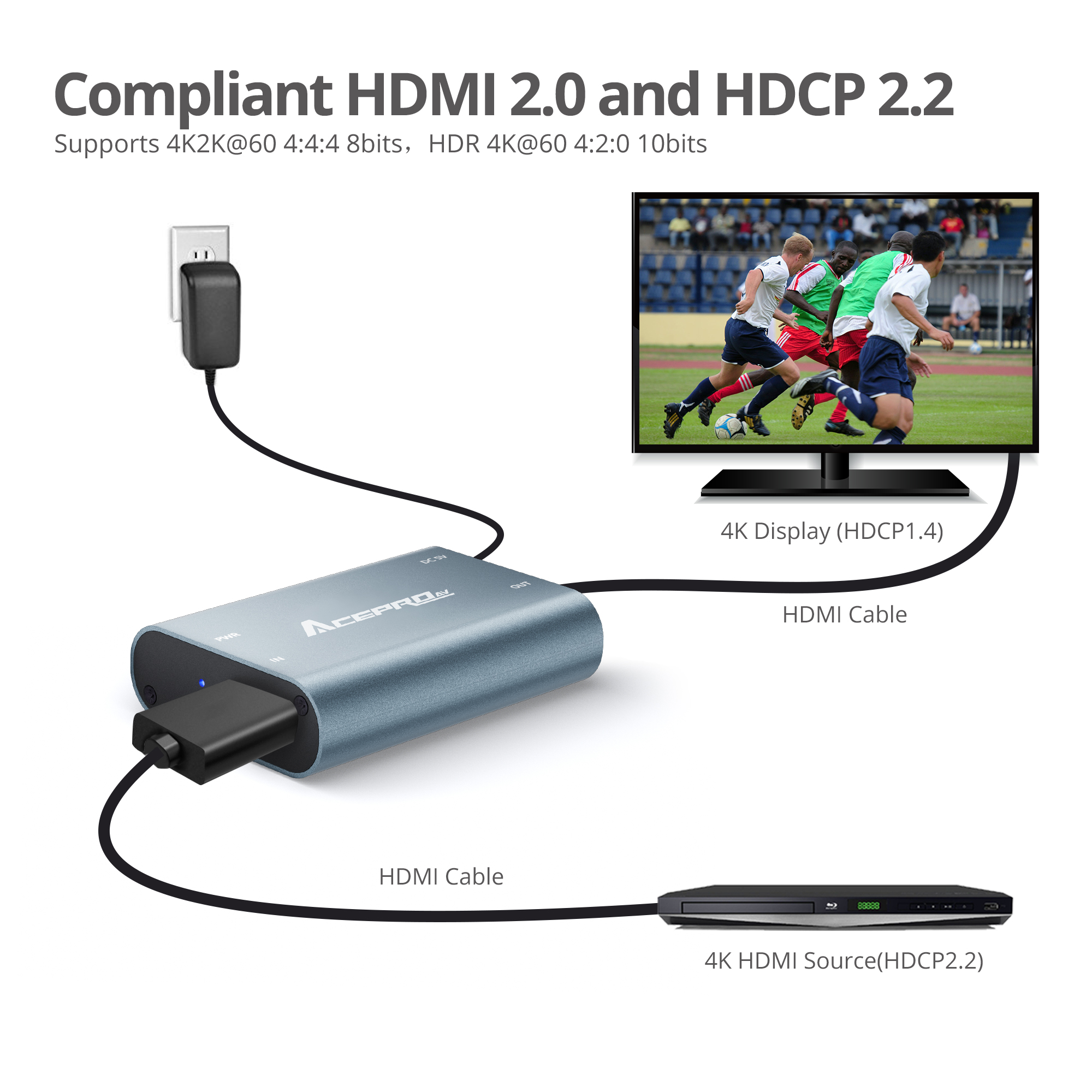

■ Allows you to play the latest 4K HDCP 2.2 content on 4K HDCP 1.4 displays. A great tool for mixing new source devices with older 4K displays ■ Acts as a repeater to extend HDMI transmission distance up to 20 meters (10m input / 10m output) ■ Supports 4K High Dynamic Range (HDR) and CEC Pass-Through ■ Aluminum housing provides durability and efficient heat dissipation for long life and dependable performance NOTE-1: For the PS4 Pro: Disable HDR video and choose 4K@30Hz resolution NOTE-2: This converter only converts HDCP 2.2 to HDCP 1.4, it will not upscale or downscale resolutions
Highlights
Allows you to play the latest 4K HDCP 2.2 content on 4K HDCP 1.4 displays.
A great tool for mixing new source devices with older 4K displays
Acts as a repeater to extend HDMI transmission distance up to 20 meters (10m input / 10m output)
Supports 4K High Dynamic Range (HDR) and CEC Pass-Through
Aluminum housing provides durability and efficient heat dissipation for long life and dependable performance
NOTE-1:For the PS4 Pro: Disable HDR video and choose 4K@30Hz resolution
NOTE-2: This converter only converts HDCP 2.2 to HDCP 1.4, it will not upscale or downscale resolutions
Specification
Compliant with HDMI 2.0 specification
Resolution:up to 4K @60Hz
Bandwidth: Up to 18Gbps
Transmission distance: up to 20 meters (10m input / 10m output) 24AWG HDMI 2.0 cable
Supports video format:480i / 576i / 480p / 576p / 720p / 1080i /1080p / 4Kx2K 60Hz
Supports 4K @60Hz and Deep Color
Supports DTS-HD Master Audio, Dolby TrueHD, and LPCM audio formats
Product:

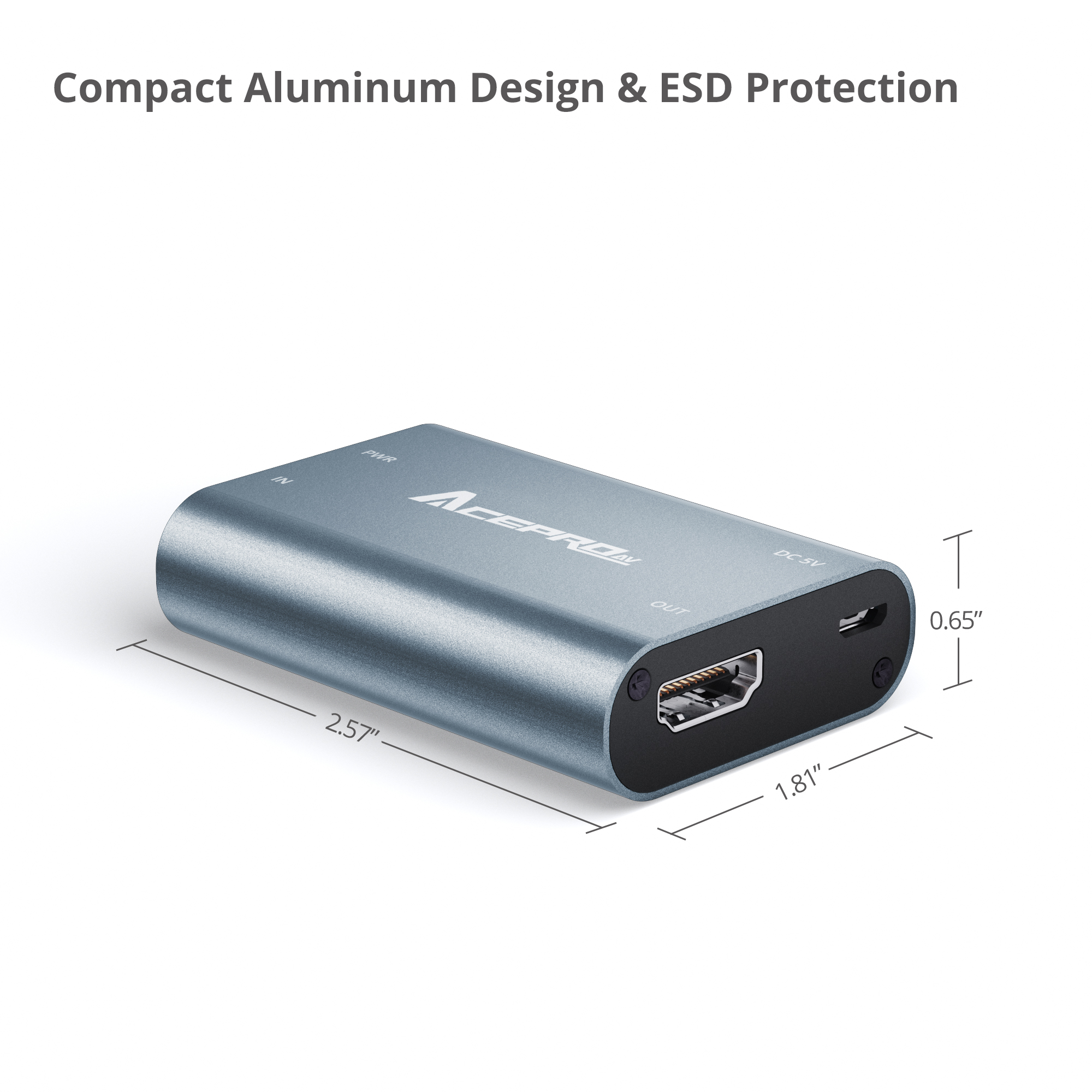

■ Dimensions: 1.81" (W) x 0.58" (H) x 2.57" (L)
■ Weight: 0.12 lbs
■ Color: Gray
■ Housing material: Aluminum

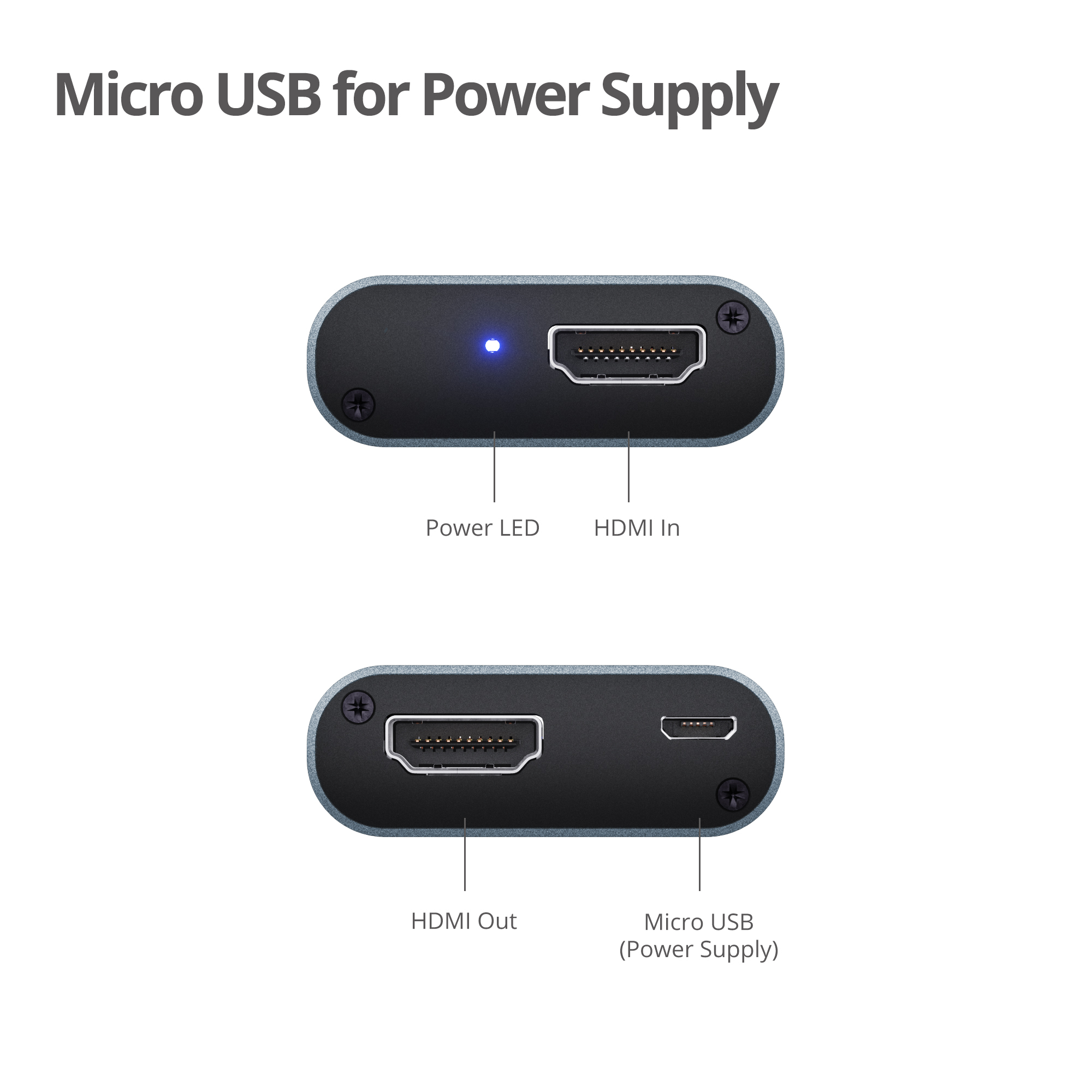

Connectors:
■ 1x 19-pin, HDMI, Type-A, Female, Input
■ 1x 19-pin, HDMI, Type-A, Female, Output
■ 1x 5-pin, Micro USB, Female, USB Power-in
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 140 degrees F
■ Relative humidity: 5 to 90% RH (non-condensing)
TAA compliant
Certifications/Standards: FCC, CE, RoHS
Warranty:1 year limited
Country of origin:Taiwan
