- AcePro-CE84-1
- AcePro HDMI HDbitT Over Cat6 Extender with IR - Receiver
■ Receives HDMI signals up to 394ft (120m) over economical Cat6 cabling ■ Delivers Full HD video content up to 1080p@60Hz resolution ■ Features direct 1-to-1 connection or 1-to-multiple connection through unmanaged Gigabit network routers or switches, With HDBitT® transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. Note: 1-to-multiple connection requires HDMI Extender over CAT6 with IR - 120m, part # CE-H23T11-S1, sold separately ■ IR remote control allows to remotely control the HDMI source device from the remote display side ■ High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation ■ Built-in power led indicator provides easy power status monitoring ■ Plug-n-Play installation, no software installation required
Highlights
Receives HDMI signals up to 394ft (120m) over economical Cat6 cabling
Delivers Full HD video content up to1080p@60Hz resolution
Features direct 1-to-1 connection or 1-to-multiple connection through unmanaged Gigabit network routers or switches
With HDBitT® transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. Note: 1-to-multiple connection requires HDMI Extender over CAT6 with IR - 120m, part # CE-H23T11-S1, sold separately
IR remote control
allows to remotely control the HDMI source device from the remote display side

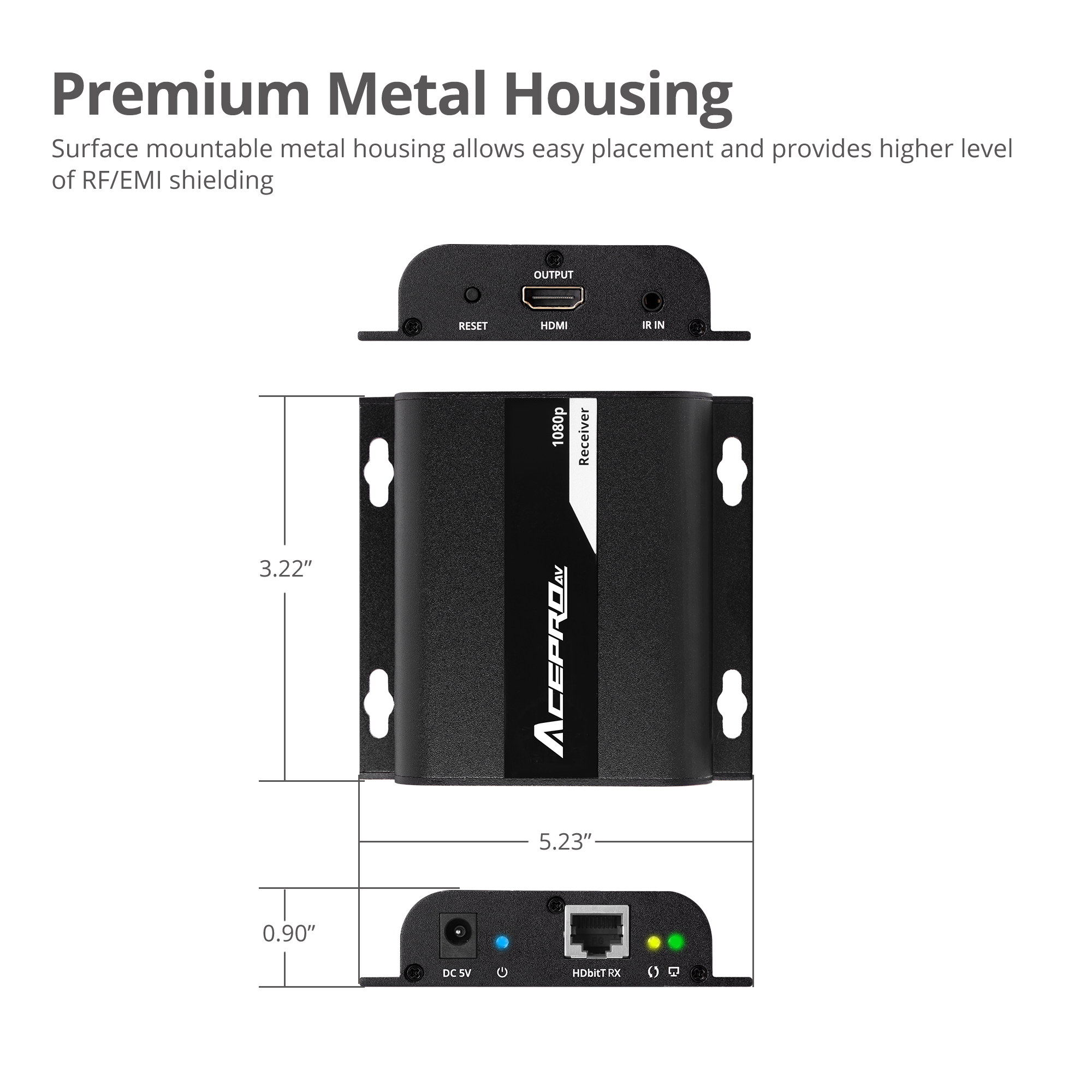

High quality durable metal housing
with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
Built-in power led indicator provides easy power status monitoring
Plug-n-Play installation
no software installation required
Specification

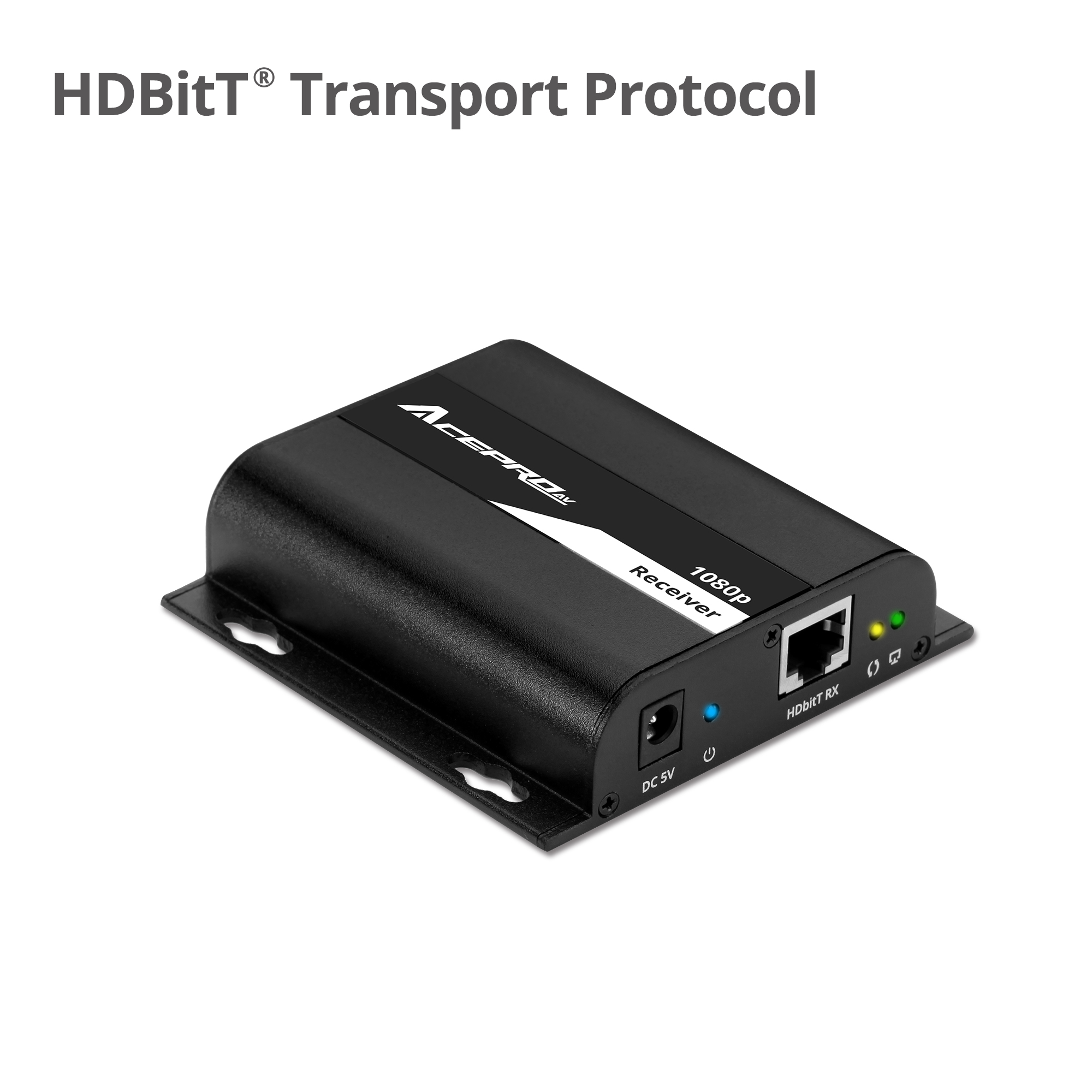

Transport protocol: HDbitT
Compliant with HDMI 1.3 and HDCP 1.2
Supported connections:
1-to-1 connection:
■ up to 120m signal extension

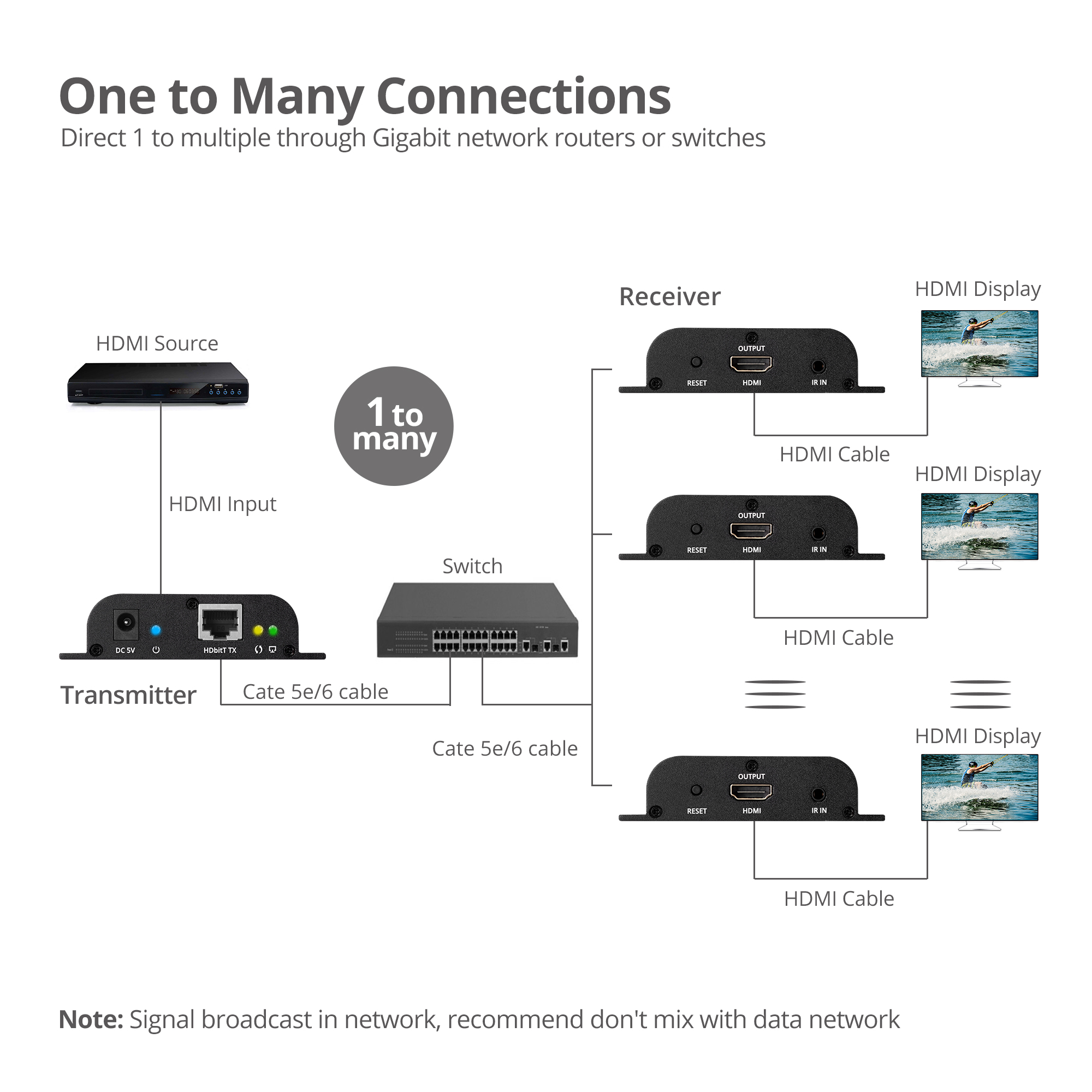

1-to-many connection (splitter):
■ Display mode: Mirror
■ Requires HDMI Over Cat6 Extender with IR - 120m, part # CE-H23T11-S1, sold separately
■ Requires dedicated Gigabit Ethernet switch
Supports 2-Ch PCM stereo audio
Supports IR passback with 20KHz to 60KHz frequency
Supports full frequency IR signal from 20KHz to 60KHz
Resolution: 480p / 720p / 1080i / 1080p@60Hz
Product:
■ Dimensions: 3.81" (L) x 0.93" (H) x 3.70" (W)
■ Weight: 0.33 lbs
Connectors:
■ 1x 19-pin HDMI, Type A, Female, Output
■ 1x 3.5mm jack, IR Receiver, Input
■ 1x 8-pin, RJ45, HDbitT signal, input
■ 1x Reset button
■ 1x Power jack
Power adapter:
■ Input: 100-240V / 50-60Hz
■ Output: DC 5V/1A
■ UL listed: E335801 / Level: VI
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 year limited
Country of origin: China
