- new | AcePro-CE93-1
- AcePro HDMI 2.0 Video Wall Over IP Multicast System-TX
■ HDMI 2.0a and HDCP 2.2 compliant ■ Supports HDMI input up to 4Kx2K@60Hz YUV 4:4:4 8bit, HDMI output up to 4Kx2K@30Hz ■ Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch ■ Supports 4K signals including High Dynamic Range (HDR)*, PoE, Bi-directional IR path, and Video Wall. *Due to the video compression, some distortion may occur in HDR mode ■ Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture ■ Easy DIP switch matching for multi-casting group configuration ■ Supports full frequency IR signal from 20KHz to 60KHz ■ Full Duplex RS-232 control up to 115,200 bps ■ Supports 180° and 270° clockwise image rotation ■ Designed to work with HDMI 2.0 Over IP Matrix and Video Wall - Receiver, part # CE-H25311-S1 sold separately, and HDMI 2.0 Over IP Matrix and Video Wall - Controller, part # CE-H25411-S1 sold separately
Highlights
HDMI 2.0a and HDCP 2.2 compliant
Supports HDMI input up to 4Kx2K@60Hz YUV 4:4:4 8bit, HDMI output up to 4Kx2K@30Hz
Flexible and scalable video broadcasting
By IGMP Gigabit Ethernet Router/Switch
Supports 4K signals including High Dynamic Range (HDR)*

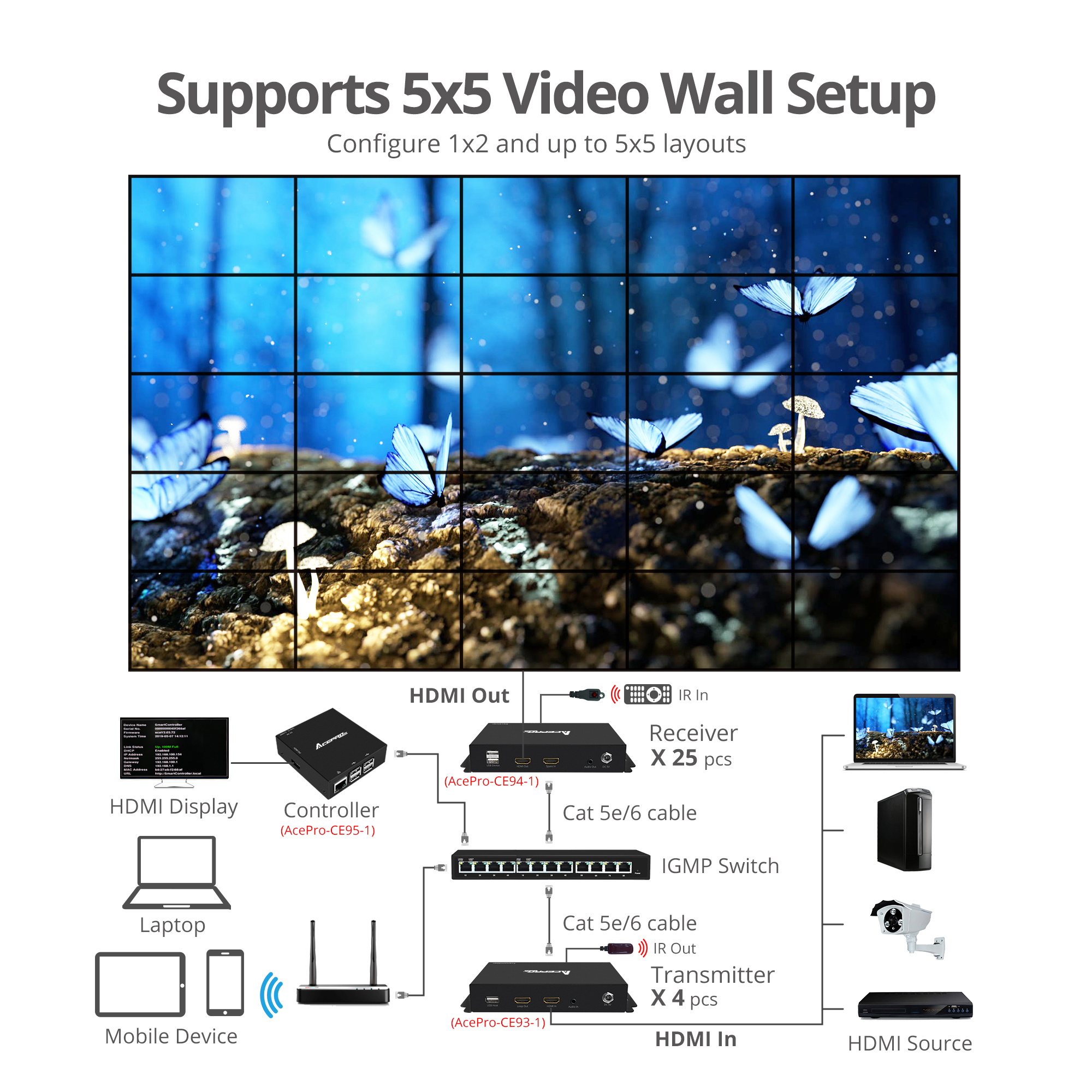

PoE, Bi-directional IR path, and Video Wall. *Due to the video compression, some distortion may occur in HDR mode

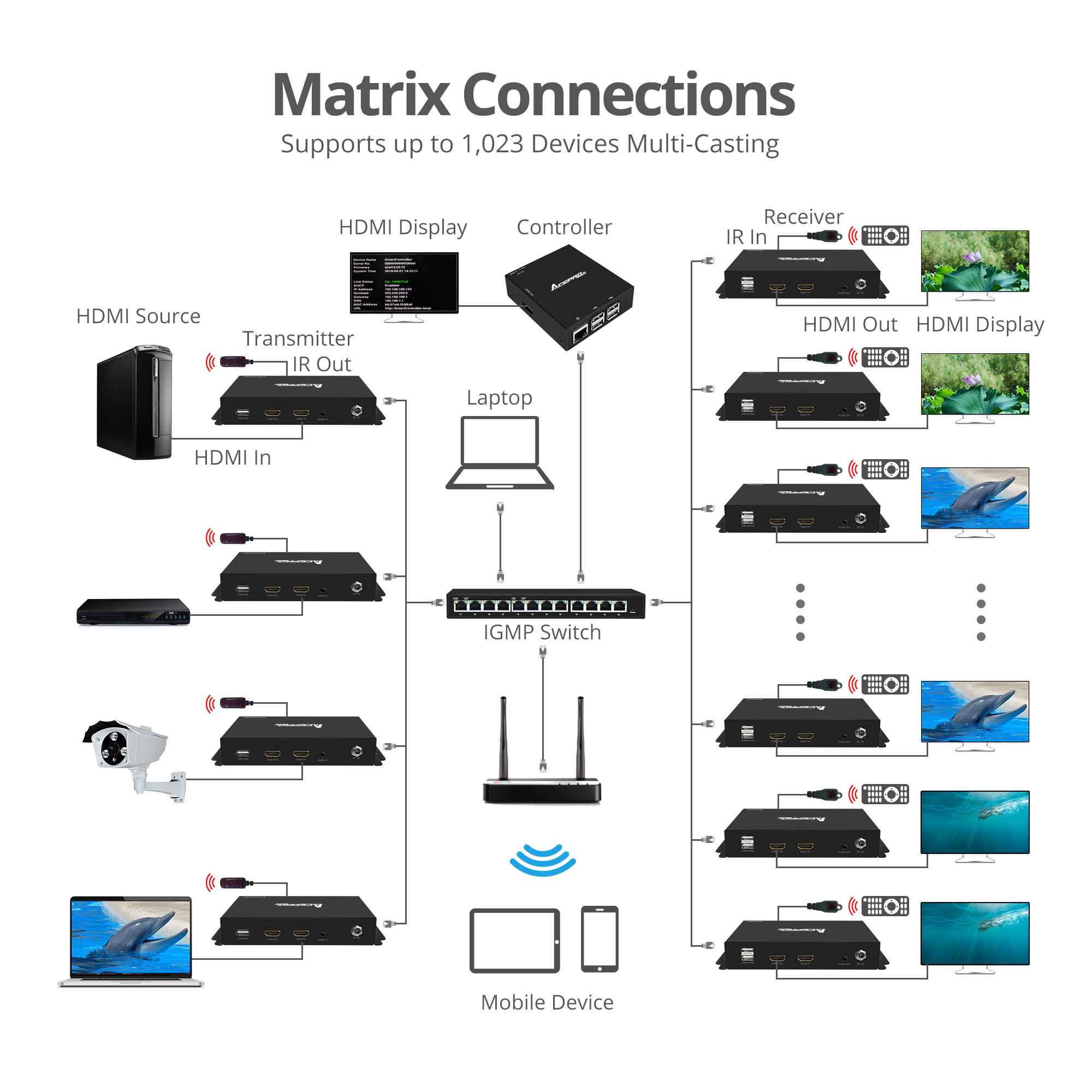

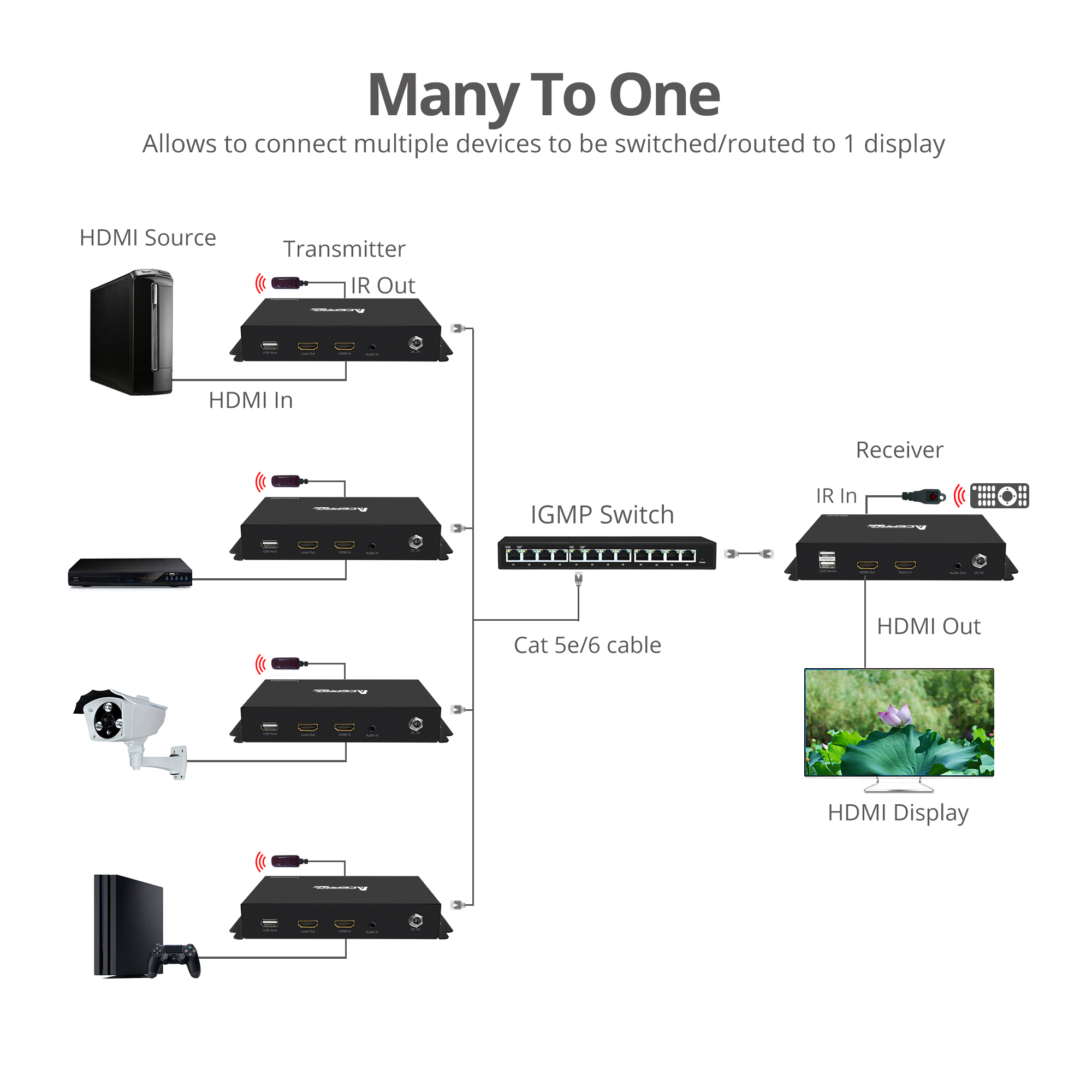

Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture
Easy DIP switch matching
For multi-casting group configuration
Supports full frequency IR signal
From 20KHz to 60KHz
Full Duplex RS-232 control up to 115,200 bps
Supports 180° and 270° clockwise image rotation
Designed to work with HDMI 2.0 Over IP Matrix and Video Wall - Receiver
Part # CE-H25311-S1 sold separately, and HDMI 2.0 Over IP Matrix and Video Wall - Controller, part # CE-H25411-S1 sold separately
Specification
Chipset:Aspeed
Compliance:HDMI 2.0a and HDCP 2.2
Input resolution:Up to 4Kx2K@60 (YUV 4:4:4 8bits)
Output resolution:Up to 4Kx2K@30Hz
Resolution:480p / 720p / 1080i / 1080p / 4K @30Hz
Distance:394ft (Cat5e) @ 4Kx2K @30Hz
Note:The transmission distance will vary depending on cable quality, solid copper using IEEE-T568B wiring standard is recommended
HDMI cable length:Up to 5m (Input & Output)
Supports surround sound (up to 7.1ch) or stereo digital audio
Latency:23ms for 1080p @60Hz
IR frequency:20KHz to 60KHz
ESD protection:Human body model- ±15kV (air-gap) & ±8kV (contact)
Housing material:Metal Housing
Housing color:Black
Product:
■ Dimensions: 7.09" (L) x 1.13" (H) x 4.00" (W)
■ Weight: 1.08 lbs
■ Connectors:
- 1x 19-pin HDMI, Type-A, Female, Input
- 1x 19-pin HDMI, Type-A, Female, Loop-out
- 1x 9-pin RS-232, Female
- 1x 3.5mm jack, Audio, Input
- 1x 3.5mm jack, IR Blaster
- 1x 3.5mm jack, IR Receiver
- 1x 8-pin RJ45, Output
- 1x 4-pin, USB 2.0, Type A, Female
- 1x Power jack
- 1x 6-pin DIP Switch for video channel selection
- 1x DIP Switch for debug/bypass mode
Power adapter:
■ Input: 100-240V / 50-60Hz
■ Output: DC 5V/2A
■ UL Listed: E135856 / Class VI
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: 20% to 90% RH (non-condensing)
TAA compliant
Certifications/Standards:FCC, CE, RoHS
Warranty:1 years limited
Country of origin:Taiwan
Requirements
■ HDMI 2.0 Over IP Matrix and Video Wall - Receiver, part # CE-H25311-S1 sold separately
■ HDMI 2.0 Over IP Matrix and Video Wall - Controller, part # CE-H25411-S1 sold separately
Package Contents
■ HDMI 2.0 Over IP Matrix and Video Wall - Transmitter
■ Power adapter 5V/2A
■ 1x IR blaster cable
■ Screw Kit (2)
■ Insert card
■ User Manual
