• new | AcePro-CE94-1
  • AcePro HDMI 2.0 Video Wall Over IP Multicast System-RX

■ HDMI 2.0a and HDCP 2.2 compliant
■ Supports HDMI input up to [email protected] YUV 4:4:4 8bit, HDMI output up to [email protected]
■ Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch

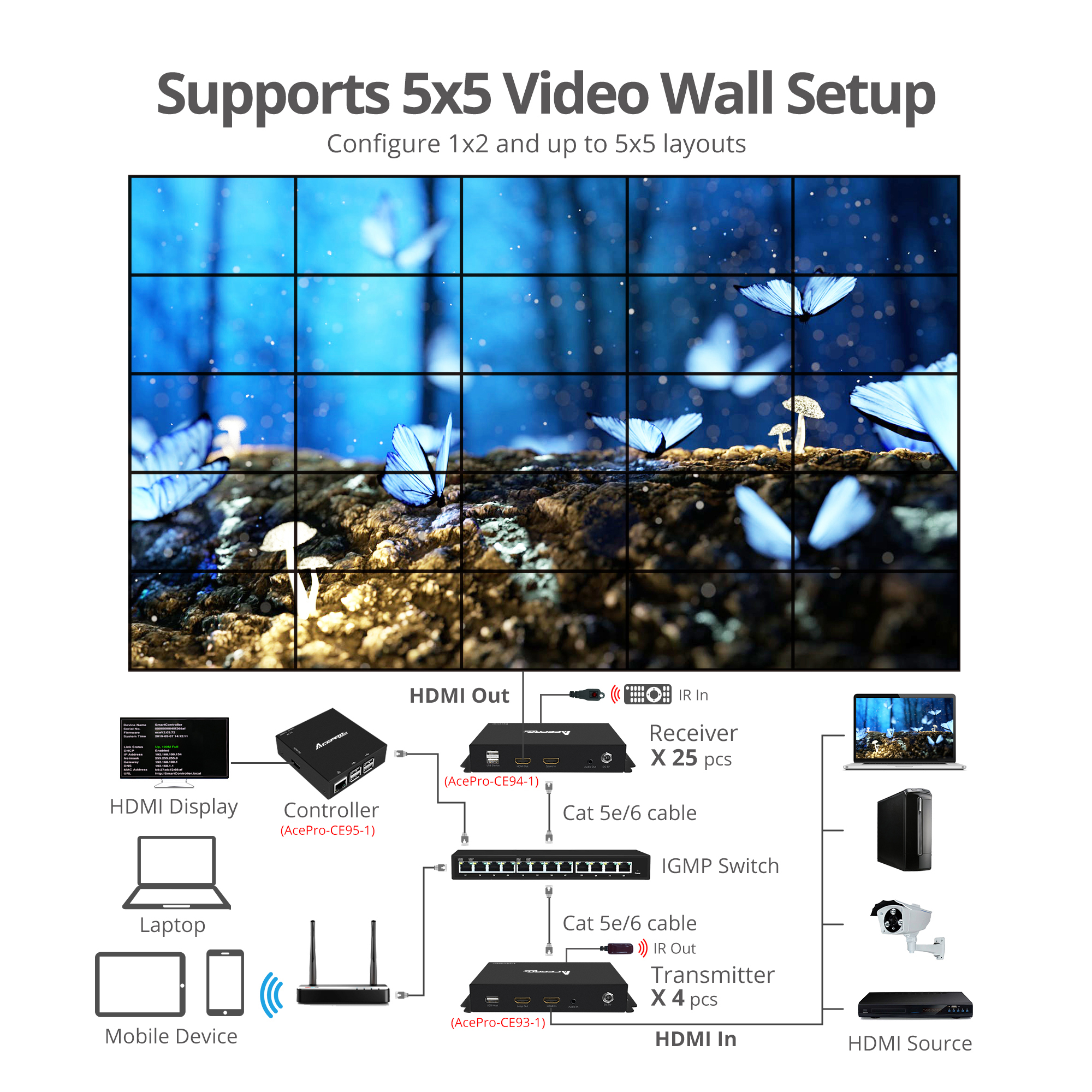

■ Supports 4K signals including High Dynamic Range (HDR)*, PoE, Bi-directional IR path, and Video Wall. *Due to the video compression, some distortion may occur in HDR mode

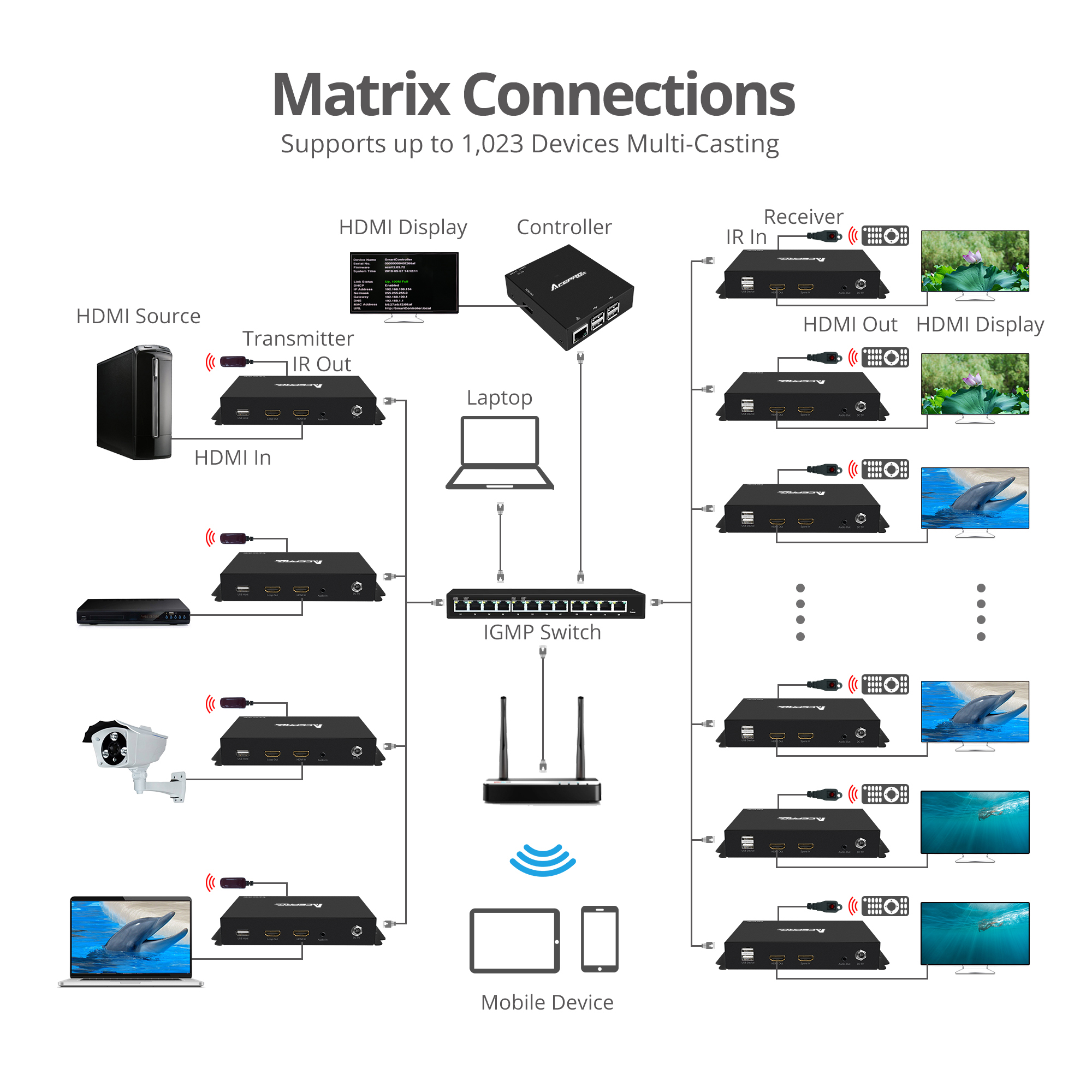

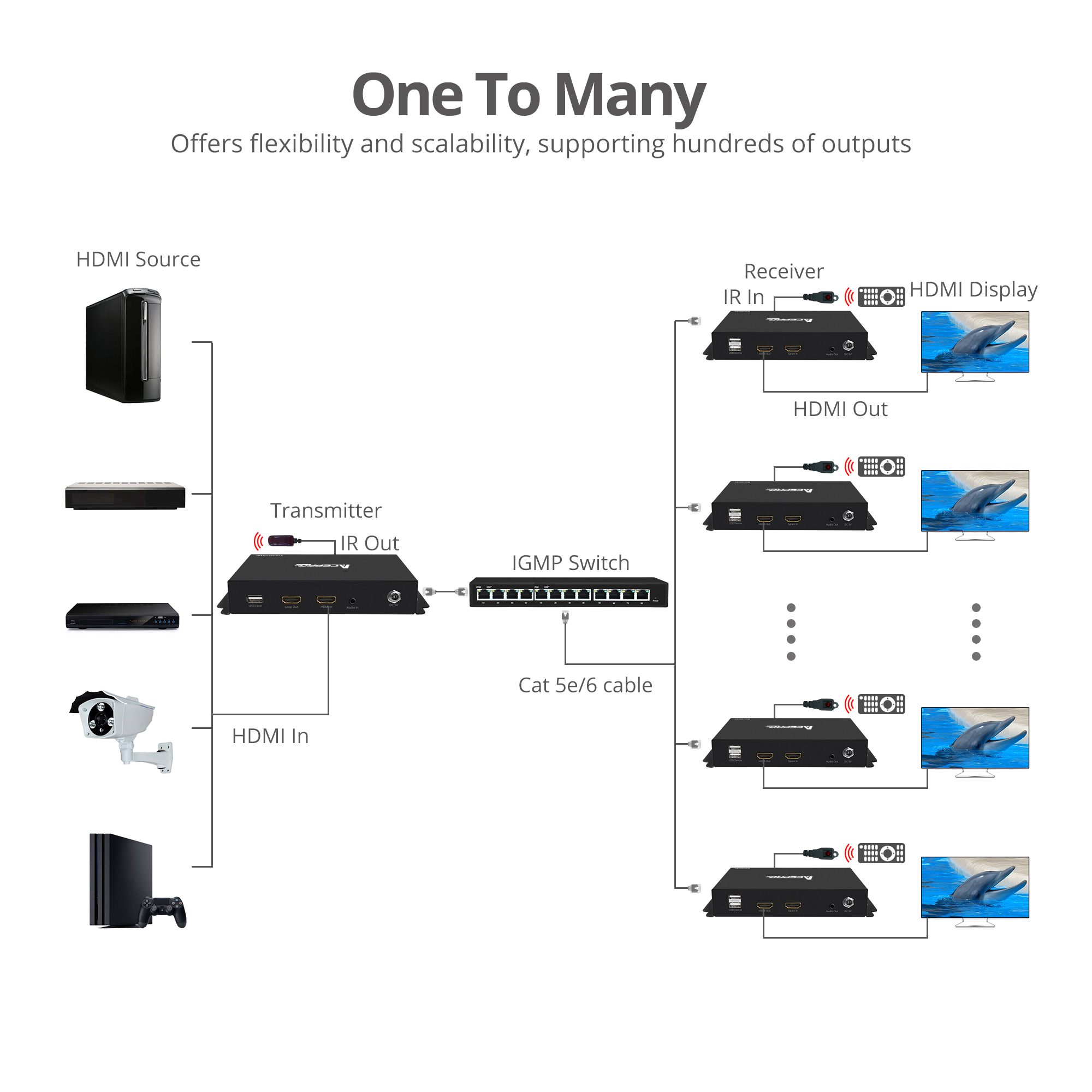

■ Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture
■ Easy DIP switch matching for multi-casting group configuration
■ Supports full frequency IR signal from 20KHz to 60KHz
■ Full Duplex RS-232 control up to 115,200 bps
■ Supports 180° and 270° clockwise image rotation
■ Designed to work with HDMI 2.0 Over IP Matrix and Video Wall - Transmitter, part # CE-H25211-S1 sold separately, and HDMI 2.0 Over IP Matrix and Video Wall - Controller, part # CE-H25411-S1 sold separately

  • $0 $0

Highlights

HDMI 2.0a and HDCP 2.2 compliant

Supports HDMI input up to [email protected] YUV 4:4:4 8bit, HDMI output up to [email protected]

Flexible and scalable video broadcasting
By IGMP Gigabit Ethernet Router/Switch

Supports 4K signals including High Dynamic Range (HDR)*
PoE, Bi-directional IR path, and Video Wall. *Due to the video compression, some distortion may occur in HDR mode

Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture

Easy DIP switch matching
For multi-casting group configuration

Supports full frequency IR signal
From 20KHz to 60KHz

Full Duplex RS-232 control up to 115,200 bps

Supports 180° and 270° clockwise image rotation

Designed to work with HDMI 2.0 Over IP Matrix and Video Wall - Transmitter
Part # CE-H25211-S1 sold separately, and HDMI 2.0 Over IP Matrix and Video Wall - Controller, part # CE-H25411-S1 sold separately

Specification

Chipset:Aspeed



Compliance:HDMI 2.0a and HDCP 2.2



Input resolution:Up to [email protected] (YUV 4:4:4 8bits)



Output resolution:Up to [email protected]



Resolution:480p / 720p / 1080i / 1080p / 4K @30Hz



Distance:394ft (Cat5e) @ 4Kx2K @30Hz

Note:The transmission distance will vary depending on cable quality, solid copper using IEEE-T568B wiring standard is recommended



HDMI cable length:Up to 5m (Input & Output)



Supports surround sound (up to 7.1ch) or stereo digital audio



Latency:23ms for 1080p @60Hz



IR frequency:20KHz to 60KHz



ESD protection:Human body model- ±15kV (air-gap) & ±8kV (contact)



Housing material:Metal Housing



Housing color:Black



Product:
■ Dimensions: 7.09" (L) x 1.13" (H) x 4.00" (W)
■ Weight:1.07 lbs
■ Connectors:
- 1x 19-pin HDMI, Type-A, Female, Input
- 1x 19-pin HDMI, Type-A, Female, Loop-out
- 1x 9-pin RS-232, Female
- 1x 3.5mm jack, Audio, Input
- 1x 3.5mm jack, IR Blaster
- 1x 3.5mm jack, IR Receiver
- 1x 8-pin RJ45, Output
- 1x 4-pin, USB 2.0, Type A, Female
- 1x Power jack
- 1x 6-pin DIP Switch for video channel selection
- 1x DIP Switch for debug/bypass mode



Power adapter:
■ Input: 100-240V / 50-60Hz
■ Output: DC 5V/2A
■ UL Listed: E135856 / Class VI



Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: 20% to 90% RH (non-condensing)



TAA compliant



Certifications/Standards:FCC, CE, RoHS



Warranty:1 years limited



Country of origin:Taiwan



Requirements
■ HDMI 2.0 Over IP Matrix and Video Wall - Transmitter, part # CE-H25211-S1 sold separately
■ HDMI 2.0 Over IP Matrix and Video Wall - Controller, part # CE-H25411-S1 sold separately



Package Contents
■ HDMI 2.0 Over IP Matrix and Video Wall - Receiver
■ Power adapter 5V/2A
■ 1x IR blaster cable
■ Screw Kit (2)
■ Insert card
■ User Manual
