- new | AcePro-CE95-1
- AcePro HDMI 2.0 Video Wall Over IP MS-Controller
■ Control center for the IP-based HDMI 2.0 Over IP Matrix and Video Wall - Transmitter, part # CE-H25211-S1 sold separately, and HDMI 2.0 Over IP Matrix and Video Wall - Receiver, part # CE- H25311-S1, sold separately ■ Monitors all devices in one central system ■ Cost effective IoT platform ■ Intuitive and Powerful - User interface includes web interface and mobile support ■ Easy Installation - auto-detects the transmitter and receiver units on the network ■ Supports Video Wall Function - Easy to create multiple video walls. Configurable up to 5x5 display mode ■ Drag-and-drop easy matrix switching ■ Allows you to create custom OSD modes
Highlights

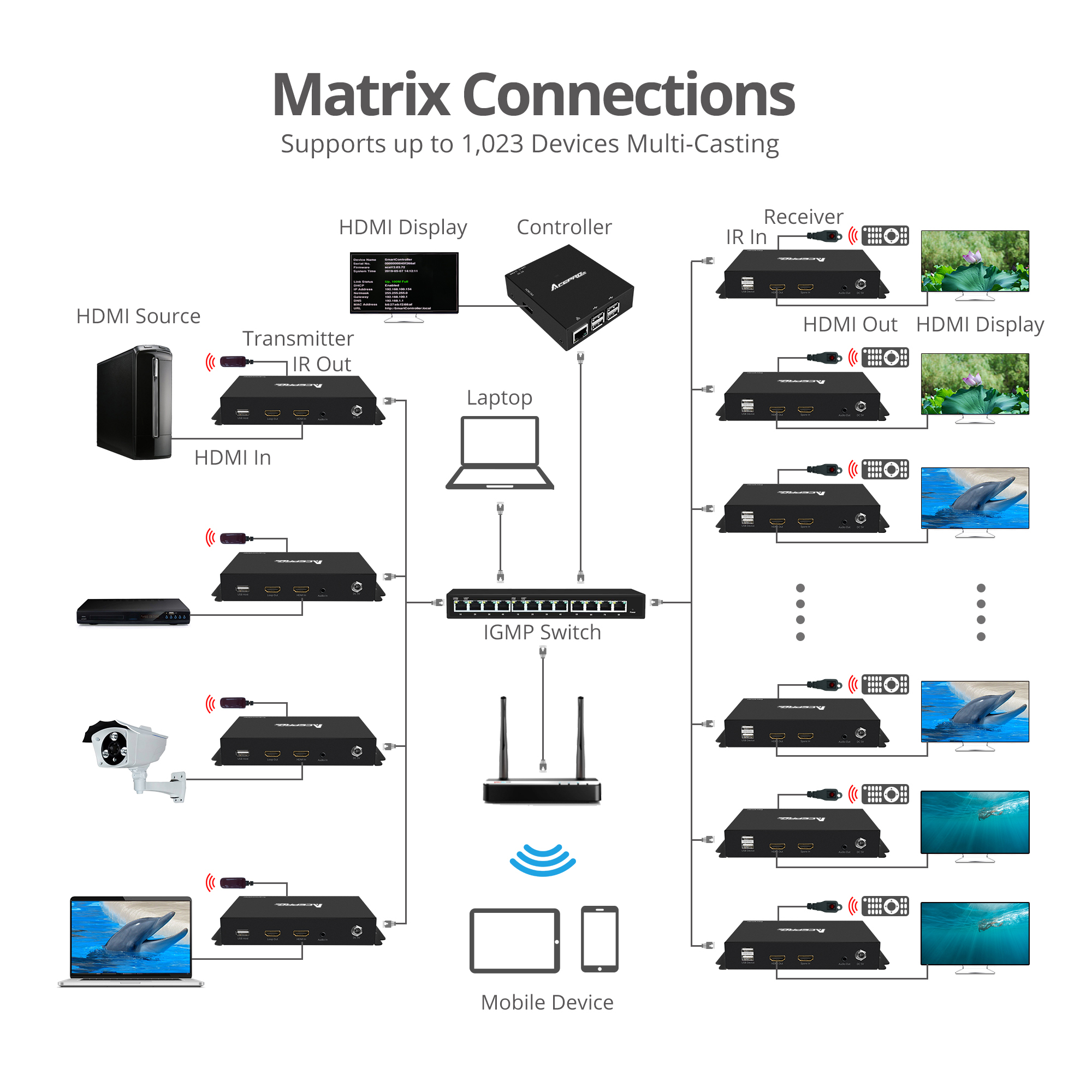

Control center for the IP-based HDMI 2.0 Over IP Matrix and Video Wall
Transmitter, pPart # CE-H25211-S1 sold separately, and HDMI 2.0 Over IP Matrix and Video Wall - Receiver, part # CE-H25311-S1, sold separately
Monitors all devices in one central system
Cost effective IoT platform
Intuitive and Powerful
User interface includes web interface and mobile support
Easy Installation
Auto-detects the transmitter and receiver units on the network

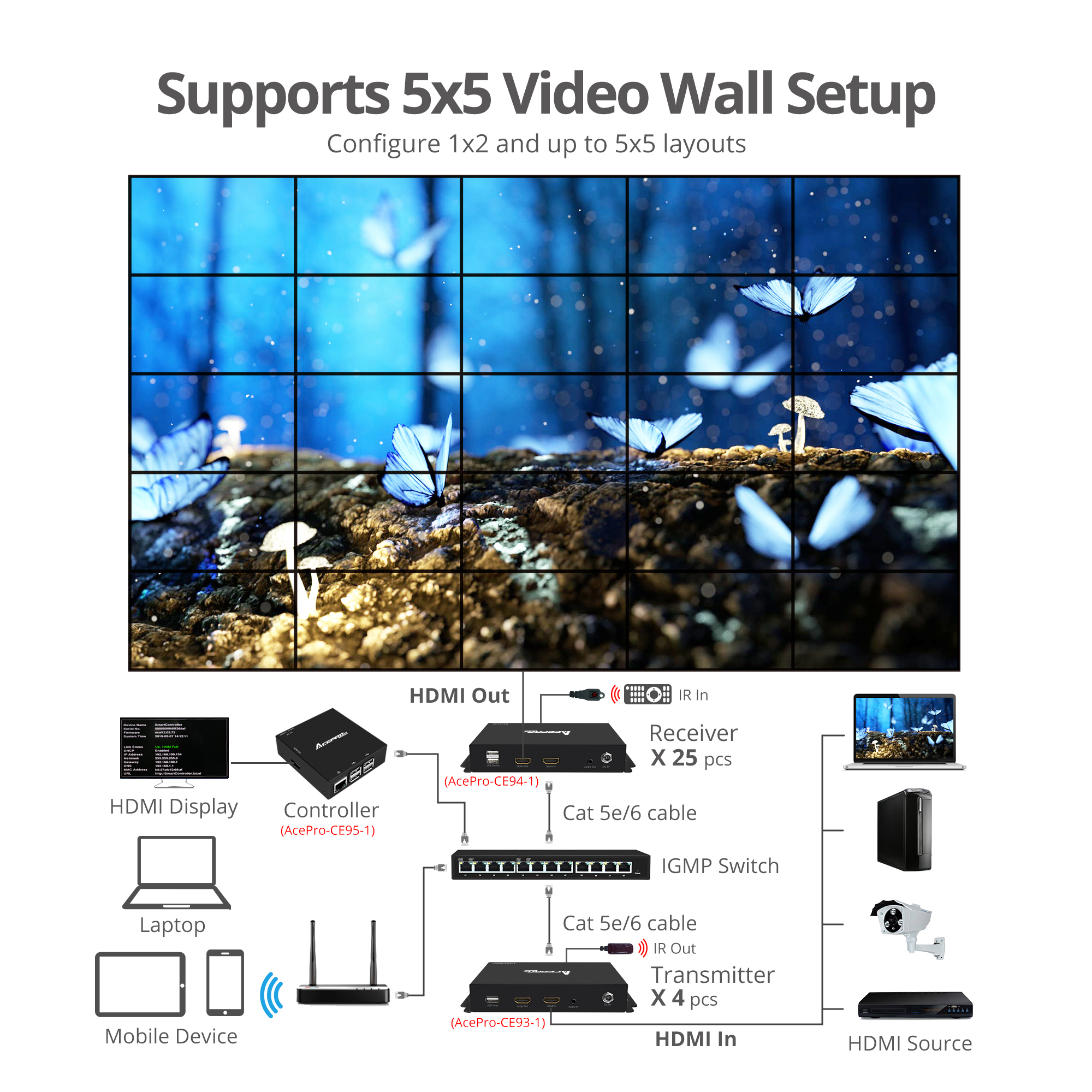

Supports Video Wall Function
Easy to create multiple video walls. Configurable up to 5x5 display mode
Drag-and-drop easy matrix switching
Allows you to create custom OSD modes
Specification
Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports up to 1000 Mbps data transfer rate and is backward compatible with 10/100 Mbps
Supports multi function selection for Mapping, Video Wall, OSD, Schedule, Event, Access, Setup, Log and Smart Controller
Housing material:Metal Housing
Housing color:Black
Product:
■ Dimensions: 3.07" (W) x 1.14" (H) x 3.54" (D)
■ Weight: 0.5 lbs
■ Connectors:
- 1x 19-pin HDMI, Type-A, Female, Output
- 1x 8-pin RJ45, Input
- 4x 4-pin, USB 2.0, Type A, Female
- 1x Power jack
Power adapter:
■ Input: 100-240V / 50-60Hz
■ Output: DC 5V/1A
■ UL Listed:E135856 / Class VI
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: 20% to 90% RH (non-condensing)
TAA Compliant
Certifications/Standards:FCC, CE, RoHS
Warranty:1 years limited
Country of origin:Taiwan
Requirements
■ HDMI 2.0 Over IP Matrix and Video Wall - Transmitter, part # CE-H25211-S1 sold separately
■ HDMI 2.0 Over IP Matrix and Video Wall - Receiver, part # CE-H25311-S1 sold separately
Package Contents

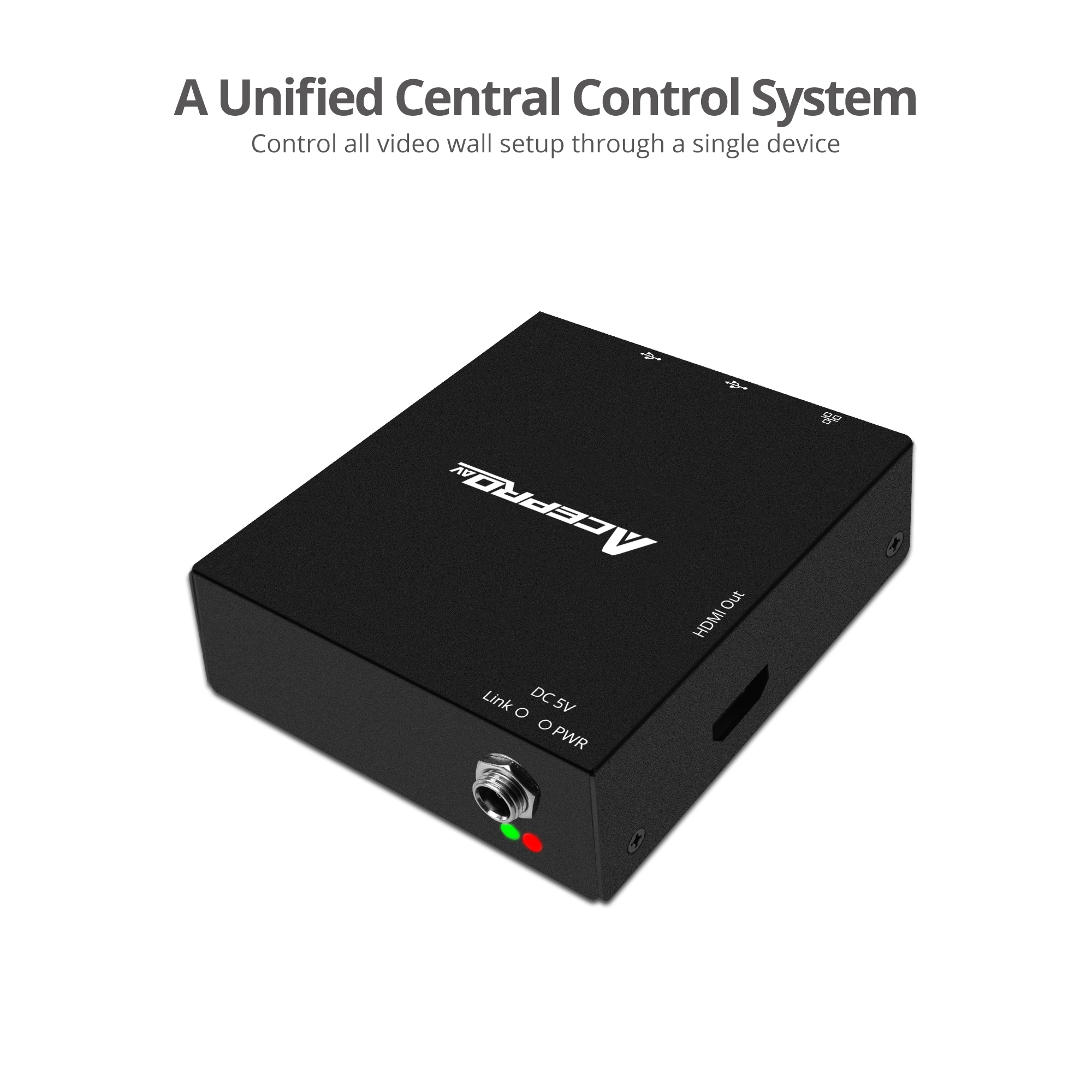

■ HDMI 2.0 Over IP Matrix and Video Wall - Controller
■ Power adapter 5V/1A
■ Mounting ear (2pcs)
■ Screw Kit (4pcs + 2pcs)
■ Insert card
■ User Manual
