- new | AcePro-CE96-1
- AcePro 2P HDMI 2.0 4K HDR Smart Console Switch w/U3
■ Control two computers with 4K HDMI video with one keyboard, mouse and display ■ Compatible with resolutions up to Ultra-HD 4K 60Hz with HDR, and 18Gbps video bandwidth ■ Features Auto-EDID detection for easy display detection ■ Easy system selection via front panel push button or keyboard hot-key commands ■ Comes with 2 USB 1.1 ports for keyboard and mouse connection, and 4 USB 3.0 ports. Connect multiple USB peripherals such as flash drives, printers and more simultaneously ■ Includes 3.5mm jack for microphone input and stereo speakers/headphones ■ Auto-scan feature for quick browsing and system monitoring ■ Firmware upgrade feature via Micro USB port for future compatibility ■ Plug-n-play, no driver installation Compatibility Notes: - Not DDM fast switching compliant
Highlights

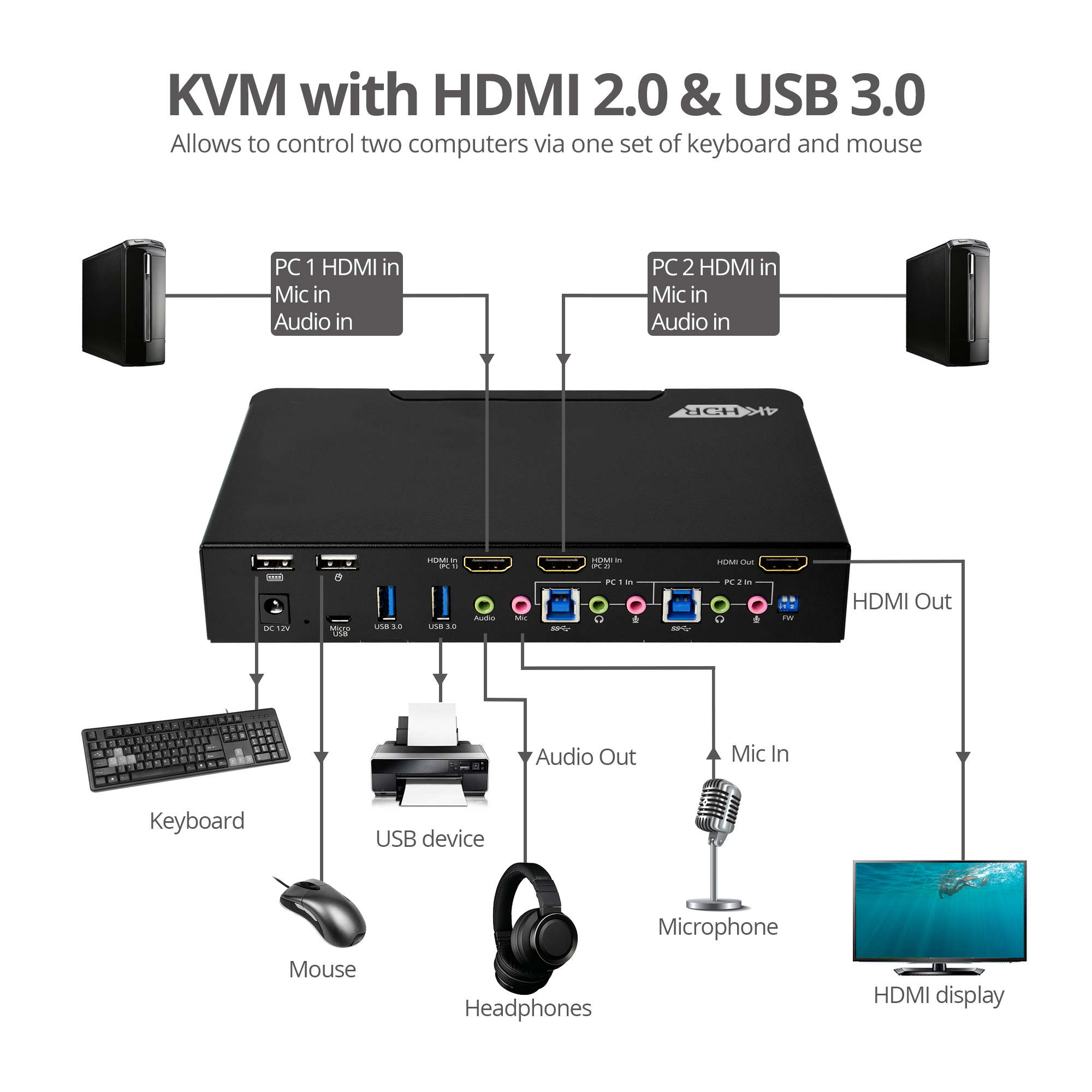

Control two computers with 4K HDMI video
With one keyboard, mouse and display

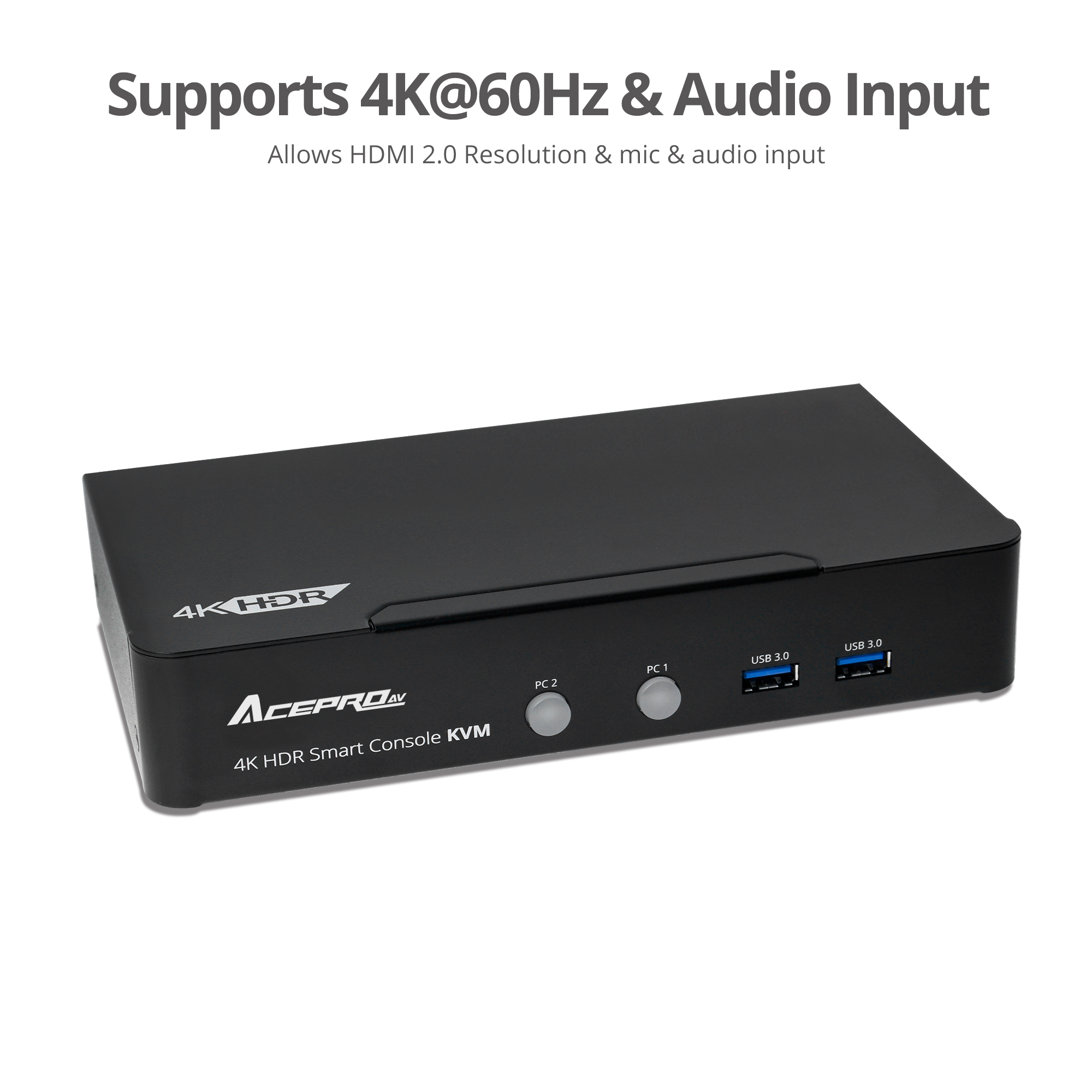

Compatible with resolutions up to Ultra-HD 4K 60Hz
With HDR, and 18Gbps video bandwidth
Features Auto-EDID detection
For easy display detection
Easy system selection
Via front panel push button or keyboard hot-key commands

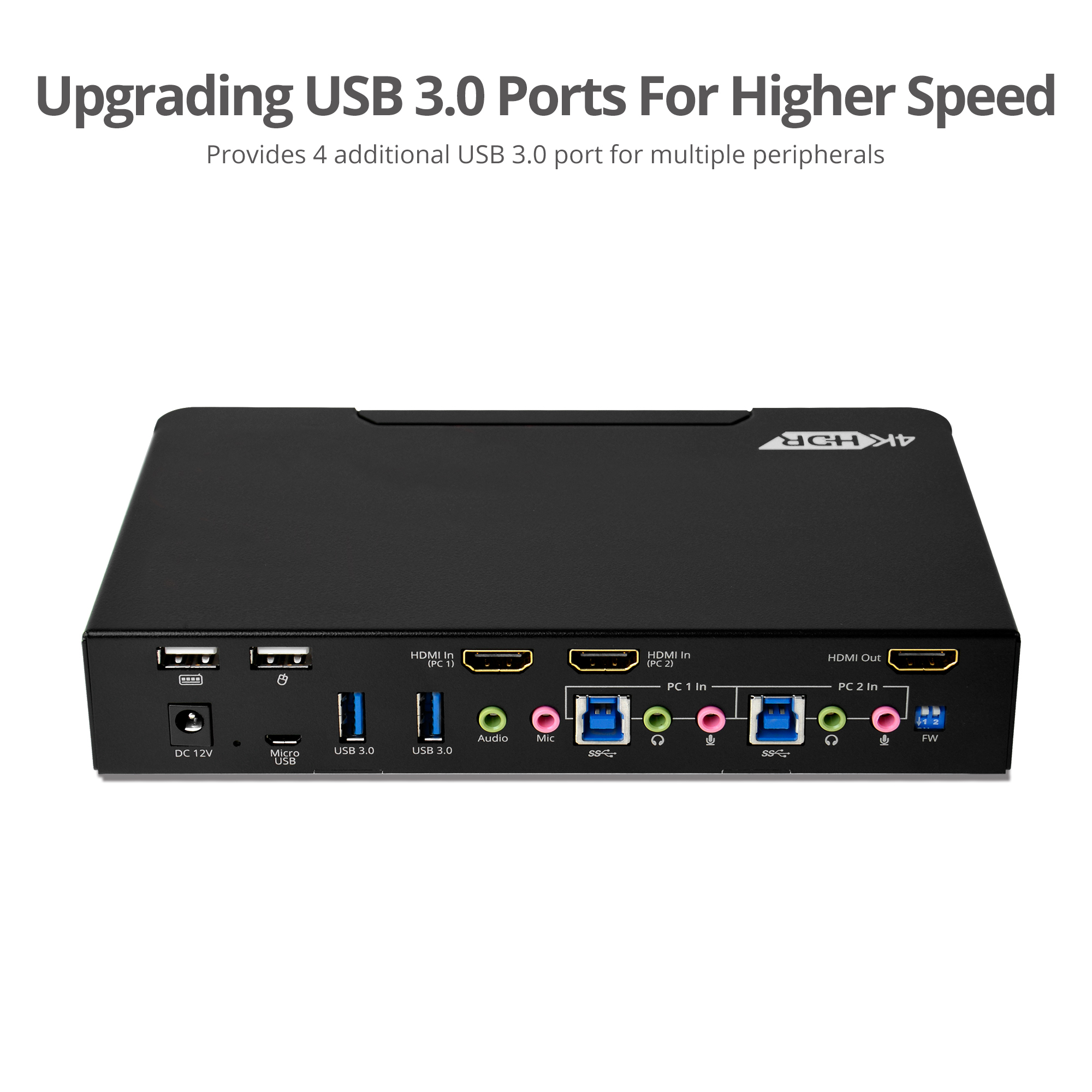

Comes with 2 USB 1.1 ports
For keyboard and mouse connection, and 4 USB 3.0 ports. Connect multiple USB peripherals such as flash drives, printers and more simultaneously
Includes 3.5mm jack for microphone input and stereo speakers/headphones
Auto-scan feature for quick browsing and system monitoring
Firmware upgrade feature via Micro USB port for future compatibility
Plug-n-play, no driver installation
Compatibility Notes:
- Not DDM fast switching compliant
Specification
Compatibility:HDMI 2.0, HDCP 2.2, 3D, Deep color
Video bandwidth:Single-link 594MHz, Up to 18Gbps
Video resolution:Up to 3840x2160@60Hz YUV 4:4:4 8-bit and 3840x2160@60Hz YUV 4:2:0 10-bit HDR
Audio:
■ Surround sound (up to 7.1ch) or stereo digital audio
■ HDMI: PCM, Dolby Digital, DTS-HD and Dolby True-HD audio
■ 3.5mm Jack: PCM 2-CH stereo Audio
USB data transfer rate:
■ USB 1.1: up to 12Mbps
■ USB 3.0: up to 5Gbps
Product:
■ Dimensions: 7.95" (L) x 1.46" (H) x 4.42" (W)
■ Weight: 1.53 lbs
■ Color: Black
■ Housing material: Metal

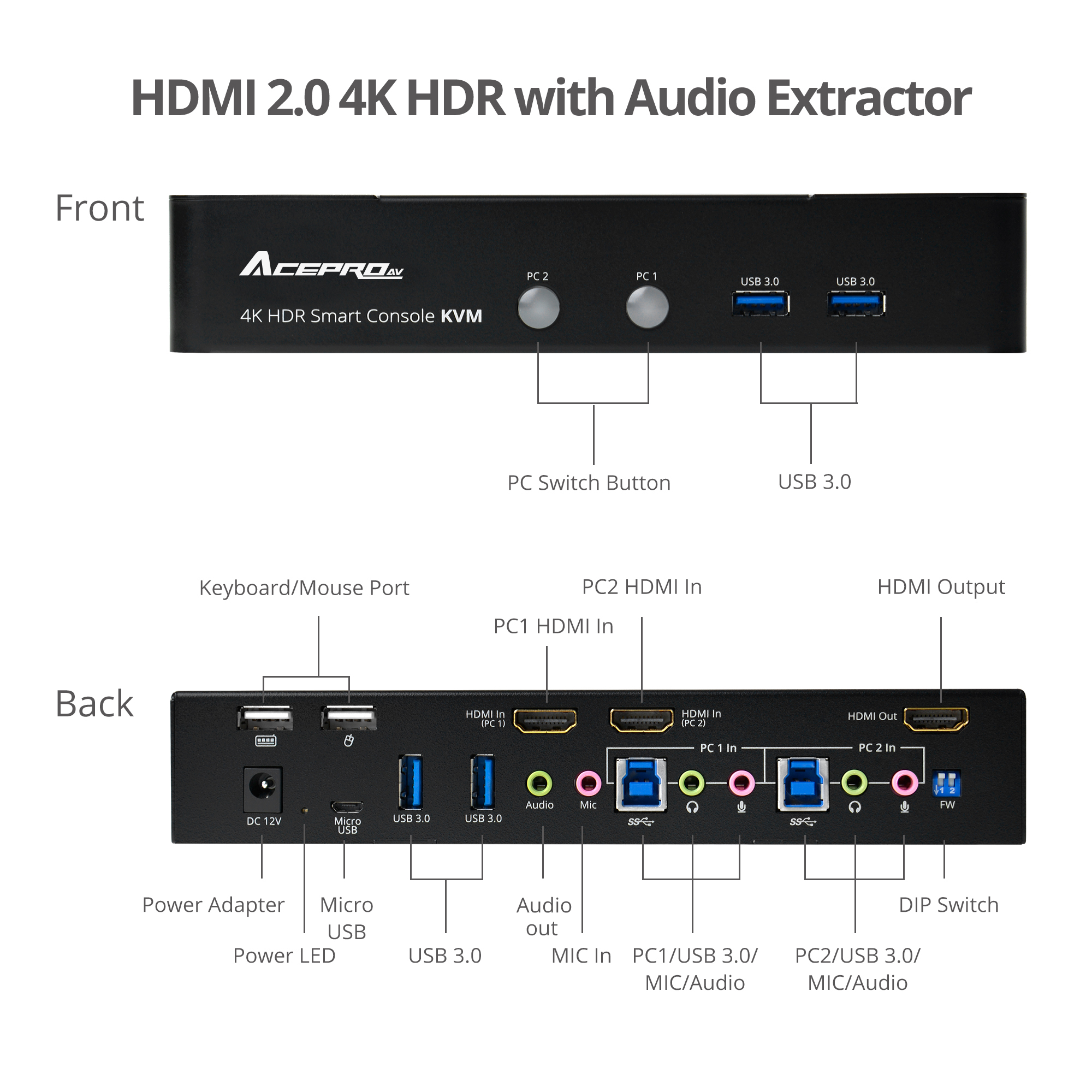

■ Connector:
- 2x 19-pin HDMI, Female, PC input
- 2x 9-pin USB 3.0 Type-B, Female
- 2x 3.5mm jack for Mic & Stereo audio, Female, PC input
- 1x 19-pin, HDMI, Female, Output
- 1x 3.5mm jack for Mic & Stereo audio, Female, output
- 1x 5-pin Micro USB, FW update, Female
- 4x 9-pin USB 3.0 Type-A, Female
- 2x 4-pin USB 1.1 Type-A, Female for Keyboard and Mouse
- 1x 2-pin DIP Switch, Control FW
- 1x Power Jack
Power adapter:
■ Input: 100-240VAC, 50/60 Hz
■ Output: DC 12V/2A
■ UL listed: E163743 8F35/Level: VI
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: <85% RH (non-condensing)
TAA compliant
Certifications/Standards:FCC, CE, RoHS
Warranty:1 years limited
Country of origin:Taiwan
Requirements
■ PC and Mac with an available HDMI and USB 3.0 Type-A port
■ HDMI display and HDMI 2.0 cable
■ Windows® 10 / 8.x / 7
■ Mac OS® 10.13 or later
Package Contents
■ 2-Port HDMI 2.0 4K HDR Smart Console KVM Switch with USB 3.0 Multimedia Ports
■ Power Adapter
■ HDMI 2.0 Cable 1.8m (2pcs)
■ USB 3.0 + MIC + Stereo 3-in-1 cable (2pcs)
■ User Manual
