- AcePro 4P DVI Dual-Link Smart Console Switch w/USB 3.0
■ Control up to four computers with DVI-D Dual Link video system via one keyboard, mouse, and display ■ Compatible with DVI-D Dual Link resolutions 2560x1600 @60Hz / 3840x2400@33Hz ■ Features Auto-EDID detection for easy display detection ■ Easy system selection via front panel selection button or user programmable keyboard hot-key commands ■ Comes with 2 USB 1.1 ports for keyboard and mouse connection, and 4 USB 3.0 ports. Connect multiple USB peripherals such as flash drives, printers and more simultaneously ■ Includes 3.5mm jack for microphone input and stereo speakers/headphones ■ Auto-scan feature for quick browsing and system monitoring ■ Firmware upgrade feature via Micro USB port for future compatibility ■ Plug-n-play, no driver installation Compatibility Notes: - Not DDM fast switching compliant
Highlights

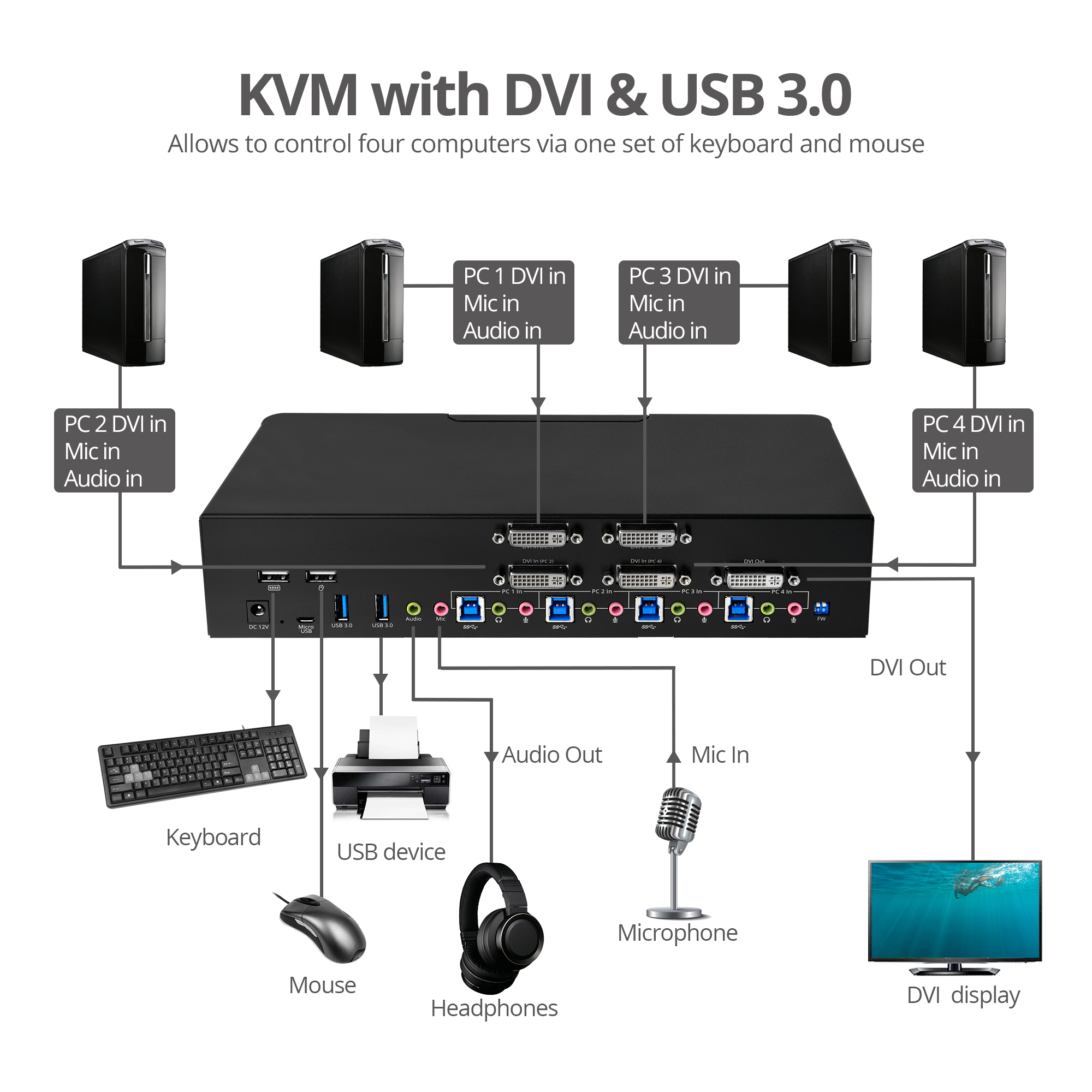

Control up to four computers with DVI-D Dual Link video system
Via one keyboard, mouse, and display

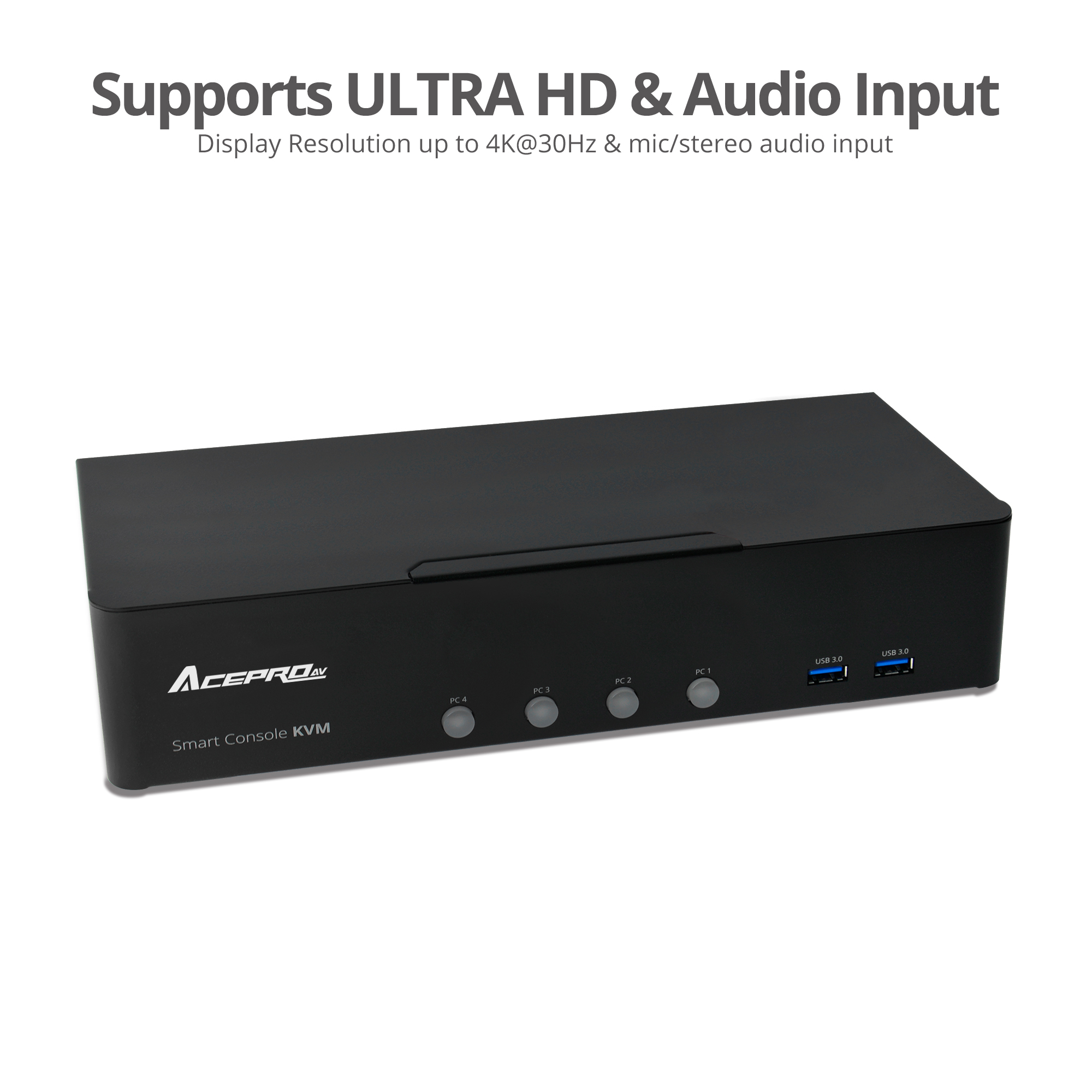

Compatible with DVI-D Dual Link resolutions 2560x1600 @60Hz / 3840x2400@33Hz
Features Auto-EDID detection for easy display detection
Easy system selection via front panel selection button or user programmable keyboard hot-key commands
Comes with 2 USB 1.1 ports for keyboard and mouse connection

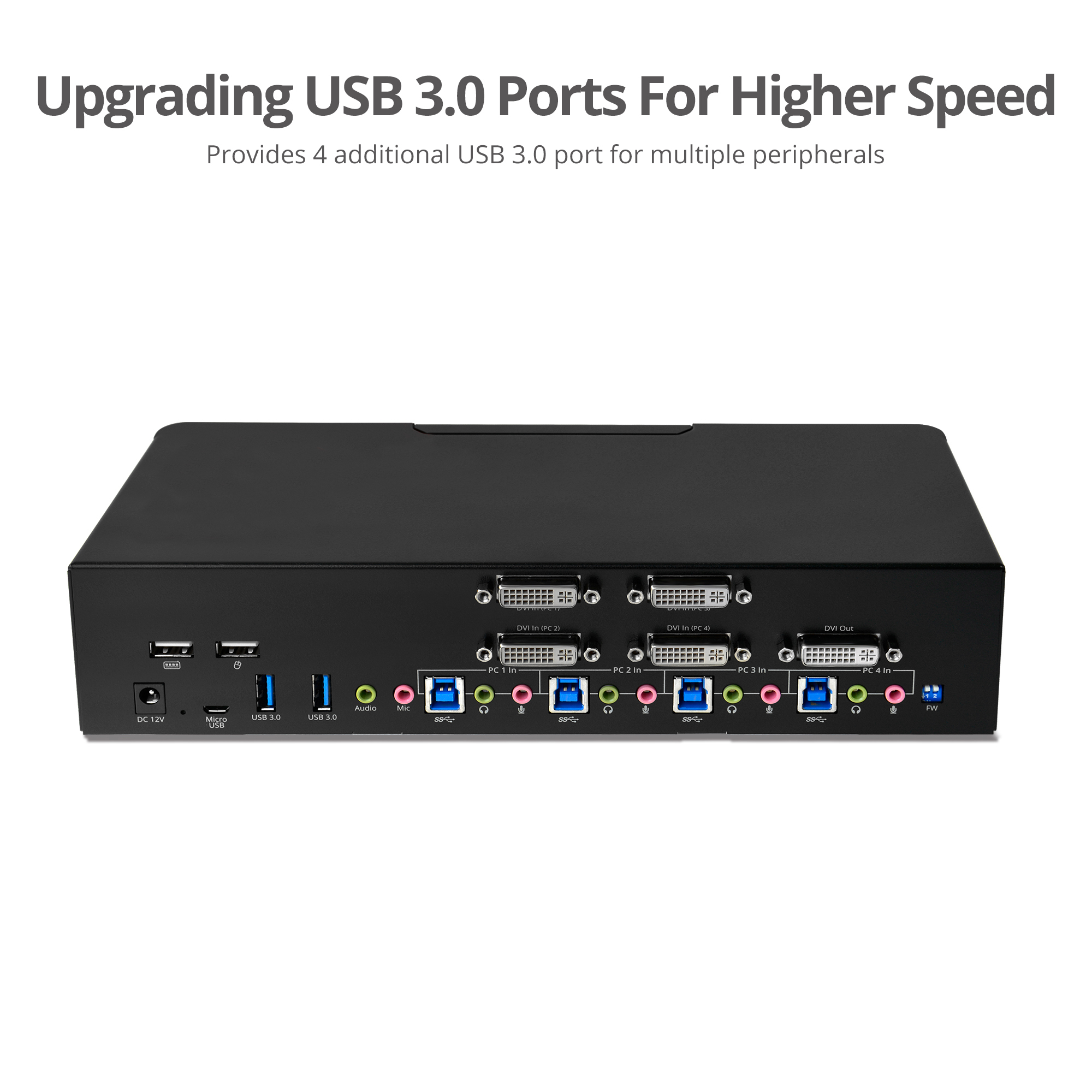

And 4 USB 3.0 ports. Connect multiple USB peripherals such as flash drives, printers and more simultaneously
Includes 3.5mm jack for microphone input and stereo speakers/headphones
Auto-scan feature for quick browsing and system monitoring
Firmware upgrade feature
Via Micro USB port for future compatibility
Plug-n-play, no driver installation
Compatibility Notes:
- Not DDM fast switching compliant
Specification
Chip:AX68002
Compliant with DVI 1.0
Video bandwidth up to 6Gbps
Video resolution:
■ DVI-D Dual-Link: 3840x2400@33Hz, 2560x1600@60Hz
■ DVI-D Single-Link: 1920x1200@60Hz
Audio:3.5mm PCM 2-CH stereo audio
USB data transfer rate:
■ USB 1.1: up to 12Mbps
■ USB 3.0: up to 5Gbps
Product:
■ Dimensions: 11.10" (L) x 2.36" (H) x 4.42" (W)
■ Weight: 2.49 lbs
■ Color: Black
■ Housing material: Metal

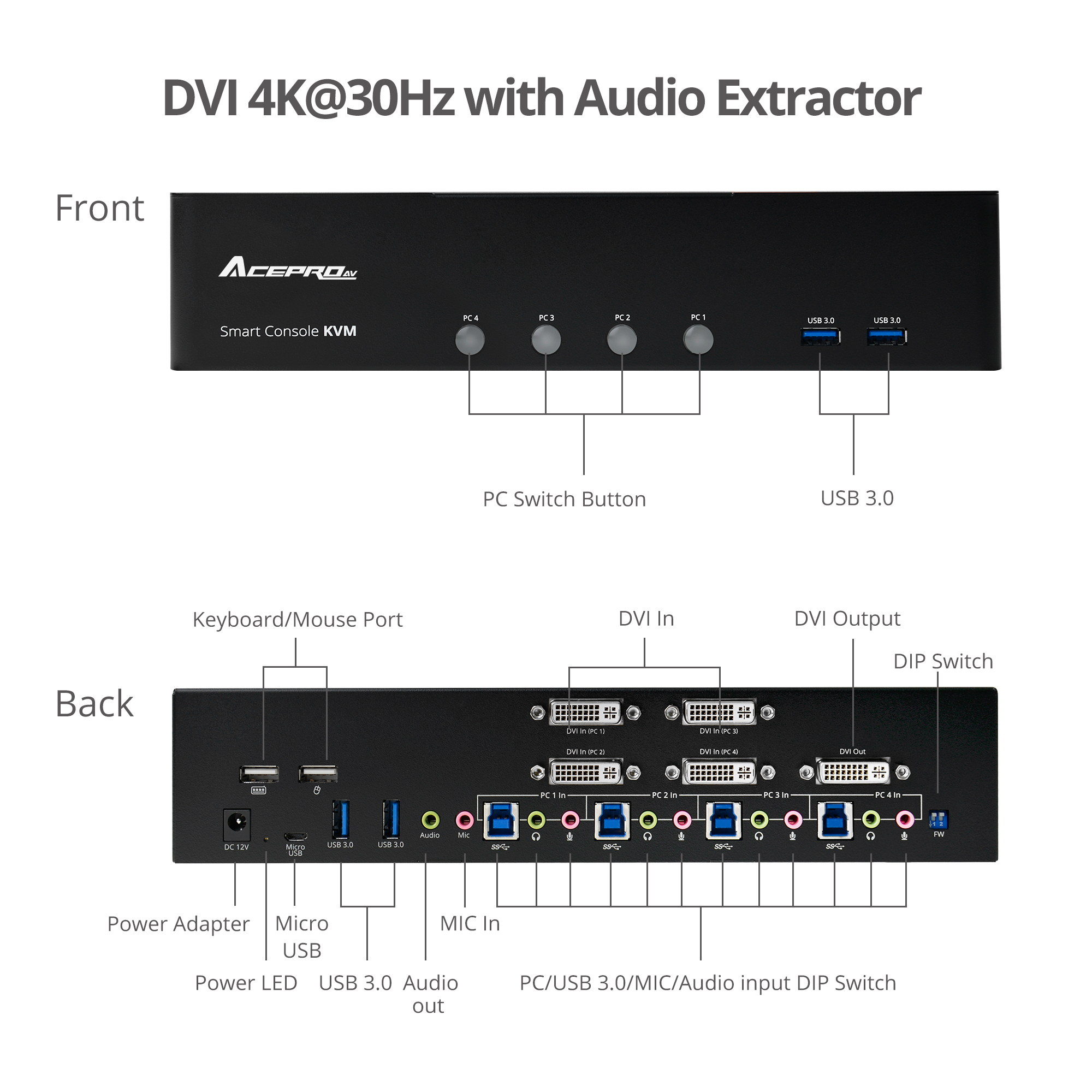

■ Connector:
- 4 x 29-pin DVI-D Dual-Link, Female, PC Input
- 1x 29-pin, DVI-D Dual-Link, Female, Output
- 4x 9-pin USB 3.0 Type-B, Female
- 4x 3.5mm Jack for Mic & Stereo audio, Female, PC Input
- 1x 5-pin Micro USB, FW update, Female
- 1x 3.5mm Jack for Mic & Stereo audio, Female, Output
- 4x 9-pin USB 3.0 Type-A, Female
- 2x 4-pin USB 1.1 Type-A, Female for Keyboard and Mouse
- 1x 2-pin DIP Switch, Control FW
- 1x Power Jack
Power adapter:
■ Input: 100-240VAC, 50/60 Hz
■ Output: DC 12V/2A
■ UL Listed: E163743 8F35/Level: VI
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 20 to 90% RH (non-condensing)
TAA compliant
Certifications/Standards:FCC, CE, RoHS
Warranty:1 years limited
Country of origin:Taiwan
Requirements
■ PC and Mac with an available DVI-D Dual-Link and USB 3.0 Type-A port
■ DVI-D display and DVI-D cable
■ Windows® 10 / 8.x / 7
■ Mac OS® 10.13 or later
Package Contents
■ 4-Port DVI Dual-Link Smart Console KVM Switch with USB 3.0 and Multimedia Ports
■ Power adapter & power cord
■ DVI-D Dual-Link cable (4pcs)
■ USB 3.0 AM/BM + MIC + Stereo cable (4pcs)
■ User Manual
