- AcePro 1x8 HDMI Splitter HDbitT over IP Extender - 120m
■ Extends HDMI signals up to 120m (394ft) over economical Cat6 cabling to up to 8 displays ■ Features Cascade connection extends HDMI signal through unmanaged Gigabit network routers or switches, With HDBitT® transport protocol, you can not only extend but split HDMI signals to additional displays Note: Additional receivers, HDMI Extender over CAT6 with IR - Receiver, part # CE-H23U11-S1, sold separately ■ Delivers crystal clear Full HD content up to 1080p@60Hz resolution ■ IR remote control through Cat6 cable allows you to control the HDMI source device at the remote display location ■ High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation ■ Plug-n-Play installation, no software installation required
Highlights
Extends HDMI signals up to 120m (394ft)
Over economical Cat6 cabling to up to 8 displays
Features Cascade connection extends HDMI signal through unmanaged Gigabit network routers or switches
With HDBitT® transport protocol, you can not only extend but split HDMI signals to additional displays
Note: Additional receivers, HDMI Extender over CAT6 with IR - Receiver, part # CE-H23U11-S1, sold separately
Delivers crystal clear Full HD content up to 1080p@60Hz resolution
IR remote control through Cat6 cable
Allows you to control the HDMI source device at the remote display location
High-quality durable metal housing with ventilation panels
Provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
Plug-n-Play installation, no software installation required
Specification
Transport protocol:HDbitT
Transmission distance:Up to 120m (394ft) via single Cat6 cable at 1080p@60Hz
Audio:7.1 Channel, PCM, DTS, AC3 audio
Full frequency IR signal from 20KHz to 60KHz
Video resolution:480p / 720p / 1080i / 1080p@60Hz
Product housing:TX Metal and RX Aluminum with wall mount design
Network cable:UTP/STP Cat6/6a/7
Connection methods:

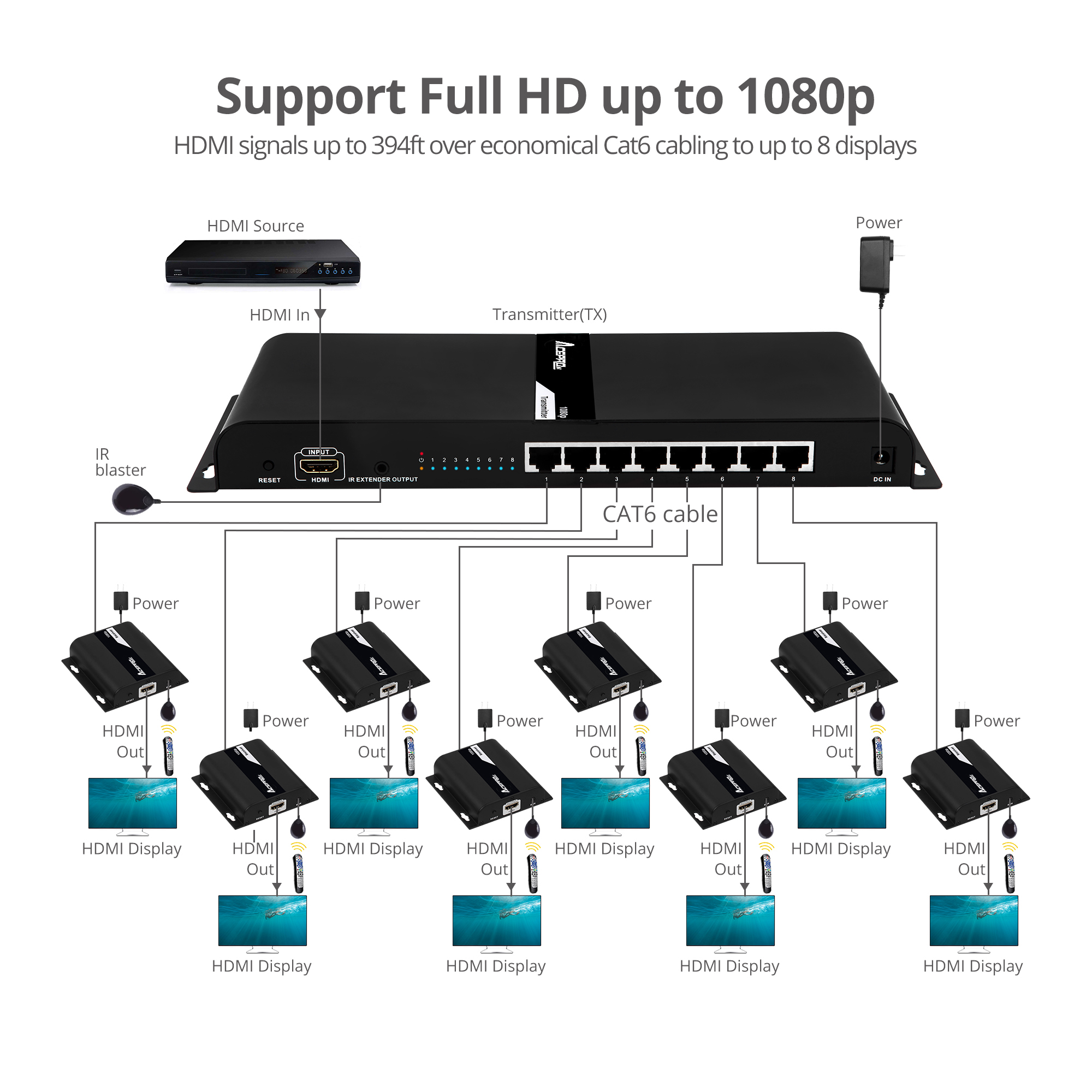

■ 1x4: Direct connection

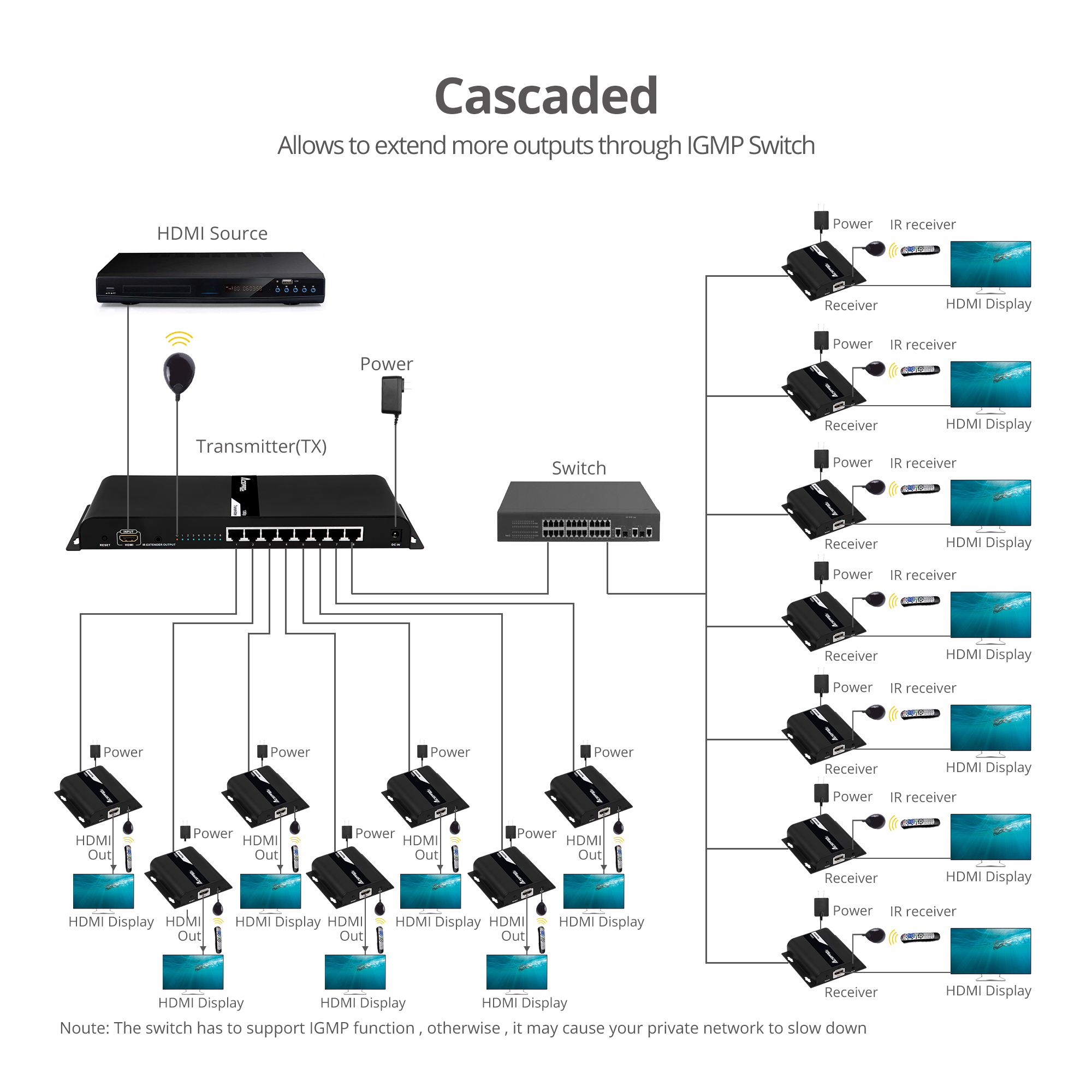

■ Cascade: 1-to-Multiple through IGMP Gigabit network routers or switches
Product:

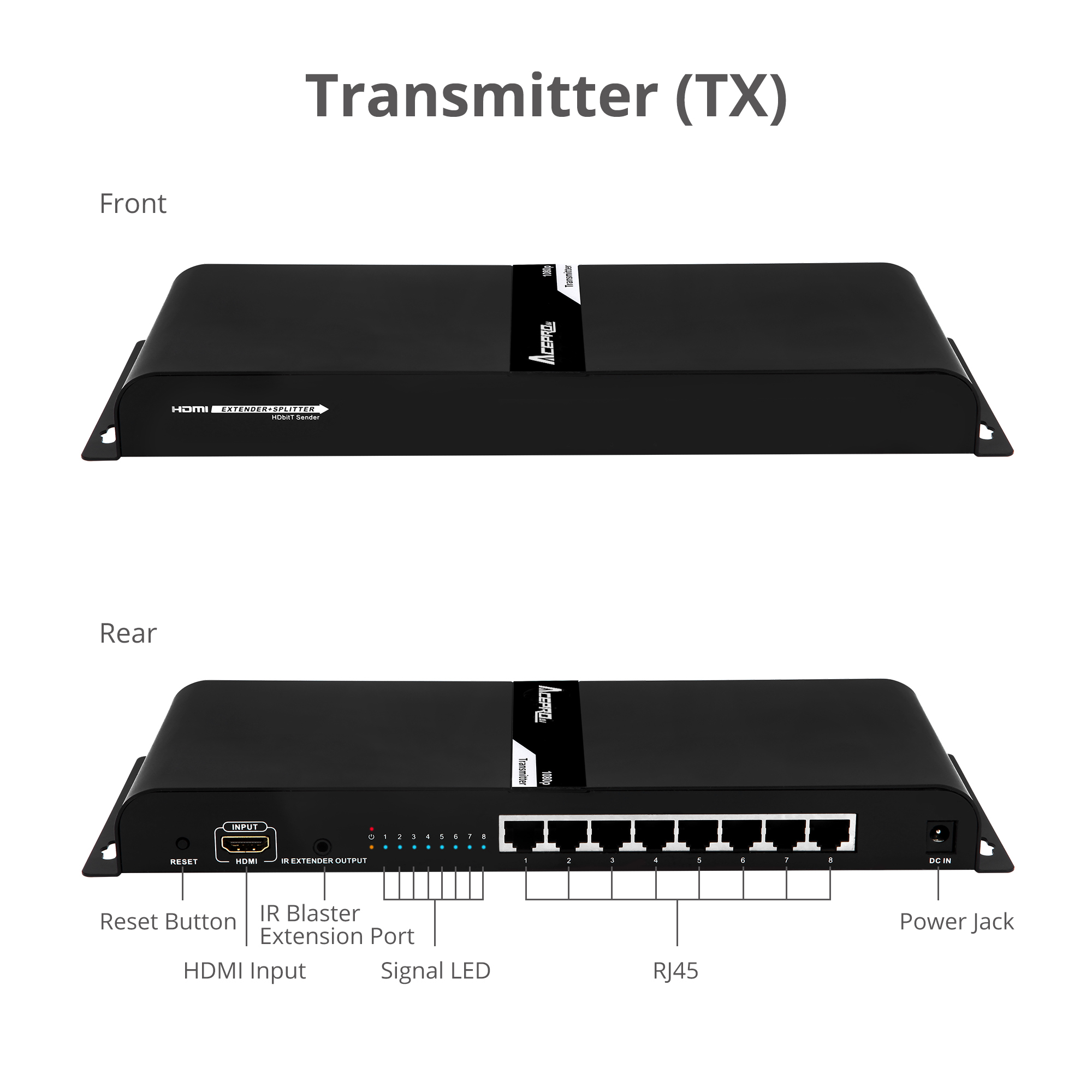

■ Transmitting unit (TX):
- Dimensions: 11.81" (L) x 1.18" (H) x 4.37" (W)
- Weight: 1.83 lbs
- Connectors:
-- 1x 19-pin HDMI, Type A, Female, Input
-- 1x 3.5mm jack, IR, Output
-- 8x 8-pin, RJ45, HDbitT signal, Output
-- 1x Power jack, 5V/2A
-- 1x Reset button

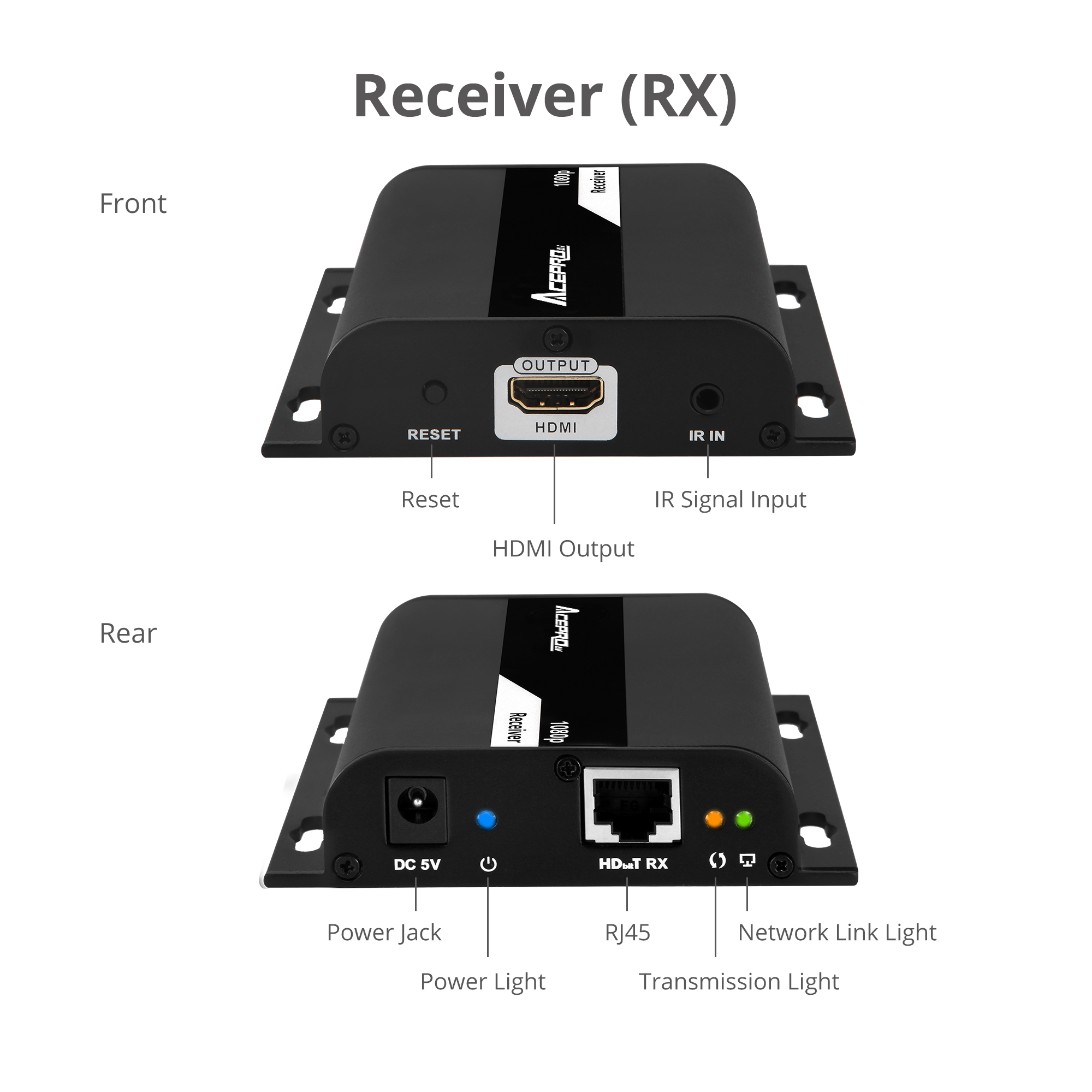

■ Receiving unit (RX):
- Dimensions: 3.81" (L) x 0.93" (H) x 3.70" (W)
- Weight: 0.33 lbs
- Connectors:
-- 1x 19-pin HDMI, Type A, Female, Output
-- 1x 3.5mm jack, IR, Input
-- 1x 8-pin, RJ45, HDbitT signal, Input
-- 1x Power jack, 5V/1A
-- 1x Reset button
Power adapter:
■ Input: 100-240V / 50-60Hz
■ TX: DC 5V/2A
■ RX: DC 5V/1A
■ UL listed: E335801 / Level: VI
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 0 to 90% RH (non-condensing)
Certifications/Standards:FCC, CE, RoHS
Warranty:1 years limited
Country of origin:China
Requirements
■ Cat6/6a/7 cable using T568B wiring standard
- 100% copper wire recommended for best performance
■ HDMI displays and cables
■ Dedicated IGMP Gigabit network routers or switches (for Cascade connection)
Package Contents
■ 1x8 HDMI Splitter HDbitT over IP Extender - 120m (1 TX & 8 RXs)
■ Power adapter (9pcs)
■ IR Blaster extension cable (1pc)
■ IR Receiver extension cable (8pcs)
■ Screw kit
■ Quick Start Guide
