- AcePro-CEA9-1

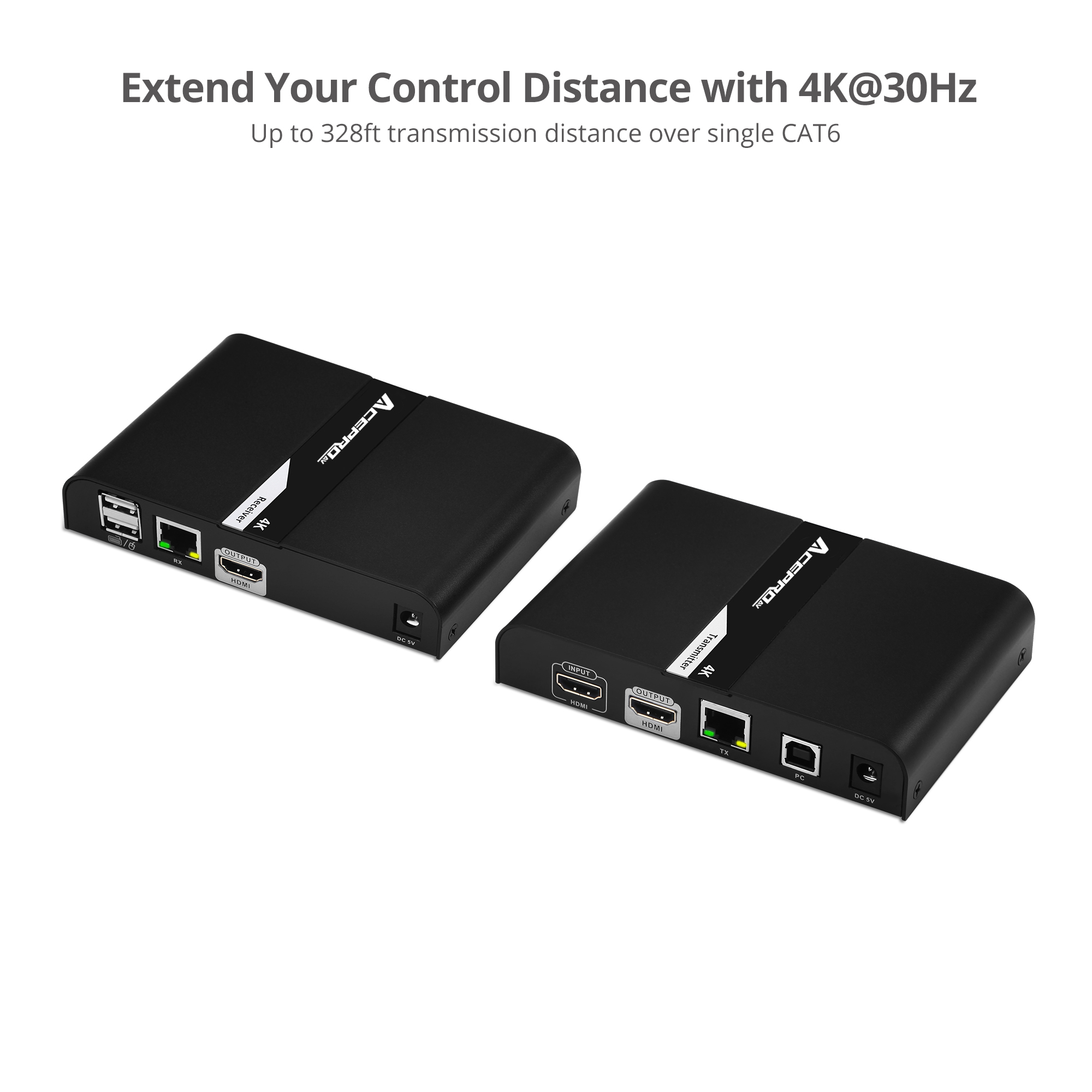

- AcePro HDMI 4K30Hz KVM over Cat 6 Extender
■ Extends HDMI and USB signals to a remote display up to 328ft (100m) over Cat6 network cable ■ Delivers Full HD video content up to 4K @30Hz with nearly zero latency ■ Extends HDMI signal in One-to-one and One-to-many* connection *Note: One-to-many connection requires dedicated Gigabit Ethernet switch (not included) and additional Receiver units, part # CE-H25L11-S1 (sold separately) ■ Perfect High Definition AV transmission solution for conference rooms, video shoots, multimedia education system, and digital signage advertising ■ The Transmitter's HDMI loop-out offers local monitoring of the extended displays ■ Connect wired/wireless keyboard and mouse to control the computer from any extended display ■ High quality surface mountable metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation ■ Plug-n-Play installation, no software installation or hardware setup is required
Highlights
Extends HDMI and USB signals to a remote display up to 328ft (100m) over Cat6 network cable
Delivers Full HD video content up to 4K @30Hz with nearly zero latency
Extends HDMI signal in One-to-one and One-to-many* connection
*Note: One-to-many connection requires dedicated Gigabit Ethernet switch (not included) and additional Receiver units, part # CE-H25L11-S1 (sold separately)
Perfect High Definition AV transmission solution
For conference rooms, video shoots, multimedia education system, and digital signage advertising
The Transmitter's HDMI loop-out offers local monitoring of the extended displays
Connect wired/wireless keyboard and mouse to control the computer from any extended display
High quality surface mountable metal housing efficiently dissipates heat build-up
To ensure system stability and trouble-free operation
Plug-n-Play installation, no software installation or hardware setup is required
Specification
Compliant with HDMI 1.4 and HDCP 2.2
Maximum transfer rate: 10.2Gbps
KVM function: Connect a keyboard and mouse to a Receiver to control your computer at a remote location
Network topology:

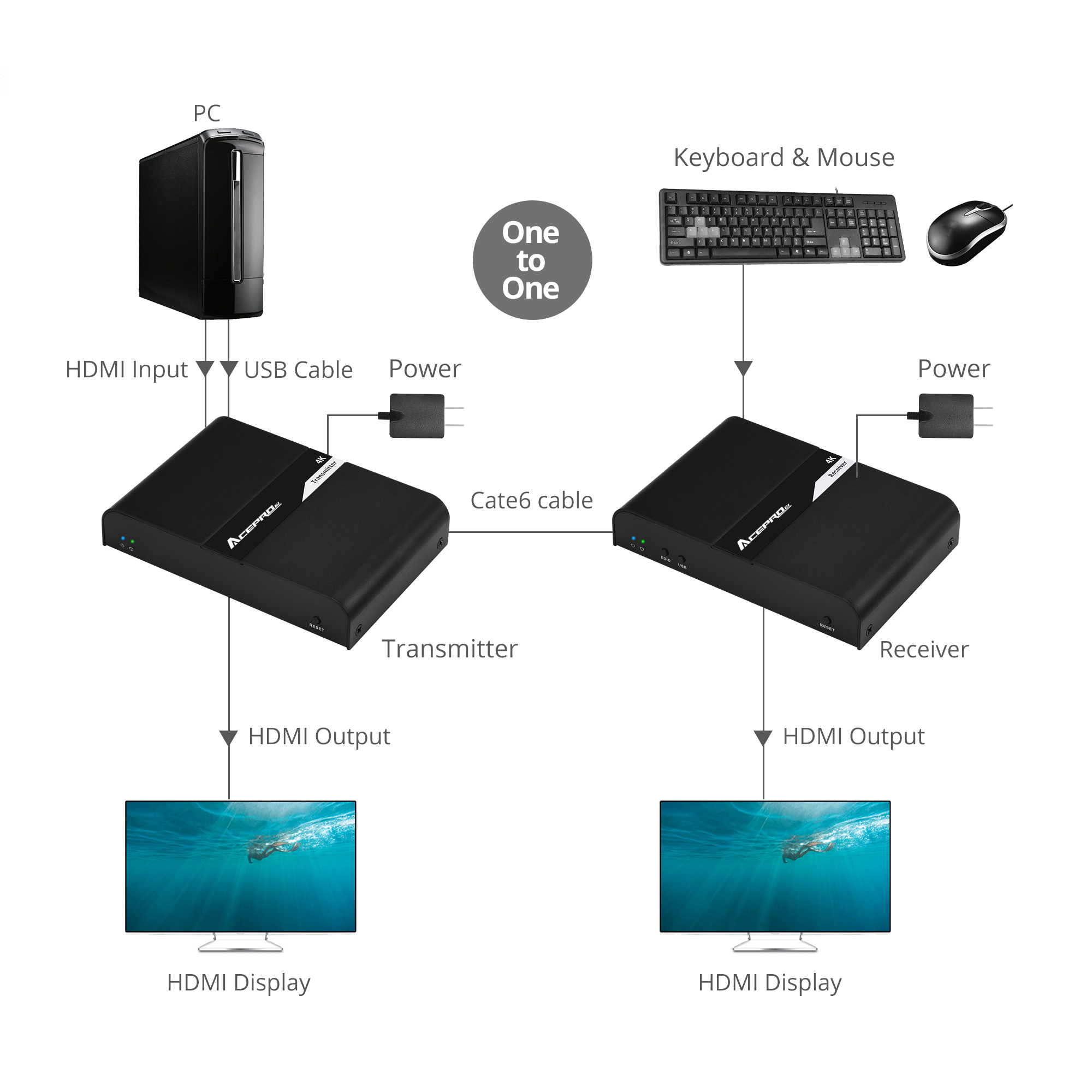

■ One-to-one: Direct connection or through Gigabit Ethernet switch (not included)

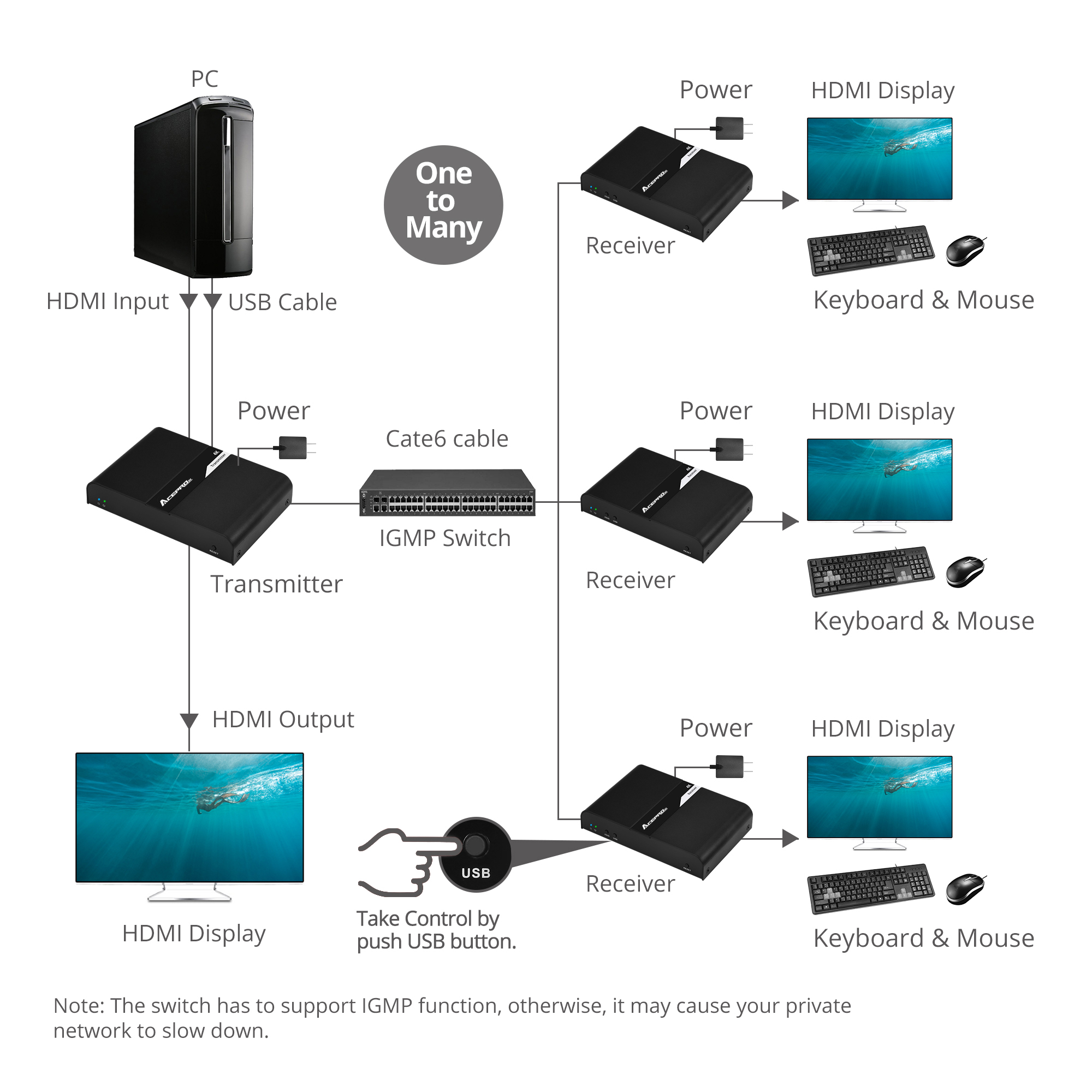

■ One-to-many:
- Requires additional Receiver units, part # CE-H25L11-S1, sold separately
- Requires dedicated Gigabit Ethernet switch, not included
- Display output: Mirror
Transmission Distance:
■ Cat6/6A/7: up to 100m
Input/Output cable length supported: 5 meters (AWG24)
Supports Audio formats: PCM, LPCM, Dolby, DTS
Resolution:
■ 800x600@60Hz / 1024x768@60Hz / 1280x720@60Hz / 1280x800@60Hz / 1280x1024@60Hz / 1440x900@60Hz / 1680x1050@60Hz / 1920x1080@60Hz / 2560x1080@60Hz / 3840x2160@30Hz / 4096x2160@30Hz
Housing material: Iron alloy material + crystal panel
Product:
■ Transmitting unit (TX):
- Dimensions: 5.24" (L) x 0.98" (H) x 3.54" (W)
- Weight: 0.71 lbs
- Connectors:
-- 1x 19-pin HDMI, Type A, Female, Input
-- 1x 19-pin HDMI, Type A, Female, Loop-out
-- 1x 4-pin USB Type-B, Female, connect to PC
-- 1x 8-pin, RJ45, Output
-- 1x Power jack
-- 1x Reset button
■ Receiving unit (RX):
- Dimensions: 5.24" (L) x 0.98" (H) x 3.54" (W)
- Weight: 0.69 lbs
- Connectors:
-- 1x 19-pin HDMI, Type A, Female, Output
-- 2x 4-pin USB 2.0 Type-A Female, connect to Keyboard/Mouse
-- 1x 8-pin, RJ45, Input
-- 1x EDID button, Sync TX loop-out & RX output resolution
-- 1x USB button, to switch USB control
-- 1x Reset button
-- 1x Power jack
Power adapter (2pcs):
■ Input: 100-240V / 50-60Hz
■ Output: DC 5V/2A
■ UL listed: E335801 / Level: VI
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: 5% to 85% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 2 year limited
Country of origin: China
Requirements
■ Cat6/7 cable using T-568B wiring standard (100% copper wire recommended)
■ Gigabit Ethernet switch for One-to-many connection
■ Additional Receiver units sold separately, part# CE-H25L11-S1, for One-to-many connection
Package Contents
■ HDMI 4K30Hz KVM over Cat 6 Extender Kit (1 Transmitter + 1 Receiver)
■ Power adapter (2pcs)
■ USB Type-B to Type-A cable
■ Quick Start Guide
