• AcePro-SW17-1
  • AceProAV 4-Port Multi-Interface HDMI 2.0 Switcher for Presentation

Allows switching between 4 sources (1 Wireless Miracast/Airplay, 2 HDMI, 1 USB-C) to display on 1 HDMI display

  • $0 $0

Highlights

  • 4x1 18G presentation switcher with soft codec and wireless BYOD
  • 4 Inputs: 1x Wireless (Miracast/AirPlay), 2x HDMI, 1x USB Type-C, and 1 HDMI output
  • Supports HDMI 2.0b, HDCP 2.2, 4K @60Hz YUV 4:4:4, HDR 10, and Dolby Vision
  • Wireless BYOD (Bring Your Own Device) capability via AirPlay and Miracast
  • 2x Type-B USB ports for host connection, and 2x Type-A USB ports for devices
  • HDMI output audio extraction to balance analog audio
  • Video source auto-switching

Specification

Video

  • HDMI Standard: Up to HDMI 2.0b
  • HDCP Version: Up to HDCP 2.2
  • Video Input: AirPlay/Miracast (1), HDMI (2), USB-C DP Alt (1)
  • Video Input Connector: External antenna connector (1), Type-A female HDMI (1), Type-C DP Alt (1)
  • Resolution:
    • AirPlay/Miracast Input : Up to 4K@30Hz YUV 4:4:4
    • HDMI Input : Up to 4Kx2K@60Hz YUV 4:4:4 HDR10, Dolby Vision
    • USB-C Input: Up to 4K@30Hz YUV 4:4:4
  • Video Output: HDMI (1)
  • Video Output Connector: HDMI, Type-A, 19 pin, Female
  • HDMI Output Resolution: Up to 4Kx2K@60Hz YUV 4:4:4 HDR10, Dolby Vision
  • Audio
    • HDMI Embedded Audio Format: Supports Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-X, DTS-HD Master Audio, DTS 5.1, 2 - 8Ch PCM 32-192kHz 16-24 bits; 2-8Ch PCM 32-192kHz 16-24 bits
    • Balanced Analog Audio Output: AUDIO OUT (1)
    • Balanced Analog Audio Output Connector: 5-pin terminal block (1)
    • Frequency Response: 20Hz–20KHz, ±3dB
    • Max Output Level: 2.0Vrms ± 0.5dB
    • THD+N: < 0.05%, 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
    • SNR: >80dB, 20Hz - 20KHz bandwidth
    • Crosstalk Isolation: <-80dB, 10KHz sine at 0dBFS level (or max level before clipping)
    • L-R Level Deviation: <0.05dB, 1KHz sine at 0dBFS level (or max level before clipping)
    • Output Load Capability: 1KO and higher (Supports 10x paralleled 10KO loads)
    • Noise Level: -80dB
  • Control

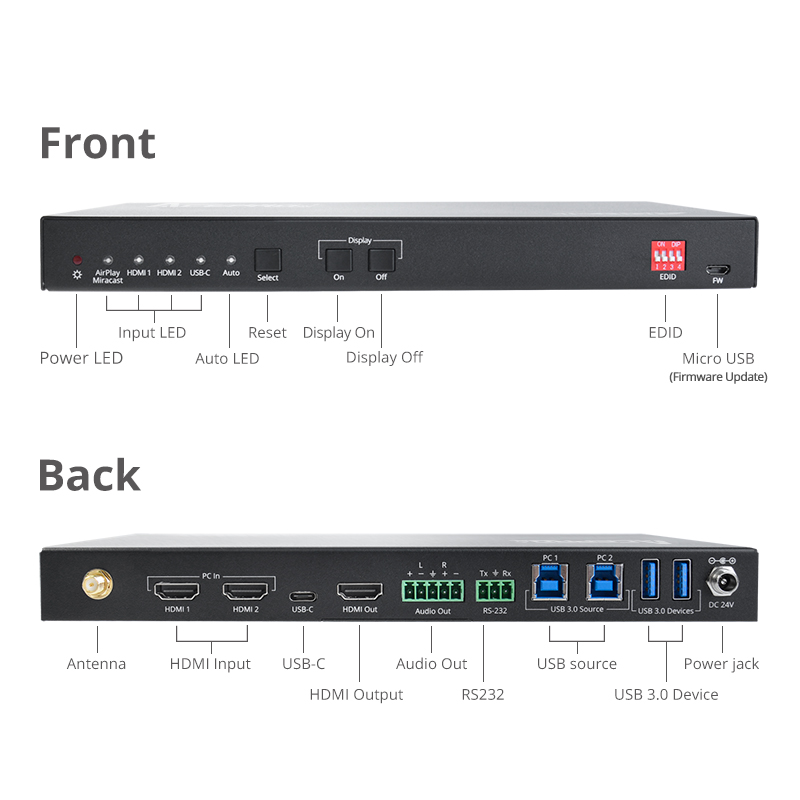

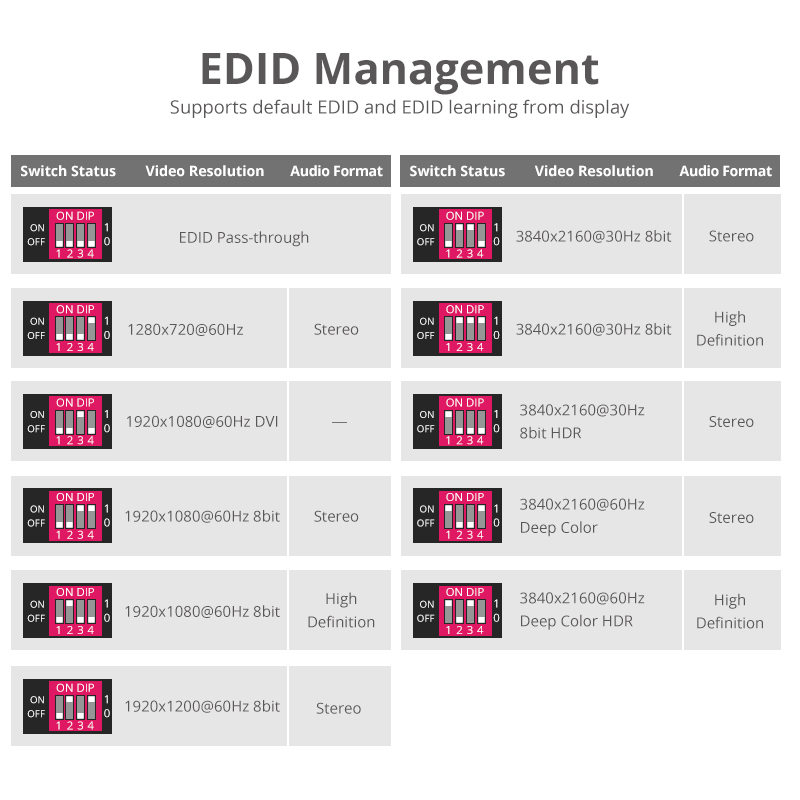

    • Control port: 4-pin DIP switch (1), FW (1), HOST (PC1 & PC2) (2), DEVICES (2), RS232 (1)
    • Control connector: Micro-USB (1), Type-B USB 3.0 (2), Type-A USB 3.0 (2), 3-pin terminal block (1)
  • Network Connectivity
    • WLAN Standards: IEEE 802.11ac
    • Band: 2.4 and 5GHz
    • Max. Wireless Coverage: =5m, environment dependent, reduce disturbance to increase transmission distance up to 10m
    • Max. Output Resolution: 4K/30Hz
    • Version: iOS 7 or above, Mac OS, Android 4.0 or above, Windows 8.1 or above
  • Product:

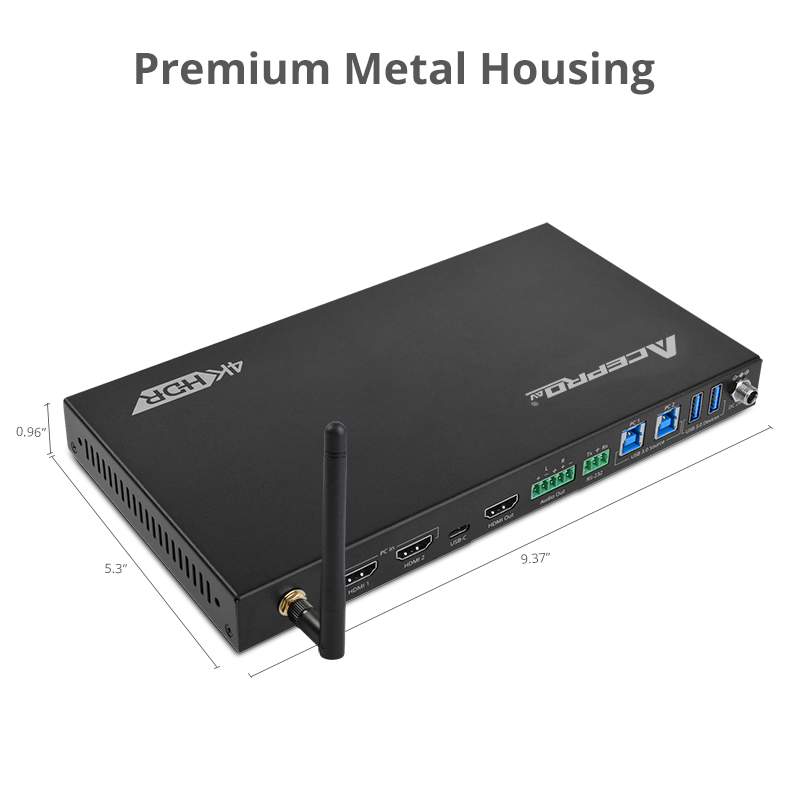

    • Dimensions: 9.33" (L) x 0.87" (H) x 5.31" (W)
    • Weight: 1.85 lbs
    • Color: Black
    • Housing material: Metal
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: -4 to 140 degrees F
    • Relative humidity: 10~90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
