Easily capture and save 4K HDMI signals in 1080p resolution from any HDMI source such as DVD players, media players, or Set-top box while simultaneously viewing in [email protected] YUV 4:4:4 resolution

  • $0 $0

Highlights

  • Professional like HDMI capture device with audio embedding through USB 3.0 connection from your PC system
  • Utilizes USB 3.0 interface for high-speed transmission
  • Allows capture and record in 1080p while viewing at [email protected] YUV 4:4:4 simultaneously. This device saves you the cost and hassle of buying a splitter to play and capture at the same time. Note: 4K HDR is NOT supported on the HDMI loop-out
  • Great for on-line meetings, training, gaming, and live broadcast

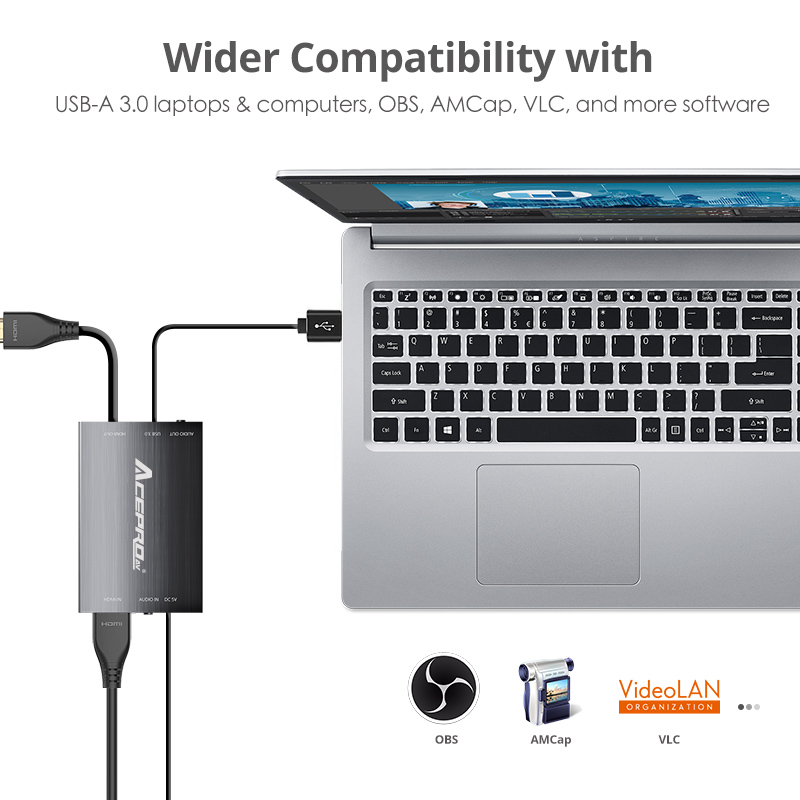

  • Compatible with most 3rd party software such as OBS Studio and AMCap
  • Compatible with Windows 7/8.1/10 and Mac
  • Mixed audio support from Line-in and HDMI with HDMI audio extraction to connect analog stereo speakers
  • Support video capture and record up to Full HD resolution up to 1920 x [email protected] fps
  • Supports HDMI resolution downscaling from 4K to 1080p
  • Recording video format: H.264 (Software Compression)

  • Notes:
  • - [email protected] YUV 4:2:2 to 1080p resolution downscaling is not supported
  • - [email protected] YUV 4:2:2 to [email protected] YUV 4:2:0 resolution downscaling is not supported

Specification

  • Chipset: IT6663FN
  • HDMI Bandwidth: Single-link 600MHz (18Gbps)
  • Video Bandwidth: Up to 350MBps (USB 3.0)
  • Input resolution: Up to [email protected] YUV 4:4:4
  • Recording mode: H.264 (Software compression)
  • Recording video format: YUY2 (USB 3.0) / MJPG (USB 2.0 / 3.0)
  • Software compatibility: OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows)¸VLC (OS X, Linux), XSplit Boardcast (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
  • ESD protection: Human body model ±15KV (air-gap discharge); ±8KV (contact discharge)
  • Product:
    • Dimensions: 4.13" (L) x 0.94" (W) x 2.68" (H)
    • Weight: 0.28 lbs
    • Color: Black
    • Housing material: Aluminum

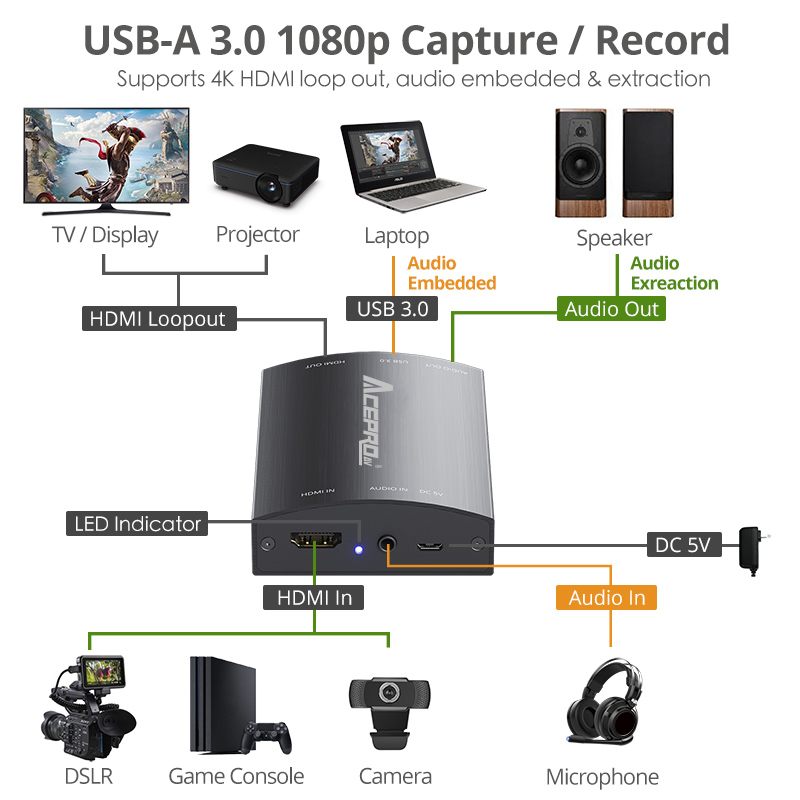

    • Connectors:
      • 1x 19-pin HDMI, Female,  Input
      • 1x 19-pin HDMI,  Female, Loop-out
      • 1x 9-pin USB 3.0, Type-A, Female, To PC system
      • 1x 3.5mm jack, Audio, Input
      • 1x 3.5mm jack, Audio, Output
      • 1x 5-pin, Micro USB,  Power jack
  • Power adapter:
    • Input: 100-240VAC, 50/60 Hz
    • Output: DC 5V/2A
    • UL Listed: E135856 /Level: VI
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: -4 to 140 degrees F
    • Relative humidity: 20 to 90% RH (non-condensing)
  • Certifications/Standards:  FCC, CE, RoHS
  • TAA compliant
  • Country of origin: Taiwan
