Transmits 1080p HDMI signals wirelessly up to 500ft (150m) with IR control, keyboard and mouse control, and local HDMI loop-out

  • $0 $0

Highlights

  • Transmits and receives HDMI A/V signals wirelessly without complicated cable or wire installation, working range up to 500ft line-of-sight environment.  Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum
  • Supports USB extension from the transmitter to the receiver, allowing you to connect a keyboard and mouse to the receiver and remotely operate your PC system at the remote display
  • Supports high-definition vivid video up 1080p @60Hz, streaming flawless HD video and stereo audio
  • Works with most HDMI equipped devices including PC or Mac systems

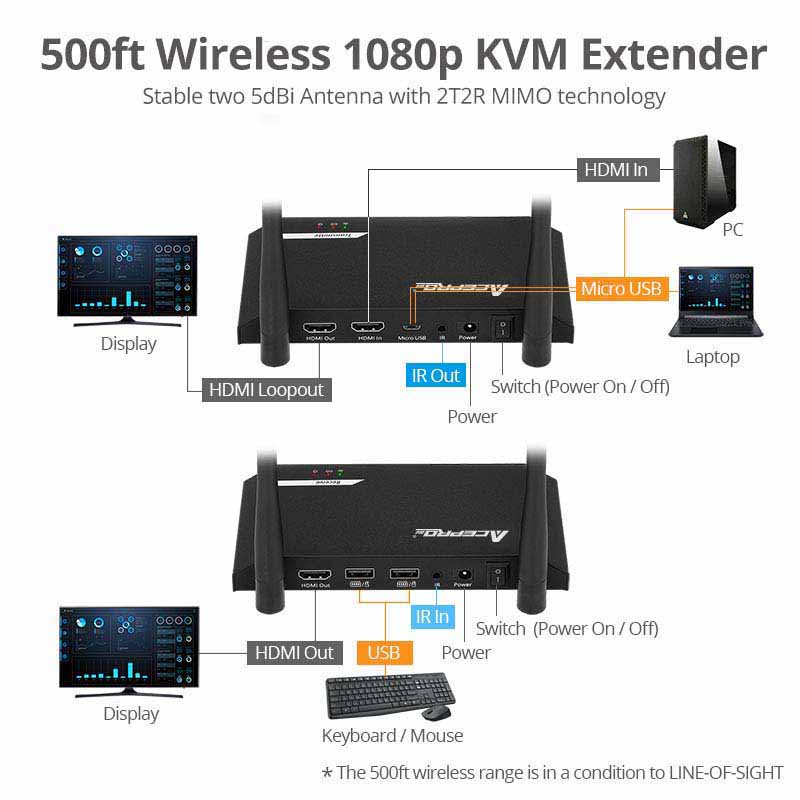

  • The transmitter's HDMI loop-out allows local monitoring of the extended display
  • Built-in IR signal extension feature allows to control the HDMI source device at the distant location
  • Compatible with HDMI 1.3 and HDCP 1.4
  • Dual antenna with MIMO technology with the implementation of the dual 5dBi antenna design, the data rate has been greatly improved to deliver more stable and smooth video playback
  • Plug & Play – No software or driver required. Durable metal housing provides excellent heat dissipation and minimizes EMI/RFI noise interference

Specification

  • HDMI version: HDMI 1.3 compatible
  • HDCP version: HDCP 1.4 compatible
  • Transmission Distance: 150m (500ft) line-of-sight

  • Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum
  • Wireless technology: 2.4GHz
  • Supported Resolutions: Up to [email protected]
  • HDMI cable length: Up to 5m (Input & Output)
  • Audio format: R/L stereo audio (2-ch)
  • IR control: 20-60Hz frequency range
  • Product:
    • Color: Black
    • Housing: Metal

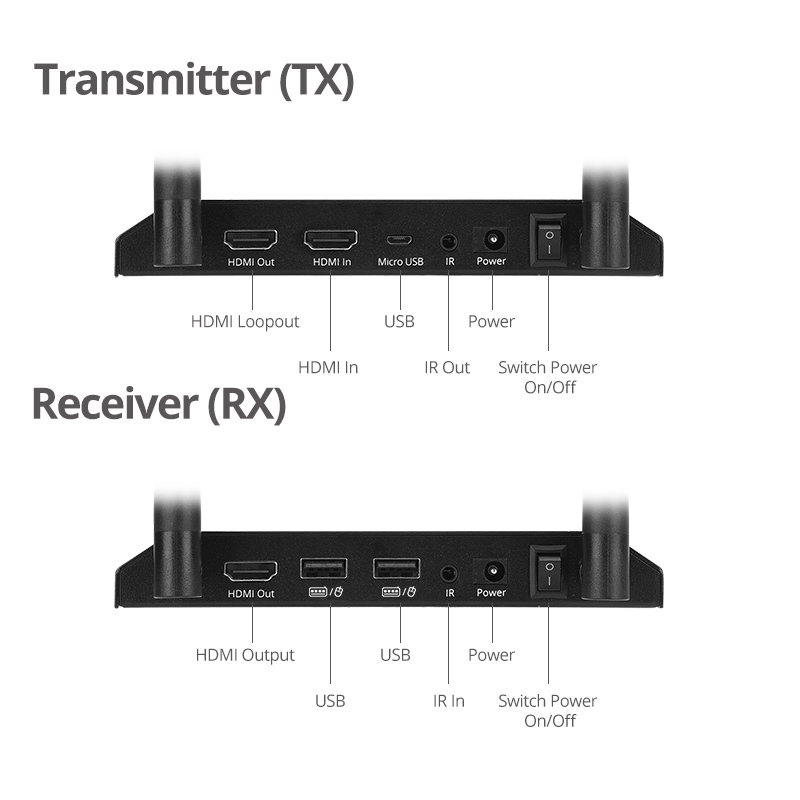

    • Transmitting unit (TX):
      • Dimensions: 6.05" (L) x 0.83" (H) x 3.15" (W)
      • Weight: 0.71 lbs
      • Connectors:
        • 1x 19-pin, HDMI, Female, Input
        • 1x 19-pin HDMI, Female, Loop Out
        • 1x Infrared 3.5mm socket, IR Out
        • 1x 5-Pin, Micro USB, USB 2.0 source
        • 2x Antenna port
    • Receiving unit (RX):
      • Dimensions: 6.05" (L) x 0.83" (H) x 3.15" (W)
      • Weight: 0.71 lbs
      • Connectors:
        • 1x 19-pin, HDMI, Female, Output
        • 1x Infrared 3.5mm socket, IR In
        • 2x 4-pin USB 2.0, for USB Keyboard & Mouse
        • 2x Antenna port
  • Power Adapter:
    • Input: AC 100-240V/50-60Hz
    • Output: DC 5V/2A
    • UL Listed: STD1310:2011/ Class: VI
  • Operating temperature: 32 to 104 degrees F
    • Storage temperature: -4 to 158 degrees F
    • Relative humidity: 0% to 95% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
