- AcePro-EX48-1
- AceProAV 4-Port HDMI 1080p Splitter HDbitT over IP Extender Kit
Extends 1080p HDMI signal up to 394ft over Cat6 cable to up to 4 displays, IR control, works with dedicated Gigabit network switches for more displays and extension
Highlights
- With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft (120m) with our 1x4 HDMI Splitter HDbitT over IP Extender Kit - 120m. Direct 1-to-1 connection, 1-to-Many through Gigabit network switches. Additional receivers, are sold separately
- Features cascade connection of up to 30 receivers per transmitter. 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups. Note that each VLAN can only accommodate 1 transmitter (TX). Note: We recommend using AVLT's 24-port AV Over IP Smart Ethernet Switch, sold separately
- Delivers crystal clear Full HD content up to 1080p@60Hz resolution. Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. * Note: There’s a 250ms or less delay/latency due to data compression. Not recommended for real-time applications, such as PC gaming
- IR remote control through Cat6 cable allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a Cat6 cable for convenience. We recommend using high performance pure COPPER Cat6 cables to ensure reliable performance
- High quality durable surface mountable metal housing with ventilation panels provides excellent heat dissipation and a higher level of RF/EMI shielding to ensure reliable performance and system stability during long hours of non-stop operation
- Plug-n-Play installation, no software installation required, backed by a 2-year limited warranty
Specification
- Transport protocol: HDbitT
- Compliant with HDMI 1.3 and HDCP 1.2
- Transmission distance: Up to 394ft (120m) via single Cat6 cable at 1080p@60Hz resolution
- Video resolution: 480p / 720p / 1080i / 1080p@60Hz
- Audio input: 7.1 Channel, PCM, DTS, AC3 audio
- IR signal: Unidirectional full frequency 20KHz to 60KHz
- Housing: Aluminum wall mount design
- Network cable: UTP/STP CAT6/6a/7, solid copper
- Connection topology:

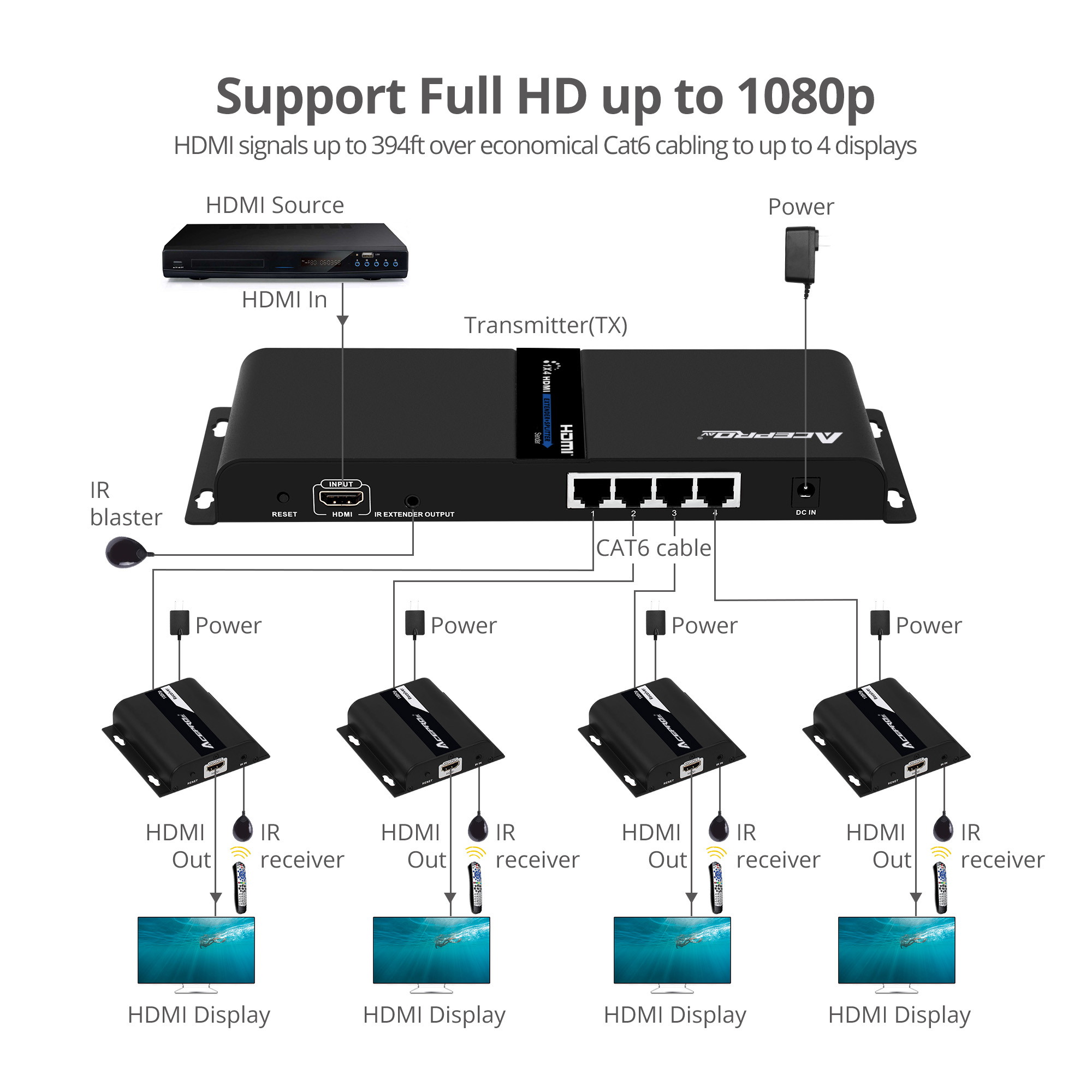

- Direct connection: 1x4

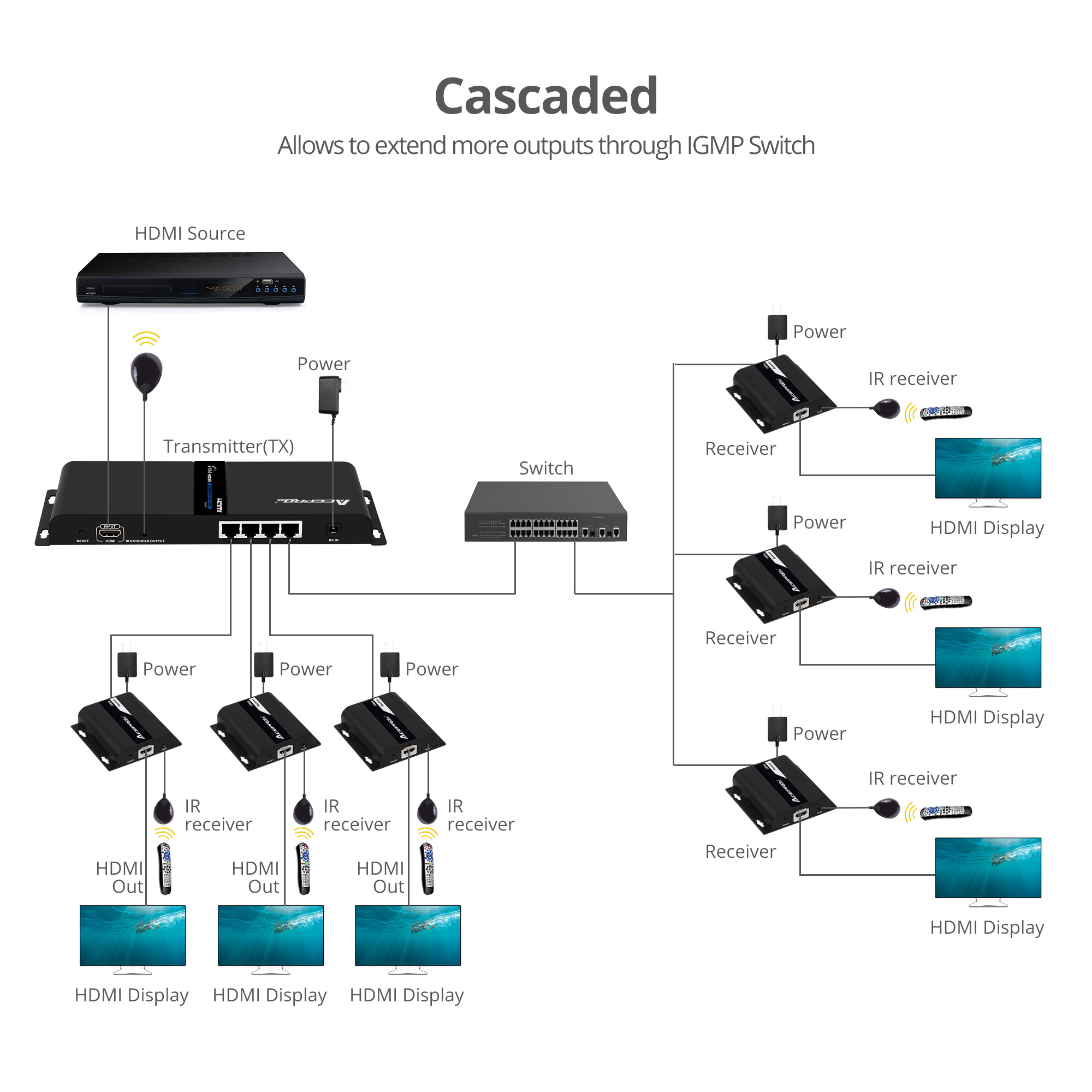

- Cascade: 1-to-many through dedicated IGMP Gigabit switches, up to 30 receivers per TX
- Product:

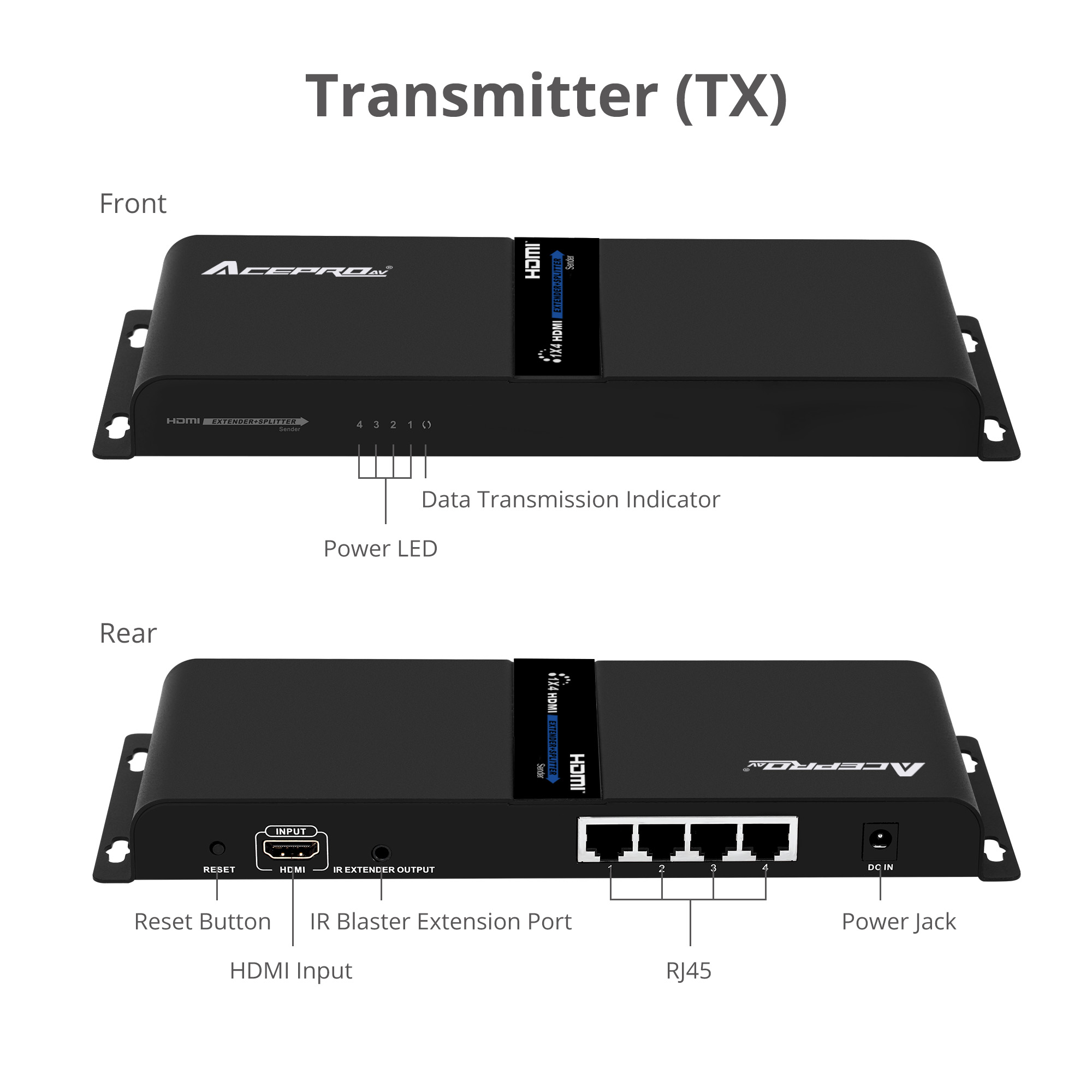

- Transmitting unit (TX):
- Dimensions: 9.92" (L) x 0.98" (H) x 3.82" (W)
- Weight: 1.34 lbs
- Connectors:
- 1x 19-pin HDMI, Type A, Female, Input
- 1x 3.5mm jack, IR blaster, Output
- 4x 8-pin, RJ45, HDbitT signal, Output
- 1x Power jack, 5V/2A, Input
- 1x Reset button

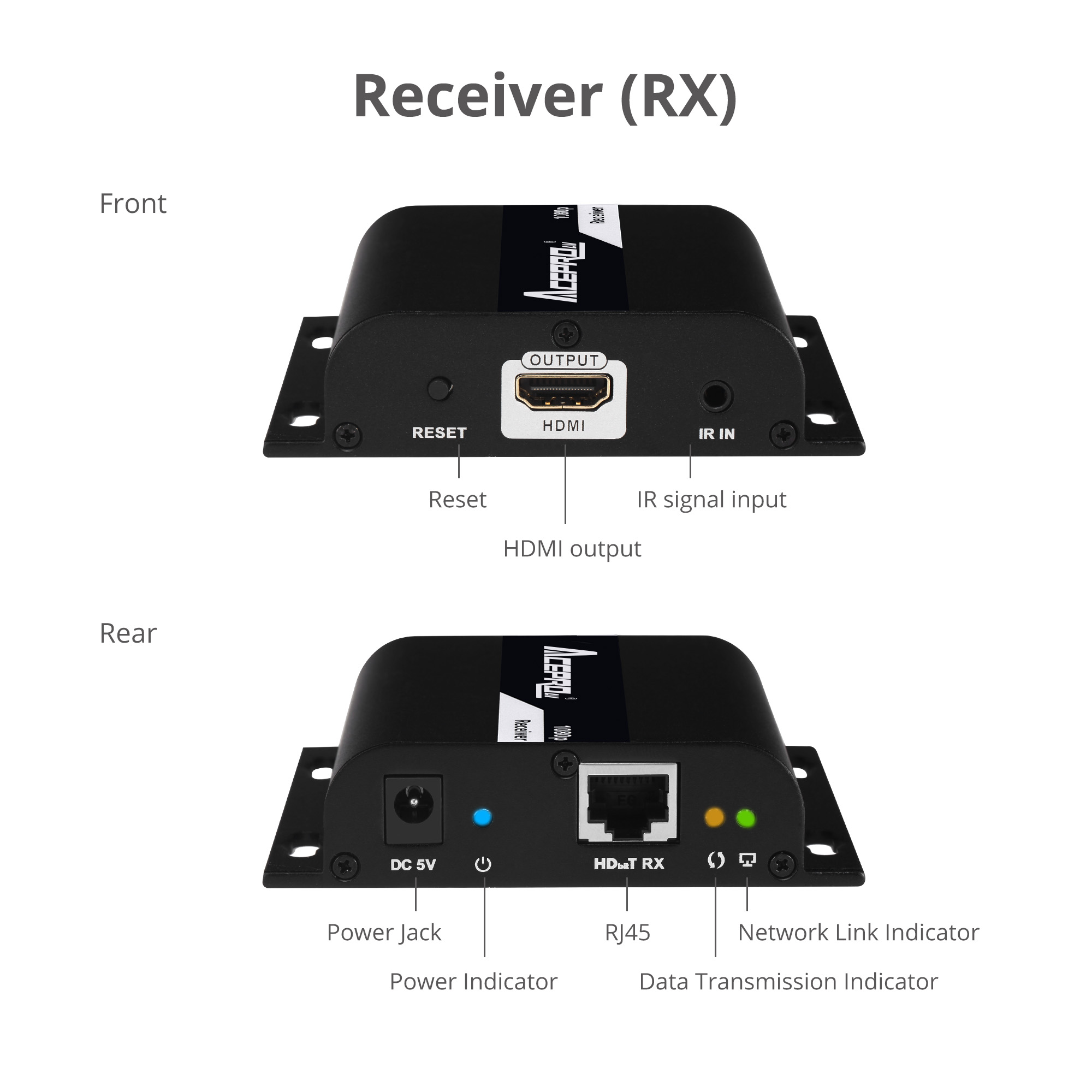

- Receiving unit (RX):
- Dimensions : 3.81" (L) x 0.93" (H) x 3.70" (W)
- Weight: 0.33 lbs
- Connectors:
- 1x 19-pin HDMI, Type A, Female, Output
- 1x 3.5mm jack, IR receiver, Input
- 1x 8-pin, RJ45, HDbitT signal, Input
- 1x Power jack, 5V/1A, Input
- 1x Reset button
- Transmitting unit (TX):
- Power adapter:
- Input: 100-240V / 50-60Hz
- TX: DC 5V/2A
- RX: DC 5V/1A
- UL listed: E335801 / Level: VI
- Environmental conditions:
- Operating temperature: 32 to 122 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: 0 to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: China
