HDMI 2.0 KVM Over Cat6 Extender | AVLT®

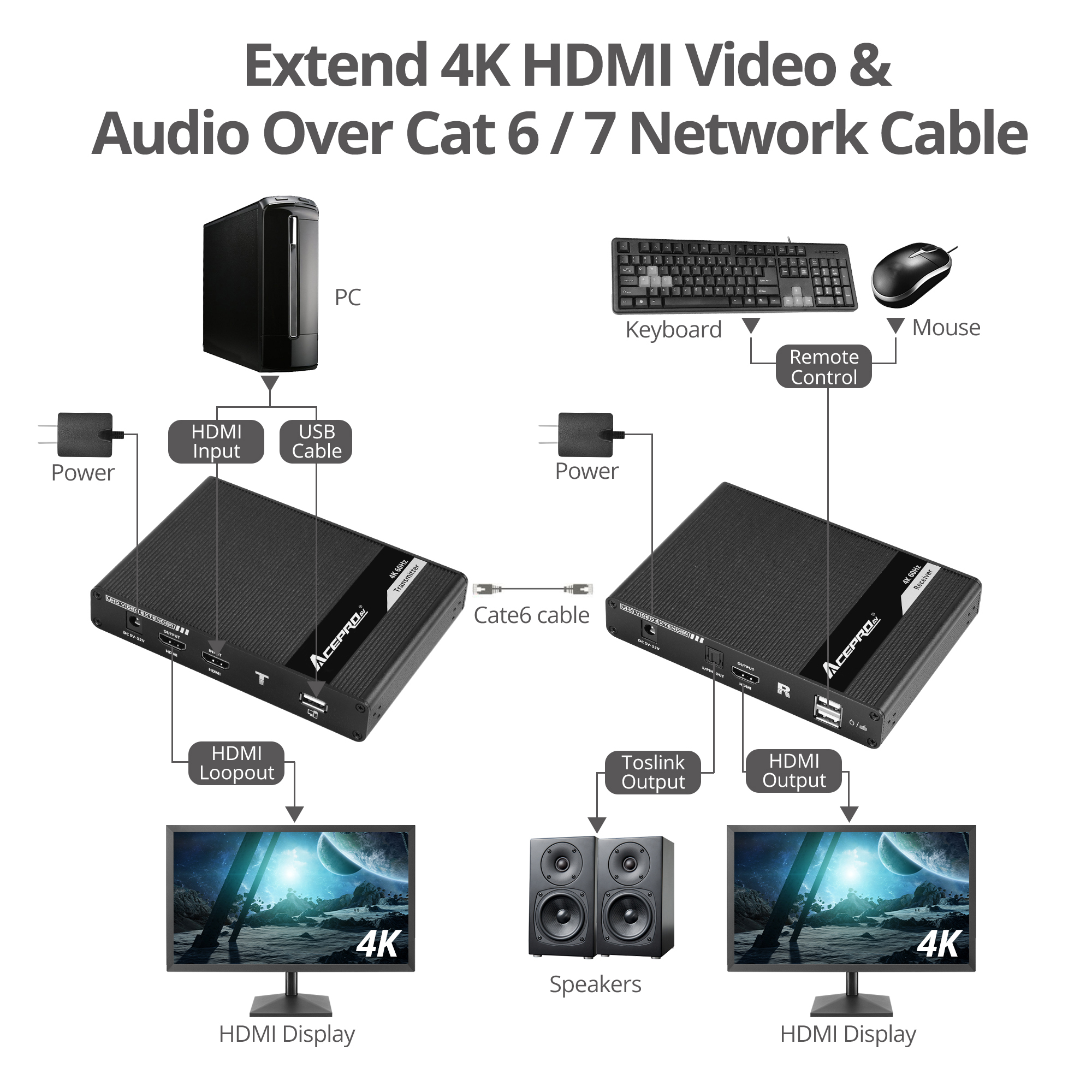

Extends and transmits 4K@60Hz HDMI 2.0 video/audio and USB 2.0 signals up to 230ft (70m) through a Cat6/6a/7 network cable with nearly with zero latency
Supports USB 2.0 extension to the receiver, allowing you to connect a wired/wireless keyboard and mouse to control your computer remotely
Supports digital audio extraction through the receiver's S/PDIF port, with PCM 2ch, Dolby, DTS 5.1
The transmitter's HDMI loop-out allows for local monitoring of the extended display
The transmitter can work as an HDMI splitter with the additional HDMI output design, and allows screen mirroring to another display device
Lightning protection, surge protection, ESD protection
Plug and play, no driver installation required
High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation

Compliant with HDMI 2.0 and HDCP 2.2 specifications
Resolution: 2160p / 1080p / 1080i / 720p / 480p
HDMI Audio format: PCM 2/5.1/7.1-ch, Dolby/DTS 5.1
Toslink Audio format: PCM 2ch, Dolby/DTS 5.1
Transmission distance:
- 4K@60Hz: Up to 40m via Cat5 cable
- 4K@60Hz: Up to 70m via Cat6/6a/7 cable
Housing material: Aluminum with Plastic
Product:
- Transmitting unit (TX):
  - Dimensions: 5.91" (W) x 0.98" (H) x 4.13" (D)
  - Weight: 0.55 lbs

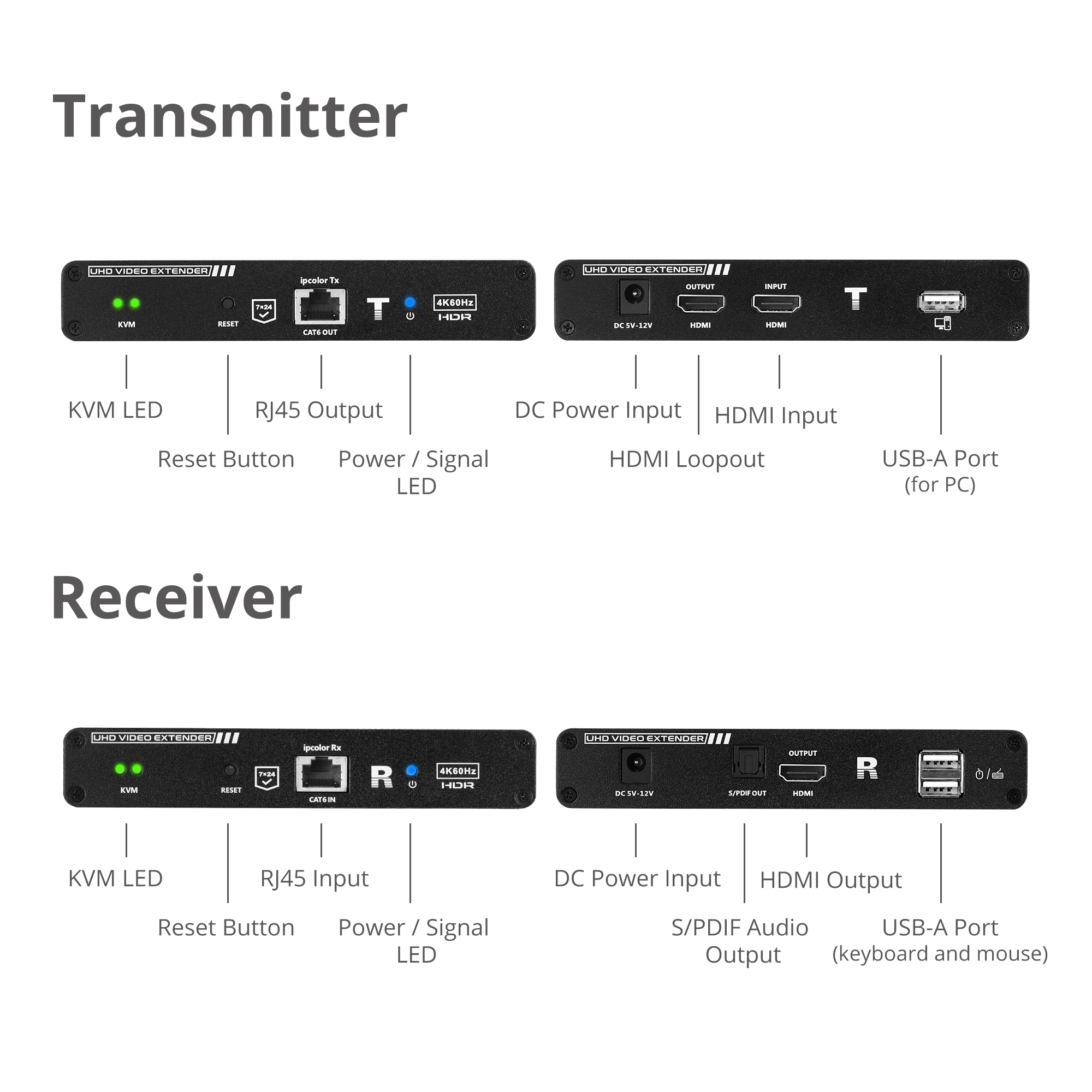

  - Connectors:
    - 1x 19-pin HDMI, Type A, Female, Input
    - 1x 19-pin HDMI, Type A, Female, loop-out
    - 1x 4-pin USB 2.0 Type-A, Female, for host connection
    - 1x 8-pin, RJ45, Output
    - 1x Power jack
    - 1x Reset button
- Receiving unit (RX):
  - Dimensions: 5.91" (W) x 0.98" (H) x 4.13" (D)
  - Weight: 0.55 lbs
  - Connectors:
    - 1x 19-pin HDMI, Type A, Female, Output
    - 2x 4-pin USB 2.0 Type-A Female, connect to Keyboard/Mouse
    - 1x 8-pin, RJ45, Input
    - 1x S/PDIF Toslink, Audio
    - 1x Reset button
    - 1x Power jack
Unit package:
- Dimensions: 14.06" (W) x 3.35" (H) x 6.02" (D)
- Weight: 2.47 lbs
Power adapter:
- Input: 100-240V / 50-60Hz
- Output: DC 5V/2A
- UL listed: E335801 / Level: VI
Environmental conditions:
- Operating temperature: 14~140 degrees F
- Storage temperature: -4~158 degrees F
- Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Country of origin: China
