• AcePro-EX51-1
  • HDMI HDbitT Over IP Extender with IR

  • $0 $0

Highlights

  • Extends HDMI signals up to 394ft (120m) to a distant display over economical Cat6 cabling
  • Features direct 1-to-1 connection or 1-to-many connection through unmanaged dedicated Gigabit ethernet routers or switches. With HDBitT® transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays.  Note: Additional Receivers sold separately
  • Delivers crystal clear Full HD video content up to [email protected] resolution
  • IR remote control pass-through feature allows you to remotely control the HDMI source device at the display location
  • High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
  • Plug-n-Play installation, no software installation required
  • Built-in power led indicator provides easy power status monitoring

Specification

  • Transport protocol: HDbitT
  • Compliant with HDCP 1.2
  • Support connections:

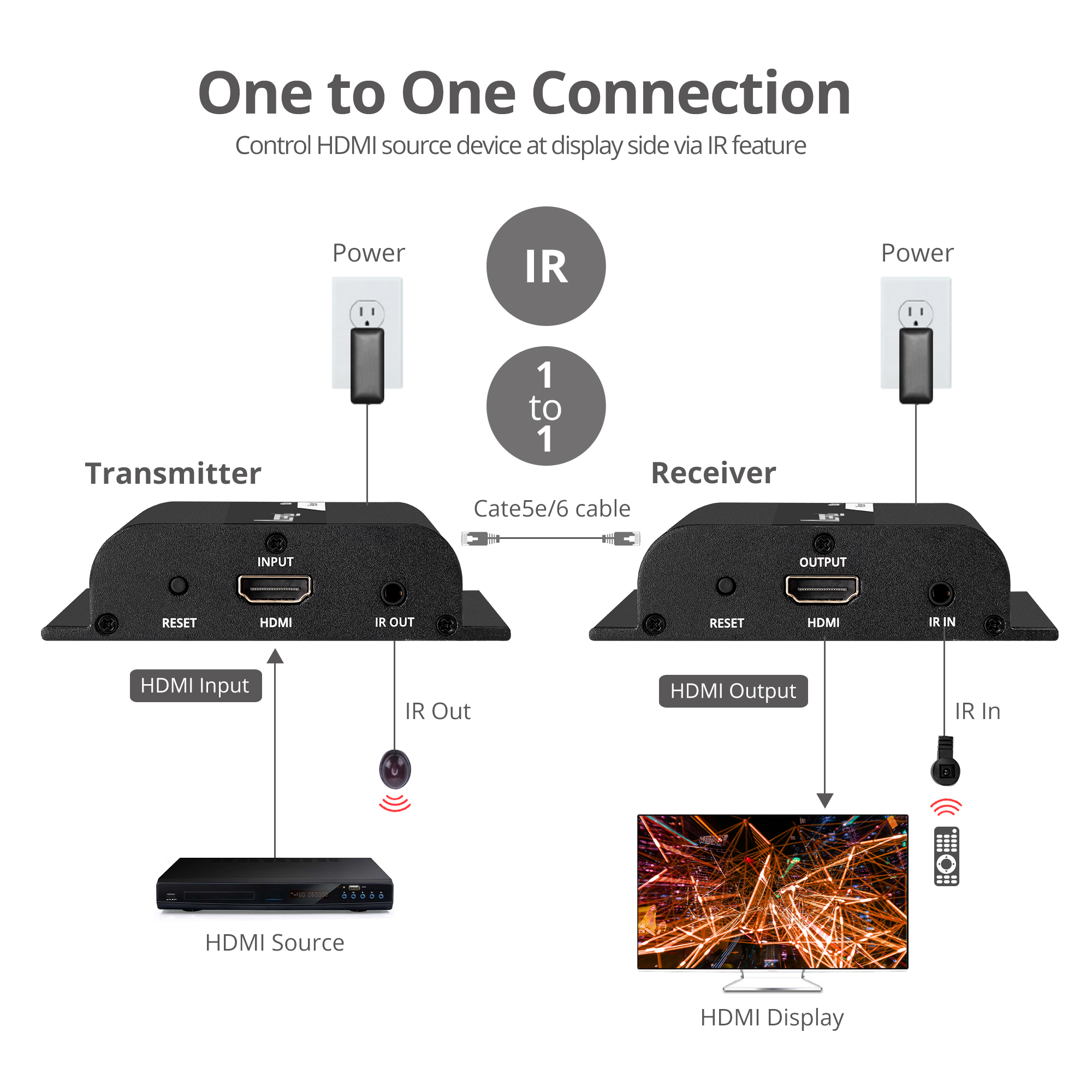

    • 1-to-1 connection (Extender)

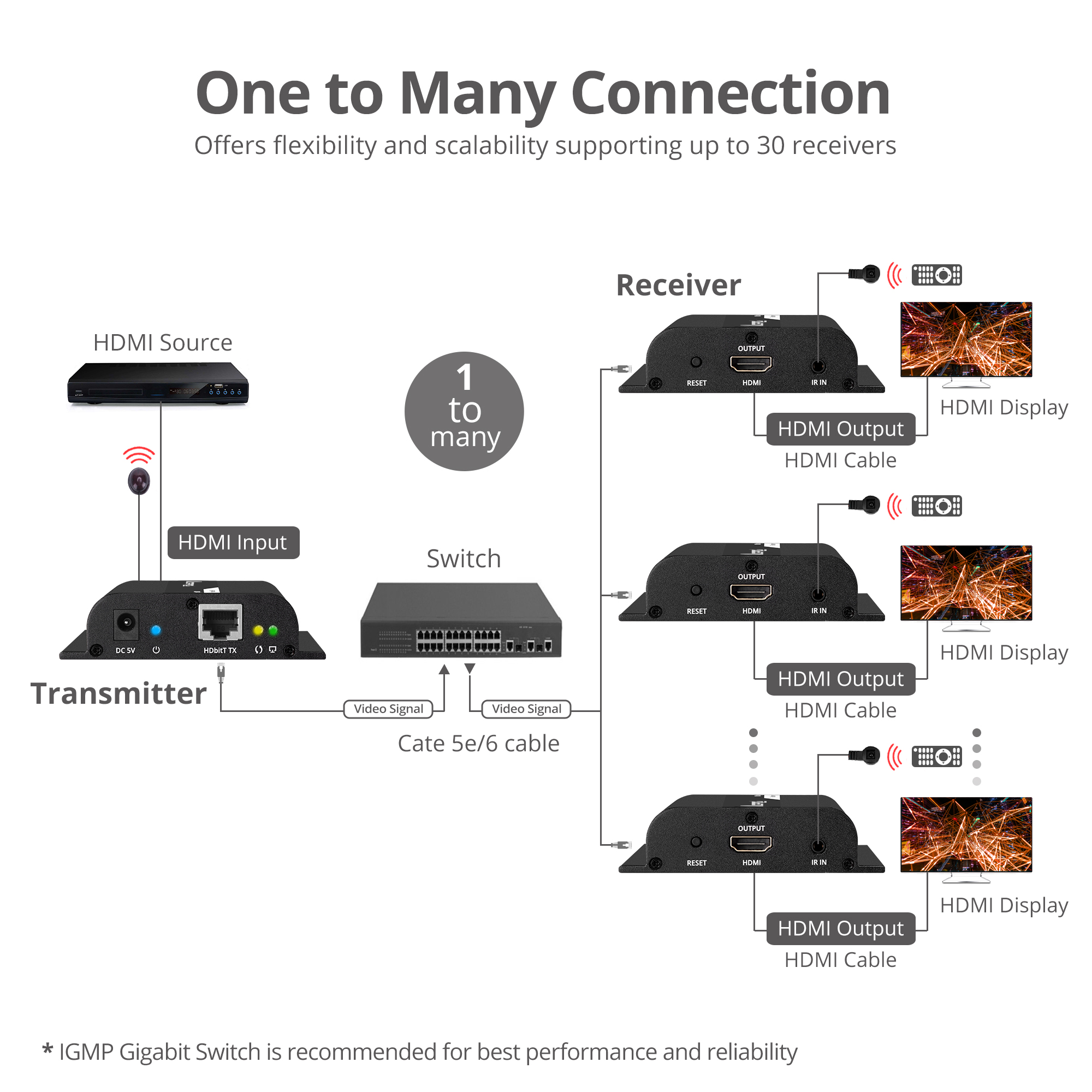

    • One-to-many connection (Splitter)
      • Requires additional receivers sold separately
      • Requires dedicated network routers and/or switches
  • Supports 2-Ch PCM stereo audio
  • Supports full frequency IR signal from 20KHz to 60KHz
  • Resolution: 480p / 720p / 1080i / [email protected]

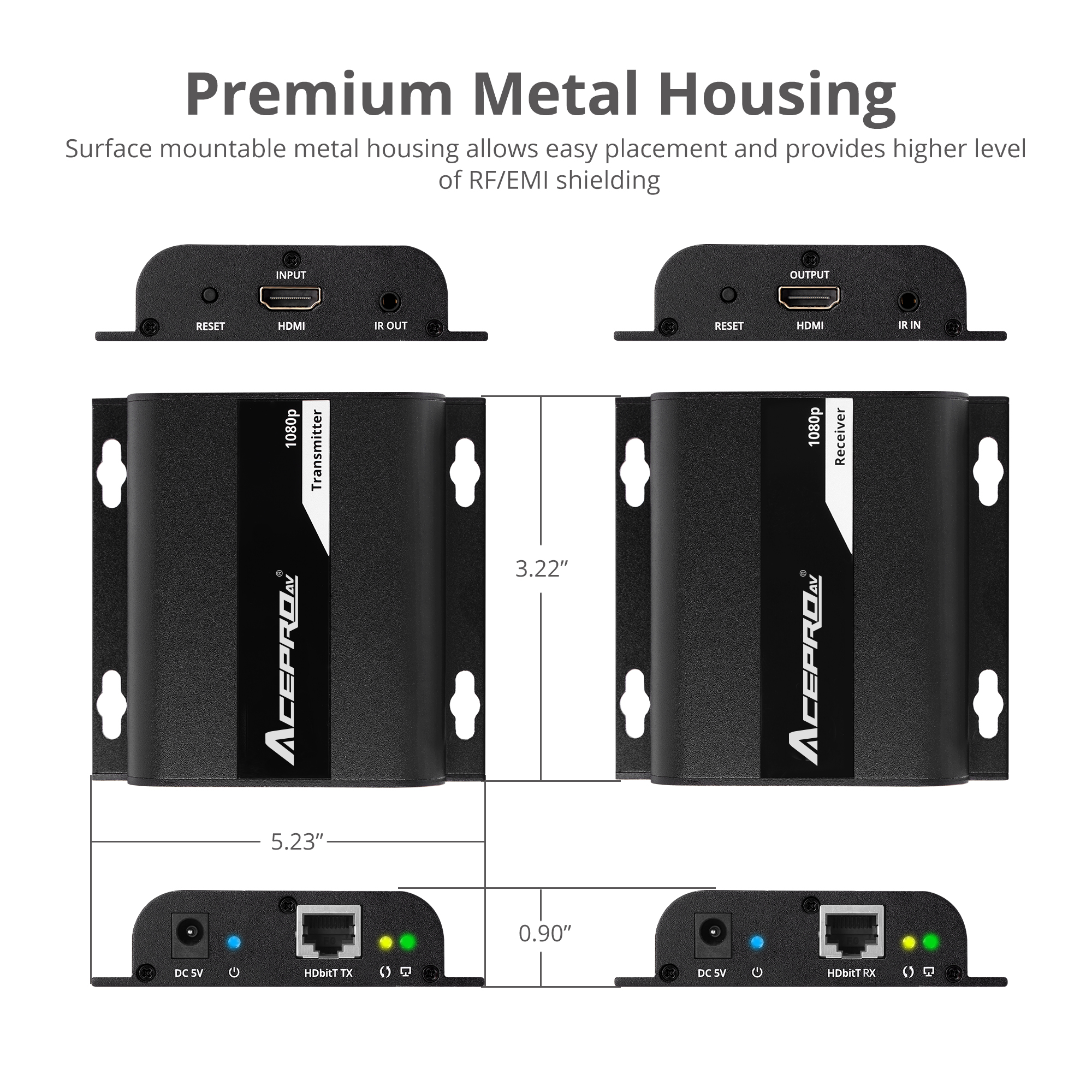

  • Aluminum housing with wall mount design
  • Product:
    • Transmitting unit (TX):
      • Dimensions: 3.70" (W) x 0.93" (H) x 3.81" (D)
      • Weight: 0.33 lbs

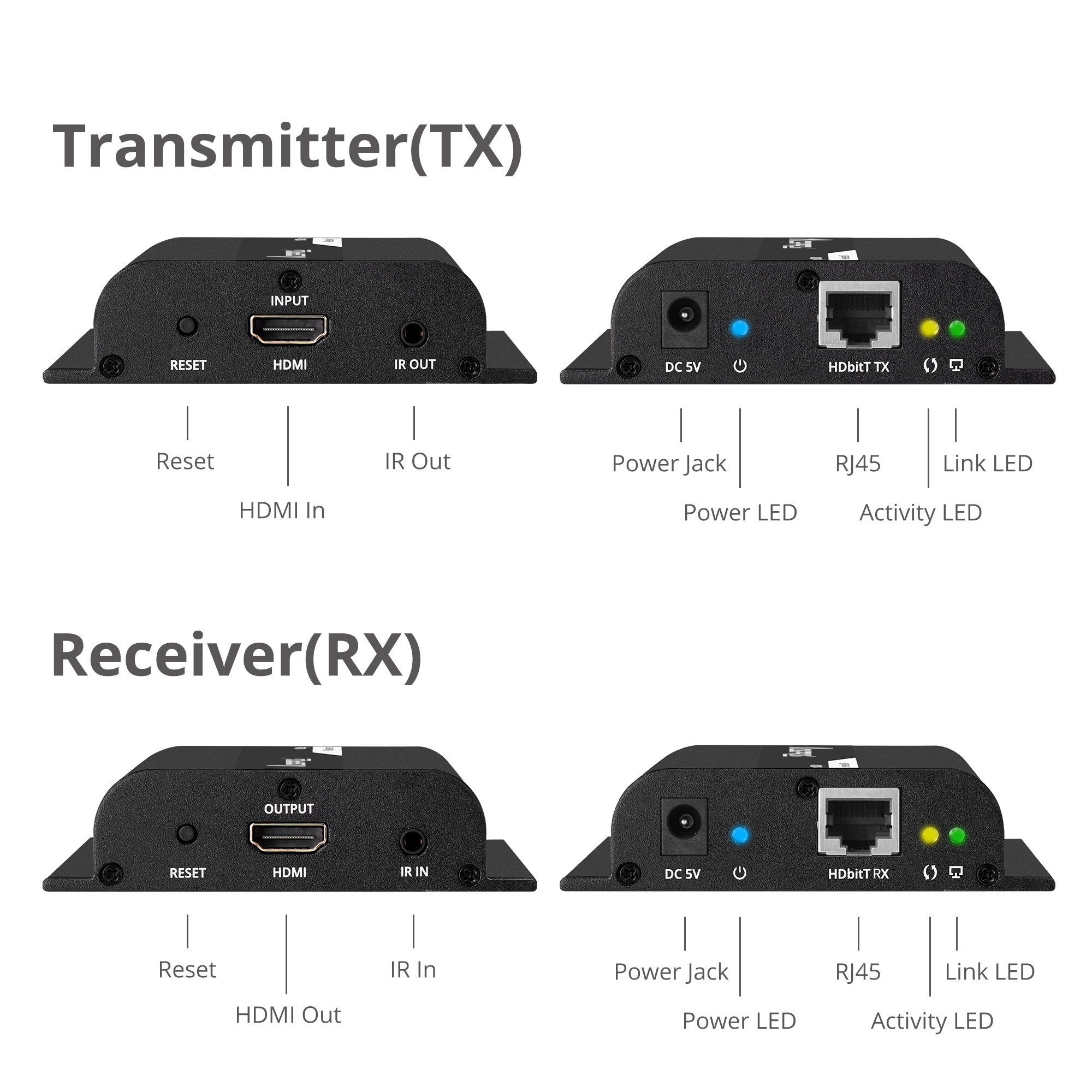

      • Connectors:
        • 1x 19-pin HDMI, Type A, Female, Input
        • 1x 3.5mm jack, IR Blaster
        • 1x 8-pin, RJ45, HDbitT signal output
        • 1x Power jack
        • 1x Reset button
    • Receiving unit (RX):
      • Dimensions : 3.70" (W) x 0.93" (H) x 3.81" (D)
      • Weight: 0.33 lbs
      • Connectors:
        • 1x 19-pin HDMI, Type A, Female, Output
        • 1x 3.5mm jack, IR Receiver
        • 1x 8-pin, RJ45, HDbitT signal input
        • 1x Reset button
        • 1x Power jack
  • Unit package:
    • Dimensions: 7.87"(W) x 3.15"(H) x 5.90"(D)
    • Weight: 1.28 lbs
  • Power adapter:
    • Input: 100-240V / 50-60Hz
    • Output: DC 5V/1A
    • UL listed: E335801 / Level: VI
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: 14 to 158 degrees F
    • Relative humidity: 5% to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
