- AcePro-DK09-1
- USB-C Quad Hybrid 4K Video Docking Station with PD
Highlights
- Overview
- Advanced Hybrid USB C docking station Quad monitor with 4x HDMI or 4x DisplayPort, one USB-A 10Gbps, three USB-A 5Gbps, one USB-C PD 30W, one 2.5G Ethernet, one SD v4.0 Card Reader, one stereo audio/microphone, and PD up to 100W for Windows and Mac
- Features
- Make the powerful visual solution with 4 Hybrid displays (DisplayPort/HDMI) or 5K displays (2x DisplayPort) and multiple connections for increased productivity

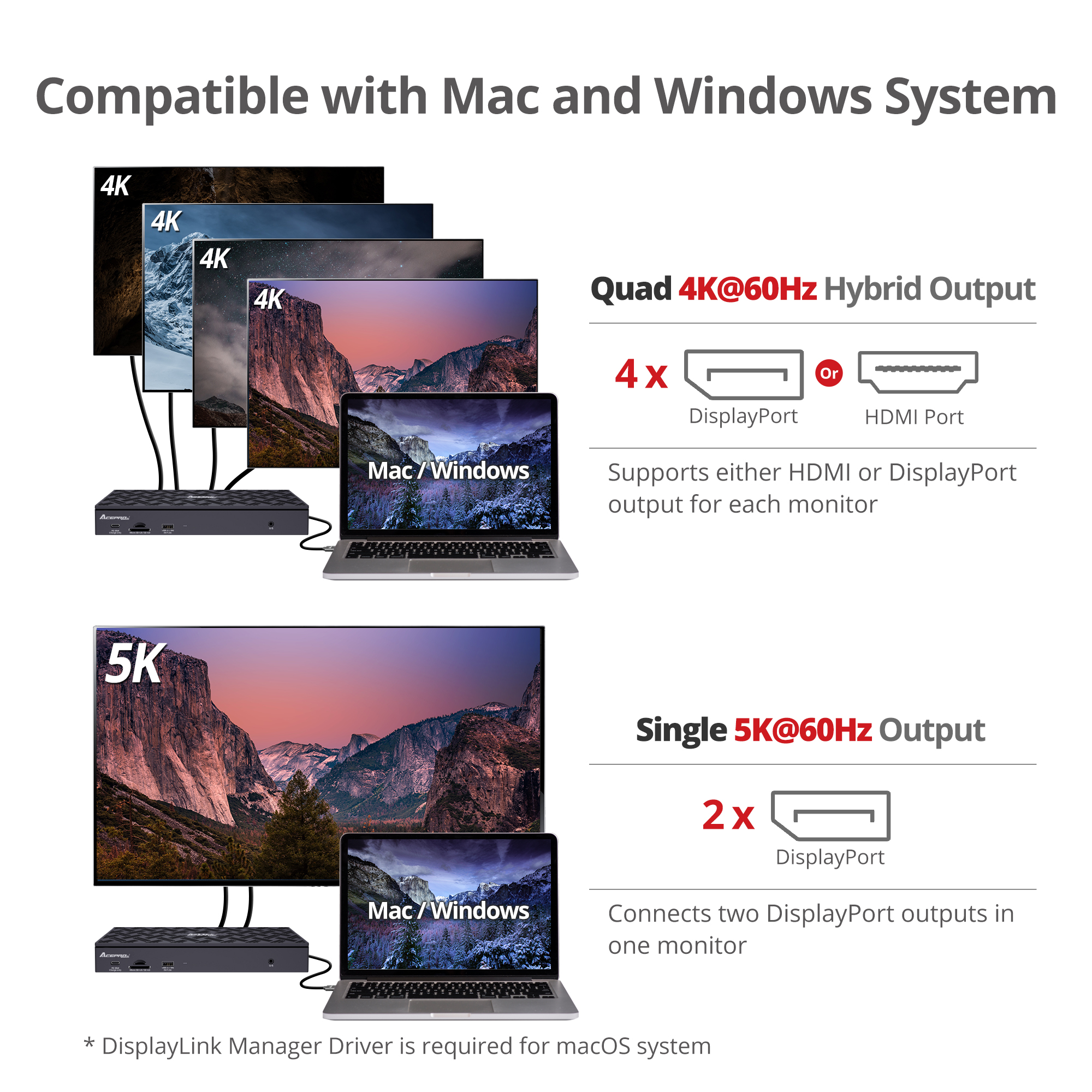

- 5K/4K Video Resolution
- Supports one single 5K (5120x2880) @60Hz display via 2 DisplayPort ports, quad 4K (3840x2160) @60Hz Ultra HD displays via DP/HDMI or DP/DP or HDMI/HDMI with DisplayLink IC, and 5.1-ch surround sound
- Multiple Connectivity Ports

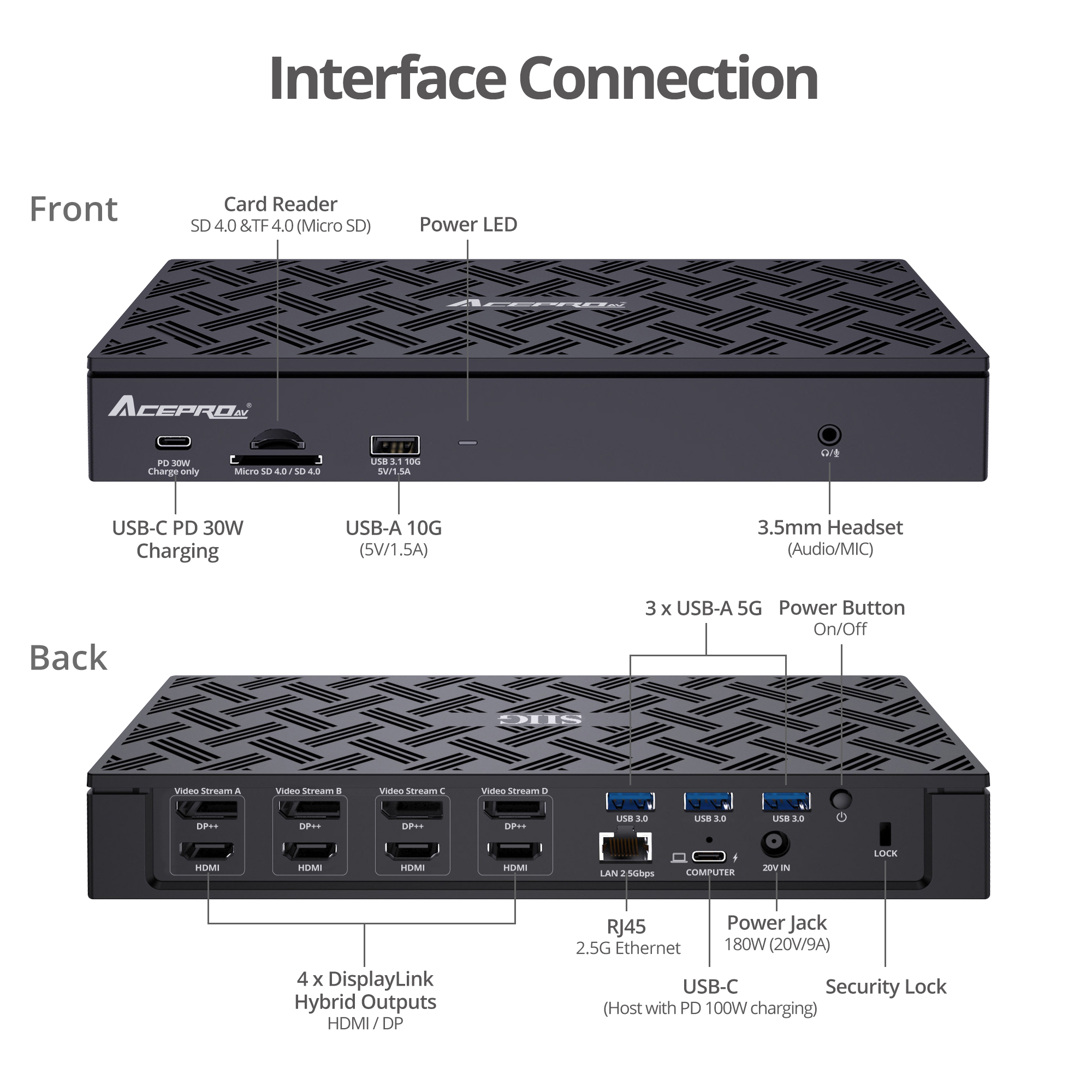

- Adds one USB-C port with DP Alt mode and PD 100W (Host)*, four DisplayPort video output ports (with DisplayLink controlled), four HDMI video output ports (with DisplayLink controlled), one USB-A 3.2 Gen 2 with 5V/1.5A charging (10Gbps) port, one USB-A 3.2 Gen 1 (5Gpbs), one USB-C PD 30W charging, one 2.5G Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone), one SD 4.0 UHS-II memory card slot, one Micro SD (TF) 4.0 UHS-II memory card slot, one security lock, one power on/off button, and one DC 20V/9A power jack
- * Note: PD charging will not work if you connect a USB-A laptop/notebook
- USB-A 3.2 Data Transfer
- Provides one USB-A 3.2 Gen 2 with 5V/1.5A charging (10Gbps) and three USB-A 3.2 Gen 1 (5Gbps) ports to enhance the performance and transfer capability of USB devices
- Memory Card Slots
- Compatible with SD 4.0 UHS-II and Micro SD (TF) 4.0 UHS-II memory card and data transfer rate up to 312MB

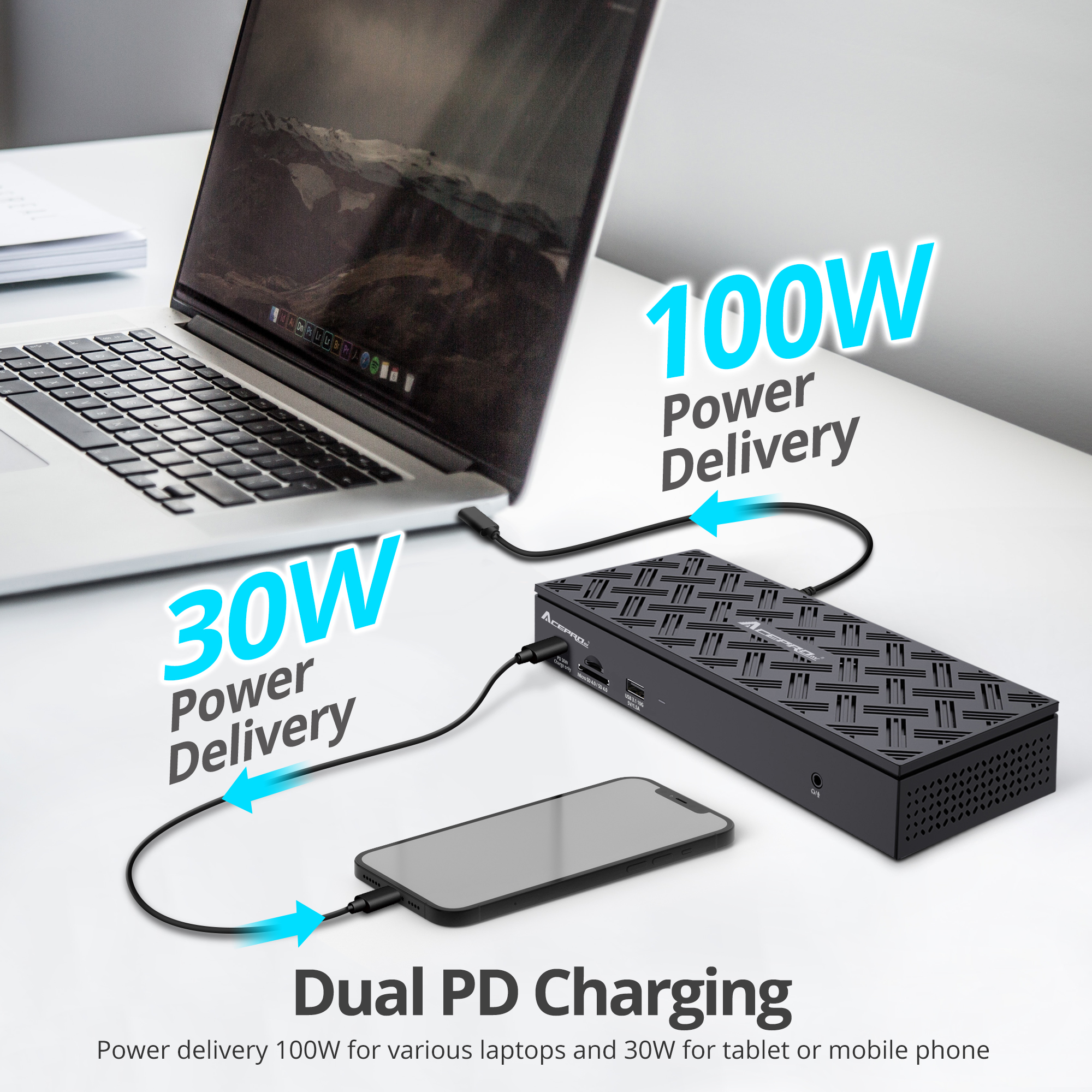

- 100W Power Delivery
- The included 180W power adapter not only provides up to 100W power delivery to charge a laptop or notebook, but also provides up to 30W power delivery to charge a tablet or smartphone
- * Note: PD charging will not if you connect a USB-A laptop/notebook
- 3.5mm Headset Jack
- Supports one 3.5mm headset jack for 2 channel stereo audio and microphone connection
- 2.5G Gigabit Ethernet
- Reliable wired network connectivity with embedded 10/100/1000/2500BASE-T Gigabit Ethernet port for high bandwidth networking
- ABS Housing Design
- Smooth ABS housing with heat dissipation design for reliable performance and increase efficiency. Built-in power on/off button with LED provides easy recognition of power status
- Security Lock
- Keep your laptop safe and secure with a Kensington security lock when you work in a public place
- Maximum Compatibility
- Compatible with Windows® 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 7 (32-/64-bit) and macOS® 12 / 11 / 10.13 to 10.15
- *Note: macOS® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier
Specification
- Hardware
- Chipset:DL-6910
- Compliant with Universal Serial Bus 3.2, 3.1, 3.0 and 2.0 specification
- Software
- OS Compatibility: Windows® 11, mac OS® 12 or new
- * macOS® 10.13.4 to 10.13.6 is not supported
- Video
- HDMI with DisplayLink IC: x4, 4K@60Hz
- DisplayPort with DisplayLink IC: x4, 4K@60Hz
- * Connect 2 DisplayPort output ports to a single 5K TV/monitor
- USB
- USB-A 3.2 Gen 2: x1, with 5V/1.5A charging, data transfer rate up to 10Gbps
- USB-A 3.2 Gen 2: x3, data transfer rate up to 5Gbps, 5V/900mA
- Fast Charging Port: Yes
- Audio
- 5.1 channel surround sound from DisplayPort/HDMI output
- 2 channel stereo audio from 3.5mm audio jack
- Power
- Power Delivery 3.0: up to 100W via USB-C port (Host) and up to 30W via USB-C port (source)
- Power Adapter: Input: AC 100-240V/50-60Hz, Output: DC 20V/9A, UL Listed: E355343 / Level: VI
- Ethernet
- Data transfer rate: up to 2.5G (2500Mbps), backward compatible with 10/100/1000Mbps
- Environmental conditions
- Operating temperature: 32 to 104 degrees F
- Storage temperature: -4 to 140 degrees F
- Relative humidity: 10% to 90% RH (non-condensing)
- Product Info
- Dimensions: 9.65” (L) x 1.50” (H) x 3.86" (W)
- Weight: 1.32lbs
- Color: Black
- Housing material: ABS
- Unit Package: Dimensions: 11.02" (L) x 4.37" (H) x 5.12" (W)
- Weight: 3.86lbs
- Certifications/Standards
- FCC, CE, RoHS 2.0, REACH
- Country of origin: China
