• new | AcePro-EX59-1
  • 4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support

  • $0 $0

Highlights

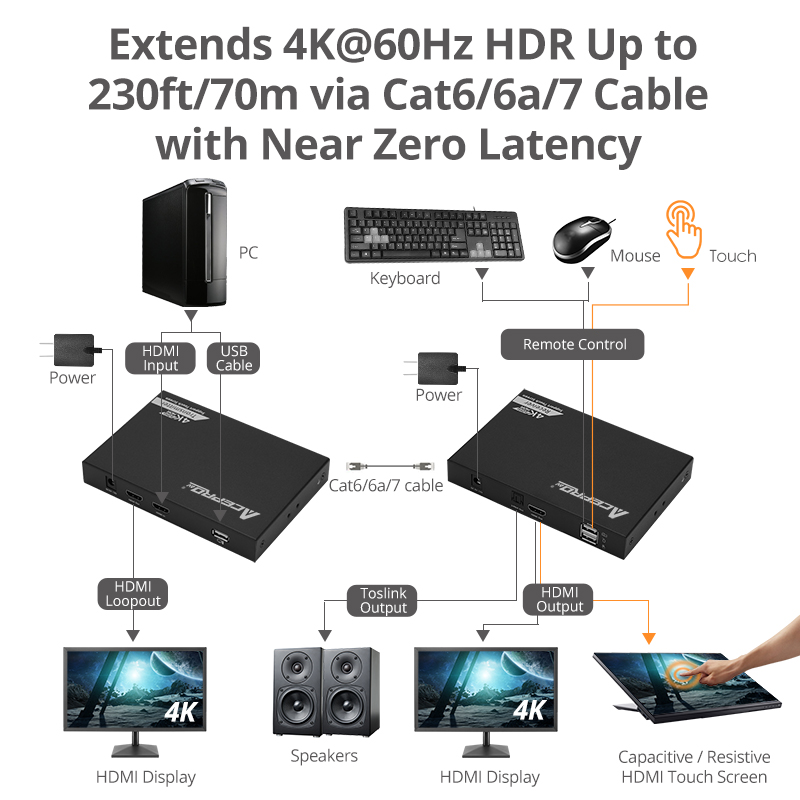

  • Extends and transmits [email protected] HDMI video/audio and USB 2.0 signals up to 230ft (70m) through a Cat6/6a/7 network cable with nearly zero latency
  • Supports USB 2.0 extension from the transmitter to the receiver, allowing you to connect a keyboard/Mouse and support touch screen at the extended location for remotely operate your PC system
  • Supports digital audio extraction through the receiver's S/PDIF port, with PCM 2ch, Dolby, DTS 5.1
  • The transmitter's HDMI loop-out allows for local monitoring of the extended display
  • The transmitter can work as an HDMI splitter with the additional HDMI output design, and allows screen mirroring to another display device
  • Lightning protection, surge protection, ESD protection
  • Plug and play, no driver installation required
  • High quality metal housing improve heat dissipation and ensure system stability during long hours of operation

Specification

  • Compliant with HDCP 2.2
  • Resolution:Up to 3840x2160 @60Hz, 2160p / 1080p / 1080i / 720p / 480p
  • HDMI Audio format: PCM 2/5.1-ch, Dolby/DTS 5.1
  • Toslink Audio format: PCM 2ch, Dolby/DTS 5.1
  • Transmission Distance:
  • Product:
    • Housing material: Metal
    • Color: Black
    • Transmitting unit (TX):

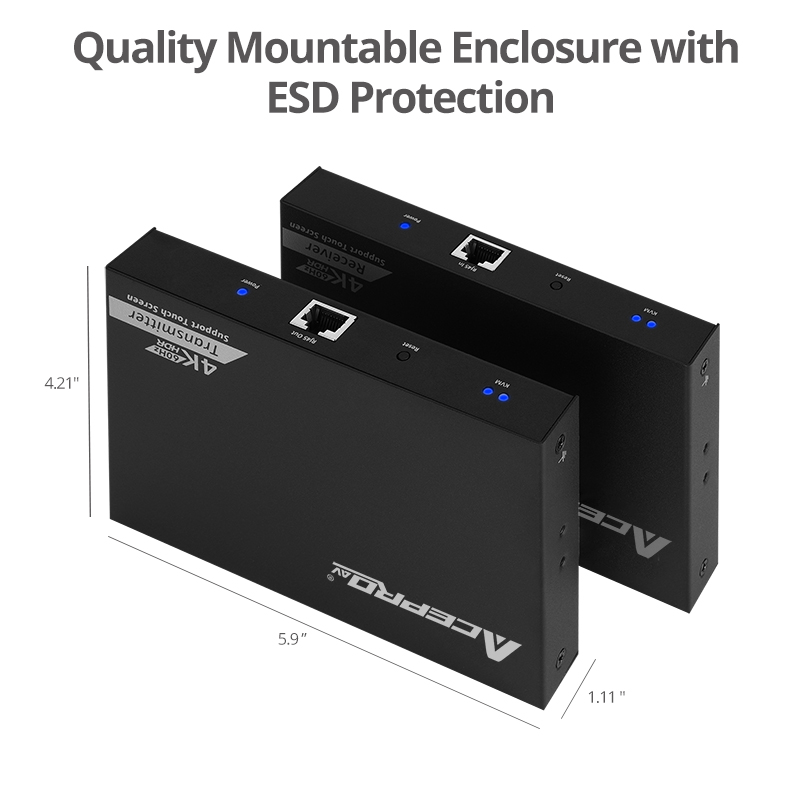

      • Dimensions: 6.02" (W) x 0.87" (H) x 4.15" (D)
      • Weight: 0.77 lbs

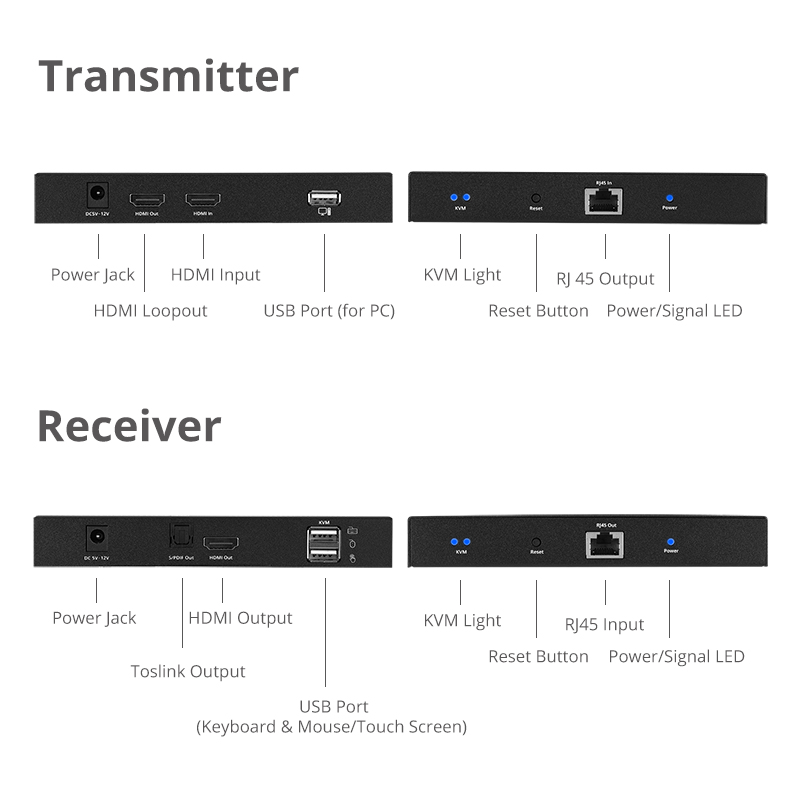

      • Connectors:
        • 1x 19-pin HDMI, Type A, Female, Input
        • 1x 19-pin HDMI, Type A, Female, Loop-out
        • 1x 4-pin USB 2.0 Type-A, Female, for Host connection
        • 1x 8-pin, RJ45, Output
        • 1x Reset button
        • 1x Power jack
    • Receiving unit (RX):
      • Dimensions: 6.02" (W) x 0.87" (H) x 4.15" (D)
      • Weight: 0.77 lbs
      • Connectors:
        • 1x 19-pin HDMI, Type A, Female, Output
        • 2x 4-pin USB 2.0 Type-A Female, connect to Keyboard/Mouse or touch screen for control
        • 1x 8-pin, RJ45, Input
        • 1x S/PDIF Toslink, Audio
        • 1x Reset button
        • 1x Power jack
  • Unit package:
    • Dimensions:  14.06"(W) x 3.35"(H) x 6.04"(D)
    • Weight:  2.73 lbs
  • Power adapter:
    • Input: 100-240V / 50-60Hz
    • Output: DC 5V/2A
    • UL listed: E335801 / Level: VI
  • Environmental conditions:
    • Operating temperature: 14~140℃
    • Storage temperature: -4~158℃
    • Relative humidity: 0% to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
