• new | AcePro-KV21-1
  • 2-Port 4K HDMI KVM Switch with PBP Roaming Mouse & PIP

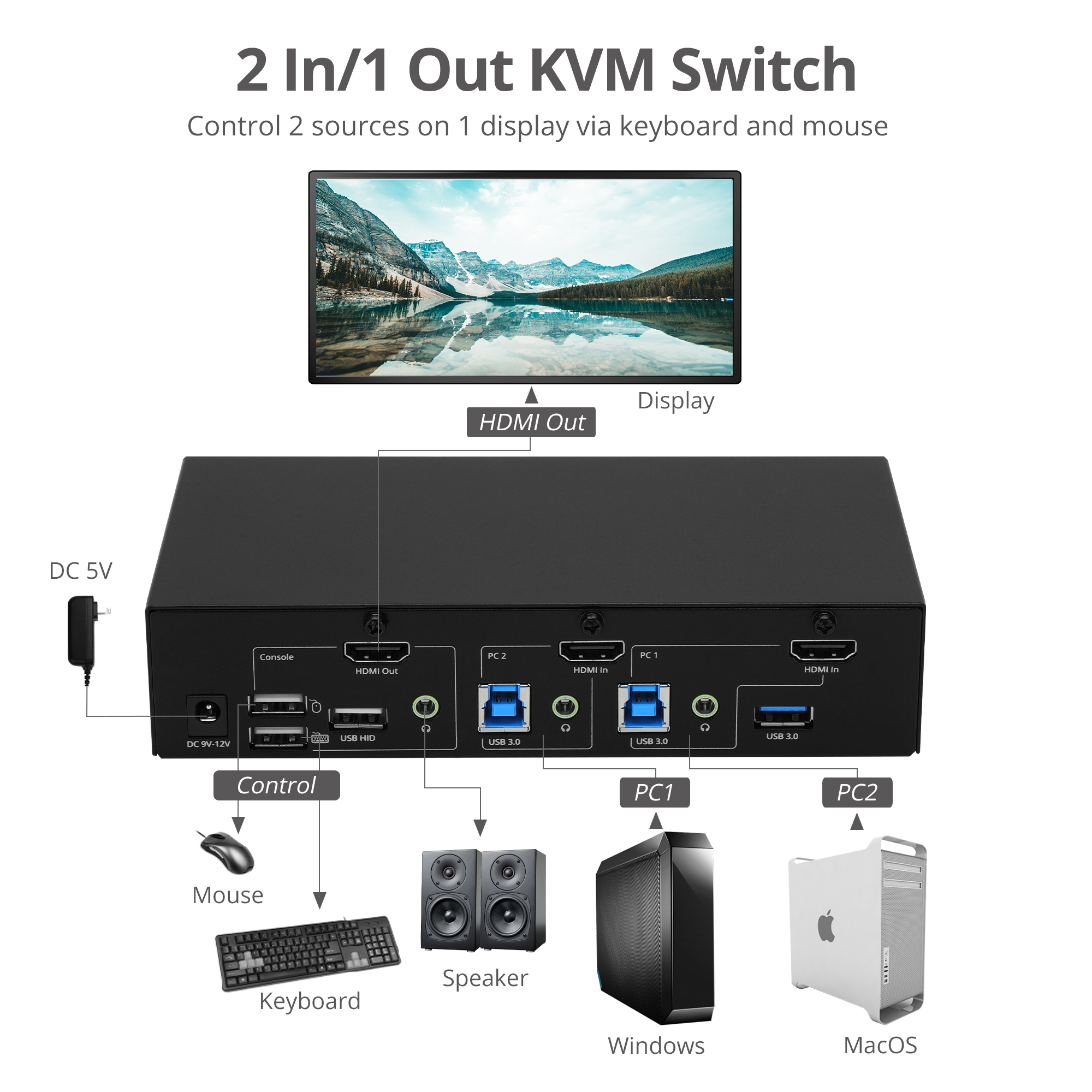

2x1 HDMI KVM Switch, Allows you to control 2 HDMI 4K computers using one keyboard and mouse - Mouse Roaming, PBP, PIP, 4K@30, HDCP 1.4, USB 3.0 ports, Stereo Audio Output, Switch Button, Hotkeys, TAA Compliant

  • $0 $0


  • Supports PIP/PBP image with any kind of display provides vide various video layouts and controls, Zero-Latency swap between PIP and Full-Screen modes
  • Supports zoom function, provides multi-window setups with adjustable size, position, and transparency layout in FHD/QHD/UHD
  • Easily to control via simple select buttons on the front panel or using hotkeys on USB keyboard or using mouse roaming to switch
  • Comes with 4 USB 1.1 ports for keyboard and mouse connection, and 2 USB 3.0 ports, Connect multiple USB peripherals such as flash drives,, printers and more devices simultaneously
  • Allows you to split screens From two different sources, Supports fast switching of uncropped images without distortion, and keeps the aspect ratio in multi-window setups
  • Built-in 8 groups of user's presets for easy and quick configuration
  • Built-in 4K Scaler to convert input resolutions to the optimum display resolutions
  • Plug-n-play, no driver installation


  • Compliant with HDCP 1.4
  • Video Bandwidth: Up to 10.2Gbps
  • Video resolution: Up to 4096x2160@30Hz / 3840x2160@30Hz
  • Audio support: Surround sound (up to 7.1ch) or stereo digital audio
  • HDMI: PCM2/5.1/7.1ch, Dolby Digital, DTS-HD, and Dolby True-HD
  • 3.5mm: PCM 2-CH Stereo Audio
  • USB data transfer rate:
  • USB 1.1: up to 12Mbps
  • USB 3.0: up to 5Gbps
  • Product:
  • Dimensions:  6.93"(W) x 1.57"(H) x 4.33"(D)
  • Weight:  1.60 lbs
  • Color:  Black
  • Housing material:  Metal

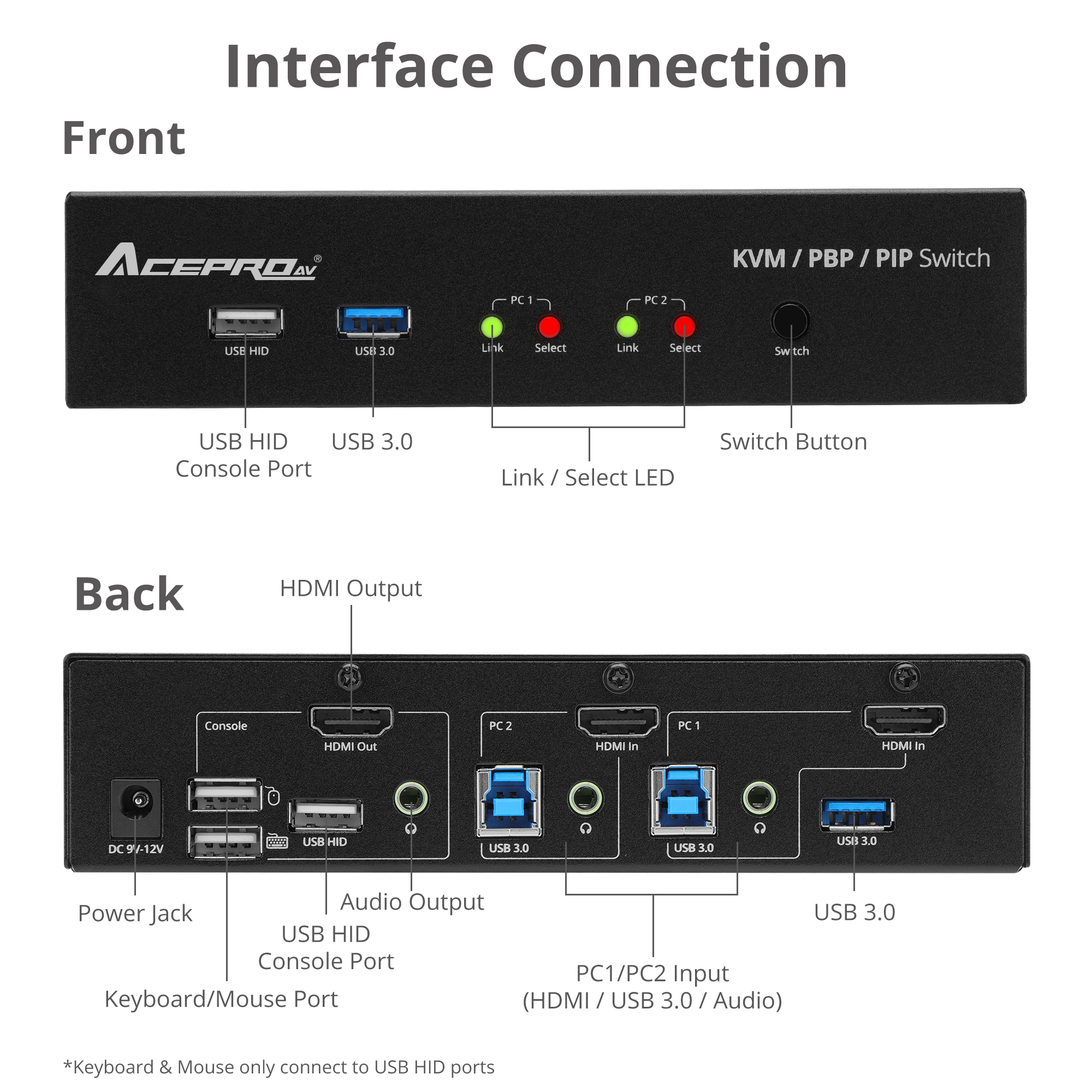

  • Connector:
  • Input:
  • 2x 19-pin HDMI, Female
  • 2x 9-pin USB 3.0 Type-B, Female
  • 2x 3.5mm phone jack for stereo audio, Female
  • 1x Buttons for PC switch
  • 1x Power jack for power supply
  • Output:
  • 1x 19-pin, HDMI, Female
  • 1x 3.5mm phone jack for stereo audio, Female
  • 4x 4-pin USB 1.1 Type-A HID, Female, for Keyboard/Mouse
  • 2x 9-pin USB 3.0 Type-A Female
  • Unit package:
  • Dimensions:  12.05"(W) x 2.76"(H) x 6.97"(D)
  • Weight:  2.47 lbs
  • Power adapter:
  • Input: 100-240VAC, 50/60 Hz
  • Output: DC 12V/1.5A
  • UL Listed: UL E163743 /Level: VI
  • Environmental conditions:
  • Operating temperature: 32 to 114 degrees F
  • Storage temperature: 14 to 178 degrees F
  • Relative humidity: 5% to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: Engineered in USA  Manufactured in Taiwan
