- new | AcePro-EX60-1
- HDMI 4K30Hz HDbitT over IP Extender - 120m
Highlights

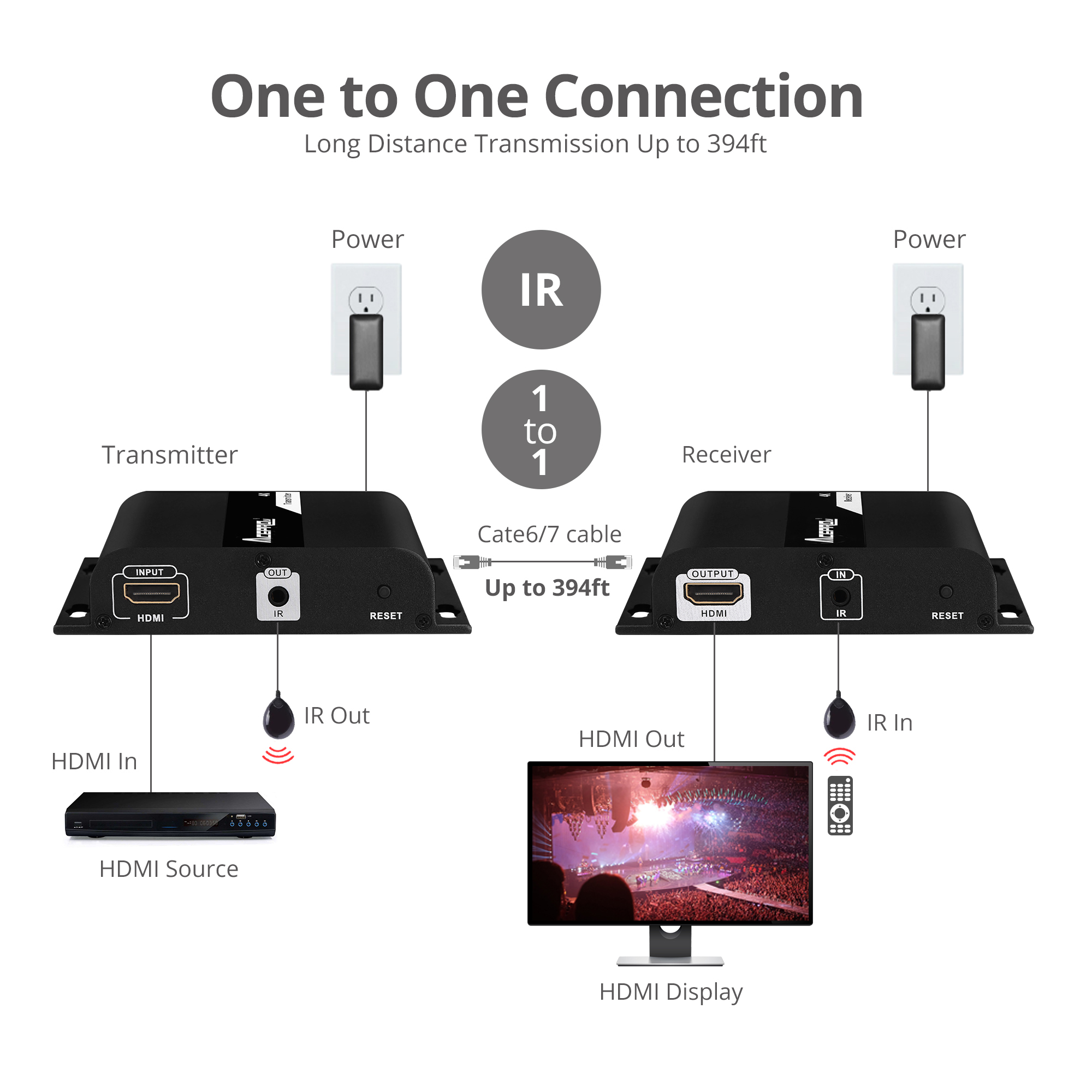

- With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft. Connect your HDMI source device (PC, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver
- Supports up to 4K @30Hz and 1080p. HDCP 1.4 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high performance pure copper Cat6 cables to ensure reliable performance

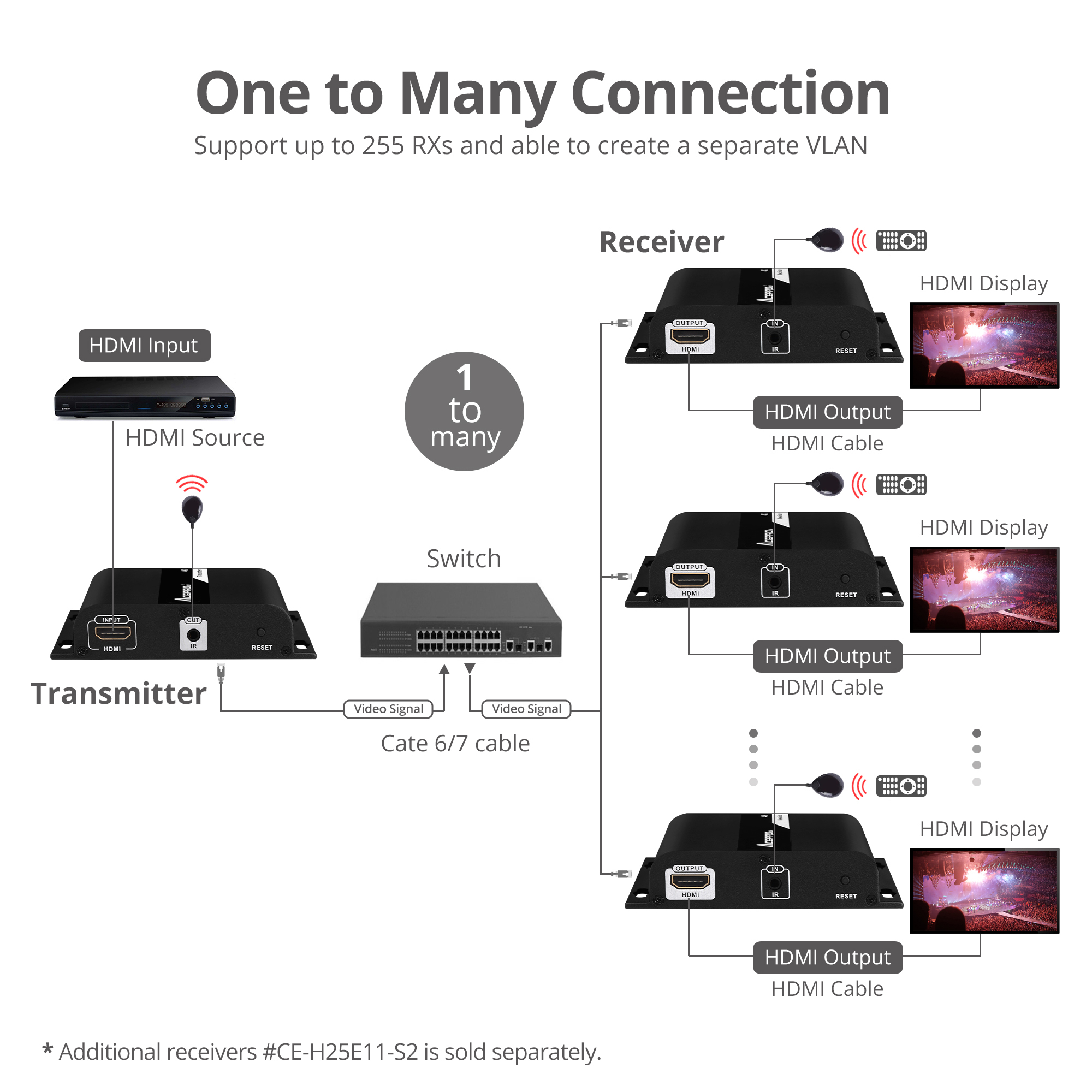

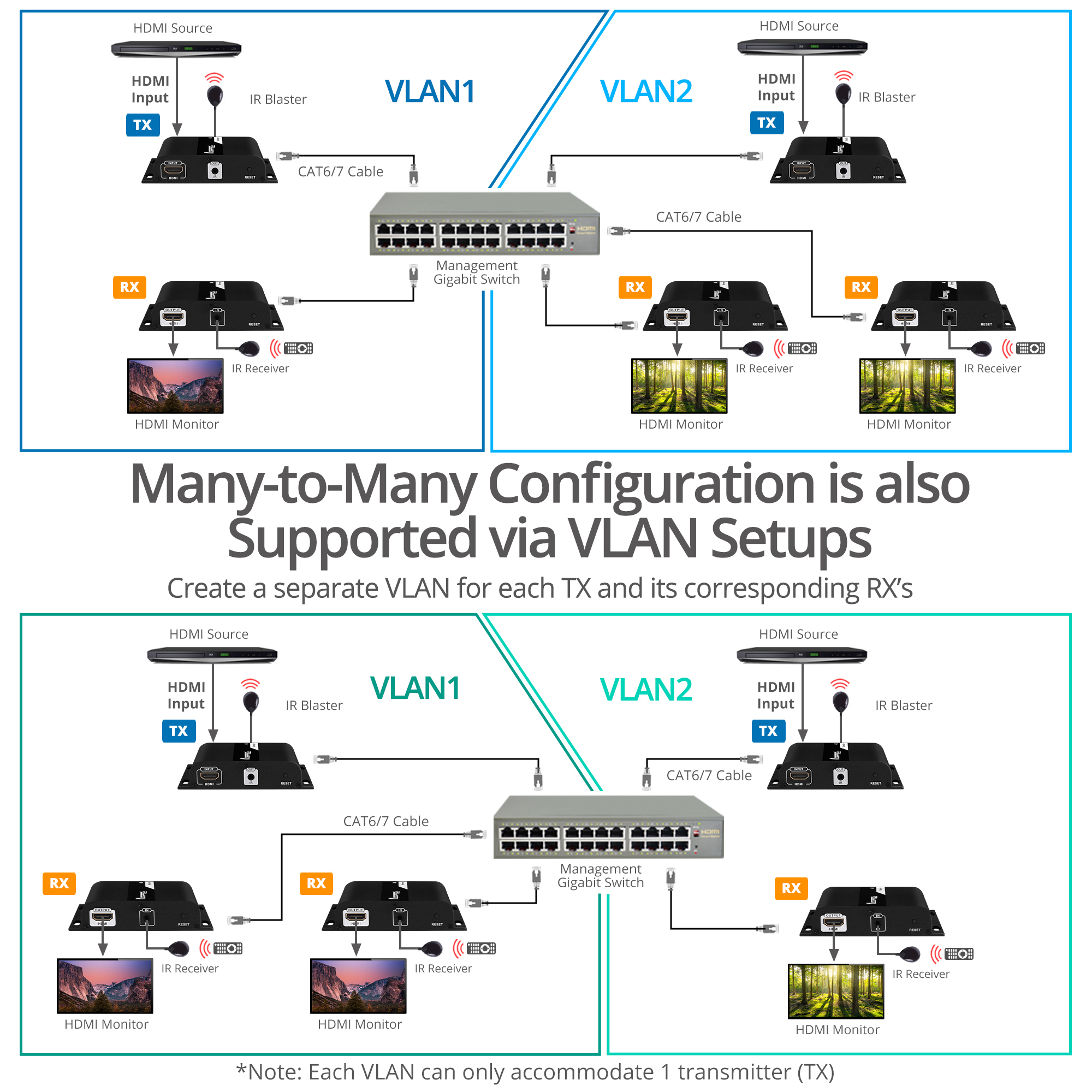

- Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, you can connect up to 255 Receivers* per Transmitter to not only extend but split HDMI signals to multiple displays. *Additional Receivers (CE-H25E11-S2) are sold separately
- One-directional IR control from RX side to TX side. Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6 cable
- High quality surface mountable metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation
Specification
-
- Transport protocal: HDbitT
- Compliant with HDCP 1.4
- Support connections:
- Point to Point connection: up to 120m
- One to many connection (dedicated unmanaged Gigabit network routers or switches recommended)
- Transmission distance: Up to 394ft (120 meters)
- 2-Channel PCM stereo audio
- Full frequency IR signal from 20KHz to 60KHz
- Resolution: 480p / 720p / 1080i / 1080p@60Hz,4K@30Hz
- Metal housing surface mountable
- HDMI cable length: 5 meters (max), each input and output
- Power consumption:
- TX: 6 watts (max)
- RX: 4 watts (max)
- Product:

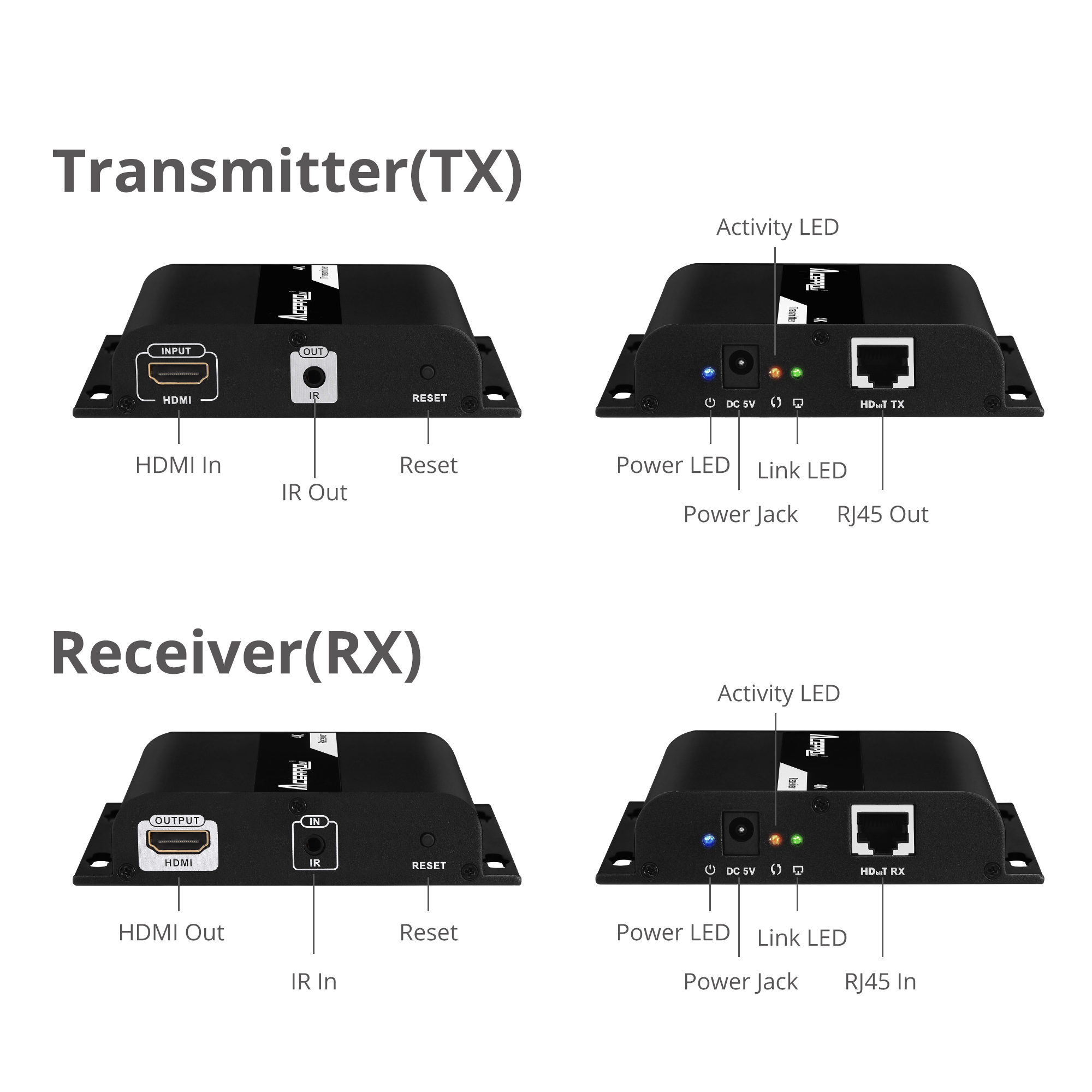

- Transmitting unit (TX):
- Dimensions: 4.22" (W) x 0.93" (H) x 3.70" (D)
- Weight: 0.37 lbs
- Color: Black
- Connectors:
- 1x 19-pin HDMI, Type A, Female, Input
- 1x 3.5mm jack, IR Blaster
- 1x 8-pin, RJ45, HDbitT signal output
- 1x Reset button
- 1x Power jack
- Receiving unit (RX):
- Dimensions : 4.22" (W) x 0.93" (H) x 3.70" (D)
- Weight: 0.37 lbs
- Color: Black
- Connectors:
- 1x 19-pin HDMI, Type A, Female, Output
- 1x 3.5mm jack, IR Receiver
- 1x 8-pin, RJ45, HDbitT signal input
- 1x Reset button
- 1x Power jack
- Transmitting unit (TX):
- Unit Package:
- Dimensions: 7.83" (W) x 3.15" (H) x 5.87" (D)
- Weight: 1.62 lbs
- Power adapter:
- Input: 100-240V / 50-60Hz
- Output: DC 5V/2A
- UL listed: E335801 / Level: VI
- Environmental conditions:
- Operating temperature: 32 to 122 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: 0 to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: China
