• new | AcePro-EX61-1
  • HDMI 4K30Hz HDbitT over IP Extender - Receiver

  • $0 $0

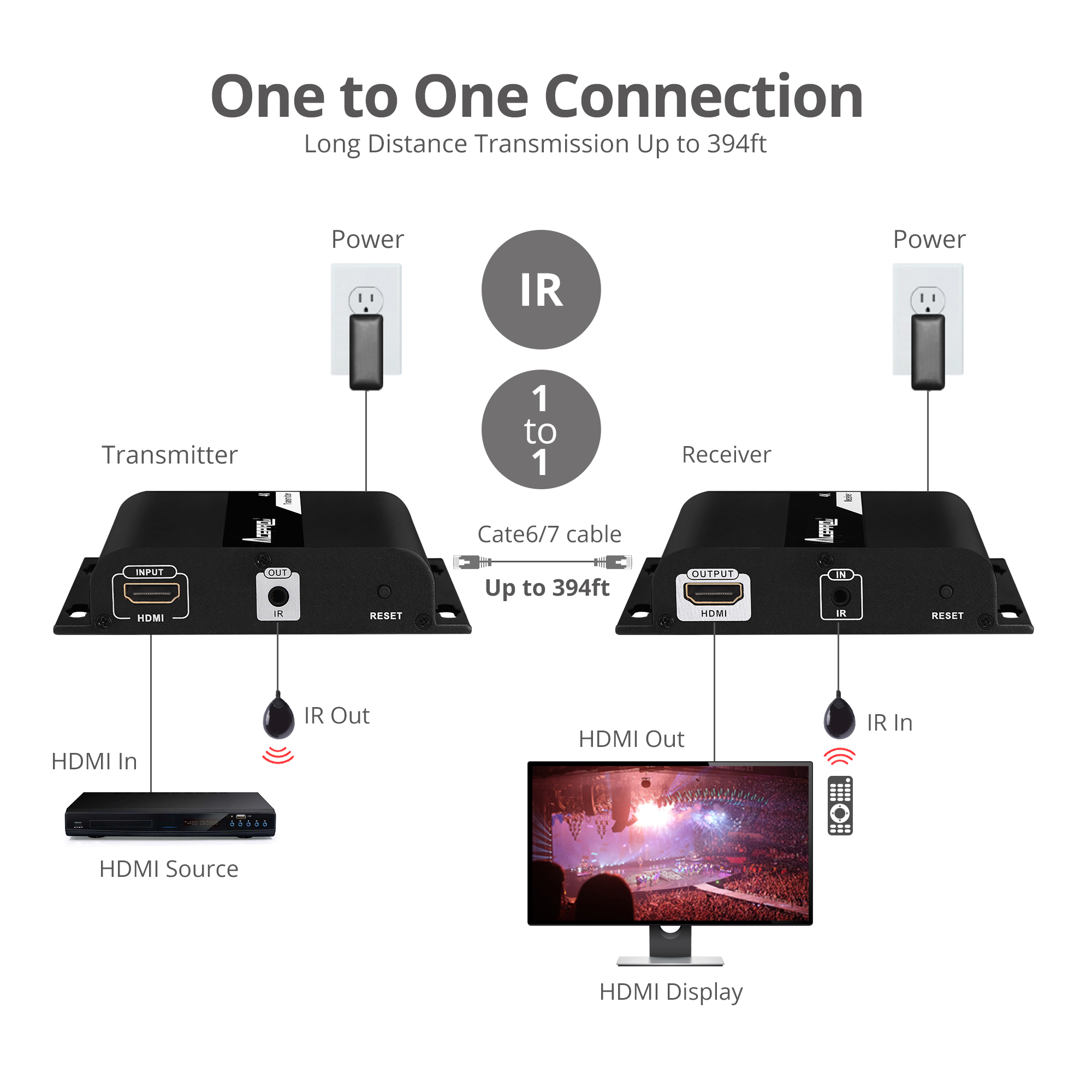

  • With a single Cat6/7 cable, you can easily extend HDMI audio/video signals up to 394ft. Connect your HDMI source device (PC, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver
  • Supports up to 4K @30Hz and 1080p. HDCP 1.4 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high-performance pure copper Cat6/7 cables to ensure reliable performance

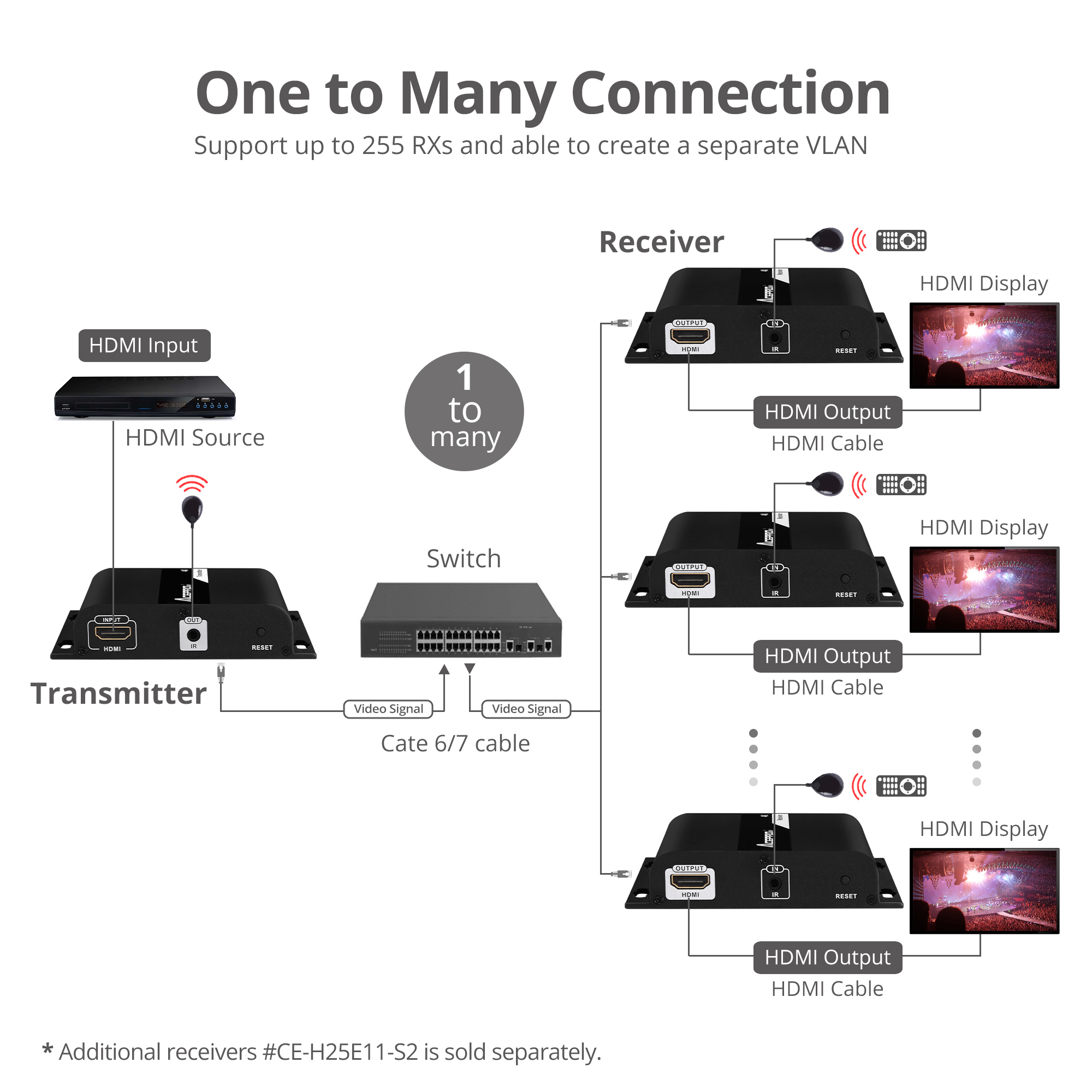

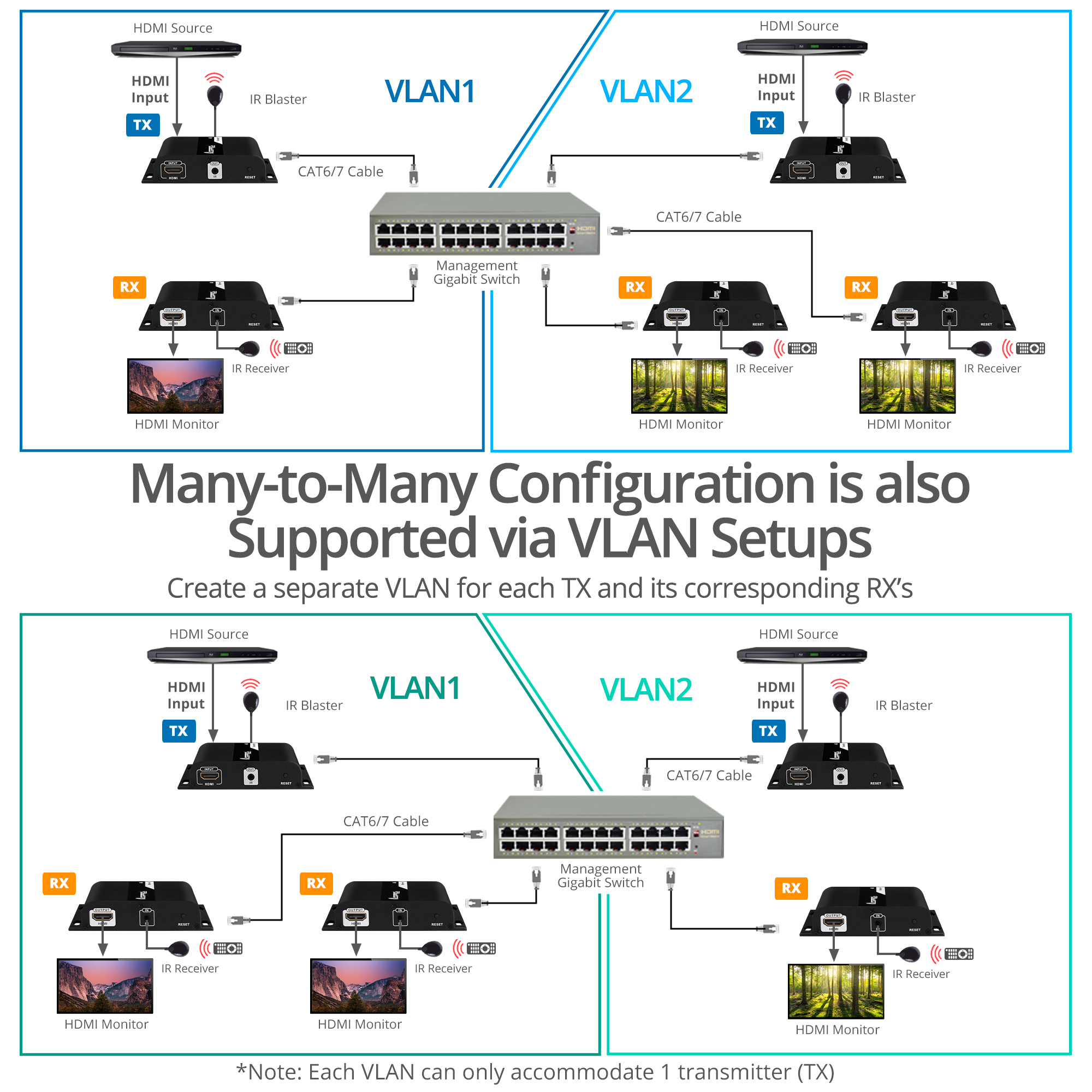

  • Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, you can connect up to 255 Receivers* per Transmitter to not only extend but split HDMI signals to multiple displays. **The kit (CE-H25D11-S2) and additional Receivers (CE-H25E11-S2) are sold separately
  • One-directional IR control from RX side to TX side. Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6/7 cable
  • High-quality surface mountable metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation


  • Transport protocol: HDbitT
  • Compliant with HDCP 1.4
  • Support connections:
    • Point to Point connection: up to 120m
    • One to many connection (Gigabit network routers or switcher recommended)
  • Transmission distance: Up to 394ft (120 meters)
  • 2-Channel PCM stereo audio
  • Full frequency IR signal from 20KHz to 60KHz
  • Resolution: 480p / 720p / 1080i / 1080p@60Hz,4K@30Hz
  • Metal housing surface mountable
  • HDMI cable length: 5 meters (max), each input and output
  • Power consumption: 4 watts (max)
  • Product:
    • Dimensions : 4.22" (W) x 0.93" (H) x 3.70" (D)
    • Weight: 0.37 lbs
    • Color: Black

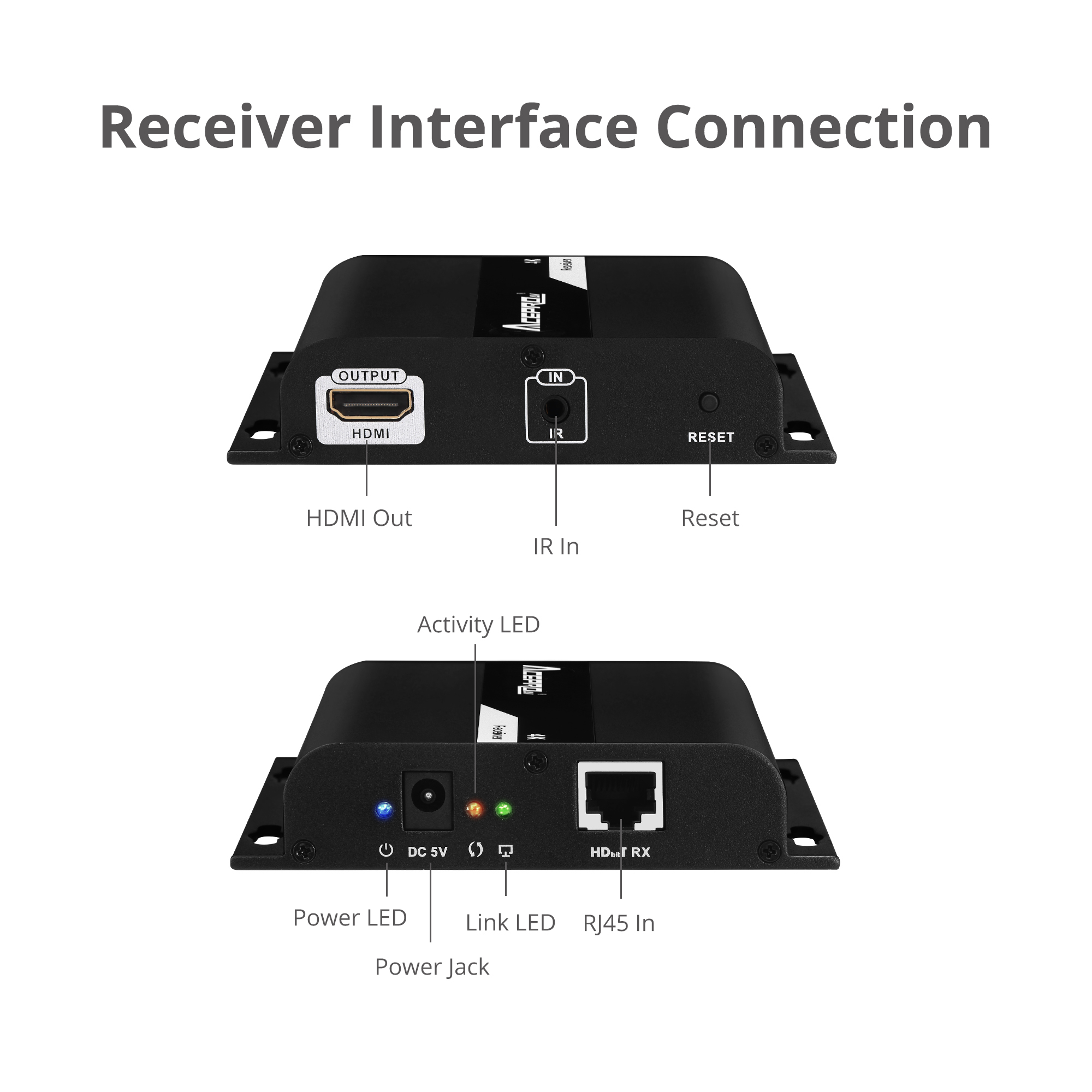

    • Connectors:
      • 1x 19-pin HDMI, Type A, Female, Output
      • 1x 3.5mm jack, IR Receiver
      • 1x 8-pin, RJ45, HDbitT signal input
      • 1x Reset button
      • 1x Power jack
  • Unit Package:
    • Dimensions: 5.91" (W) x 3.03" (H) x 4.61" (D)
    • Weight: 0.86 lbs
  • Power adapter:
    • Input: 100-240V / 50-60Hz
    • Output: DC 5V/2A
    • UL listed: E335801 / Level: VI
  • Environmental conditions:
    • Operating temperature: 32 to 122 degrees F
    • Storage temperature: 14 to 158 degrees F
    • Relative humidity: 0 to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Warranty: 2 years limited
  • Country of origin: China
