• new | AcePro-CV28-1
  • 4K HDMI Video Capture Box with Volume Control & Loopout

Easily capture and save 4Kx2K@60Hz HDMI signals in 4Kx2K@30Hz resolution from any HDMI source such as Gaming console, Media players, or Set-top box while simultaneously viewing in 4K@60Hz resolution, Volume Control, Aluminum Housing, TAA compliant

  • $0 $0


4K UHD Resolution
Supports streaming 4K (3840x2160) @60Hz Ultra high-definition video resolution and recording 4K (3840x2160) @30Hz UHD video resolution, ideal for game capture

HDR Convert SDR
This 4K HDMI Video Capture Box supports HDR10 to SDR conversion when a monitor/display without HDR or HDMI source with HDR
*Note: Not supports HDR10 plus, HLG, and Dolby Vision to SDR conversion

USB Record
Stream video via USB-C and supports USB Video Class (UVC) 1.0/1.1/1.5 and up to 5Gbps data transfer

Auto Downscaling
Detects and configures the video resolution automatically according to the capabilities of the connected monitor
*Note: 4K@30Hz monitor will display in 1080p@60Hz when the source content is 4K@60Hz

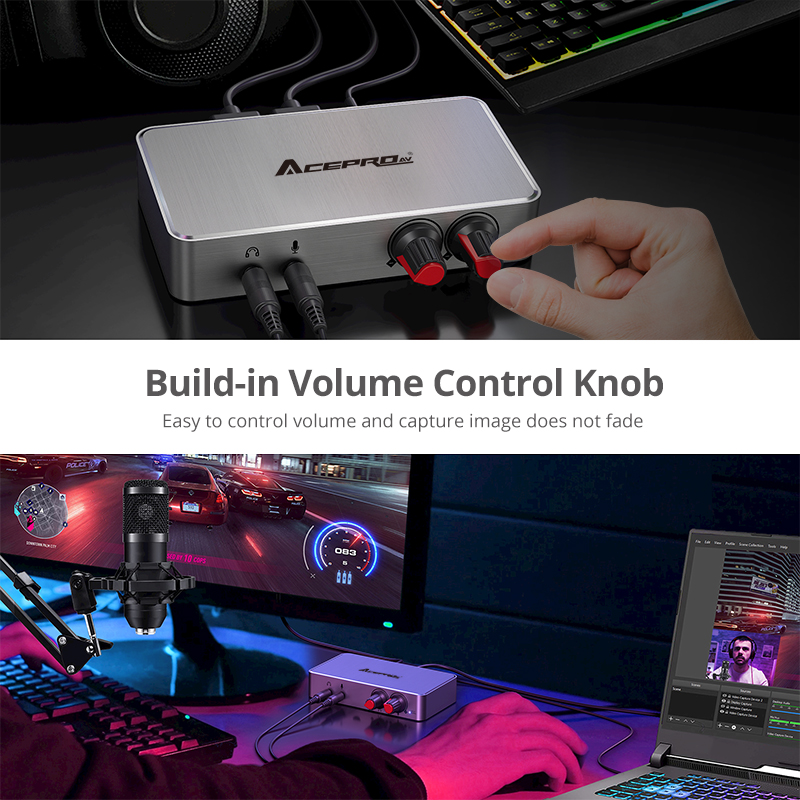

Stereo Audio/Control
Supports stereo audio embedded and HDMI audio extractor great for adding voice over to your gameplay. Built-in volume control knob to adjust the microphone/headphone volume

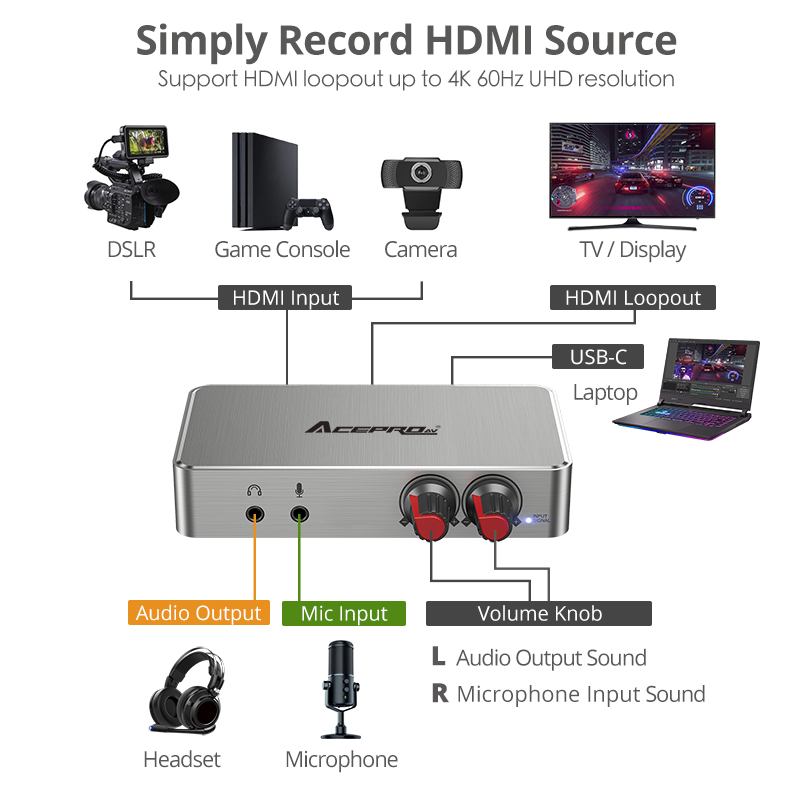

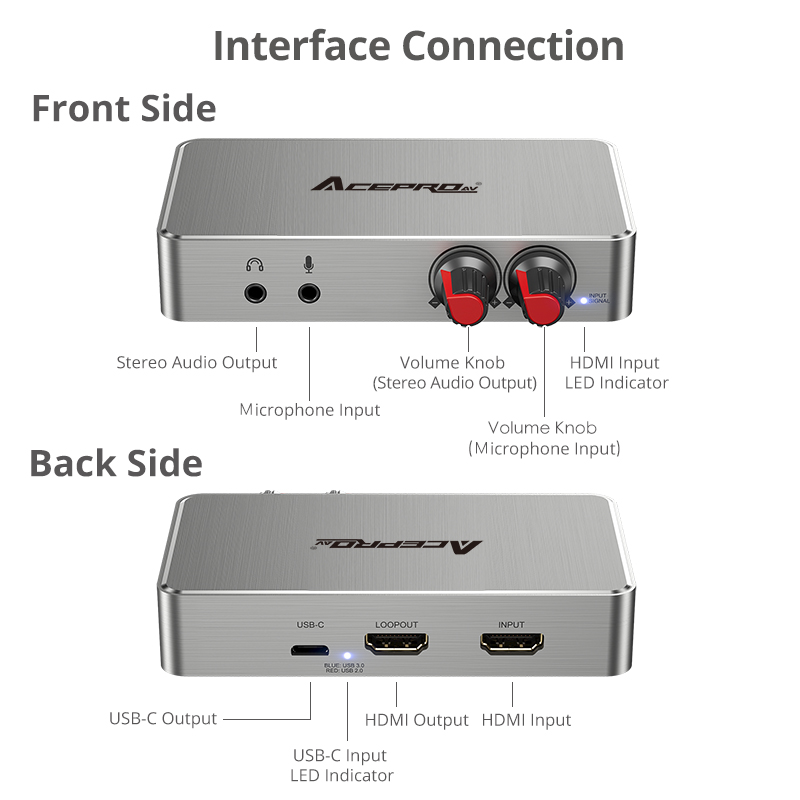

Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video output port, one USB-C 3.2 Gen 1 output port (Host), one 3.5mm microphone input port, one 3.5mm stereo audio output port, and two audio volume knob
Maximum Compatibility
Automatically detect audio format, compatible with WindmacOSMacOS system, and work with third-party software such as OBS Studio, VLC, QuickTime Player, vMix, Wirecast, Potplayer…


Chipset ITE9325
OS Compatibility Windows® 11, mac OS ® 11.5x
HDMI 1x input, 1x output
Streaming: up to 4K (3840x2160) @60Hz
Bandwidth: up to 18Gbps, single-link 600MHz
USB-C 3.2 Gen 1 1x output
Recording: up to 4K (3840x2160) @30Hz, RGB/YUY2/NV12 (USB 2.0: up to 720 @30Hz, YUY2/NV12)
Bandwidth: up to 350Mbps
Data transfer rate: up to 5Gbps, 5V/900mA
Software compatibility OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows), VLC (OS X, Linux), XSplit Boardcast (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
7.1 channel surround sound from HDMI port
PCM 2.1 channel stereo digital audio for 3.5mm audio jack
Environmental conditions
Operating temperature 32 to 122 degrees F
Storage temperature -4 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Product Info

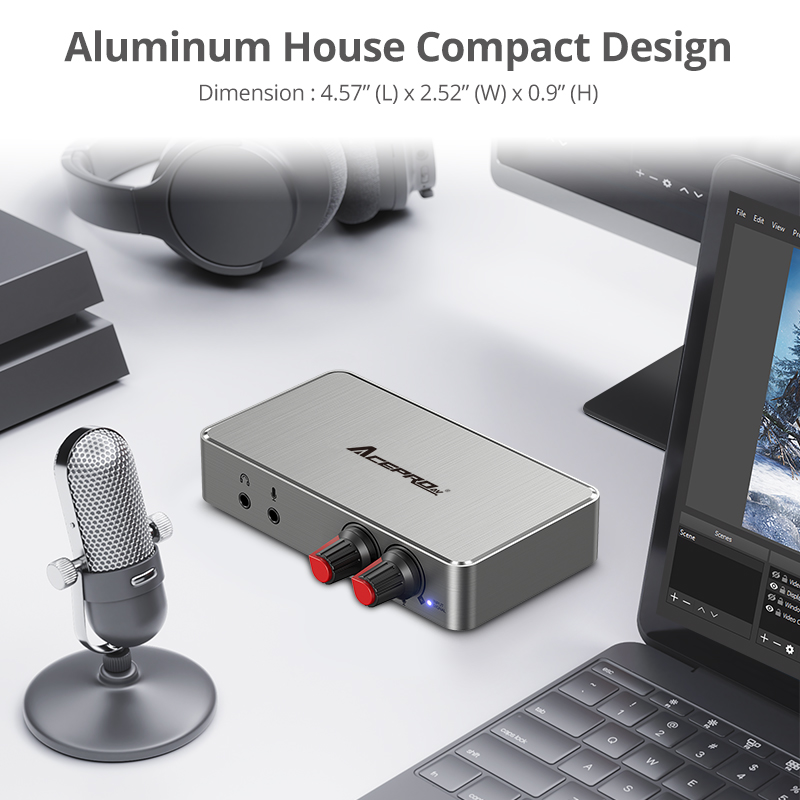

Dimensions 4.57” (L) x 0.91” (H) x 2.53” (W)
Weight 0.44 lbs
Color Silver
Housing material Aluminum
Unit Package
Dimensions 7.87” (L) x 1.42” (H) x 3.74” (W)
Weight 0.66 lbs
FCC, CE, RoHS, REACH, TAA compliant
Country of origin: Taiwan
