- 4K 60Hz HDMI over IP Matrix- Transmitter
HDMI over IP Matrix - TX, transmits 4K@60Hz HDMI signal up to 396Ft (120m) over a single Cat6/7 cable, PoE, One to One, One to Many, Multi-casting, Video Wall, KVM, 18Gbps, HDCP 2.2, HDR 10, 7.1ch, Bi-directional IR, RS-232 Control, TAA Compliant
-
$569.99$569.99
Highlights

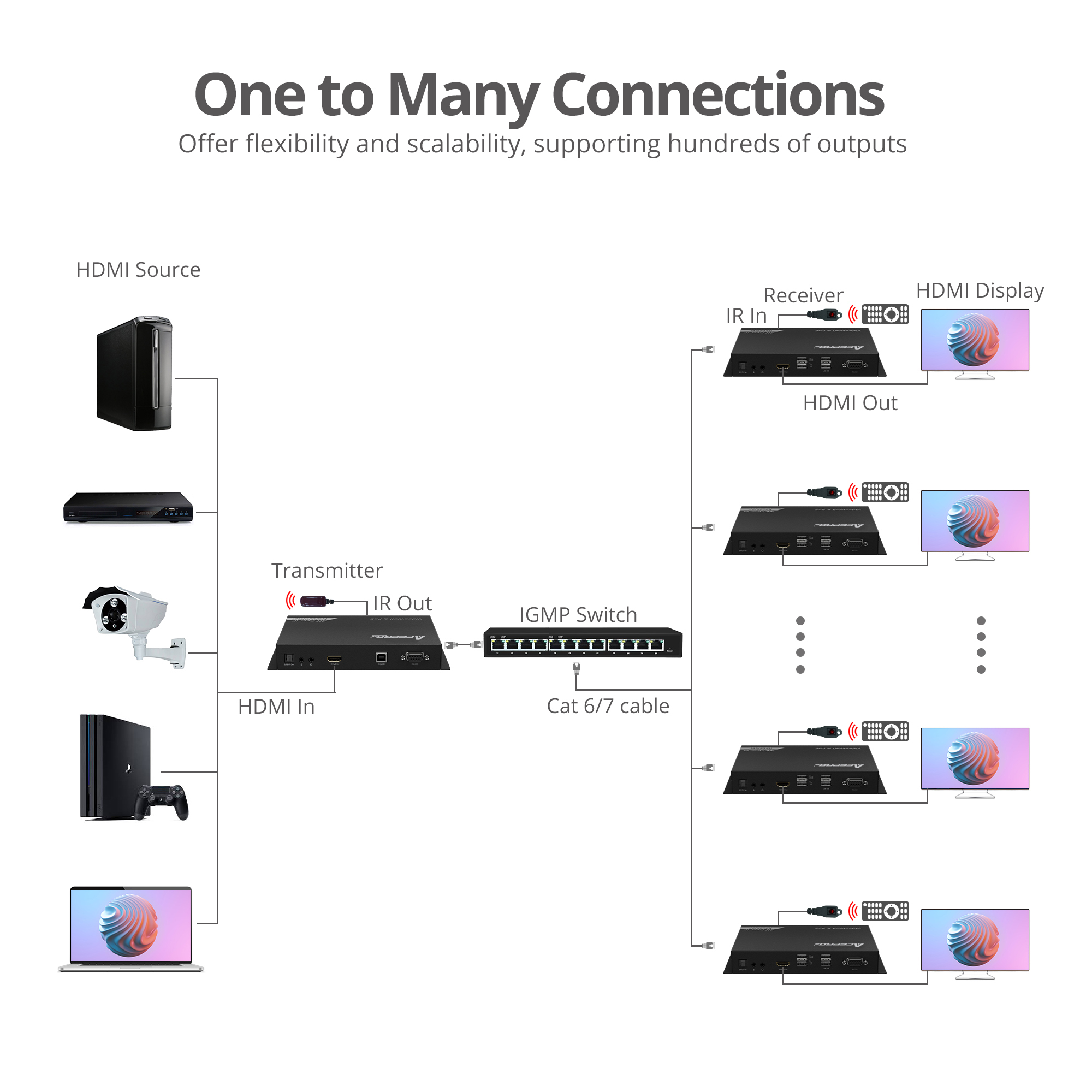

- Flexible matrix function to extend HDMI HDMI audio/video signals to the remote displays/monitors over UTP Cat6/7 cable up to 394ft (120m) and send the 4K@60Hz Ultra HD HDR resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations

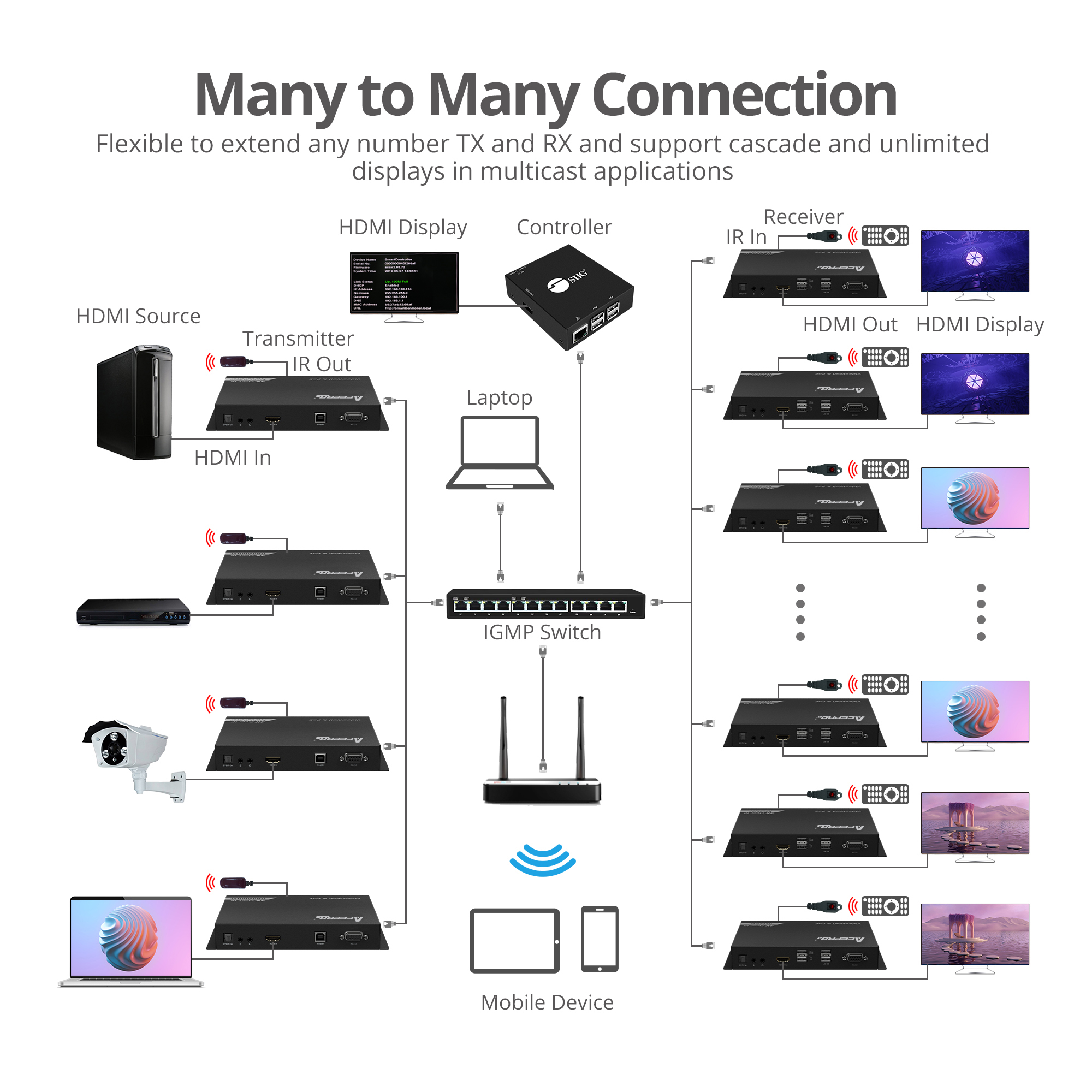

- Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 65,536 total units, limited to 1,023 transmitter units, the additional transmitter unit.
- Allows the power supply connected to either the TX or RX unit by Ethernet port to power both units, making it easy to construct and improve system robustness. No additional power adapter required
- This 4K 60Hz HDMI over IP Matrix Kit is designed for reliably extend HDMI signals up to 394ft (120m) to remote HDMI displays through Gigabit Ethernet network and Gigabit Ethernet switch
- Supports Ultra High-Definition video resolution up to 4K (4096x2160) @60Hz HDCP 2.2, 4:4:4, HDR 10, Deep Color and 3D. Image rotation supports clockwise 90°, 180°, and 270° in video wall only
- Bi-directional IR pass back function and RS-232 control source devices from remote RX locations, allowing you to select and switch between HDMI source devices
- Audio extraction via digital S/PDIF (Toslink), 3.5mm stereo audio, or HDMI output ports. Digital S/PDIF audio format: PCM 2.0, Dolby 5.1, and DTS 5.1; 3.5mm stereo audio format: PCM 2.0; HDMI audio format: PCM 2.0/5.1/7.1, Dolby 5.1/7.1, and DTS 5.1/7.1
Specification
| Video | |
|---|---|
| HDMI | 1x input |
| Resolution | 4K (4096x2160)/4K (3840x2160)/1080p/1080i/720p/480i/480p @60Hz, HDCP 2.2, 4:4:4, HDR 10 |
| Image rotation | 90°, 180°, and 270° clockwise in video wall mode * need to be enabled by the controller (part# CE-H25411-S2) |
| Bandwidth | Up to 18Gbps |
| Transport Protocol | |
| TCP/IP protocol | Audio/video digital connection transmission protocol |
| Audio | |
| 7.1-ch surround sound from HDMI port, audio format: PCM 2.0/5.1/7.1, Dolby 5.1/7.1, and DTS 5.1/7.1 | |
| 5.1-ch surround sound from S/PDIF port, audio format: PCM 2.0, Dolby 5.1, and DTS 5.1 | |
| 2-ch stereo audio from 3.5mm audio jack, audio format: PCM 2.0 | |
| * S/PDIF and microphone input ports need to be enabled by the controller (part# CE-H25411-S2) | |
| IR Pass-through | |
| Bi-directional IR allows remote control of the HDMI source device and playback function at the remote display | |
| Full frequency: 20KHz to 60KHz | |
| RS-232 Control | |
| Full duplex RS-232 (Serial port) can transfer rate up to 115,200 baud | |
| Power | |
| Power adapter | AC 100-240V/50-60Hz, Output: DC 5V/2A, UL listed: E135856/Level: VI |
| PoE (Power over Ethernet) | 48V |
| Environmental conditions | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | -4 to 140 degrees F |
| Relative humidity: | 5% to 90% RH (non-condensing) |
| Product Info | |
| Dimensions | Dimensions: 6.81” (L) x 1.09” (H) x 5.19" (W) |
| Weight | 1.41 lbs |
| Color | Black |

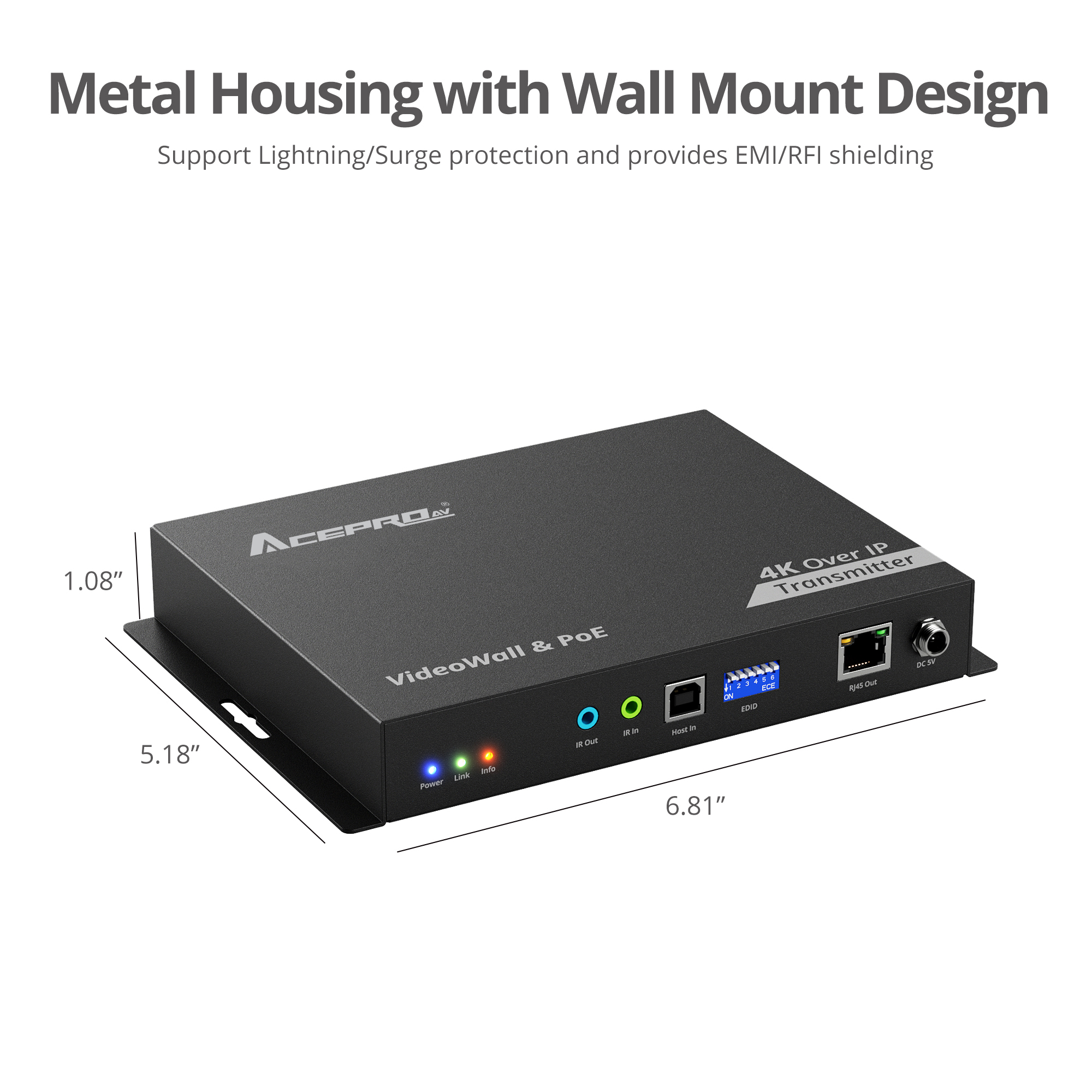

| Housing material | Metal (Housing with wall mount design) |
| Unit package | Dimensions: 10.39” (L) x 3.03” (H) x 6.85" (W) Weight: 1.87 lbs |
| Certifications/Standards | |
| FCC, CE, RoHS 2.0, REACH, TAA compliant | |
