• new | AcePro-EX65
  • 4K120Hz HDMI Extender with IR - up to 132ft (40M) - EDID - Nearly zero latency

4K@120Hz HDMI Extender, Easily extends HDMI 4K@120Hz signals up to 132ft (40M) over a single Cat6/7 networking cable with IR, Nearly zero latency, HDR10, HDCP2.3, EDID, Bi-directional IR, Metal Housing

  • $219.99 $0

Highlights

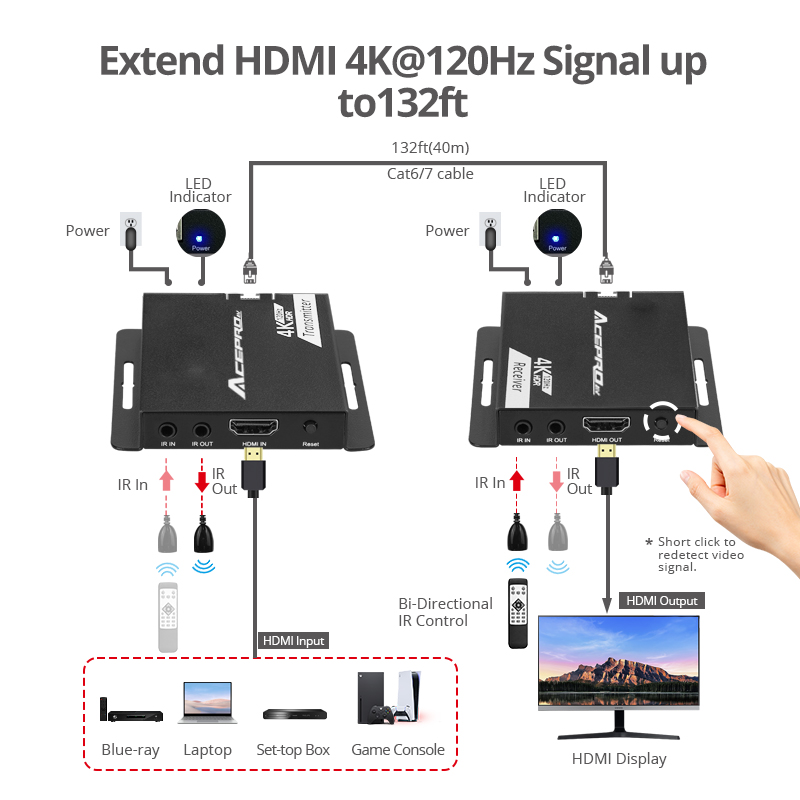

Easily extends HDMI signals to 132ft (40m) over Cat6/7 cabling and IR Bi-directional remote-control HDMI device. Supports Ultra HD 4K@120Hz resolution for a smooth and immersive viewing experience

  • Supports Ultra HD video resolution up to 4K (3840x2160) @120Hz, HDR10, HDCP 2.3, YUV 4:4:4, 36-bit color depth for crystal-clear image quality
  • Display Stream Compression (DSC) is enabling increased display resolutions and frame rates over existing physical interfaces and make devices smaller and lighter. Compliant with DSC 1.2a
  • Provides STD and TV modes for optimal image quality and excellent compatibility with a wide range of devices

  • This 4K 120Hz HDMI extender with IR supports reliability transmission of HDMI signals up to 132ft (40m) over RJ45 network to a remote HDMI display
    (Recommend the Cat6 cable 23 awg < 20m & 26 awg > 20m)
  •
    With built in Bi-directional IR extension over Cat6/7 cable allows you to control the HDMI source device at a remote location. (IR blaster/receiver cables are included.)
  •

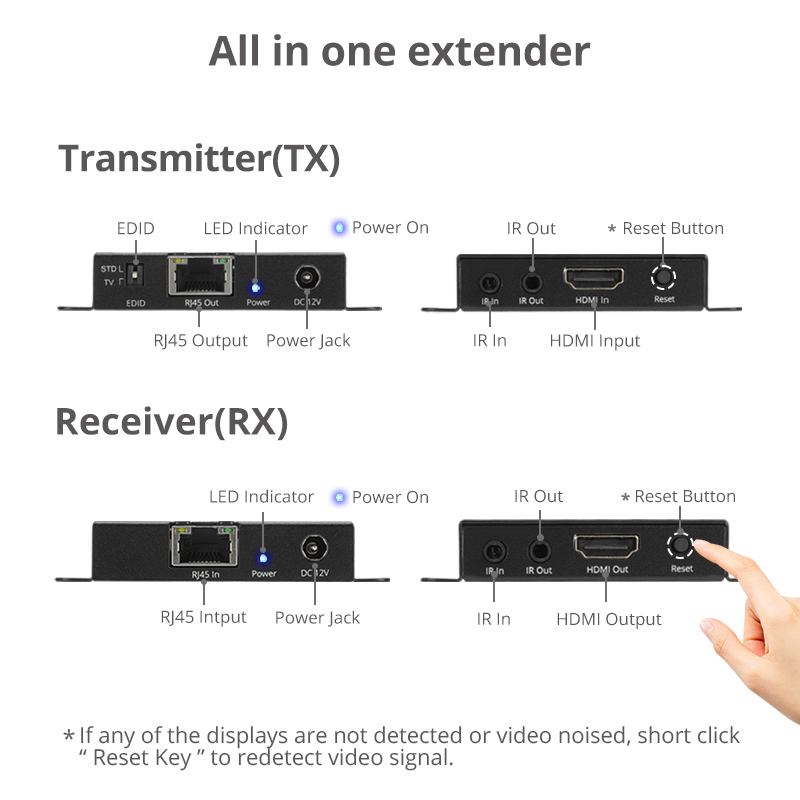

    Comes with one HDMI video input port, one HDMI video output port, two RJ45 network ports, two 3.5mm IR emitter ports, two 3.5mm IR receiver ports, two reset buttons, one EDID slide switch to select standard mode or TV mode, and two DC power jacks (12V/1A)


Specification

Video
HDMI 1x input, 1x output
Resolution 4096 x 2160@60Hz / 50Hz / 30Hz / 25Hz / 24Hz
3840 x 2160@120Hz / 60Hz / 50Hz / 30Hz / 25Hz / 24Hz
1920 x 1080@120Hz / 60Hz / 50Hz / 30Hz / 25Hz / 24Hz
1280 x 720p@60Hz / 50Hz
1024 x 576p@50Hz
640 x 480p@60Hz
HDCP 2.3/2.2/1.4
Color depp 36-bit (12-bit per channel)
Transfer rate up to 32Gbps (8Gbps per data channel)
Transmission distance up to 132ft (40m) via Cat6/7 cable
(Recommend: 23 awg < 20m / 26 awg > 20m)
TMDS character rate up to 800MHz
Audio
HDMI Dolby 5.1/7.1 and Atmos (need to switch to TV EDID mode), DTS 5.1/7.1, and PCM 2/5.1/7.1
IR
Built Bi-directional IR remote control, allows you to control the HDMI source device at the remote
Full frequency 20KHz to 60KHz
EDID Switch
Select STD mode or pass through to TV EDID mode
Power
Power Adapter Input: AC 100-240V/50-60Hz, Output: DC 12V/1A
UL listed E470034/Level: VI
Product Info
Transmitter unit (TX) Dimensions: 3.27” (L) x 3.23” (H) x 0.57" (W)
Weight: 0.27lbs
Color: Black
Housing material: Metal
Receiver unit (RX) Dimensions: 3.27” (L) x 3.23” (H) x 0.57" (W)
Weight: 0.27lbs
Color: Black
Housing material: Metal
Unit Package
Dimensions 8.74” (L) x1.97” (H) x 5.67" (W)
Weight 1.25lbs
Environmental conditions
Operating temperature 32 to 122 degrees F
Storage temperature 14 to 140 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS, REACH
Country of origin: China
