- AVLAB-IC02-1

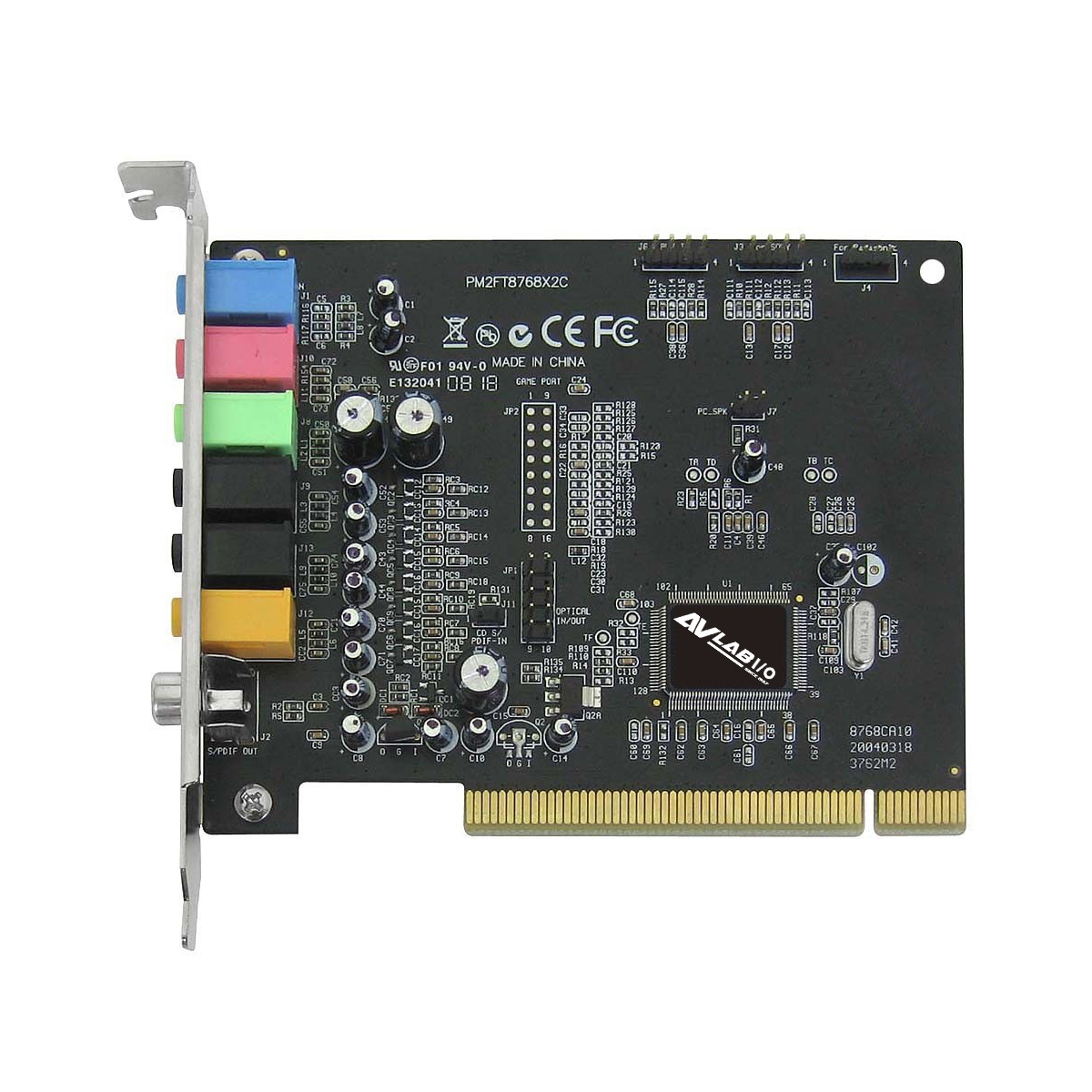

- AVLAB Sound 7.1 PCI Card, Stereo, Surround, S/PDIF Coaxial,
■ High-definition 7.1 surround sound transforms your PC into a home theater system
■ 8-channel output supports the newest Dolby® Digital EX and DTS® ES 6.1/7.1CH DVD audio formats
■ Supports the latest in 3D audio technologies, including Sensaura® EAX™, A3D™, and DirectSound™
■ Customize internet audio with the power and surround sound of EAX audio technologies
Highlights
High-definition 7.1 surround sound
transforms your PC into a home theater system
8-channel output
supports the newest Dolby® Digital EX and DTS® ES 6.1/7.1CH DVD audio formats
Supports the latest in 3D audio technologies
, including Sensaura® EAX™, A3D™, and DirectSound™
Customize internet audio
with the power and surround sound of EAX audio technologies
Specification
Chipset: C-Media CMI8768
Conforms to PCI specification, revision 2.2 and PC99 specification
S/PDIF transmitter supports 44.1/48/96KHz sampling rate, 16-bit resolution (96KHz Windows XP only)
S/PDIF out: 2-Channel stereo
Full-duplex DAC/ADC supports simultaneous playback and record
Supports multi-channel output to 2, 4, 6 (5.1) or 8 (7.1) speaker systems
Provides Xear 3D 7.1 Virtual Speaker Shifter technology
HRTF-based 3D positional audio enhancement, supports DirectSound 3D, EAX v1.0 and v2.0, and A3D v1.0
Unique karaoke functionality: mic echo, key shifting, vocal cancellation
Supports most industrial standards of PC 3D sound for gaming
Frequency response: 20Hz to 20KHz
THD : 0.018%
THD+N: -70dB
S/N Ratio: -92dB
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F (0 to 50 C)
■ Operating humidity: 20% to 80% RH
■ Storage temperature: -4 to 140 degrees F (-20 to 60 C)
■ Storage humidity: 10% to 90% RH
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 years limited
Country of origin: China
Requirements
■ Pentium® II 366 MHz (PIII 800 MHz recommended) or equivalent computer with an available PCI slot
■ Windows® 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000
■ Minimum 128 MB system memory or more (256 MB or greater recommended)
■ CD-ROM or DVD-ROM drive (for driver installation)
Package Contents
■ SoundWave 7.1 PCI
■ Driver CD
■ Installation guide
FAQ
- How do I confirm that Windows detects my expansion card?
- To confirm that Windows detects your USB device, complete the following: Press the Windows key+R, type devmgmt.msc, and press Enter. In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it.
- Why is my 5.1 or 7.1 surround sound not working from the digital (S/PDIF) output?
- The audio format of your source media may be uncompressed (lossless). Uncompressed surround sound audio is not supported by digital (S/PDIF) connections due to bandwidth limitations. When your lossless 5.1 or 7.1 audio content is sent through the Digital S/PDIF connection, data will be lost which can result in limited 2-channel audio playback. This issue is not an isolated limitation of this audio adapter, as uncompressed surround sound is universally incompatible with digital (S/PDIF) audio. Digital (S/PDIF) audio supports: ■ 2-channel PCM audio ■ Compressed surround sound audio (Dolby Digital, DD+, DTS, DTS-ES) Digital (S/PDIF) audio does NOT support: ■ More than 2-channels of PCM audio ■ Uncompressed surround sound audio (DD-TrueHD, DTS-Master Audio) Playback of digital surround sound is dependent on a variety of factors, including the audio format of your source media, your playback software, and your audio receiver. Digital (S/PDIF) channel settings are managed by the source and playback devices, and cannot be manually configured like analog audio
- Does these sound card support Windows 10?
- Unfortunately, it is not compatible in Windows 10. It is not supported.
