• AVLAB-GE02-1

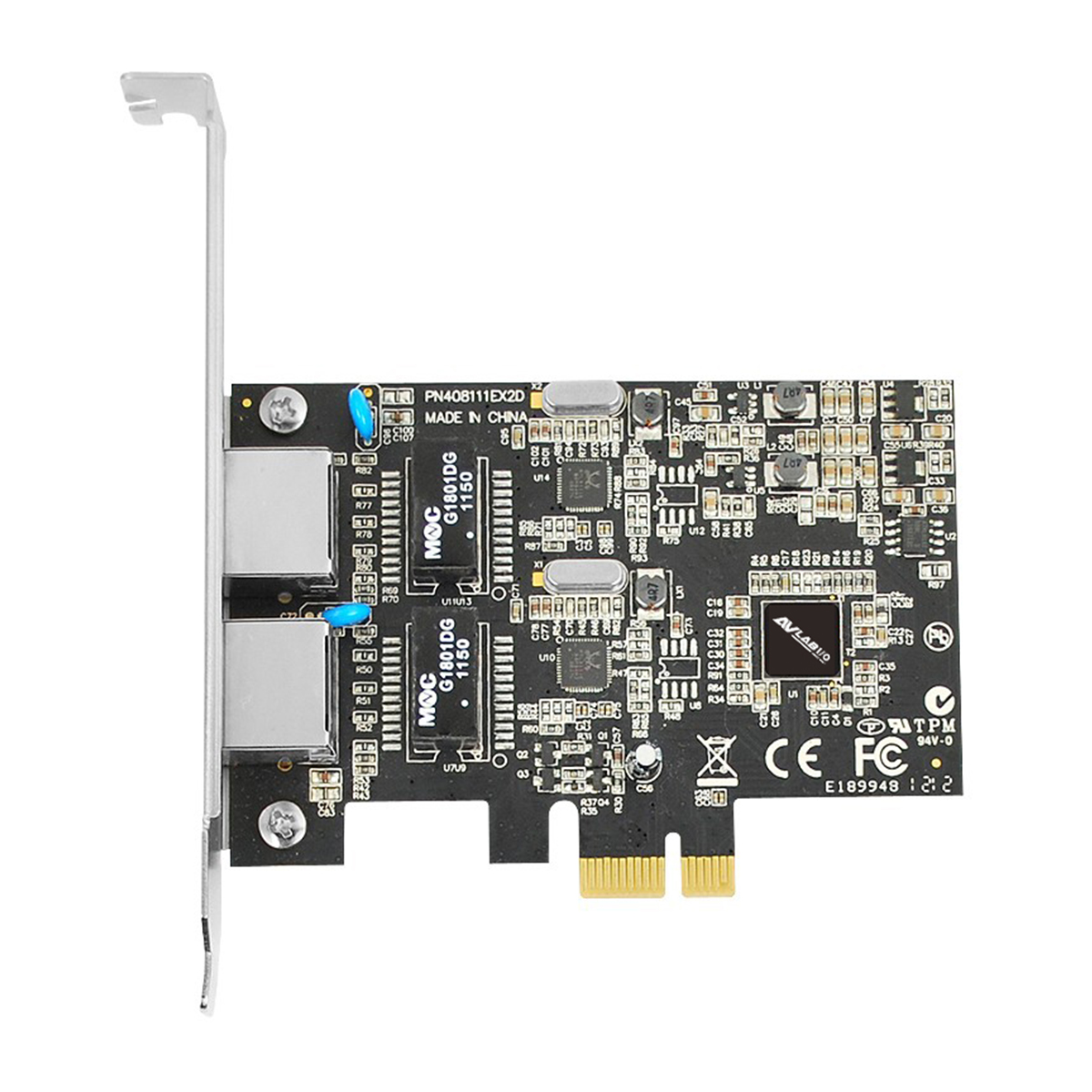

  • AVLAB Dual Port Gigabit Ethernet PCIe Card, Dual Profile Bracket

■ Adds two high-speed Gigabit Ethernet port to PCI Express enabled computers with low profile or standard height chassis
■ Supports 10/100/1000 Mb/s data rate auto-negotiation
■ Supports full duplex mode that doubles the network connection speed
■ Supports Wake On LAN (WOL) power management

  • $0 $0

Highlights

Adds two high-speed Gigabit Ethernet port to PCI Express enabled computers
with low profile or standard height chassis

Supports 10/100/1000 Mb/s data rate auto-negotiation

Supports full duplex mode
that doubles the network connection speed

Supports Wake On LAN (WOL) power management

Requirements
Desktop computer with an available PCIe slot
Windows® 10 (32-64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2012 R2 / Server 2008 R2 / Server 2003 & Server 2008 (32-/64-bit) / 2000

Package Contents
DP 2-Port Gigabit Ethernet PCIe
Spare enhanced low profile bracket
Driver CD
Installation guide

Specification

Chipset: RTL8111E + PI7C9X2G04SL



Compliant with PCI Express v1.1 Specification



Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab



Supports up to 1000 Mb/s and is backward compatible with 10/100 Mb/s



Automatic MDI/MDIX crossover at all speeds



Installs in any available PCI Express slot



LED indicators for data transmission status



Jumbo Frame Support



Product:

■ Dimensions: 4.25" (W) x 4.72" (H) x 0.79"(D)

■ Weight: 0.13 lbs

■ Color: Black

■ Interface: 1-Lane, PCI Express

■ Connector: 2x 8-pin, RJ45, Female



Environmental conditions:

■ Operating temperature: 32 to 122 degrees F

■ Storage temperature: -4 to 140 degrees F

■ Operating humidity: 5% to 85%

■ Storage humidity: 5% to 85%



Certifications/Standards: FCC, CE, RoHS



Warranty: 1 years limited



Country of origin: China

FAQ

  • Why do I have speed or connectivity issues?
  • If you are experiencing speed or connectivity issues, it is best to set a specific speed at half or full duplex in your settings. You can set your network adapter to perform at a certain speed, but the device that the adapter is connected to (whether it is a router, switch, or computer) must also be able to perform at the same speed.

    Note: You must log in as the local administrator before you continue.

    To open Device Manager:
    ■ Press Windows key + R.
    ■ Type devmgmt.msc.
    ■ Click OK.
    ■ Open the Networking adapters section.
    ■ Right-click the network adapter that you want to change and select Properties.
    ■ Click the Advanced tab.
    ■ Scroll down to Speed & Duplex. By default, it is set to Auto-Negotiate.
    ■ Select any of the speeds that you see in the list.
    ■ Click OK and restart your computer.
  • I am having issues with my new network interface card (NIC) and my on-board NIC is still enabled. What do I do in Windows?
  • Sometimes an on-board network interface card (NIC) conflicts with a new NIC. In these cases it is best to disable the on-board NIC.
    The best way to disable your on-board NIC is to go into your BIOS and disable it there if possible. To do this, consult your motherboard manual.
    You can also disable any NIC in Windows.

    Here is how you do this:
    First click Start, or, in Windows 10 and 8, hold down the Windows key and press X. Then click Control Panel.

    Windows 10
    ■ Click Network and Internet.
    ■ Click Network and Sharing Center.
    ■ On the left, click Change adapter settings.
    ■ Right-click the NIC that you would like to disable and select Disable.

    Windows 8
    ■ Click Network and Sharing Center.
    ■ On the left, click Change adapter settings.
    ■ Right-click the NIC that you would like to disable and select Disable.

    Windows 7
    ■ Click Network and Internet.
    ■ Click Network and Sharing Center.
    ■ On the left, click Change adapter settings.
    ■ Right-click the NIC that you would like to disable and select Disable.

    Windows Vista
    ■ Click Network and Sharing Center.
    ■ On the left, click Manage network connections.
    ■ Right-click the NIC that you would like to disable and select Disable.

    Windows XP
    ■ Click Network Connections.
    ■ Right-click the NIC that you would like to disable and select Disable.
  • How do I confirm that Windows detects my LAN device?
  • To confirm that Windows detects your LAN device, complete the following:
    Press the Windows key+R, type devmgmt.msc, and press Enter.
    In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it.
    For example, a USB LAN device would be under Universal Serial Bus controllers.
