• new | AVLAB-CB68-1

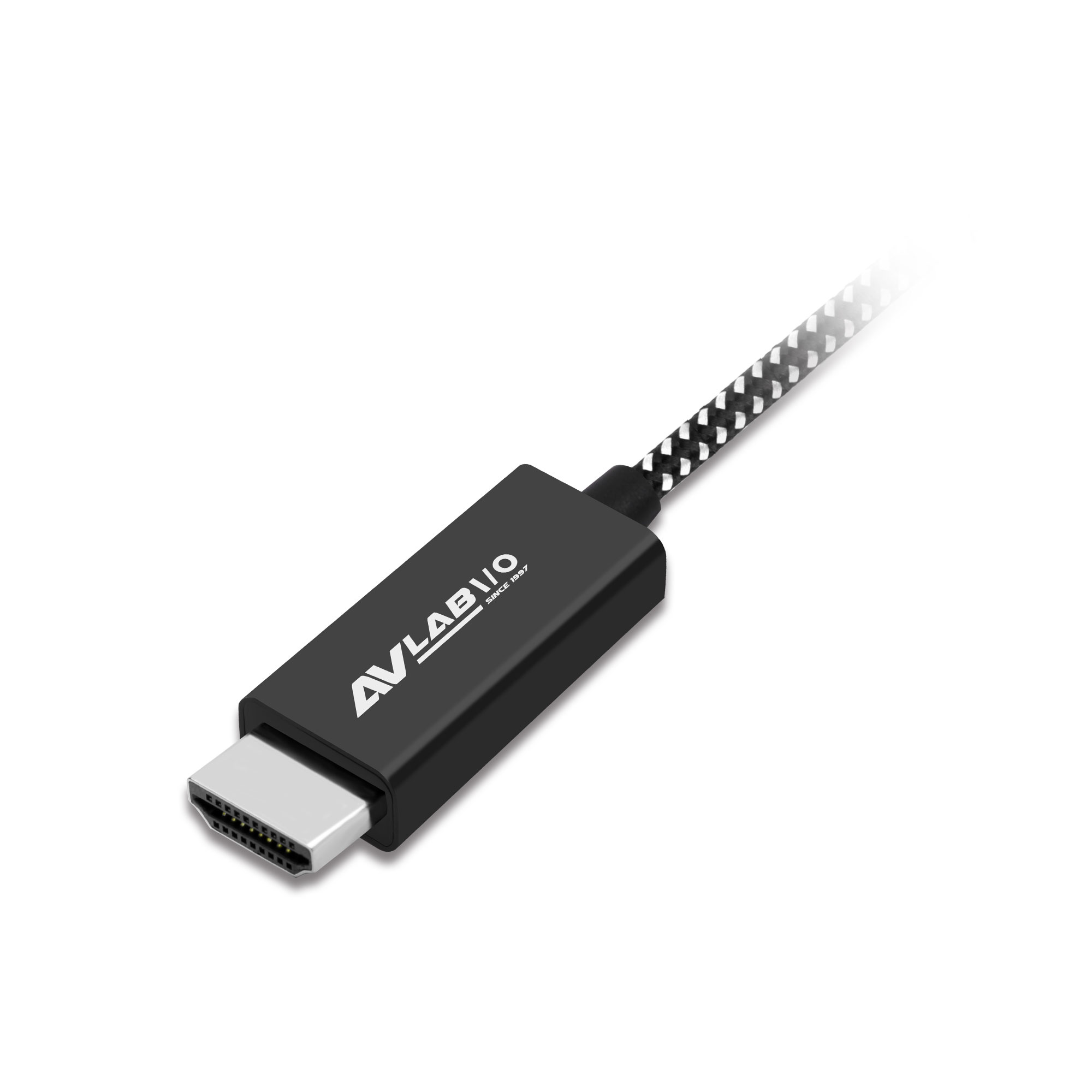

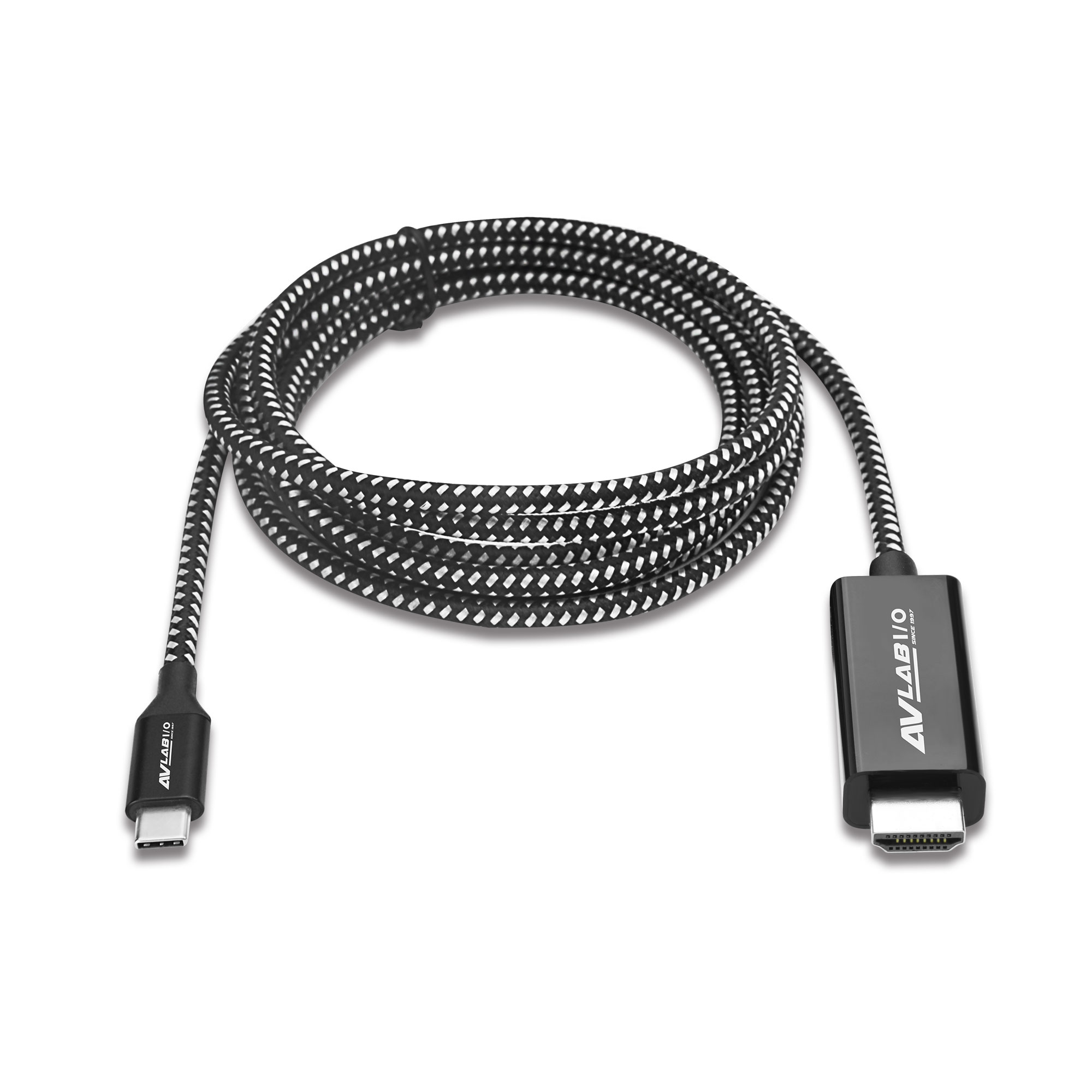

  • AVLAB USB Type-C to HDMI Cable - 2m

■ Easily transforms a DisplayPort Alt mode enabled USB Type-C port or Thunderbolt 3 port into a HDMI output to connect to a HDMI display
Note:The USB-C source connection must contain DisplayPort video/audio signal, aka DisplayPort Alternate Mode/DisplayPort Alt Mode, in order for the audio and video signals to pass through to the HDMI adapter
■ Supports HDMI audio and video signals with resolutions of 720p HD, 1080p Full HD and up to [email protected] UHD
■ Features USB-C reversible plug design, non-directional plug-in orientation, you will always plug-in the USB-C connector on the first try
■ USB-C with DisplayPort Alt Mode or Thunderbolt 3 technology is available with many computers such as 2016 MacBook Pro, the 2015 MacBook, Google Chromebook Pixel, and many more
■ Plug-n-Play, no driver installation and no external power adapter required

  • $0 $0

Highlights

USB TYPE-C TO HDMI CABLE

Easily transforms a DisplayPort Alt mode enabled USB Type-C port or Thunderbolt 3 port into a HDMI output to connect to a HDMI display
Note: The USB-C source connection must contain DisplayPort video/audio signal, aka DisplayPort Alternate Mode/DisplayPort Alt Mode, in order for the audio and video signals to pass through to the HDMI adapter

ULTRA HIGH DEFINITION

Supports HDMI audio and video signals with resolutions of 720p HD, 1080p Full HD and up to [email protected] UHD

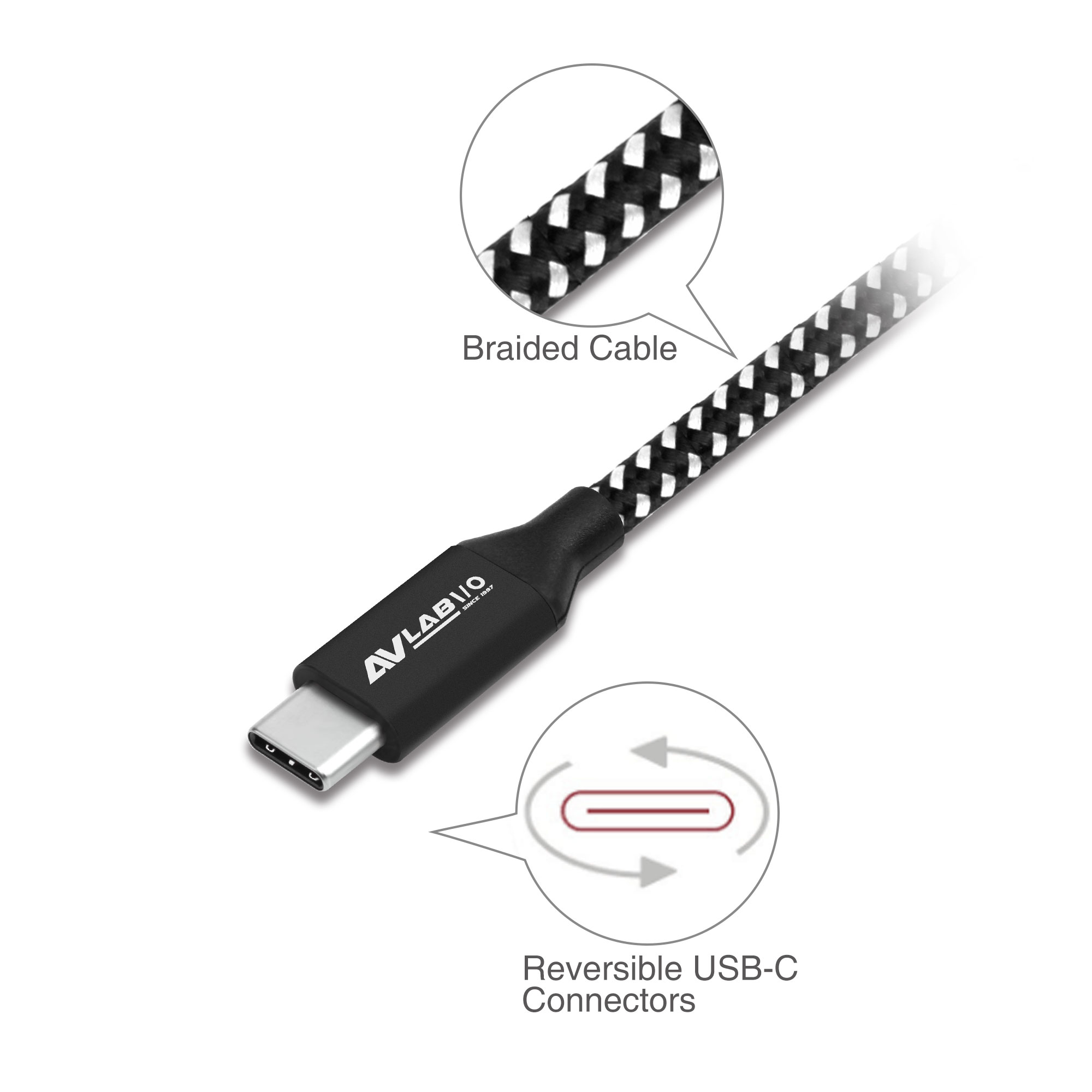

REVERSIBLE USB-C CONNECTOR

Features USB-C reversible plug design, non-directional plug-in orientation, you will always plug-in the USB-C connector on the first try

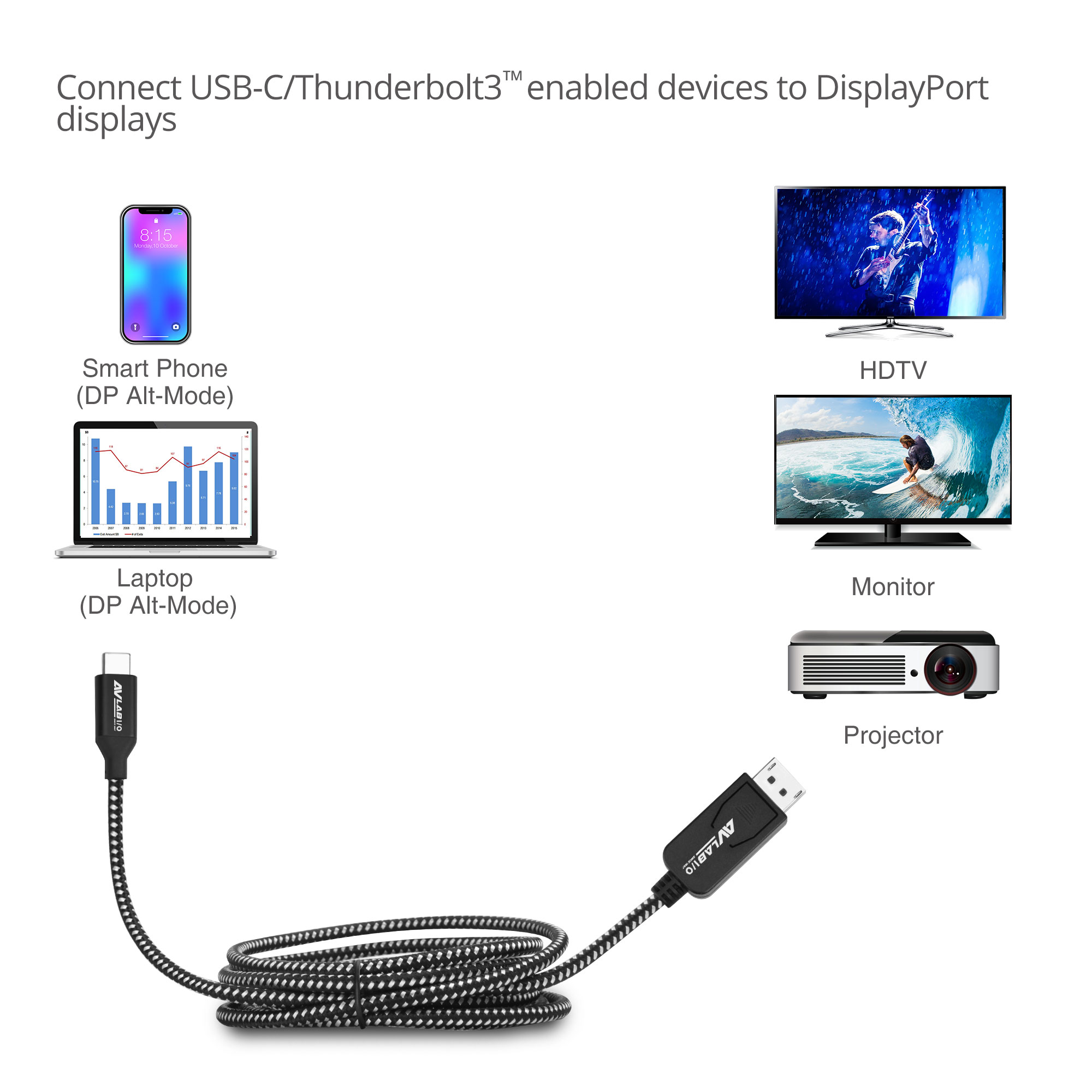

USB-C WITH DISPLAYPORT ALT MODE OR THUNDERBOLT 3

Available with many computers such as 2016 MacBook Pro, the 2015 MacBook, Google Chromebook Pixel, and many more

PLUG-N-PLAY INSTALLATION

Plug-n-Play, no driver installation and no external power adapter required

Specification

Chipset: VL100+PS176

HDCP version: HDCP 2.2 and 1.4

Resolution: Up to 3840x2160 @60Hz (4Kx2K)

Audio: up to 7.1-Ch LPCM, 24-bit audio sample size, up to 192 kHz sample rate

System interface: USB-C with DisplayPort Alternate mode

Bandwidth: Up to 6.0 Gbps

Cable type: Double braided, woven braided, tangle proof, 5000+ bend lifespan

Product:
■ Dimensions: 78.7" (L) x 0.67" (H) x 0.83" (W)
■ Weight: 0.17 lbs
■ Color: Black
■ Housing: Plastic

Connector:
■ 1x USB Type-C, Male, Input
■ 1x 19-Pin, HDMI Type-A, Male, Output

Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 158 degrees F
■ Relative humidity: 20 to 90% RH (non-condensing)

Certifications/Standards: FCC, CE, RoHS

Warranty: 1 year limited

Country of origin: China
