- AcePro-CB15-1
- AcePro Mini DisplayPort to DVI 3ft Cable
■ Allows Dual Mode Mini DisplayPort (DP++) or Thunderbolt 2 enabled devices to connect to DVI-D single-link displays Note: This is not a bi-directional cable. Does not work for DVI-D to DisplayPort conversion ■ Compliant with Mini DisplayPort specification v1.1a, supporting 1.62 & 2.7 Gbps ■ Supports HDTV resolution up to 1080p @60Hz and PC graphics resolutions up to 1920x1200 @60Hz ■ Features gold plated connectors and a triple shielded cable with PVC jacket for maximum video performance and prevention of signal loss ■ Easy plug-n-play installation no driver installation required
Highlights
Dual Mode Mini DisplayPort (DP++) or Thunderbolt 2 Connection

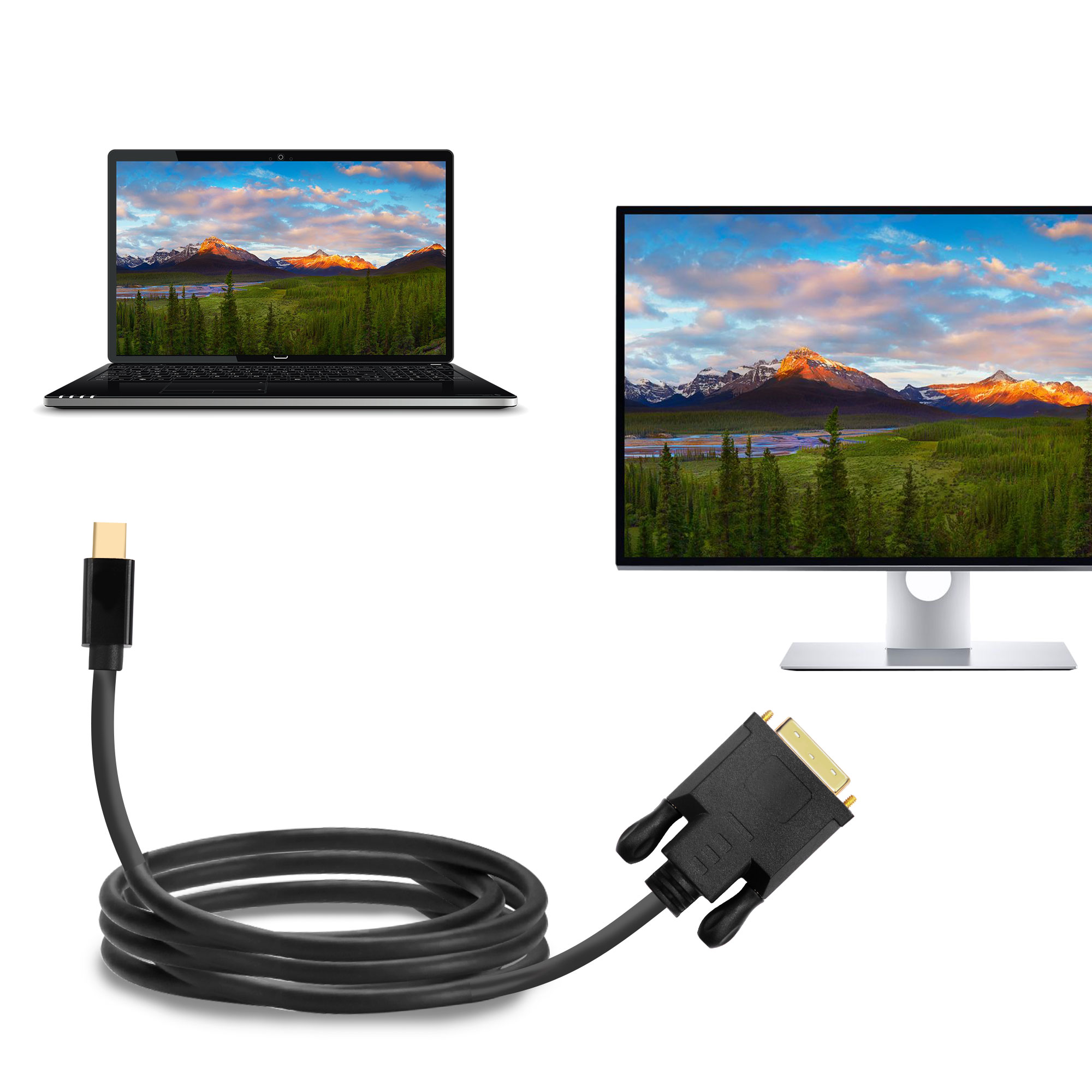

Allows Dual Mode Mini DisplayPort (DP++) or Thunderbolt 2 enabled devices to connect to DVI-D single-link displays
Note: This is not a bi-directional cable. Does not work for DVI-D to DisplayPort conversion
Supports Mini DisplayPort v1.1a
Compliant with Mini DisplayPort specification v1.1a, supporting 1.62 & 2.7 Gbps
Supports Up To 1080p @60Hz
Supports HDTV resolution up to 1080p @60Hz and PC graphics resolutions up to 1920x1200 @60Hz
Supports High Quality Digital Surround Sound
Supports 8-ch LPCM, compressed audio and HBR audio format up to 24-bit, 192 KHz sample rate
Gold Plated Connectors For Better Connectivity
Features gold plated connectors and a triple shielded cable with PVC jacket for maximum video performance and prevention of signal loss
Support Plug-n-play
Easy Plug-n-play installation with no driver installation required
Specification
Chip: PS8121E
Works with Intel® Thunderbolt™ (1 & 2)
Compliant with DisplayPort specification v1.1a, supporting 1.62 and 2.7 Gbps
Compatible with Dual Mode DisplayPort (DP++) output
Triple-shielded cable with PVC jacket
DVI signal: DVI-D Single Link
Note: DVI analog signaling is not supported
Supports 1920x1200 @60Hz or HDTV resolutions up to 1080p @60Hz
Supports bandwidth up to 2.25 Gbps per channel (6.75Gbps all channels)
Supports 12-bit per channel (36-bit all channels) deep color
Adapter type: Passive
Product:
■ Dimensions: 36" (L) x 0.57" (D) x 1.73" (W)
■ Cable weight: 0.16 lbs
■ Color: Black
Connectors:
■ 1 x 20-pin, DisplayPort, Male, Input
■ 1 x 25-pin, DVI-D, Male, Output
Environmental conditions:
■ Operating temperature: 32 to 140 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: < 85% non-condensing
Certifications/Standards: FCC, CE, RoHS
Warranty: 2 year limited
Country of origin: China
