- new | AcePro-DK15
- Quad Display Thunderbolt 4 Docking Station & PD - Single 8K30Hz / 4K144Hz- Quad 4K60Hz - Windows & MAC M1/M2 Compatible
Advanced Quad Display Thunderbolt 4 Docking Station with three Thunderbolt 4 USB-C, one DisplayPort, one HDIM, two USB-A 5G, two USB-A 480Mbps, one Gigabit Ethernet Port, one SD 3.0 card slot, one Micro SD (TF) 3.0 card slot, two stereo audio/microphone, and PD up to 60W for Windows and Mac
- $479.99
Highlights
- Create a High-performance workstation with 40Gbps data transfer and 60W PD charging via a single Thunderbolt 4 input port to extend multiple connectivity ports, Thunderbolt or Hybrid displays, and with daisy chain capability increases your work efficiency

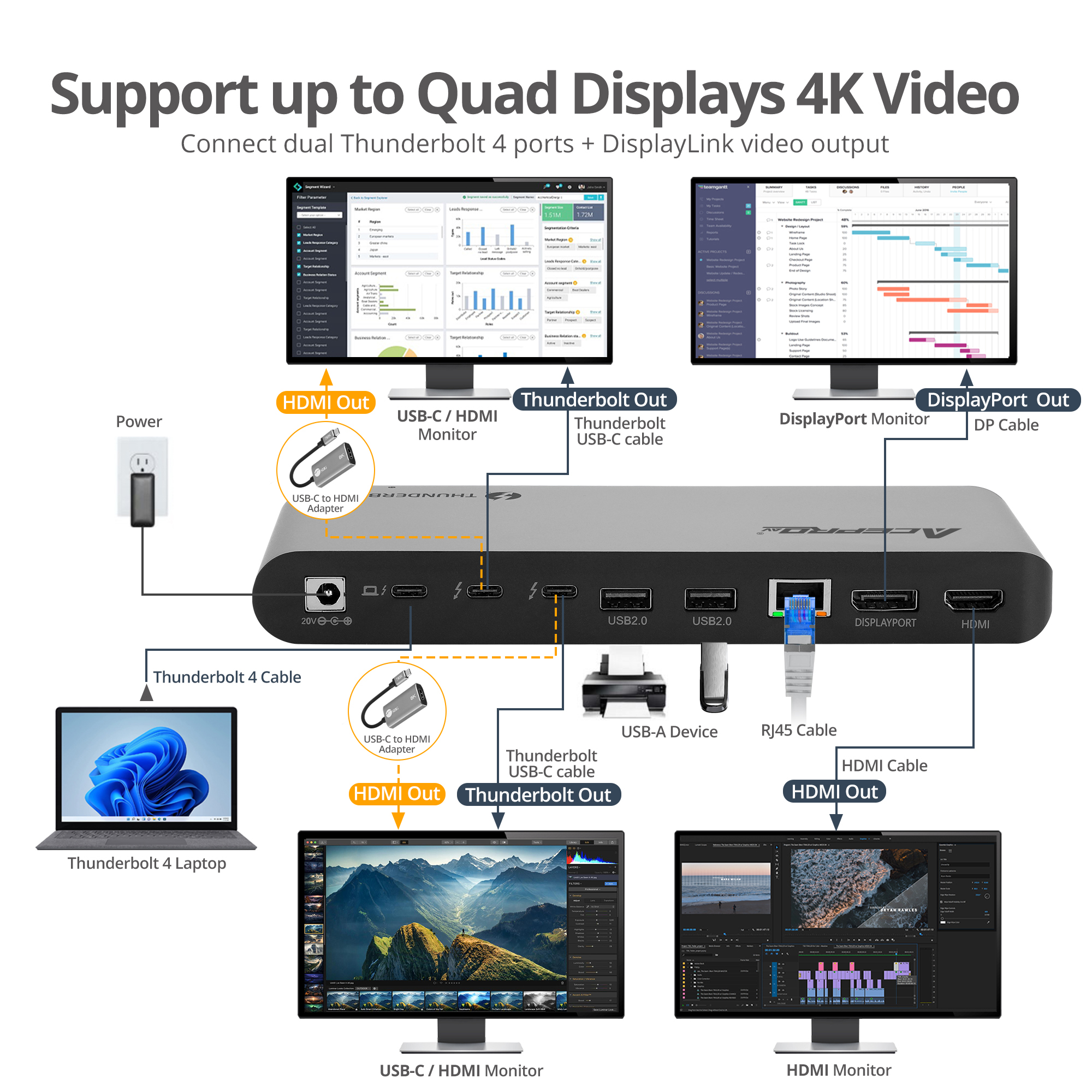

- Supports Ultra HD video resolution up to one 8K (7680x4320)@30Hz / 4K144Hz (3840x2160) @144Hz display through a Thunderbolt 4 port (Windows only), four 4K (3840x2160)@60Hz displays through two Thunderbolt 4+one DisplayPort+one HDMI ports; three 4K (3840x2160)@60Hz or one 8K (7680x4320)@30Hz+two 4K (3840x2160)@60Hz displays through one Thunderbolt 4+one DisplayPort+one HDMI ports and 5.1-ch surround sound
-

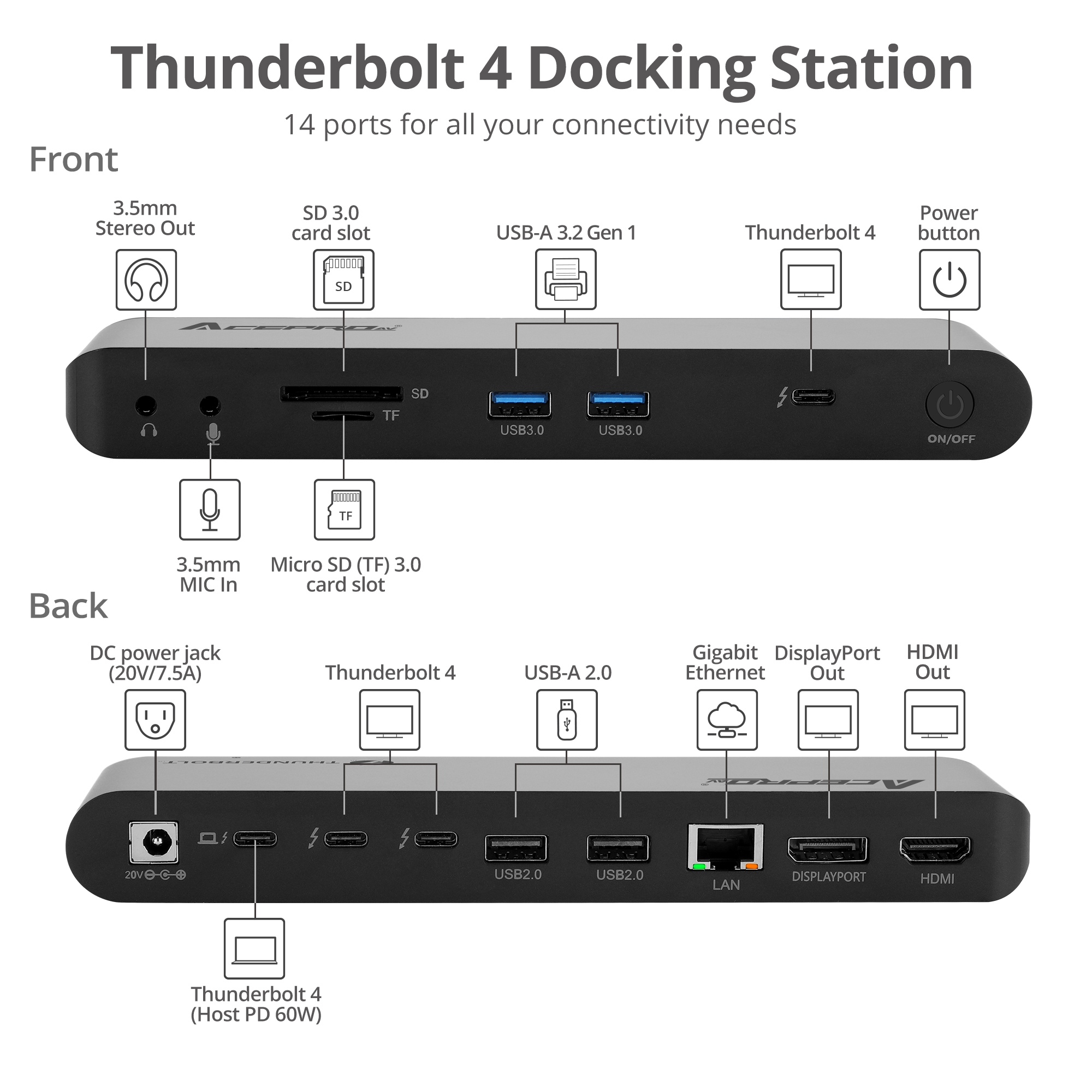

Adds one Thunderbolt 4 input port with 60W PD (Host), three Thunderbolt 4 output ports with 15W PD (for daisy chain), one Hybrid Display/HDMI output port with DisplayLink controlled, two USB-A 3.2 Gen 1 ports, two USB-A 2.0 ports with 5V/1.5A power charging, one SD 3.0 memory card slot, one Micro SD (TF) 3.0 memory card slot, one Gigabit Ethernet network port, one 3.5 mm audio port, one 3.5mm microphone port, one power on/off button, and one DC power jack (20V/7.5A)
-

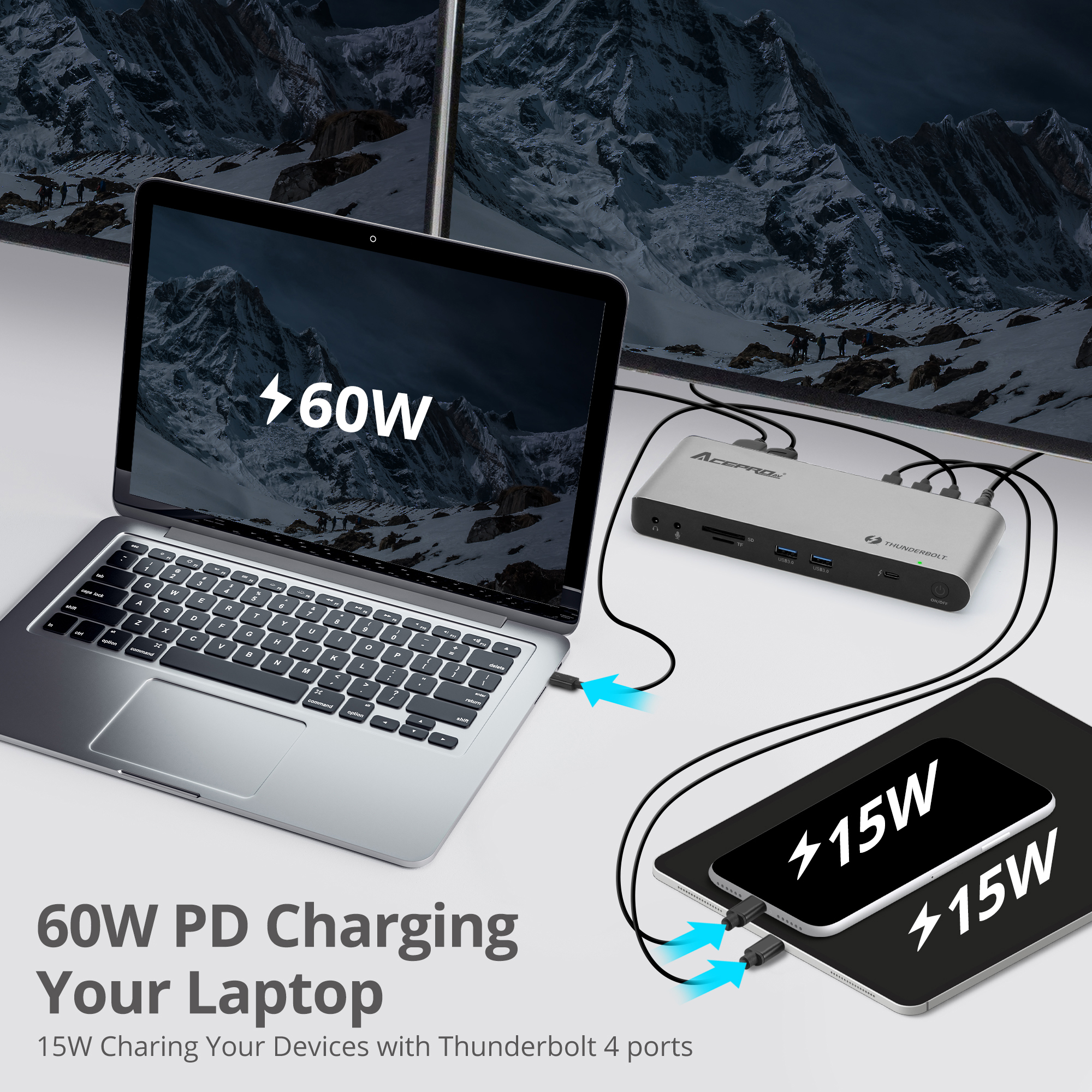

Includes 150W power adapter to provides enough power for your connected peripherals, such as external SSD, flash drive, smartphone, tablet … and PD provides up to 60W Power Delivery for laptop or notebook charging, 15W (2x USB-A with 5V/1.5A) fast charging port, 45W (3x TBT4 5V/3A) charging ports
Provides two USB-A 3.2 Gen 1 ports with 5Gbps data transfer rate; two USB-A 2.0 ports with 480Mbps data transfer rate that supports 5V/1.5A power charging to charging USB devices
Specification
| Hardware | |
|---|---|
| Chipset | JHL8440+DL6950+VL813+GL3224+FE1.1S |
| Compliant with Universal Serial Bus 3.0 and 2.0 specification | |
| Software | |
| OS Compatibility | Windows® 11 and macOS® 10.12 or newer |
| Video | |
| Thunderbolt 4 with DP 1.4 Alt mode | x3, single view: up to 8K@30Hz/4K@144Hz, with 5V/3A power charging |
| HDMI with DisplayLink IC | x1, single view: up to 4K@60Hz |
| DisplayPort with DisplayLink IC | x1, single view: up to 4K@60Hz |
| Resolution | Quad view: up to 4K (3840x2160@60Hz) (2xTBT4+1xDP+1xHDMI) Triple view: up to 1x8K (7680x4320@30Hz) or 1x4K 144Hz (3840x2160@144Hz) (TBT4)+2x4K (3840x2160@60Hz) (DP/HDMI) Dual vide: up to 1x 8K (7680x4320@30Hz) (TBT4) or 1x4K 144Hz (3840x2160@144Hz) (TBT4) +1x4K (3840x2160@60Hz) (DP or HDMI) |
| USB | |
| USB-A | x2, up to 5Gbps data transfer rate and 5V/0.9A power charging |
| USB-A | x2, up to 480Mbps data transfer rate and 5V/1.5A fast charging |
| Fast charging port | yes |
| Audio | |
| 5.1 channel surround sound from HDMI/DisplayPort output ports | |
| 2 channel stereo audio from 3.5mm audio port and microphone port | |
| Display mode | |

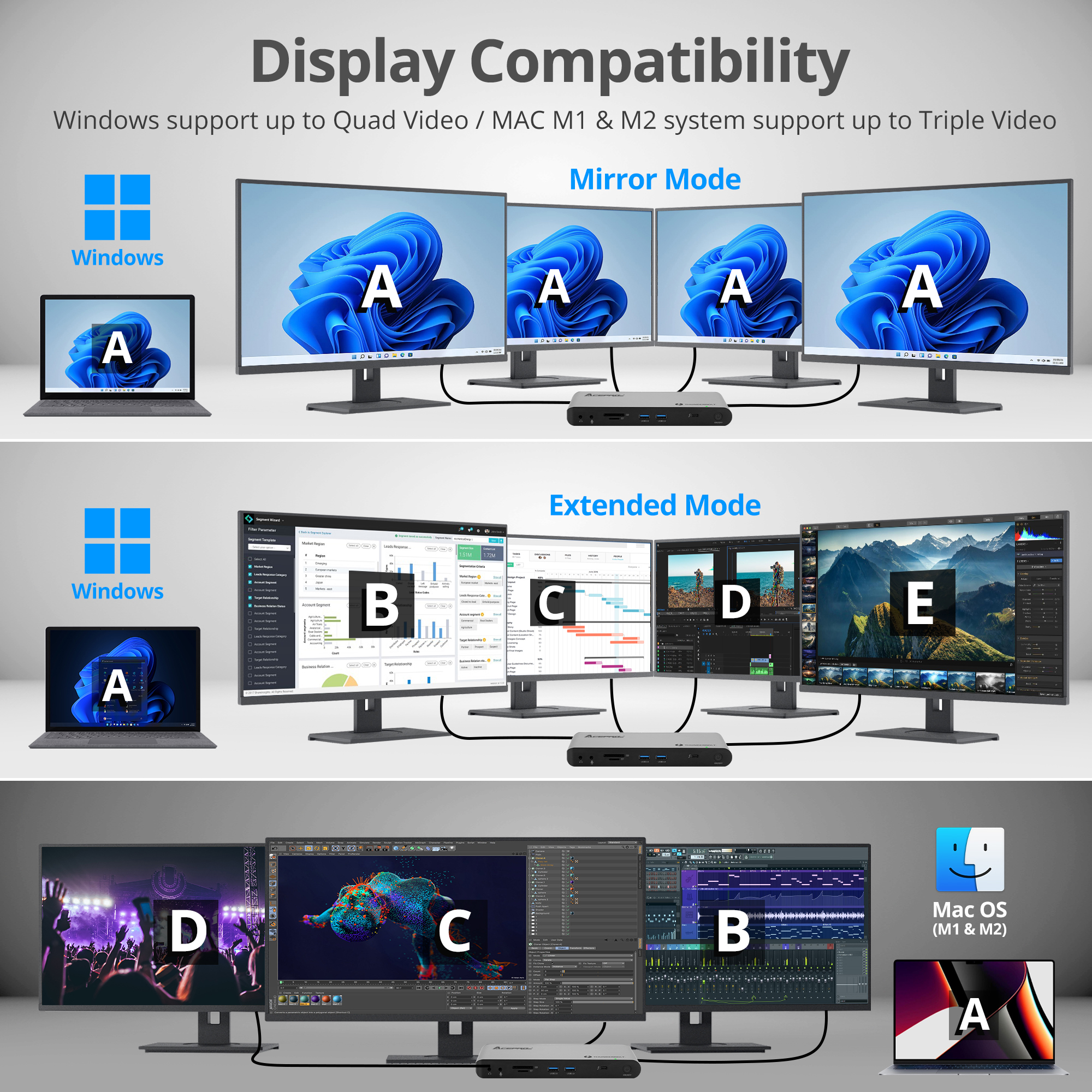

| Mirror and Extended mode | |
| Memory card slot | |
| SD 3.0 | x1, UHS-I, up to 104MB/s, capacity up to 2TB |
| Micro SD (TF) | x1, UHS-I, up to 104MB/s, capacity up to 2TB |
| Power | |
| USB Power Delivery 3.0 | PD pass-through 100W, provides up to 60W PD via Thunderbolt 4 (Host) for laptop charging |
| Power adapter | Input: AC 100-240V / 50-60Hz, Output: DC 20V/7.5A, UL listed: E314357/Level: VI |
| Ethernet | |
| Data transfer rate | up to 1G (1000Mbps), backward compatible with 10/100Mbps |
| Supports IEEE 802.3x Full Duplex flow operation, crossover detection, and auto-correction | |
| Enterprise features | Wake on LAN and PXE boot *Note: Mac address pass-through not supported |
| Compatible with IEEE 802.3, 802.3u | |
| Environmental conditions | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | -4 to 158 degrees F |
| Relative humidity: | <10% to 90% RH (non-condensing) |
| Product Info | |
| Dimensions | 7.80” (L) x 1.14” (H) x 3.27” (W) |
| Weight | 0.96 lbs |
| Color | Space gray/black |
| Housing material | Aluminum with plastic |
| Unit Package | |
| Dimensions | 9.43” (L) x 3.46” (H) x 6.00” (W) |
| Weight | 3.02 lbs |
| Certifications/Standards | |
| FCC, CE, RoHS 2.0, REACH | |
