- AcePro-CE36-1
- AcePro HDMI to 3G/HD/SD-SDI with Audio Embedder Mini Converter, 3.5mm Audio in, USB power, FW update, EDID, Metal housing
■ Converts HDMI signal to 3G/HD/SD-SDI in the real time with multi-channel digital audio or high quality analog stereo embedder ■ Supports a wide range of video and audio formats up to 1080p resolution and 7.1 channel audio ■ Supports SDI data rates from 270Mbps up to 2.97Gbps ■ Metal housing provides better RF shielding and heat dissipation to deliver longer operational lifespan ■ Wall-mountable metal housing allows for easy integration in various installation environments ■ Plug & Play - No driver or software installation required
Highlights

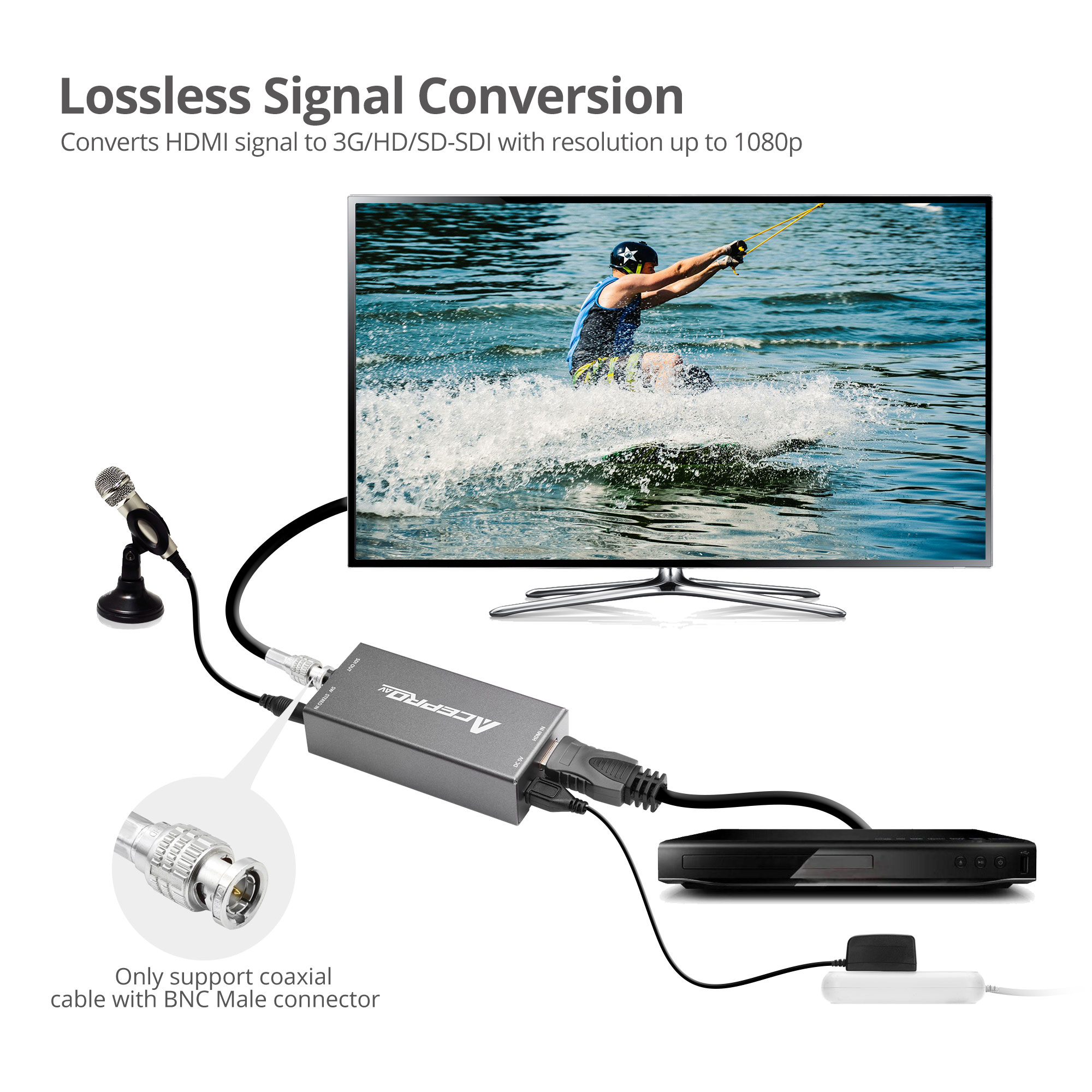

Converts HDMI signal to 3G/HD/SD-SDI
Converts HDMI signal to 3G/HD/SD-SDI in the real time with multi-channel digital audio or high quality analog stereo embedder
Supports up to 1080P and multi-channel digital audio
Supports a wide range of video and audio formats up to 1080p resolution with multi-channel digital audio
Bandwidth
Supports SDI data rates from 270Mbps up to 2.97Gbps and HDMI output up to 6.75Gbps
High quality metal housing
Metal housing provides better RF shielding and heat dissipation to safeguard longer operational lifespan
Wall-mountable
Wall-mountable metal housing allows easy integration into various installation environments
Plug & Play
Plug & Play - No driver or software installation required
Specification
Compliant with HDMI 1.3 specification and 3G/HD/SD-SDI standard

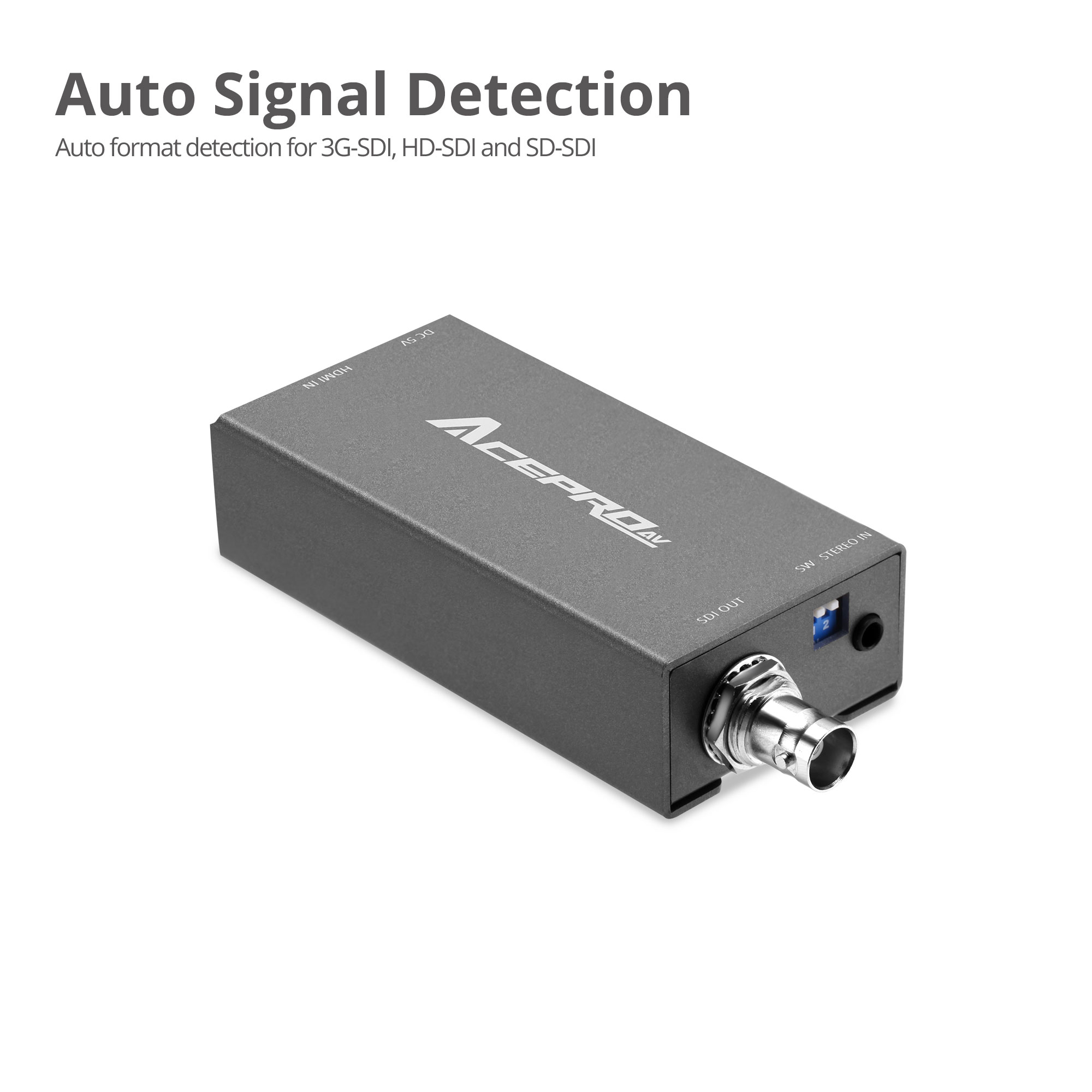

Supports auto 3G/HD/SD-SDI detection
Supports stereo audio output
Supports HDMI Deep color
Video bandwidth:
■ SDI: Up to 2.97Gbps
■ HDMI: Up to 6.75Gbps
Supports video resolution:
■ 3G: 1080p 50 / 59.94 / 60 (4:2:2)
■ HD:
■ 720p@50/59.94/60Hz
■ 1080i@50/59.94/60Hz
■ 1080p @23.98/24/25/29.97/30Hz
■ SD:
■ NTSC @ 59.94Hz
■ PAL @ 50Hz

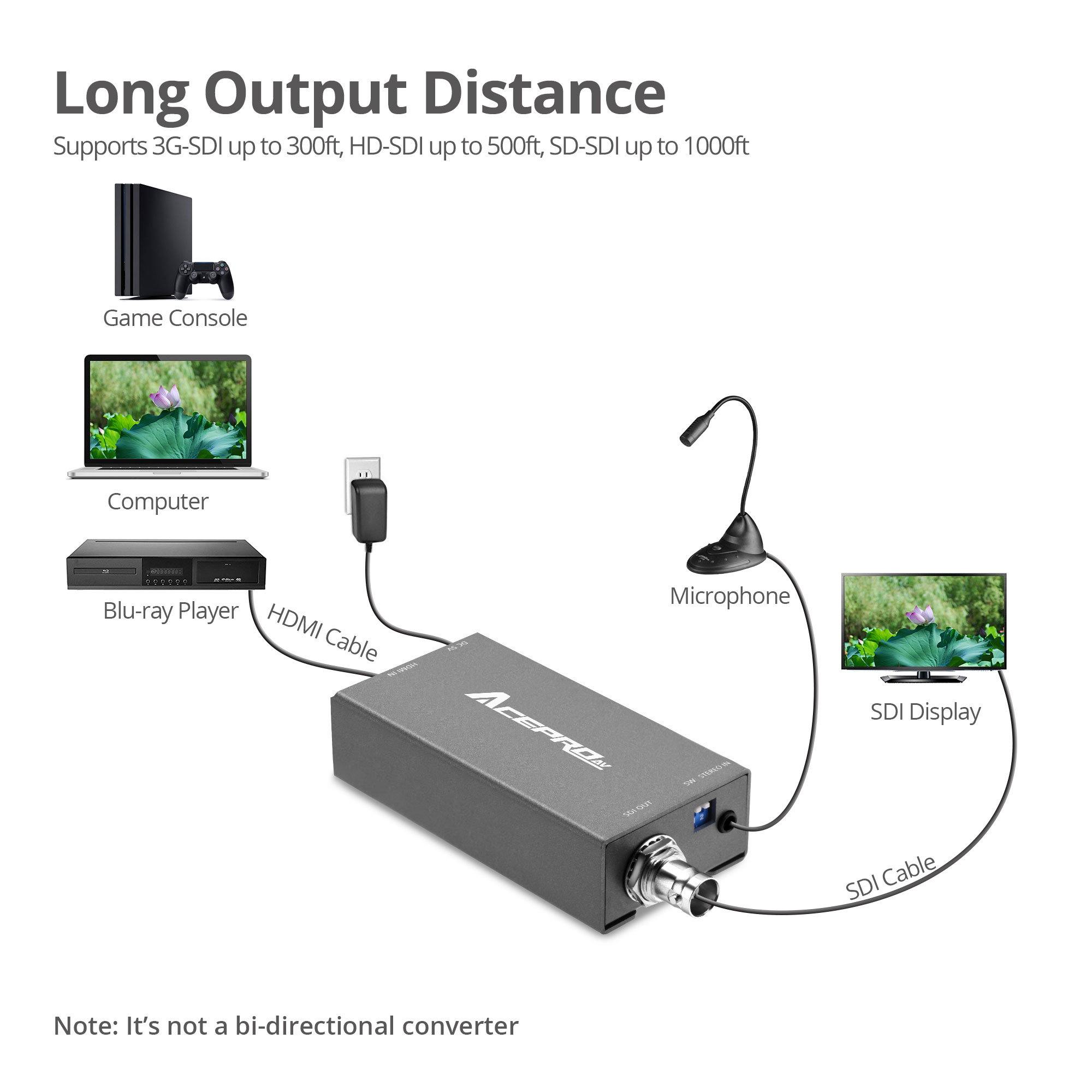

Cable equalization:
■ 3G-SDI: up to 90m (300ft)
■ HD-SDI: up to 150m (500ft)
■ SD-SDI: up to 300m (1000ft)
ESD protection: ±15kV Air & ±8kV Contact
Metal housing with wall mount design
Product:
■ Dimensions: 3.70" (L) x 0.90" (H) x 1.80" (W)
■ Weight: 0.19 lbs
■ Color: Iron gray
■ Housing material: Metal
■ Connector:
■ 1x 19-Pin HDMI, Type A, Female, Input
■ 1x BNC (SDI), Female, Output
■ 1x 5-Pin Micro USB, Power in
■ 1x 3.5mm, Stereo Audio, output
■ 1x 2-Pin, DIP Mode Switch
Power adapter:
■ Input: 100-240VAC, 50/60 Hz
■ Output: DC 5V/1A
■ UL listed: E135856/Level:VI
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: 20 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
TAA Compliant
Warranty: 3 year limited
Country of origin: Taiwan
