- AcePro-CE81-1

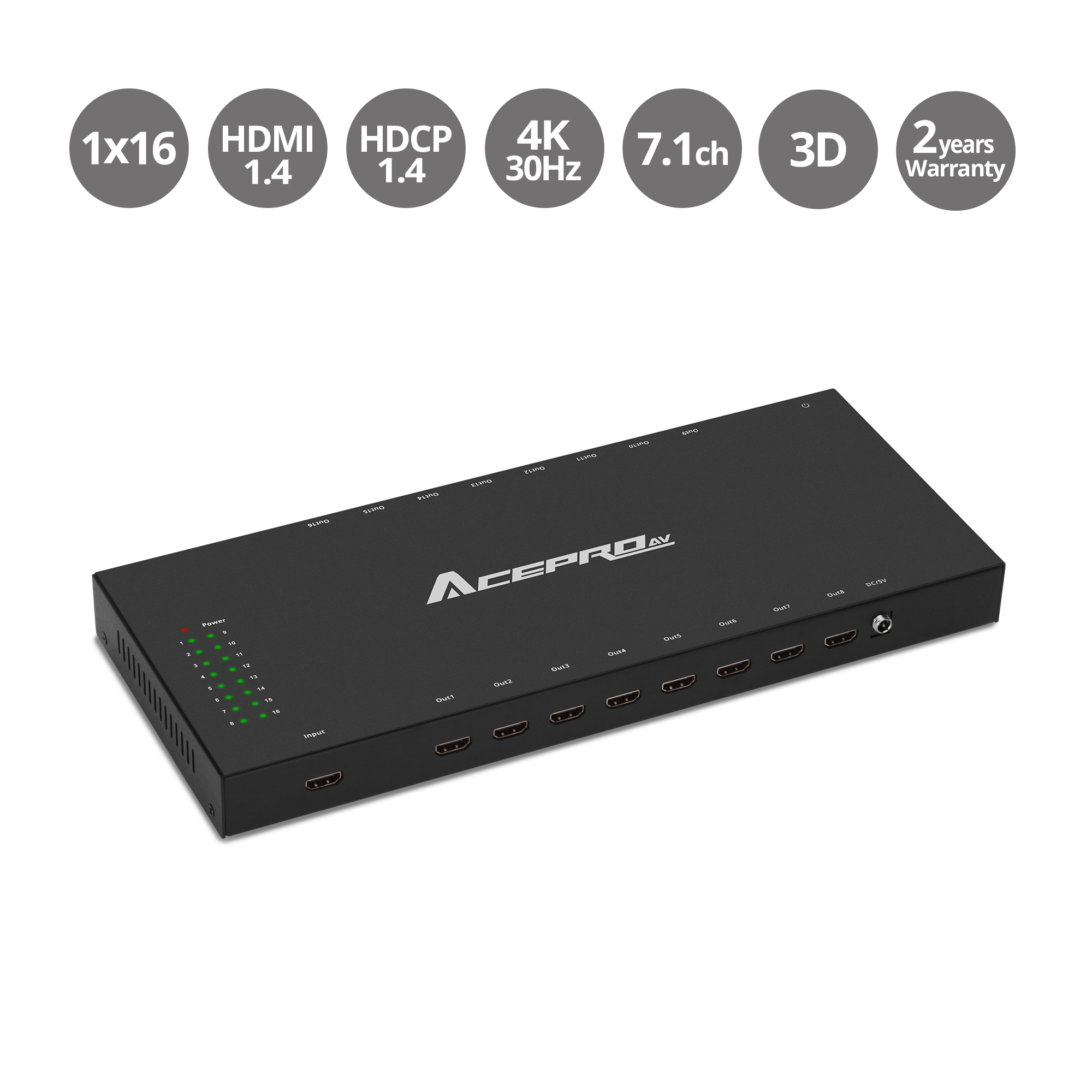

- AcePro 1x16 HDMI Splitter with 3D and 4Kx2K
■ Distributes 4K HDMI video and audio signals from a single source to up to 16 4K HDMI displays simultaneously while maintaining signal quality ■ Supports up to UHD 4Kx2K (3840x2160 @30Hz) resolution ■ Supports high definition resolutions of 1080p@ 60Hz, 720p/1080i @120Hz ■ Supports Dolby TrueHD and DTS-HD Master audio formats ■ Sturdy metal housing provides durability and reduces EMI/RFI noise interference ■ Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference delivering reliable performance and long hours of trouble-free operation
Highlights

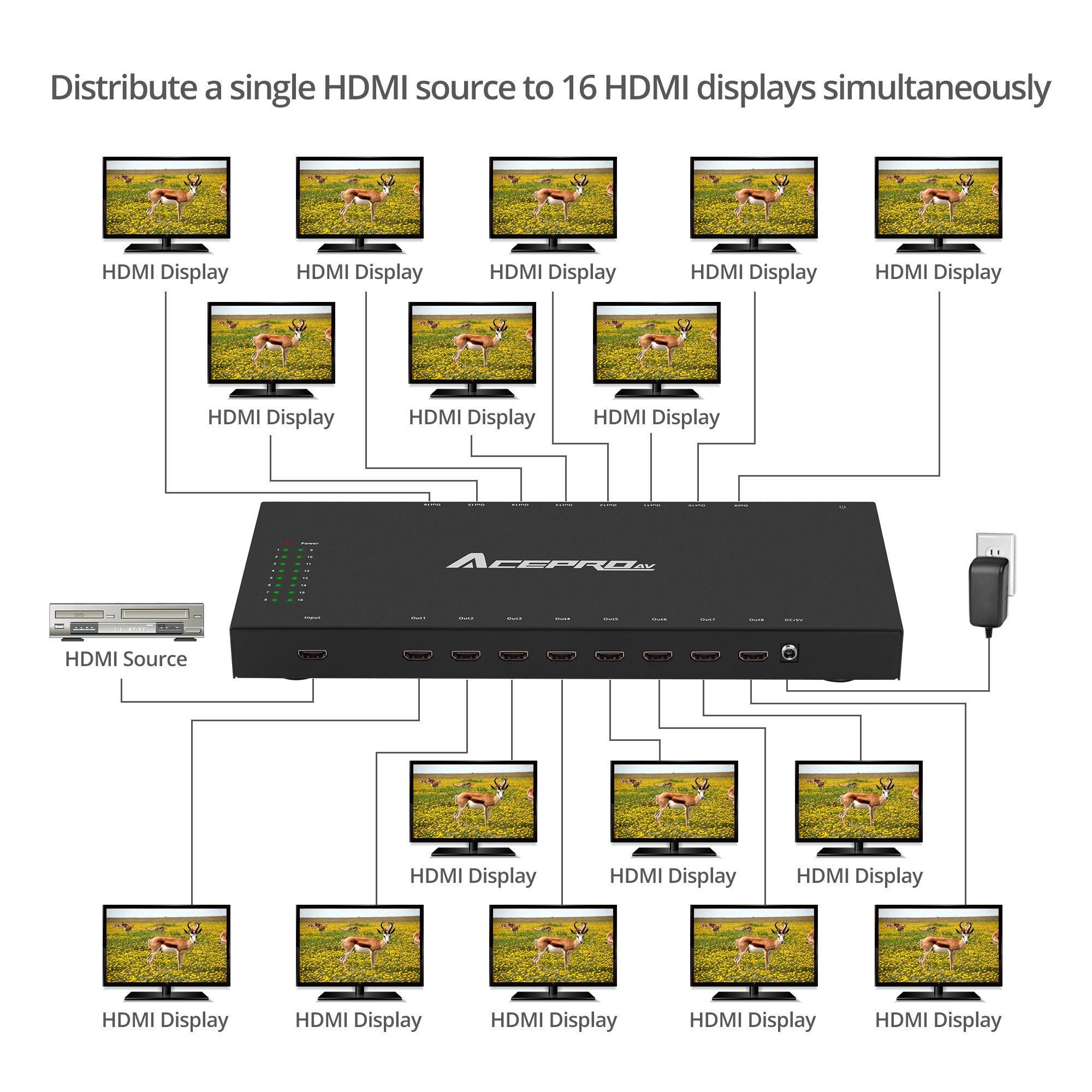

Distributes 4K HDMI video and audio signals from a single source
to up to 16 4K HDMI displays simultaneously while maintaining signal quality
Supports up to UHD 4Kx2K (3840x2160 @30Hz) resolution
Supports high definition resolutions of 1080p@ 60Hz, 720p/1080i @120Hz
Supports Dolby TrueHD and DTS-HD Master audio formats
Sturdy metal housing
provides durability and reduces EMI/RFI noise interference
Low heat generation with sturdy metal housing
provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference delivering reliable performance and long hours of trouble-free operation
Specification
Compliant with HDMI 1.4 and HDCP 1.4
Supported resolution: 480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4Kx2K @30Hz
Supported video color format: xv-YCC / Deep color 36-bit
Video bandwidth: 10.2Gbps
Audio formats: DTS-HD / Dolby True-HD / LPCM / AC3 / DTS / DSD
Input TMDS signal: 5-1.0V (peak-to-peak)
Input DDC signal: 5V (peak-to-peak, TTL)
HDMI cable length: up to 15 meters (Input 5m / Output 10m)
Power consumption: 15 watts
Power and link LED indicator
Product:

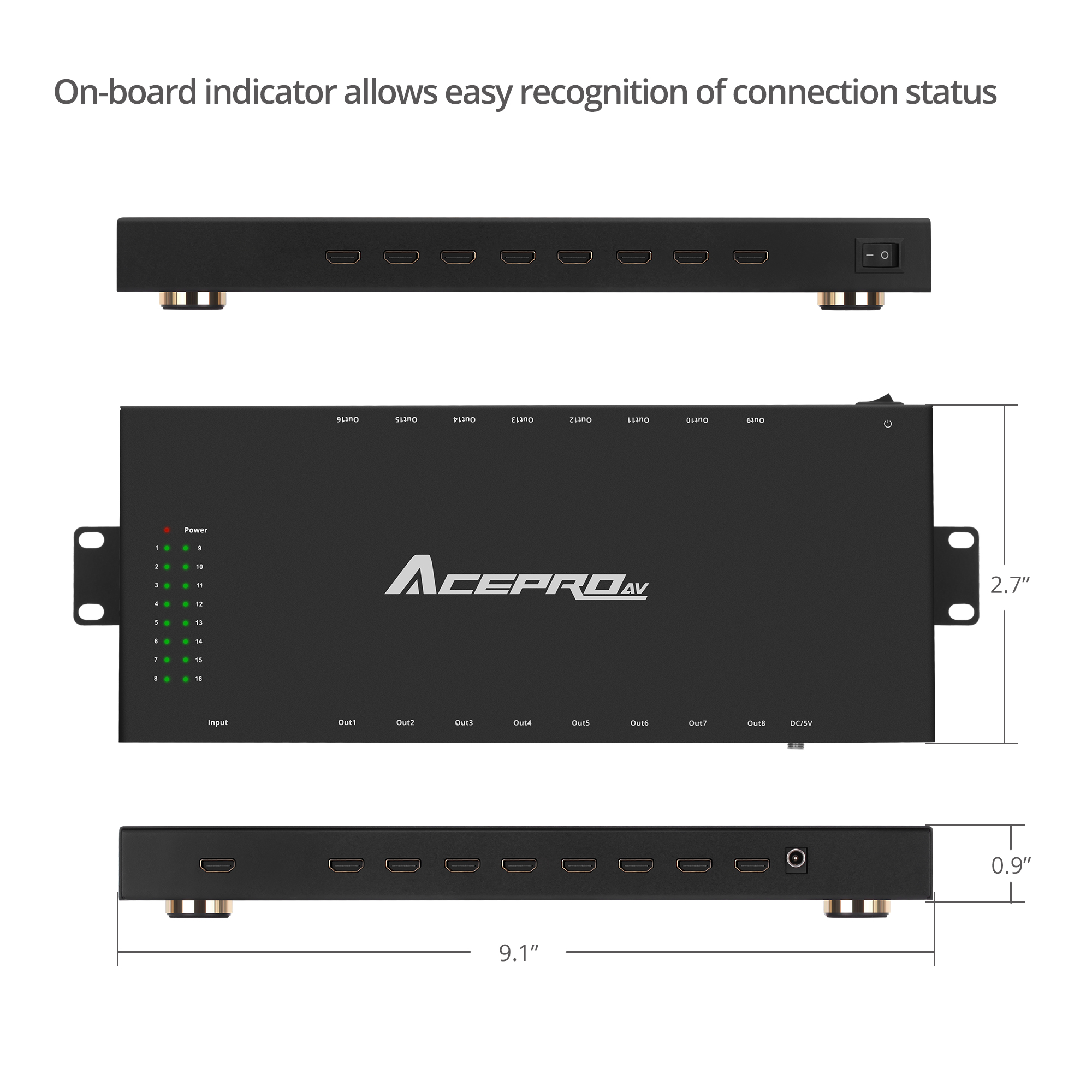

■ Dimensions: 13.78" (L) x 1.58" (H) x 5.75" (W)
■ Weight: 3.31 lbs
■ Color: Black
■ Housing: Metal

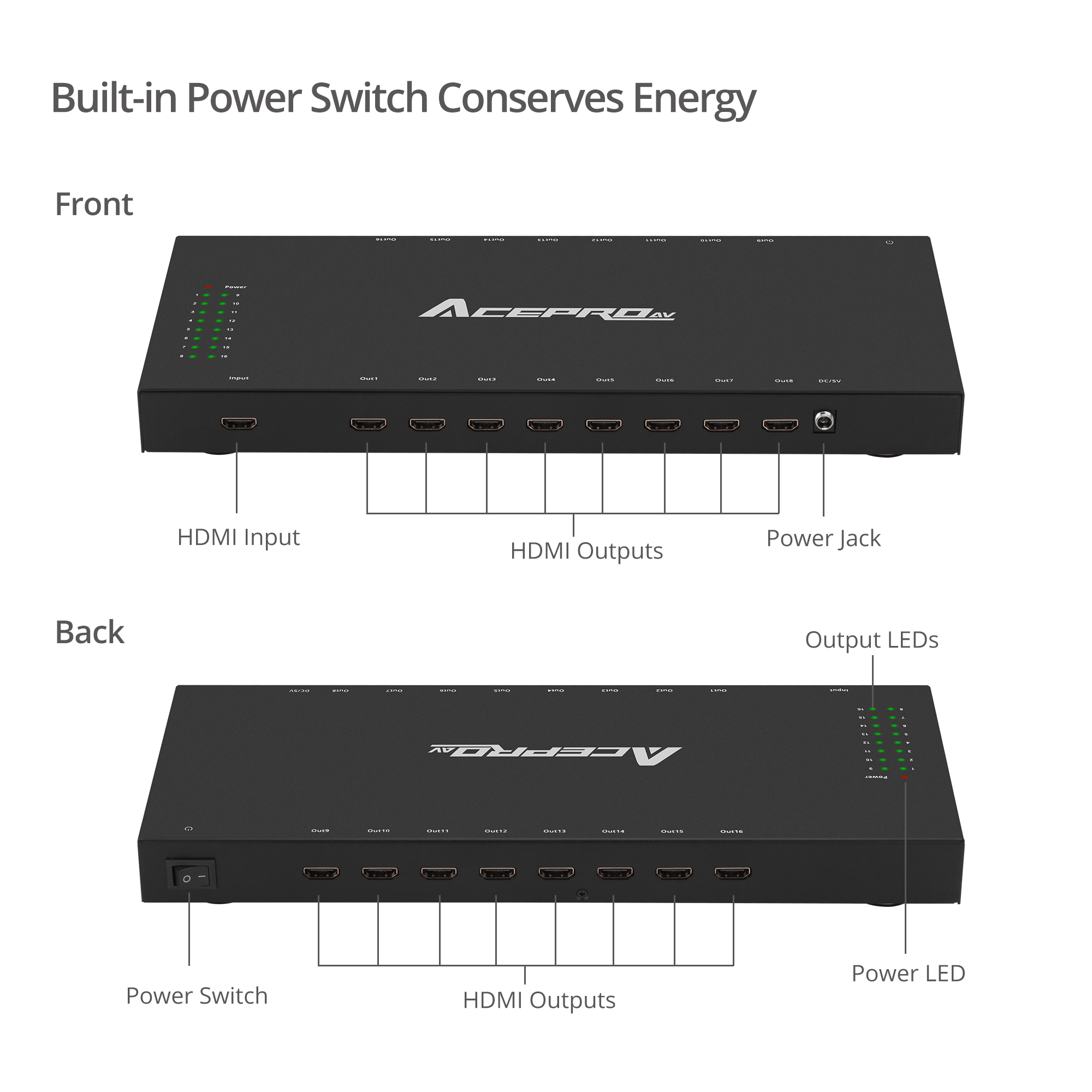

Connectors:
■ 1x 19-pin, HDMI, Type A, Female, Input
■ 16x 19-pin, HDMI, Type A, Female, Output
■ 1x Power Switch, On/Off
Power adapter:
■ Input: 100-240VAC, 50/60 Hz
■ Output: 5V/4A
UL Listed: E476609 / Level: VI
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: 14 to 140 degrees F
■ Relative humidity: 5 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 year limited
Country of origin: China
