- AVLAB-SC04-1

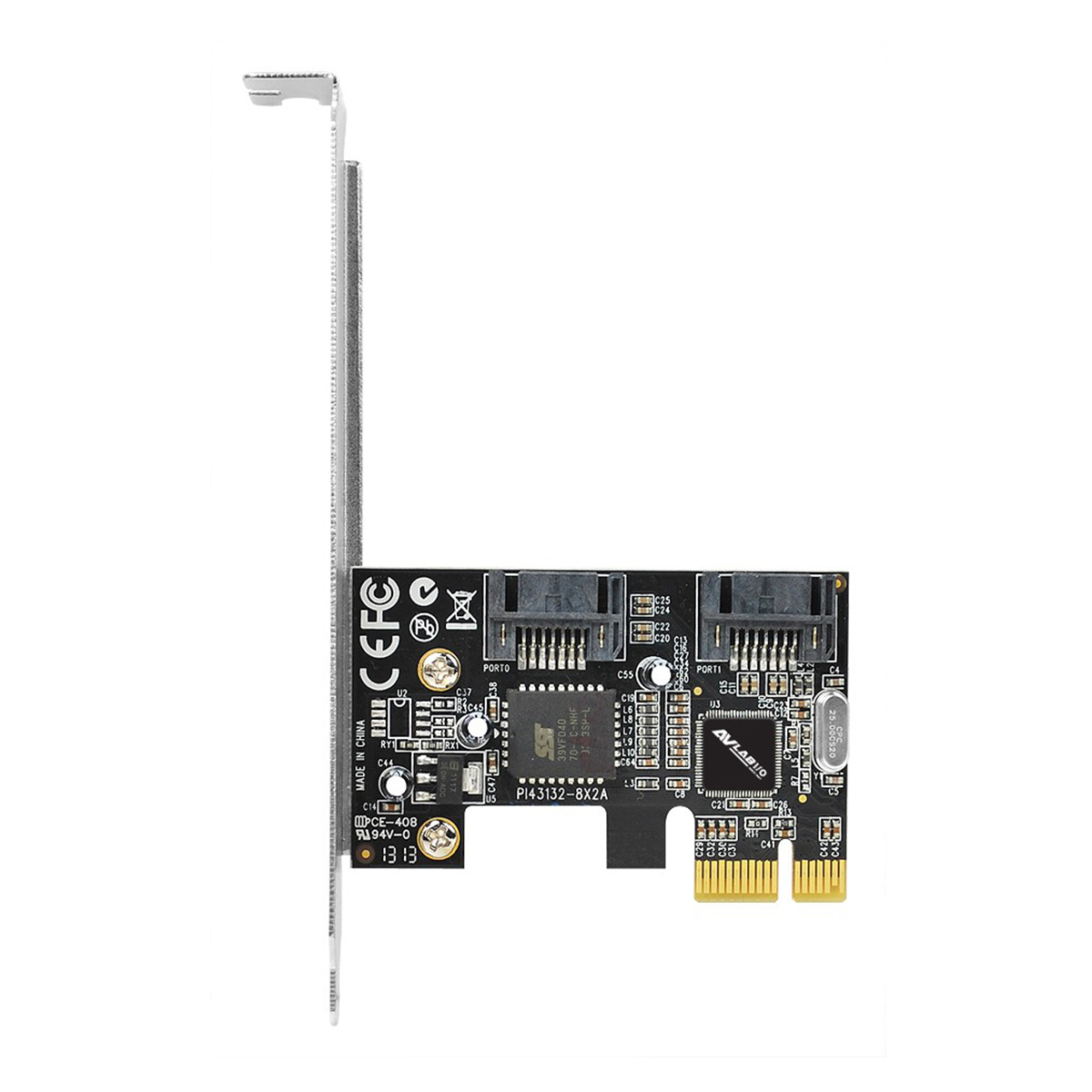

- AVLAB 2-Port SATA II PCIe, 3Gbps, Internal Serial ATA, Dual Profile Bracket
■ PCI Express 1-lane (x1) SATA II adapter works with PCI Express slots with different lane width ■ Installs in any available PCI Express slot ■ Supports two independent Serial ATA channels ■ Dual profile design to work with full height and low profile chassis with included brackets
Highlights
PCI EXPRESS
PCI Express 1-lane (x1) SATA II adapter works with PCI Express slots with different lane width
DUAL SATA SUPPORT
Supports two independent Serial ATA channels
FULL HEIGHT AND LOW PROFILE SUPPORT
Installs in full height and low profile chassis with included brackets
Specification
Chipset: Sil3132
Bust type: PCI Express x1
Port type: Two internal SATA II ports
Compliant with PCI Express Base Specification Revision 1.0a
Compliant with Serial ATA 1.0a specification with support for full complement of SATA II optional features
Installs in any available PCI Express slot
Supports data transfer rates up to 3Gb/s (300 MB/s)
Supports 48-bit LBA and verified to work with up to 4TB drives
Integrated Serial ATA Link and PHY logic
Supports Native Command Queuing (NCQ), Non-zero offsets NCQ, and Out-of-order data delivery NCQ
Independent command fetch, scatter/gather, and command execution
Connectors
■ With full height bracket: 2x 7-pin, SATA, Plug, Output
Products
■ Dimensions: 5.12" (W) x 3.03" (H) x 0.79" (D)
■ Weight: 0.08lbs
Environmental conditions
■ Operating temperature: 32 to 131 degrees F (0 to 55 degrees C)
■ Operating humidity: 20% to 80% RH (non-condensing)
■ Storage temperature: 14 to 158 degrees F (-10 to 70 degrees C)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 years limited
Country of origin: China
