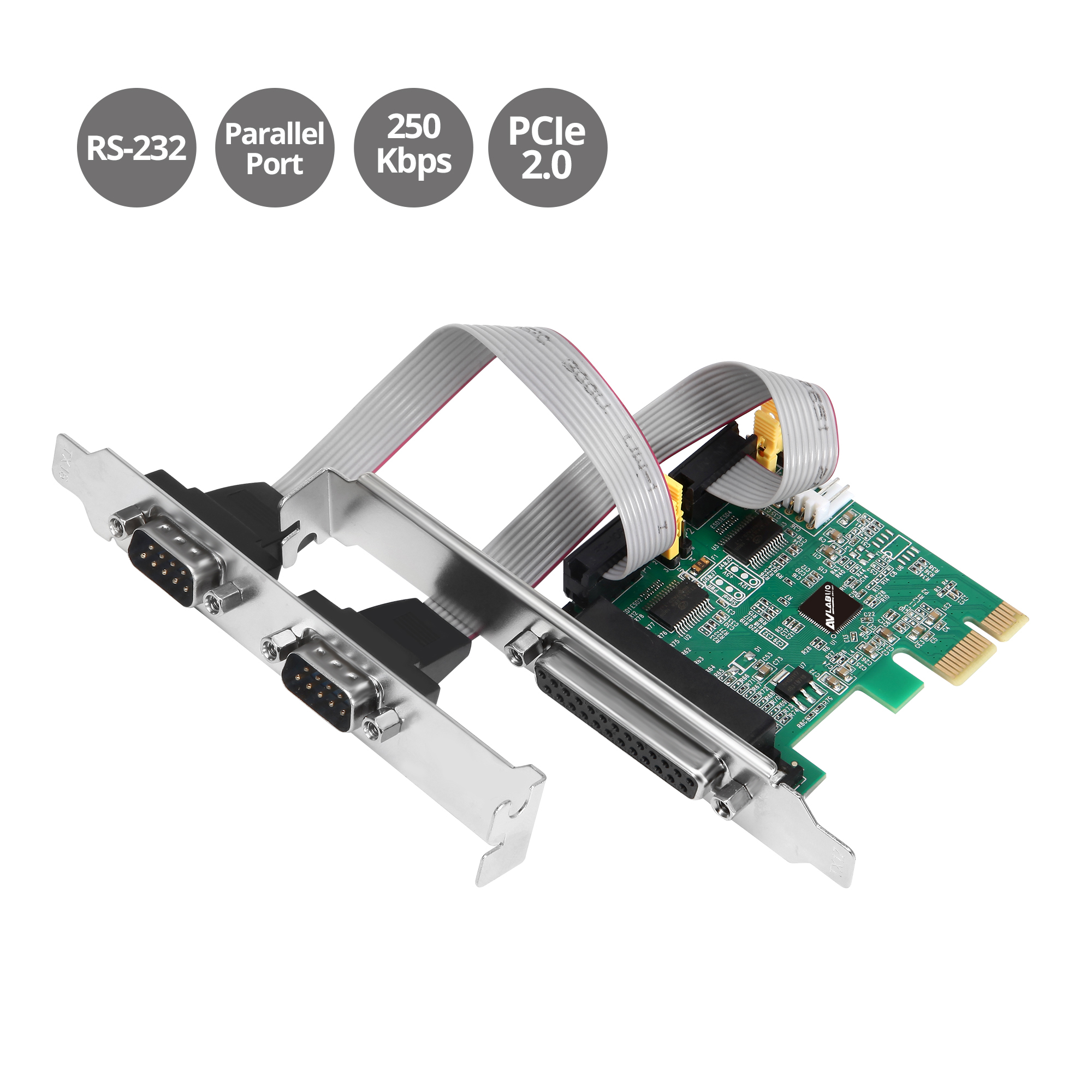

■ Easily adds two serial port and one parallel port through an available PCI Express slot
■ 16C650 UART serial port with data transfer rate up to 250Kbps
■ Compliant with PCI Express 2.0 Gen 1
■ Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode
■ Single-lane (X1) PCI Express end-point controller with PHY integrated
■ Full serial modem control
■ Hardware and software flow control
■ 5, 6, 7, 8 and 9-bit serial format
■ Even, odd, none, space and mark parity
■ On chip 256 byte FIFO buffers in transmit, receive path
■ Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers
■ Complies with PCI bus Power Management Interface Specification Revision 1.2
■ Dual-profile design fits full height and low-profile system chassis with the included spare low-profile brackets
■ Perfect solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, printers, scanners, etc.

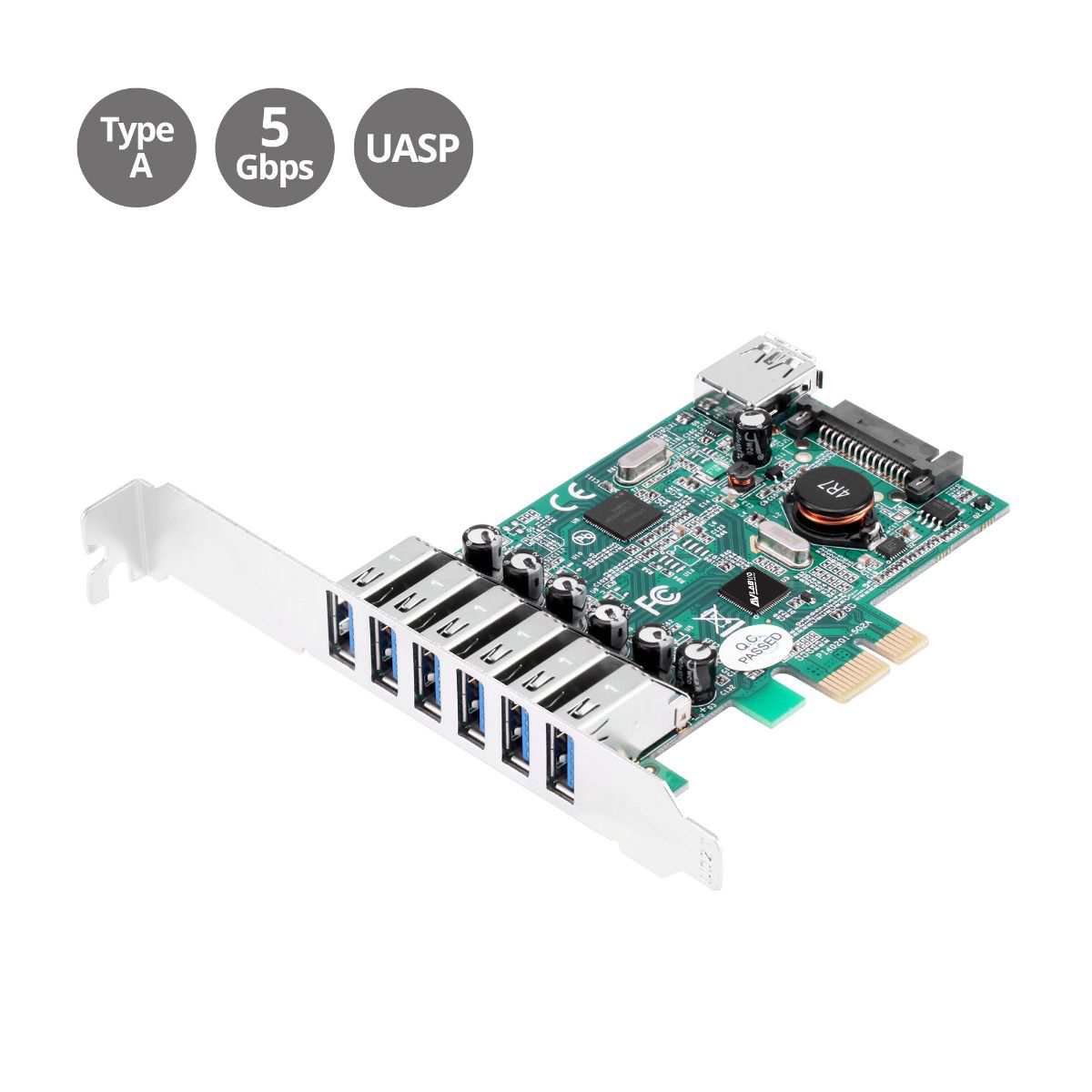

■ Adds seven SuperSpeed USB 3.0 5Gbps Type-A ports, 6 external and one internal, to your desktop system
■ Industry recognized high performance Renesas uPD720201/uPD720210 chipset
■ Supports the following speed data rates: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5 Gbps)
■ Complies with PCIe 2.0 standard
■ Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
■ Supports USB legacy function and UASP mode (UASP supports Windows 10 and 8 embedded drivers only)
■ Supports PCI Bus Power Management Interface Specification Revision 1.2
■ Dual-profile bracket included (full & low profile) designed to fit multiple system form factors with included brackets
■ Each USB port features independent over-current protection to further protect your connected devices and the PCIe board itself from unforeseen power spikes
Hardware Installaton Note:
SATA power connection is required

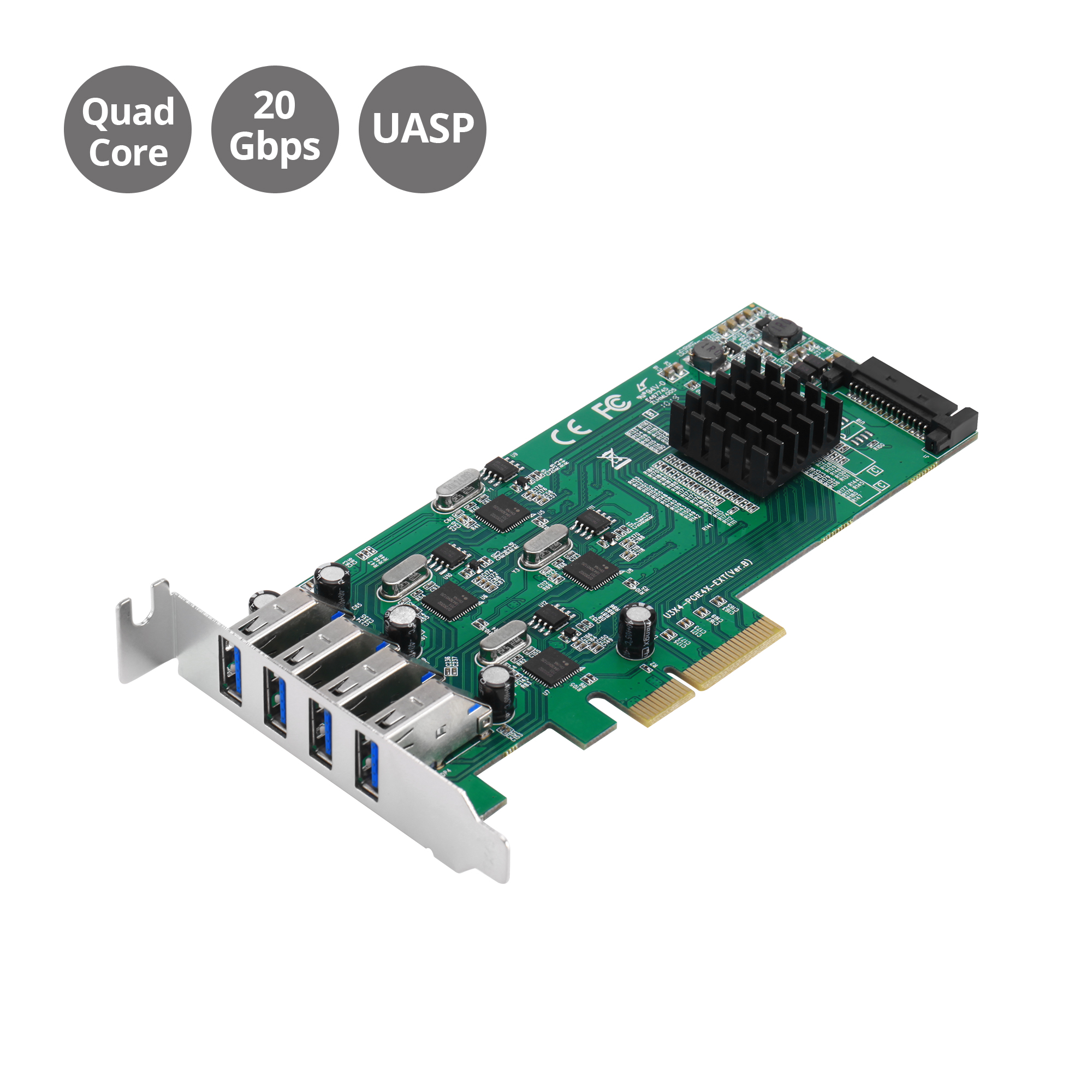

■ Features four independent SuperSpeed USB 3.0 Type-A ports delivering up to 5Gbps data transfer per port for a total USB bandwidth of up to 20Gbps
■ Industry recognized high performance Renesas uPD720202 chipset
■ Supports the following speed data rate as follows: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5Gbps)
■ Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
■ Compliant with PCIe 2.0 standard
■ Supports USB legacy function and UASP mode (UASP requires Windows 10 and 8 embedded drivers only)
■ Supports PCI Bus Power Management Interface Specification Revision 1.2
■ Low-profile bracket design fits lower size system form factor with included low profile bracket
■ Each USB port featured with independent over-current protection to further protect your devices and the board itself from unforeseen power spikes

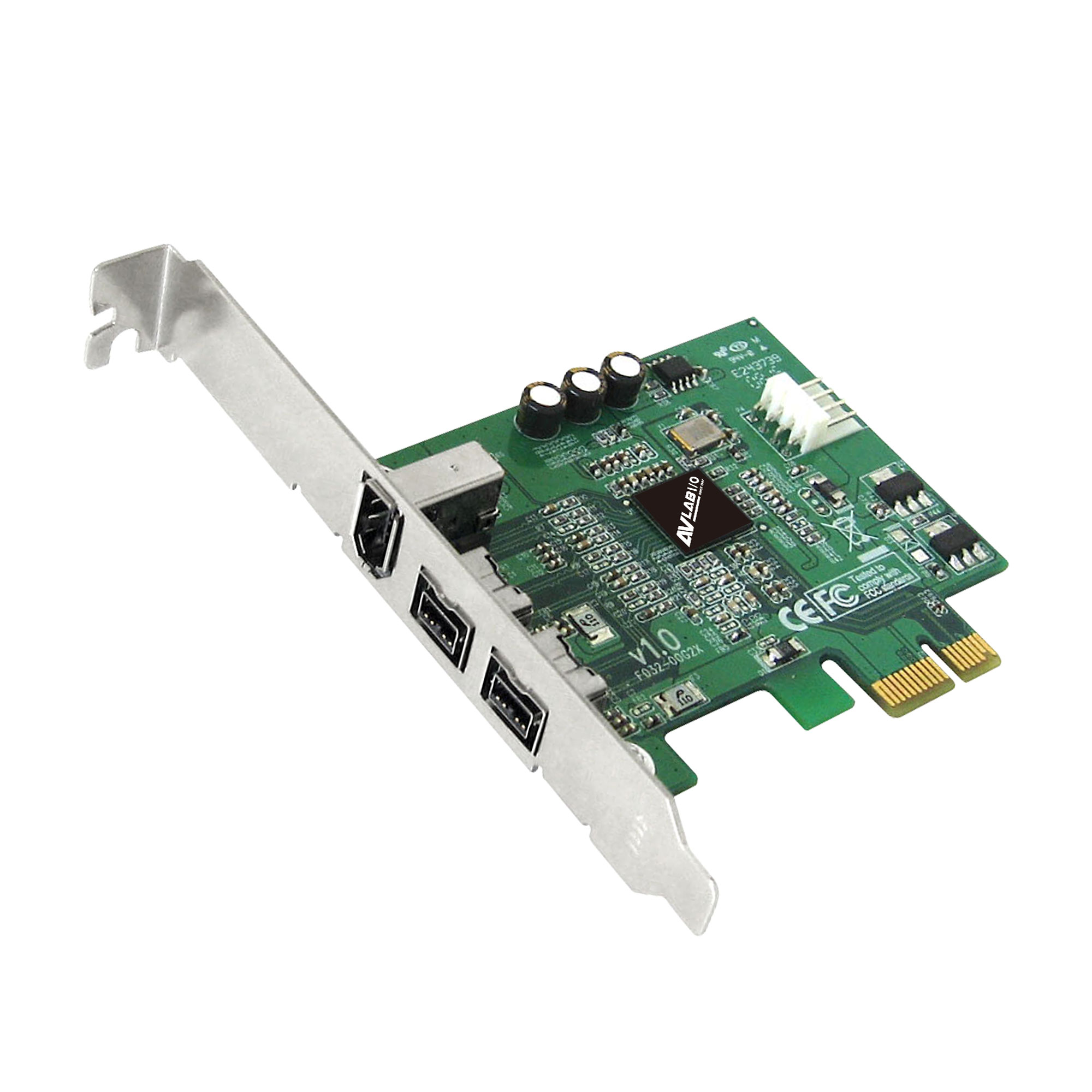

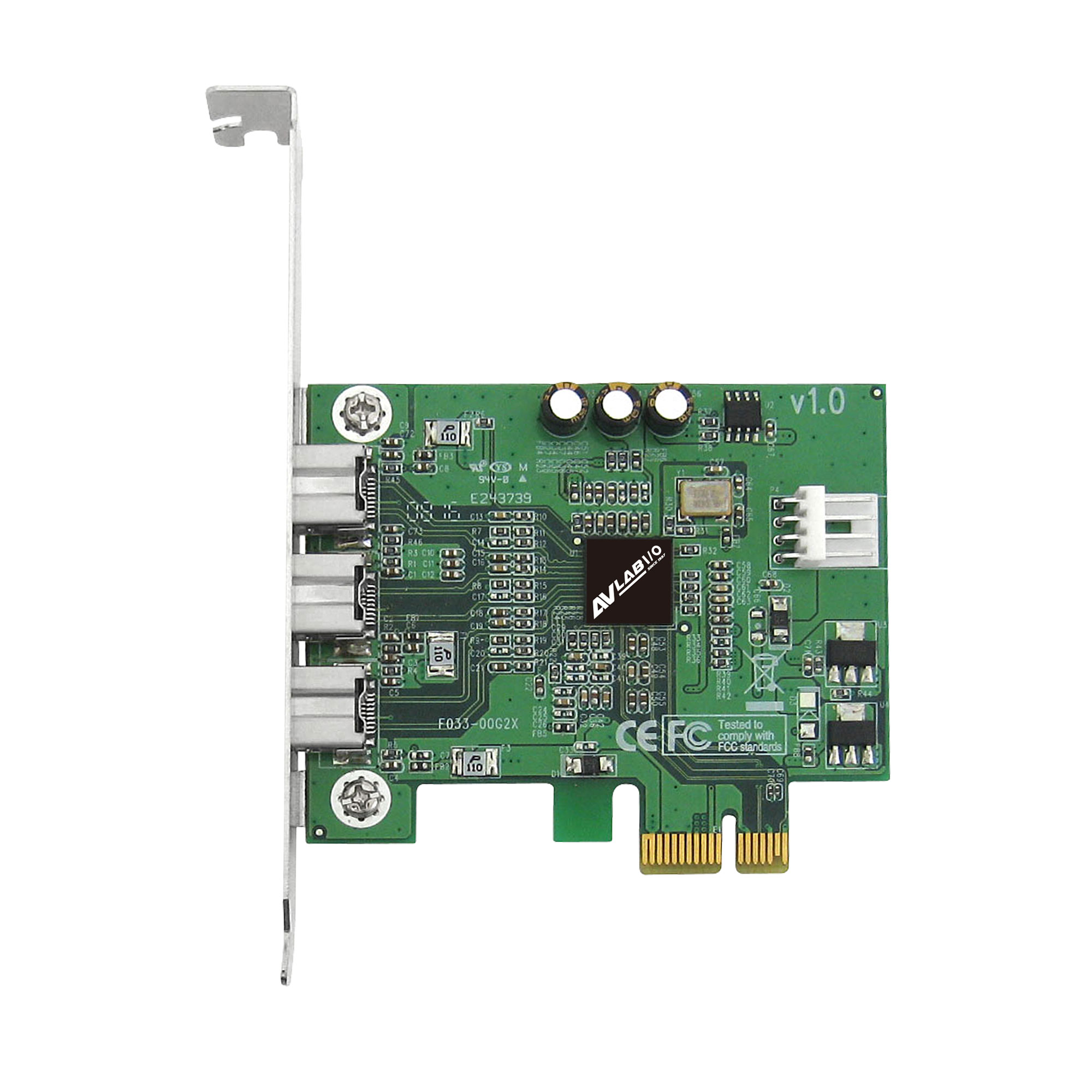

■ Provides 3 FireWire 800 ports (9-pin) for multiple device connections
■ Works with DV camcorders, FireWire hard disks, digital cameras, scanners, CD-RW/DVD drives, video game systems, and other audio/video devices
■ Installs in standard height or low profile chassis with included brackets
■ PCI Express 1-lane (x1) FireWire adapter works with PCI Express slots with different lane width
■ Installs in any available PCI Express slot and supports data rates up to 800Mbps
■ Standard height and low profile brackets are included to work in different chassis form factors
■ Works with various FireWire devices including DV camcorder, CD-RW/DVD-ROM, portable hard disk, digital camera, and other audio/video devices
■ Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing

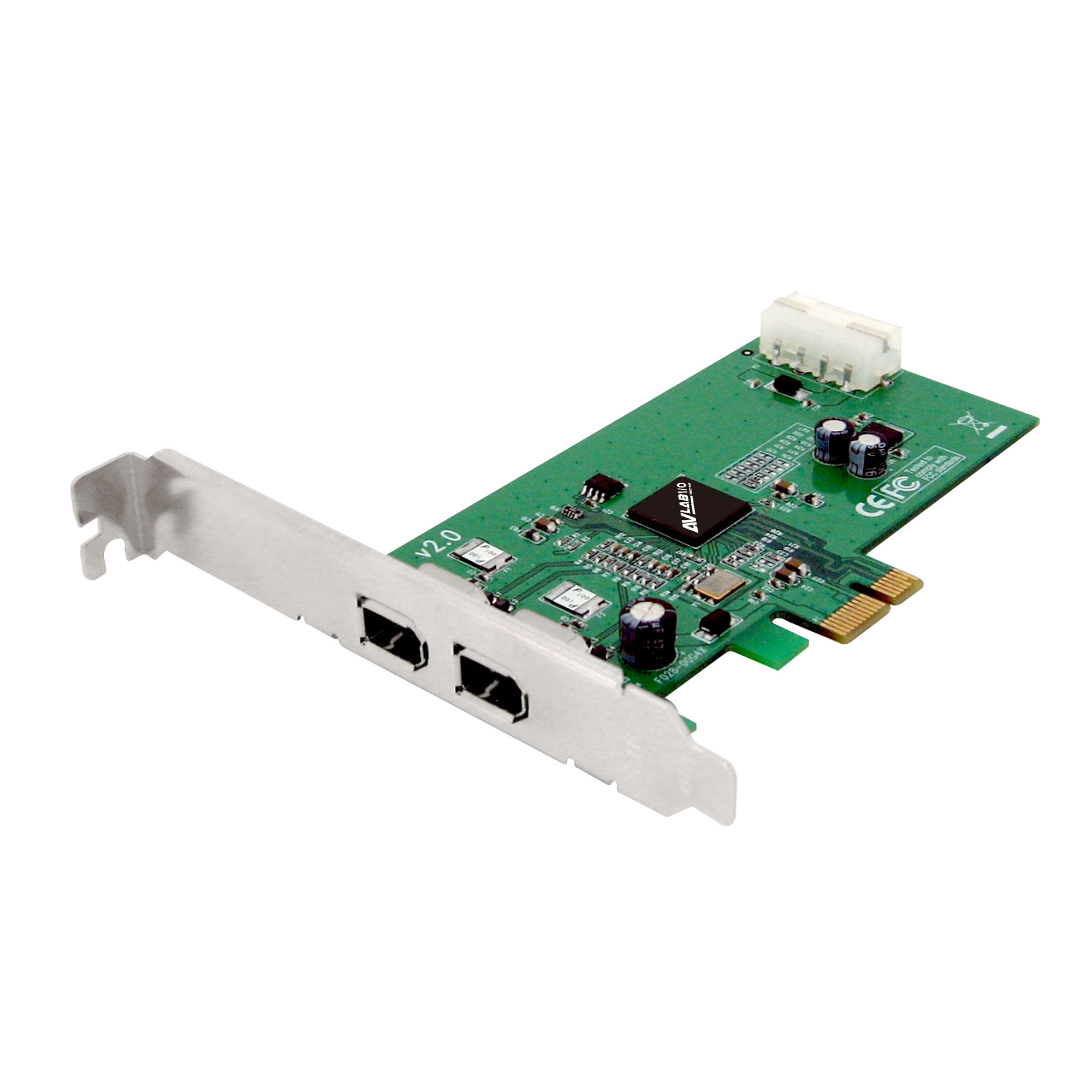

■ PCI Express 1-lane (x1) FireWire adapter works with PCI Express slots with different lane width
■ Installs in any available PCI Express slot and supports data rates up to 400Mbps
■ Standard height and low profile brackets are included to work in different chassis form factors
■ Works with FireWire (1394a) devices including DV camcorder, CD-RW/DVD-ROM, portable hard disk, digital camera, and other audio/video devices
■ Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing

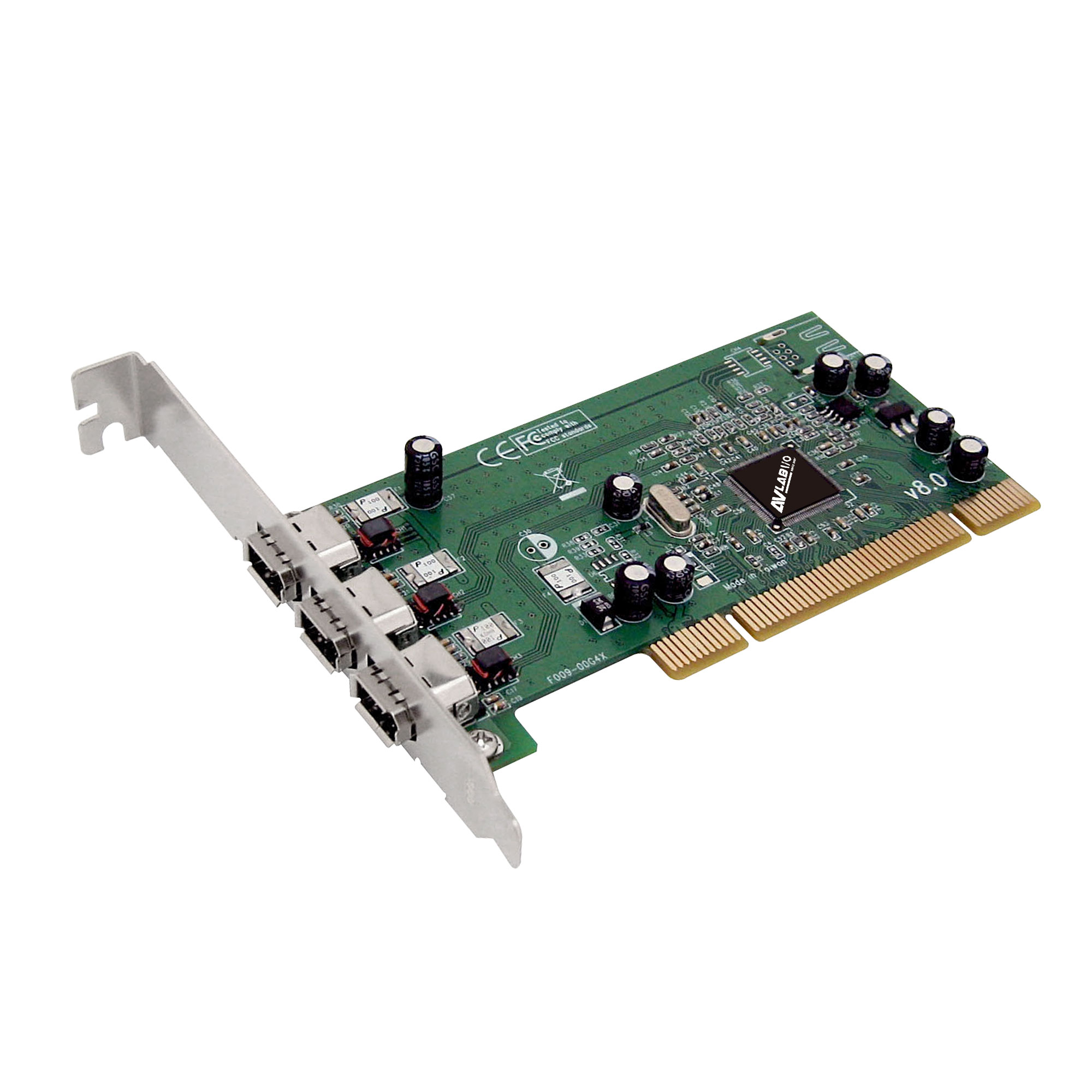

■ Three external IEEE 1394 (FireWire) ports support DV camcorders, hard disk, removable drives, scanners, printers and other 1394 audio/video devices including TV, VCR, DVD with data transfer rates up to 400Mb/s
■ Supports both PC and Mac
■ Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing
■ Hot-swapping feature allows you to connect/disconnect devices without powering down the system

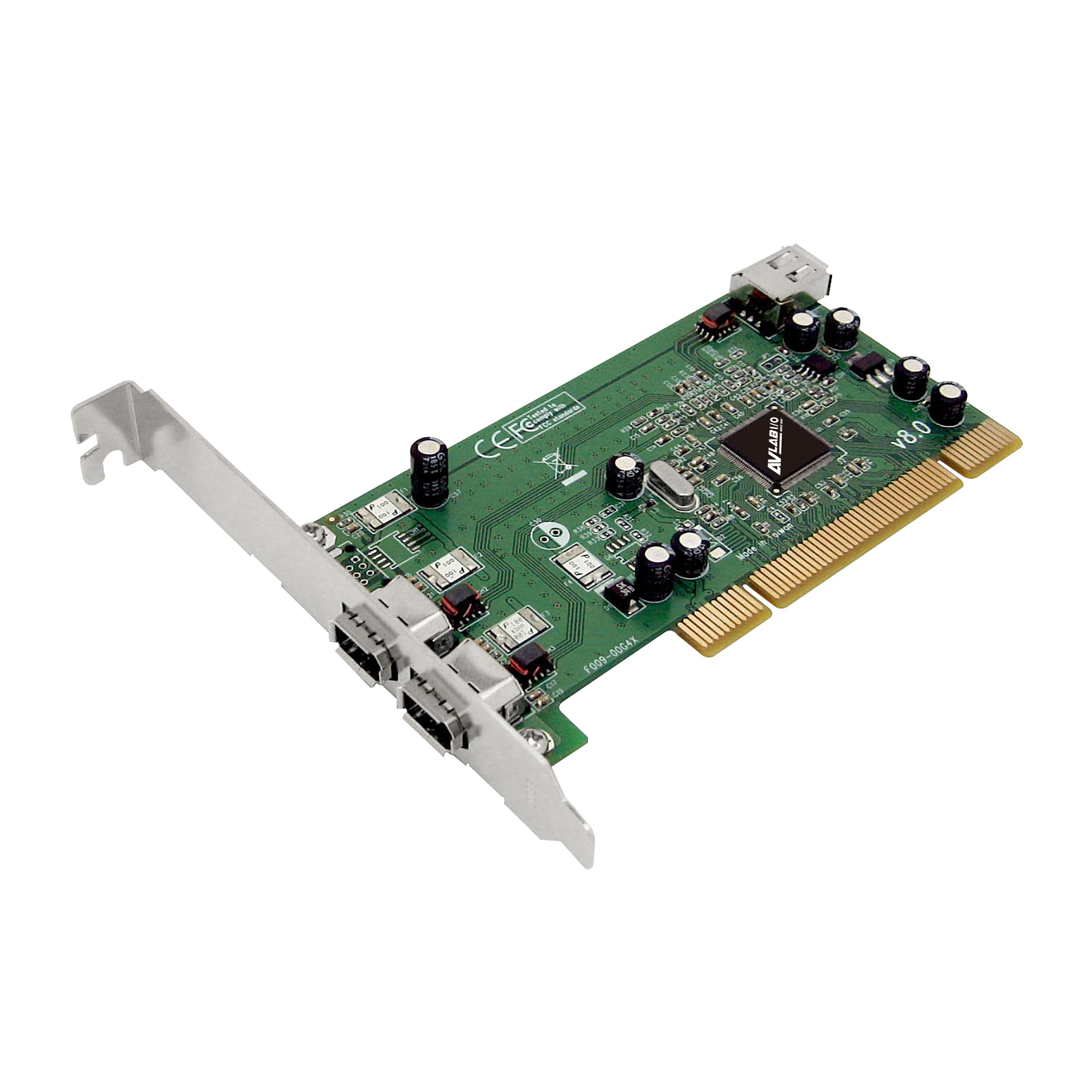

■ Two external and one internal IEEE 1394 (FireWire) ports support DV camcorders, hard disk drives, removable drivers, scanners, printers and other 1394 audio/video devices including TV, VCR, DVD with data transfer rates up to 400Mb/s
■ Supports both PC and Mac
■ Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing

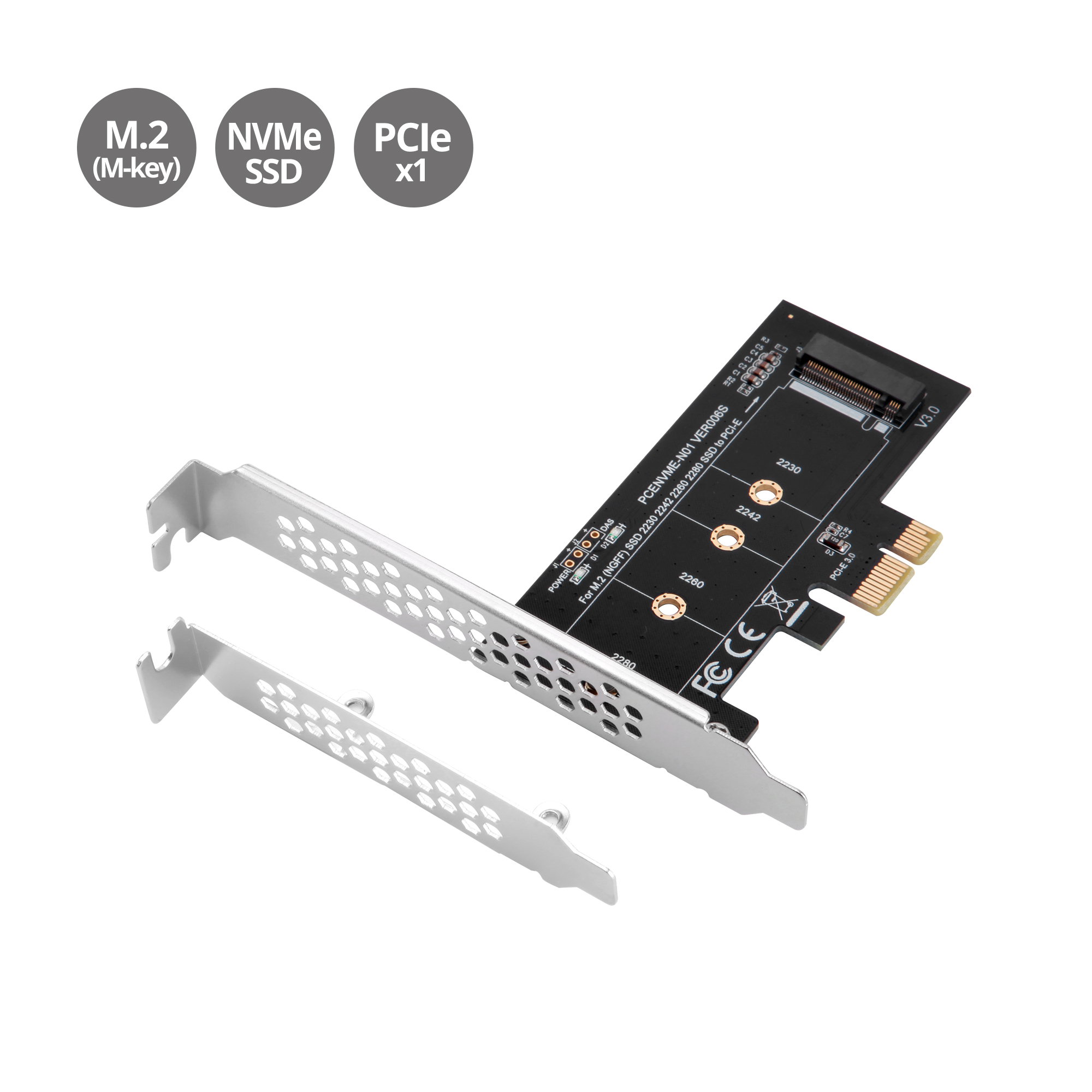

■ Adds one M.2 M key PCIe (NVMe or AHCI) SSD to your PCIe equipped desktop computer to dramatically increase speed and performance
Note:This adapter is not compatible with B key M.2 PCIe SSDs or M.2 SATA SSDs
■ Accommodates 2230, 2242, 2260 and 2280 form factor M.2 PCIe SSDs (NVMe or AHCI) via multiple mounting hole options
■ Compatible with PCIe 3.0 specification and backward compatible with PCIe 1.0 and PCIe 2.0 specifications
■ Works seamlessly in PCIe x1, x4, x8, and x16 bus slots
■ Includes both low-profile and full-profile slot brackets for flexible system chassis installation
■ Plug and Play with no driver installation required

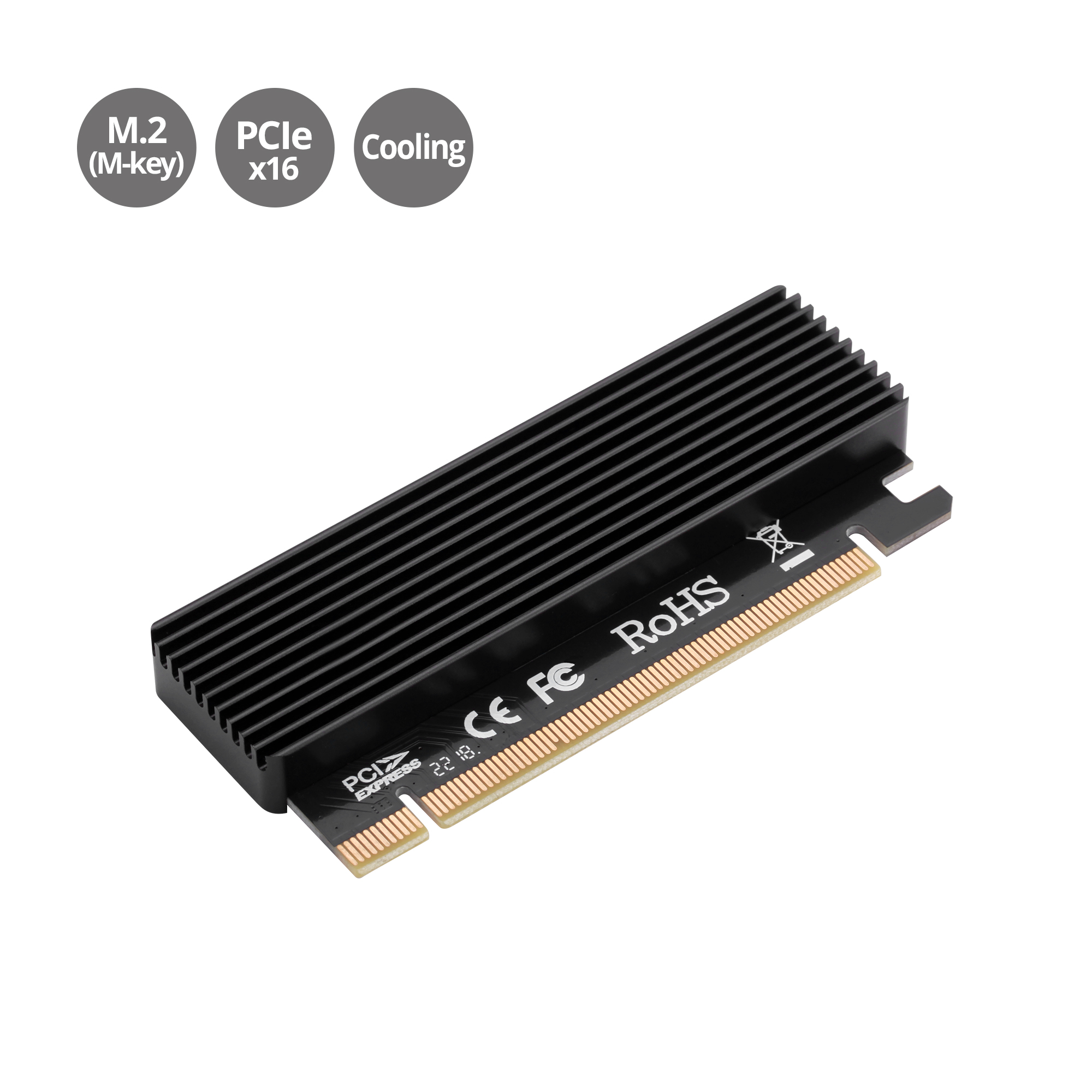

■ Adds one M.2 M key PCIe SSD (NVMe or AHCI) to your PCIe equipped desktop computer to dramatically increase speed and performance
Note: This adapter is not compatible with B key M.2 PCIe NVMe/AHCI SSDs or M.2 SATA SSDs
■ Accommodates 2230, 2242, 2260 and 2280 form factor M.2 PCIe SSDs (NVMe or AHCI) via multiple mounting holes
■ Compatible with PCIe 3.0 specification and backward compatible with PCIe 1.0 and PCIe 2.0
■ Fits into PCIe x16 bus slot
■ Includes heat sink and silicone pad to avoid overheating and thermal throttling, improves your computer's performance and keeps the adapter working efficiently
■ Plug and Play compliant with no driver installation required
Note: If there is a yellow "caution" triangle after install this adapter, a driver supplied by the SSD manufacturer maybe required.
■ Improves system performance dramatically, reduces system boot up time and improves operating system performance with demanding resource intensive applications such as graphic editing tools, gaming, media editing/streaming and more
■ Increases your data storage on high capacity, low cost SATA HDDs
■ Supports Port Multiplier FIS-based and Native Command Queuing (NCQ)
■ Embedded drivers enable users to take advantage of OS commands like TRIM to extend the life of SSDs for maximum durability
■ Works with the latest 6Gbps SATA HDDs and backwards compatible with 3Gbps and 1.5Gbps HDDs
■ Built-in LEDs indicate power and data transfer status
■ Installs in standard height or low profile chassis with included brackets
■ No driver installation required

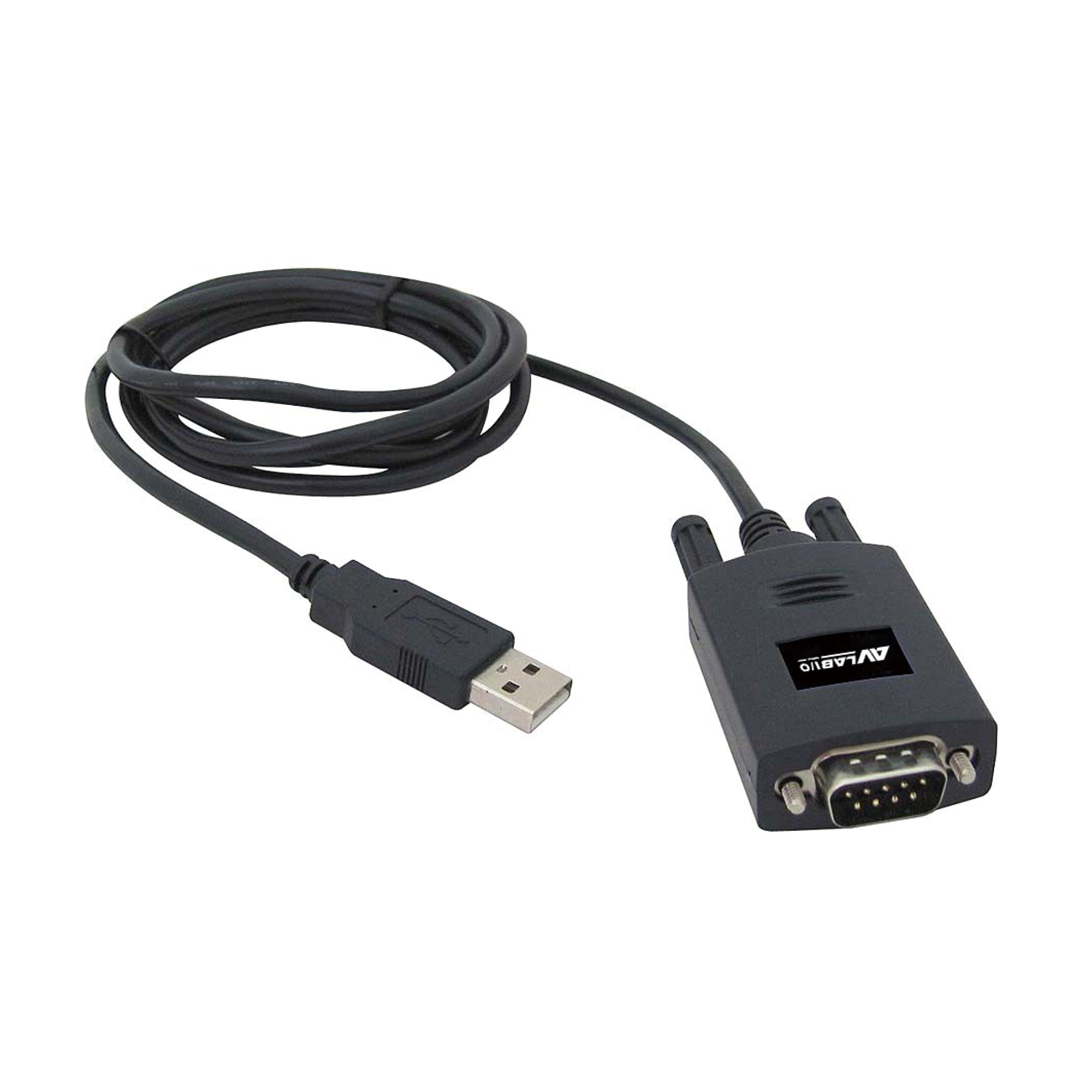

■ Designed to add one 9-pin RS-232 serial port to your USB-equipped system
■ Supports data transfer rates up to 230 Kb/s
■ Works flawlessly with RS-232 serial devices such as modems, ISDN terminal adapters, PDAs, bar code scanners, label printers, and many more

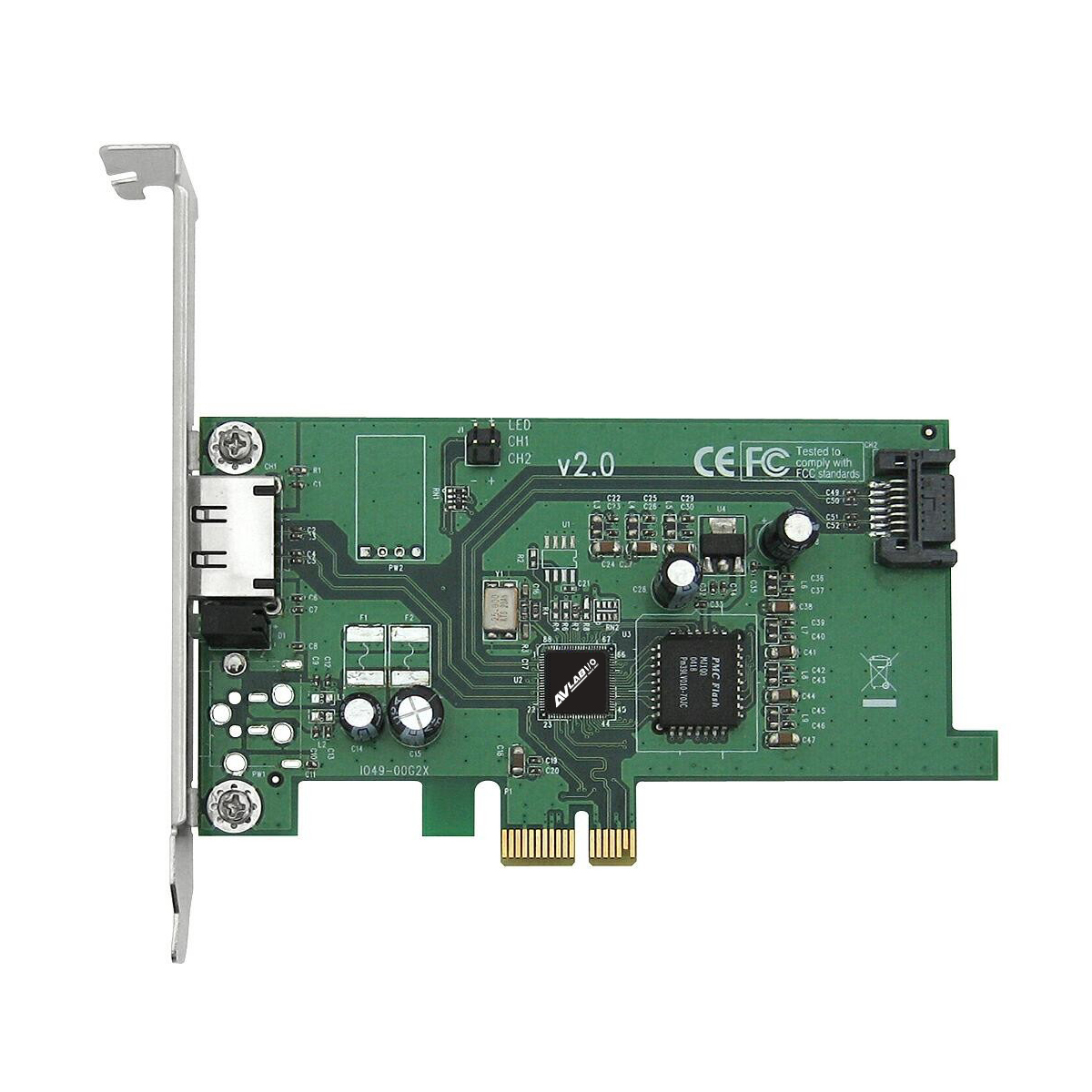

■ PCI Express 1-lane (x1) SATA II adapter works with PCI Express slots with different lane width
■ Installs in any available PCI Express slot
■ Featuring the latest eSATA (external SATA) connector to provide the most convenient way to add high speed, high capacity hard disk drives
■ Supports hard disk hot-plugging

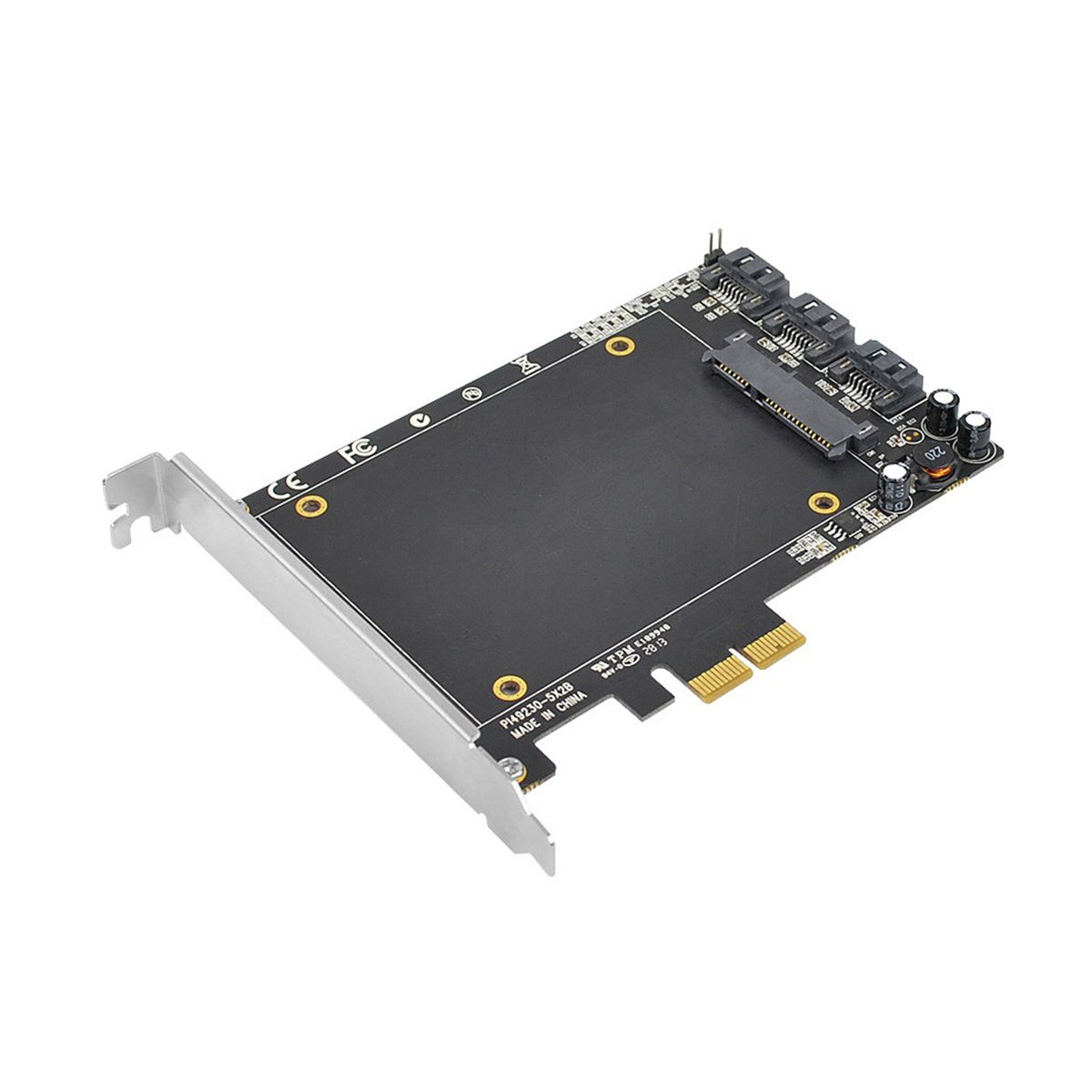

■ Built-in socket for a 2.5” SATA SSD for space saving and superior drive performance
■ Hybrid (HyperDuo) enables 80% of SSD performance at one-third the cost
Note: HyperDuo automatic storage tiering is only compatible with Windows XP, Vista, 7 and 8. This feature is not fully supported in the Server OSes
■ Hardware RAID (RAID 0, 1 & 10) to offload the host CPU for max performance
Supports Port Multiplier FIS-based and Native Command Queuing (NCQ)
Note: Only one Port Multiplier is supported at any one time. Supports up to 4 drives connected via Port Multiplier plus 3 single drives for 7 drives total
■ Supports TRIM to extend the life of SSDs for maximum durability
■ HyperDuo mode supports Safe mode and Capacity mode
■ 48-bit LBA mode with support up to 4TB hard disk capacity
■ Works with the latest 6Gb/s SATA HDDs and backwards compatible with 3Gb/s and 1.5Gb/s HDDs
■ Adds one M.2 PCIe SSD (M key) to your PCIe equipped desktop computer to dramatically increase speed and performance
Note: This adapter is not compatible with B key M.2 PCIe SSDs or B key M.2 SATA SSDs
■ Accommodates 2230, 2242, 2260 and 2280 form factor M.2 SSDs (NVMe or AHCI) via multiple mounting holes
■ Supports PCIe 3.0 motherboard and backward compatible with PCIe 1.0 and PCIe 2.0
■ Supports PCIe x4 bus slot and compatible with x8 / x16 bus slot
■ Built-in LEDs indicate power and data transfer status
■ Includes both low-profile and full-profile slot brackets for flexible system chassis installation
■ No driver installation required

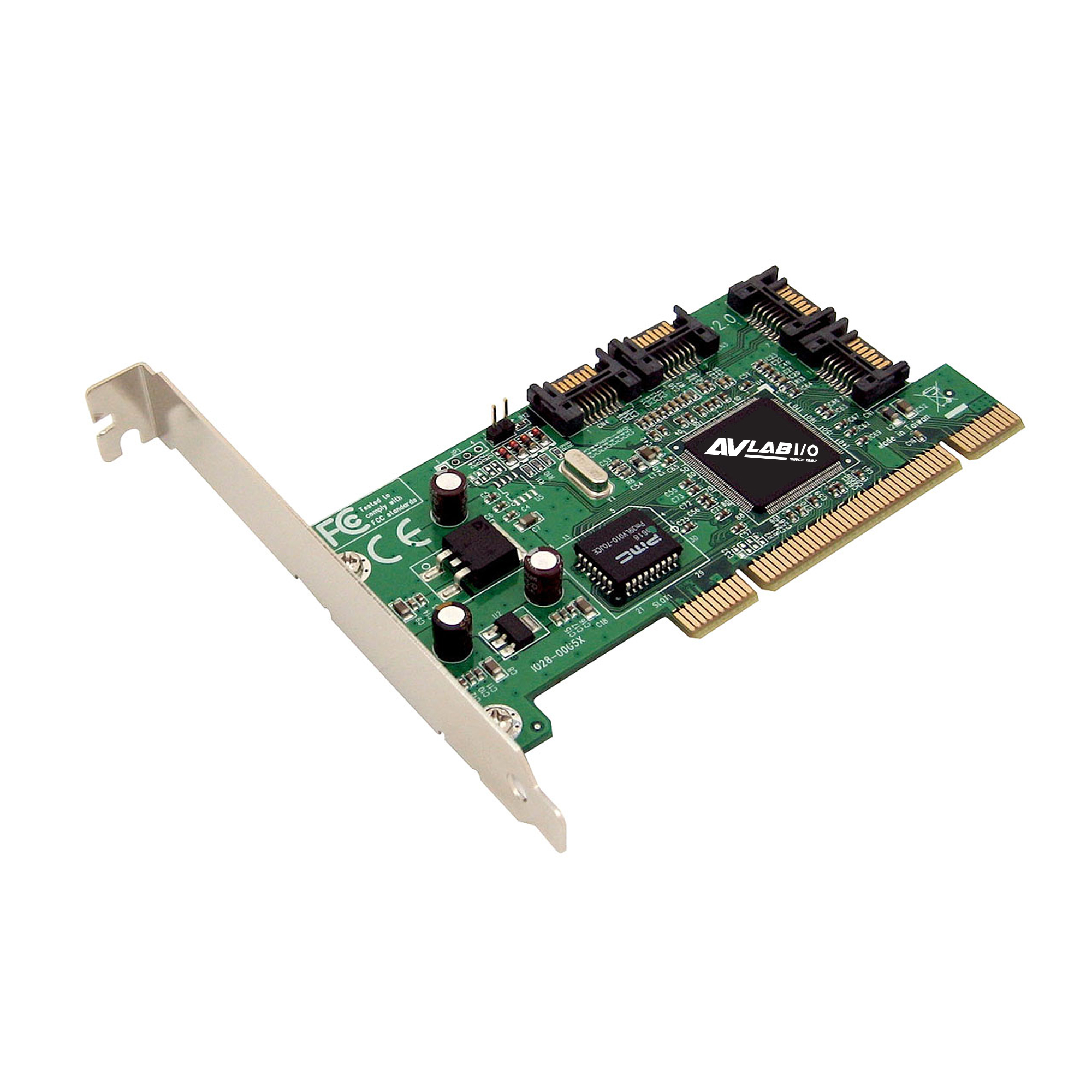

■ Supports RAID 0 (striping), RAID 1 (mirroring) and RAID 10 (mirror + striping) for performance and reliability
■ Thin, flexible Serial ATA cables make it easier to route inside a PC
■ Breaks the 137GB barrier! Supports various brands of large capacity Serial ATA hard drives
■ Lower pin count and voltage requirement, plus better cabling over traditional Parallel ATA make Serial ATA the controller of the future
■ Four high quality SATA cables and two dual connector SATA power cables required for RAID configuration are included
■ Two “Y” split power cables are also included to provide extra power connection
■ PCI Express 1-lane (x1) adapter works with PCI Express slots with different lane width
■ Installs in any available PCI Express slot

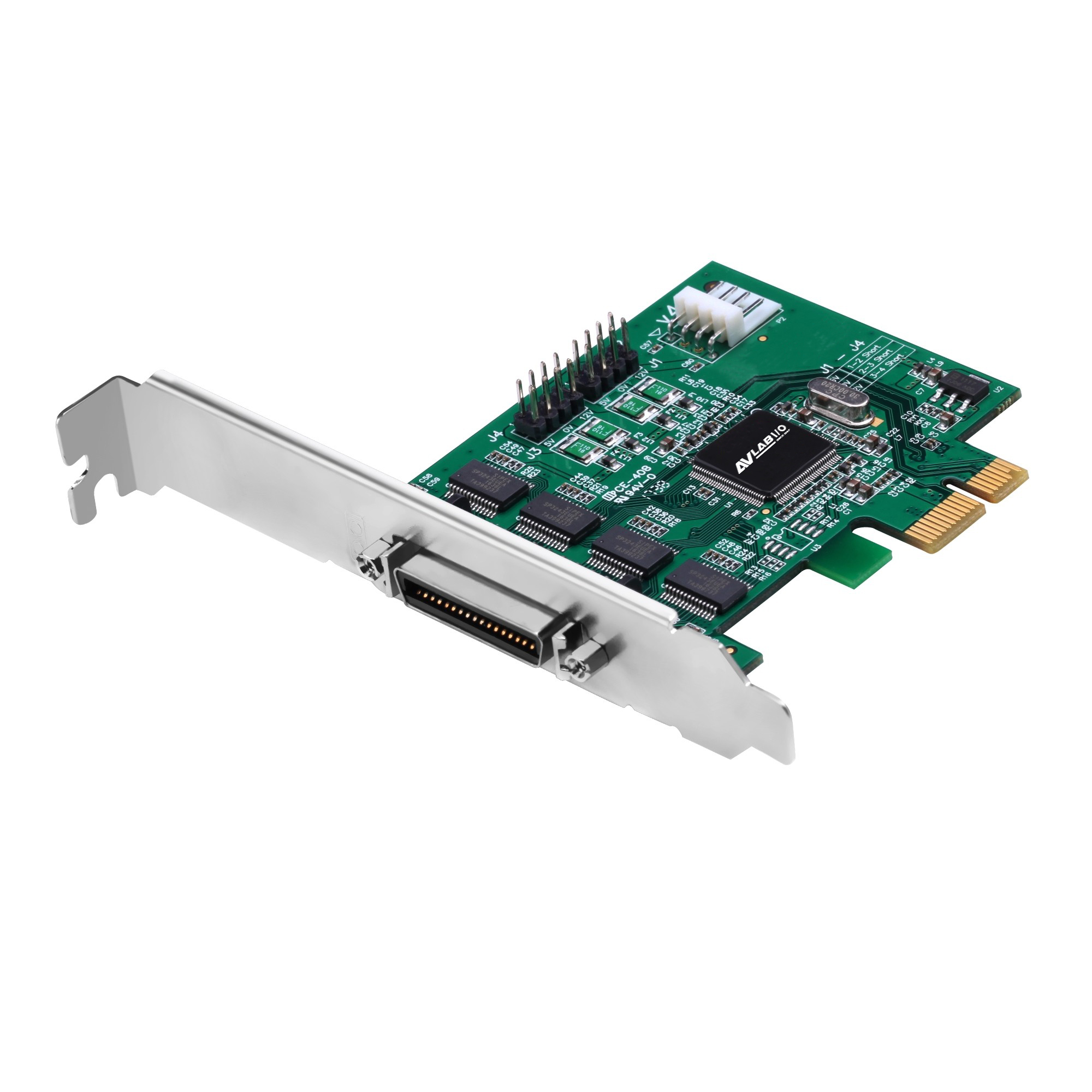

■ Four high-speed 16550 UART RS-232 serial ports (9-pin) support asynchronous baud rates up to 921Kbps
■ Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.). Configurable via jumpers with silk-screened settings on PCB
■ Built-in 256-byte FIFO buffers dramatically increase data transmit/receive speed, especially under Windows multitasking environment
■ Spare enhanced low profile bracket is included to work in low profile chassis
■ Onboard power connector to provide reliable power source for devices that require power
■ 4-layer PCB board: separate layers for data and grounding. Greatly reduces signal noise and loss. Delivers more reliable high-speed data transfers
■ Designed to add two 9-pin RS-232 serial ports to PCIe enabled desktop computers
■ Two high-speed serial ports supporting asynchronous baud rates of up to 921.6Kb/s
■ Built-in 128-byte buffers dramatically increase data transfer rates especially under Windows multi-tasking environment
■ Works as either a standard RS-232 port or with a 5V/12V power output for devices that require power such as handheld scanners, table scanners, POS displays and many more
■ Dual profile works in any available PCI Express slots of different lane widths
■ Installs in standard height or low profile chassis with included low profile bracket

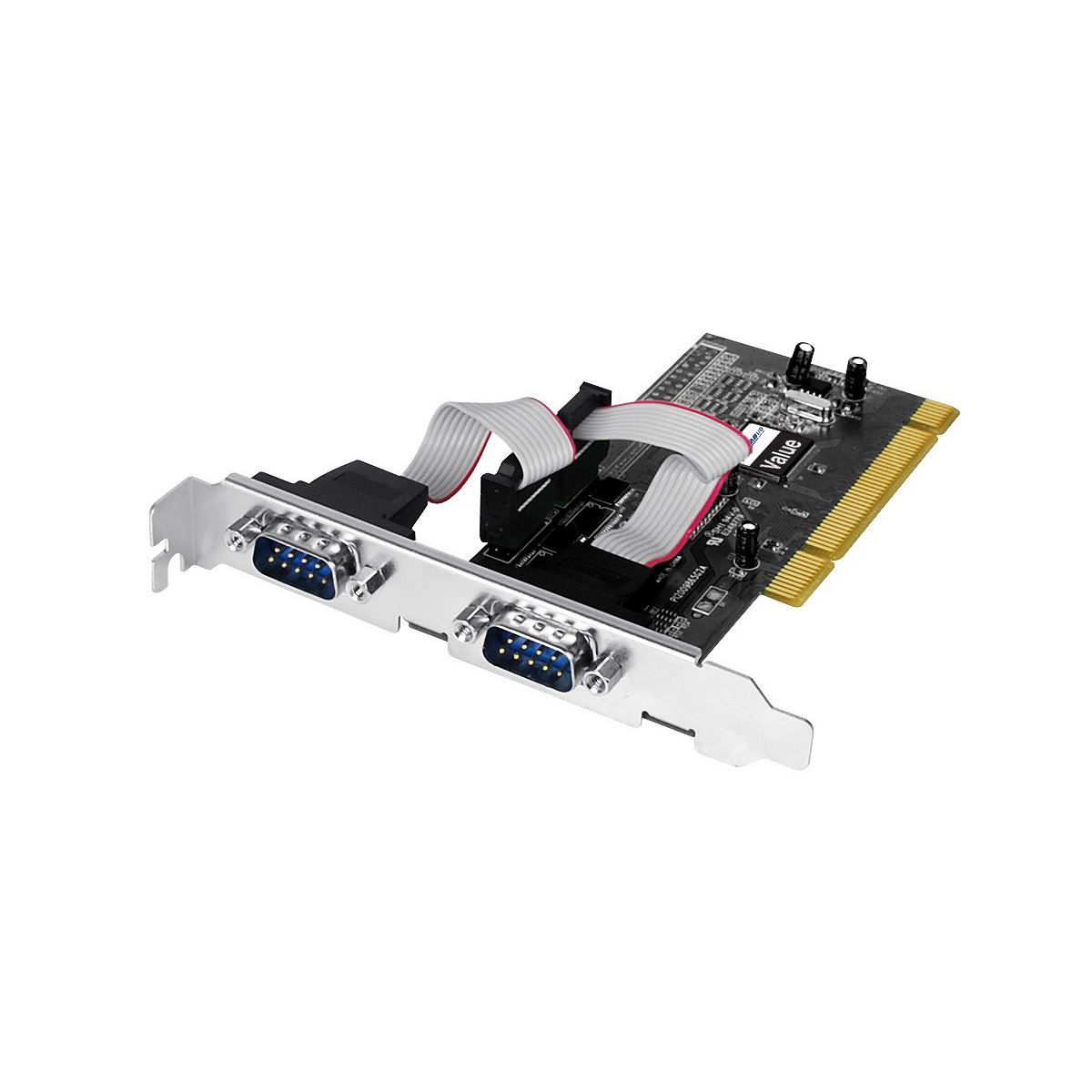

■ Adds 2 (9-pin) RS-232 serial ports to your PCI enabled system
■ Can be installed in 32-/64-bit, 3.3V/5V PCI and PCI-X slots
■ Works with modems, PDAs, and high-speed serial devices
■ Full support for DOS and Windows based software

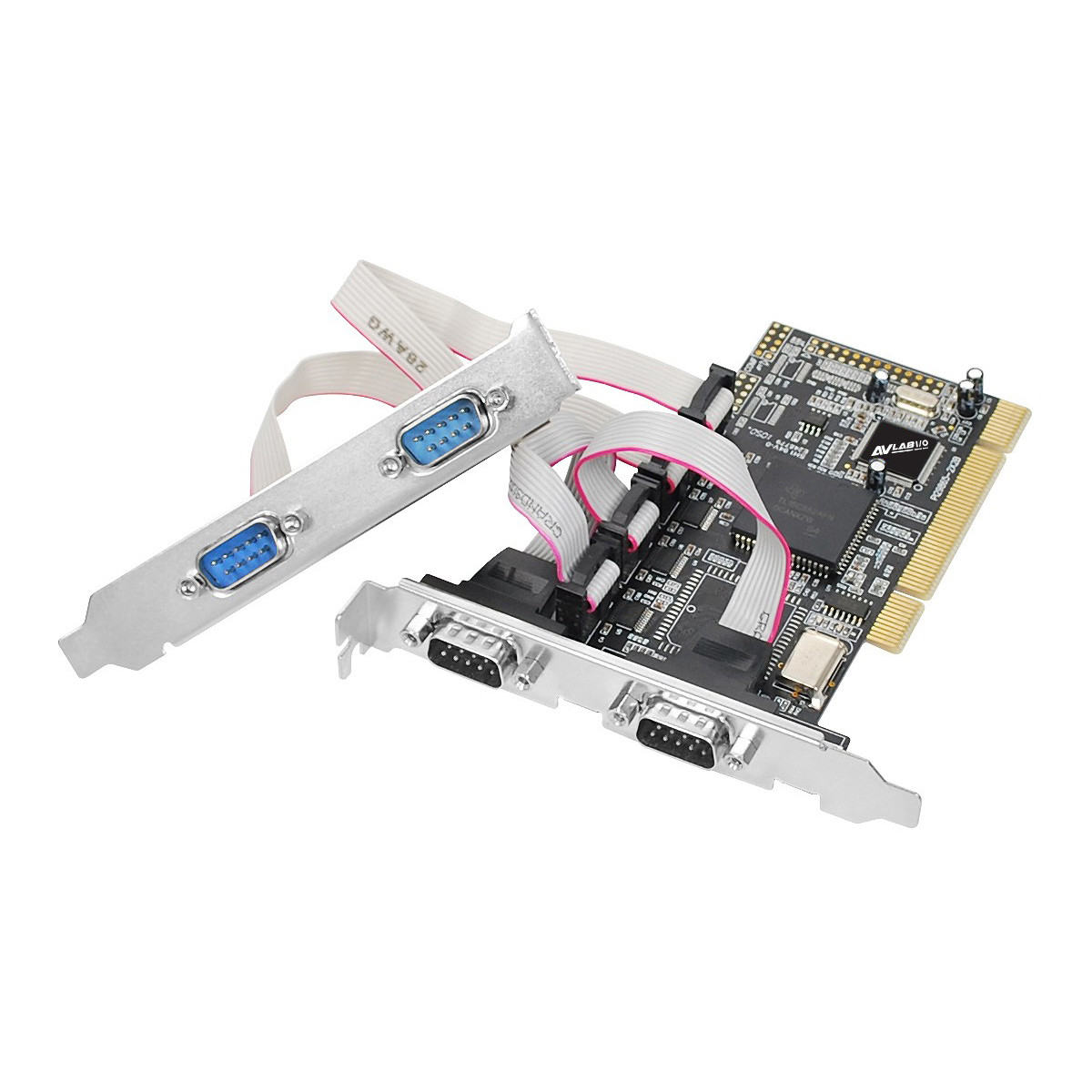

■ Adds four 9-pin RS-232 16550 UART serial ports to your PCI enabled system
■ Supports data transfer rate up to 230Kb/s
■ Supports up to 256-byte FIFO buffer
