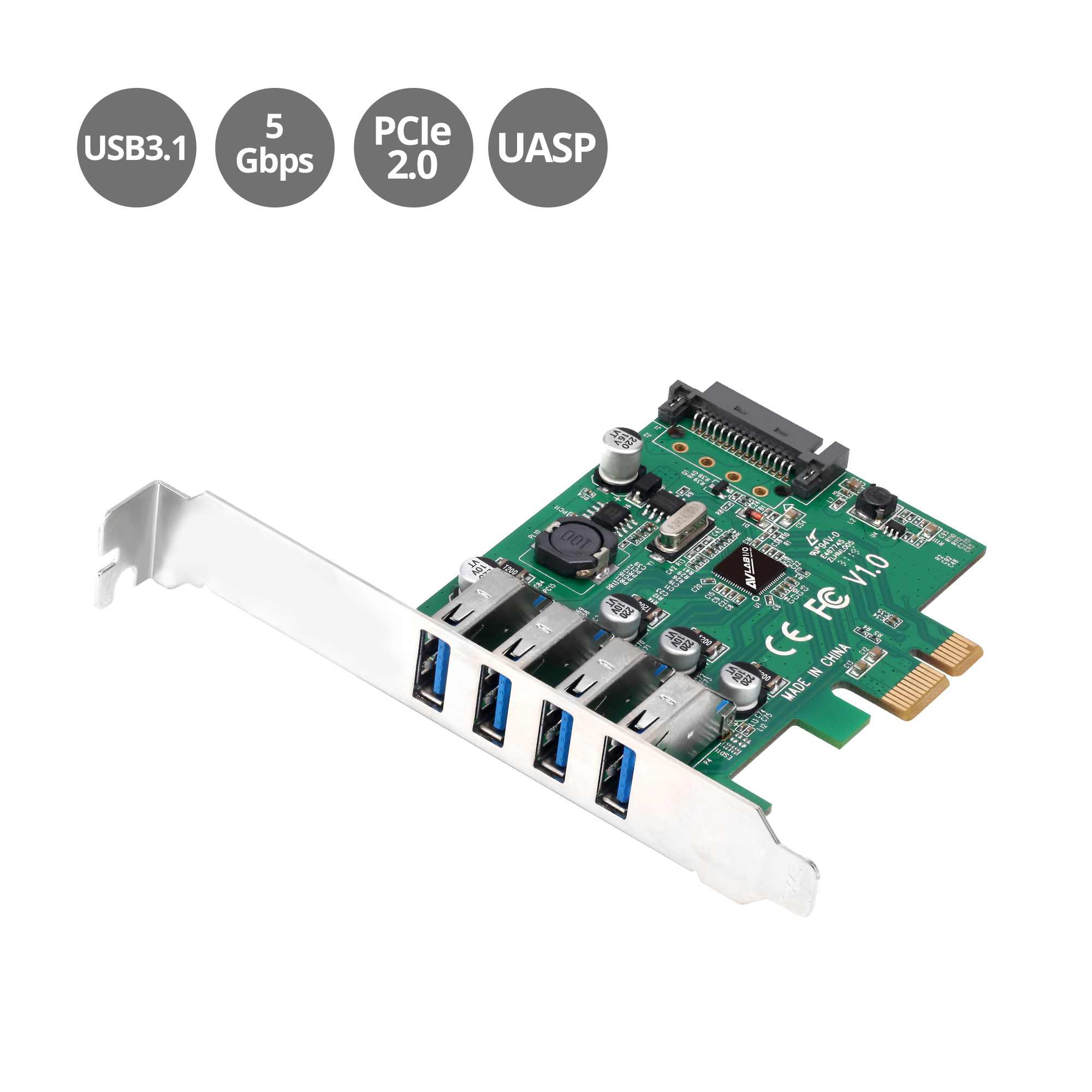

■ Adds four SuperSpeed USB 3.0 Type-A ports to your desktop system
■ Complies with PCIe 2.0 standard with high performance NEC uPD720201 chipset
■ Compliant with USB data transfer rates - Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / SuperSpeed (5Gbps)
■ Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Revision 1.0 specification
■ Compliant with USB legacy and UASP mode (UASP requires Windows 10 and 8 native USB 3.0 host drivers only)
■ PCI Bus Power Management Interface Specification Revision 1.2
■ Dual-profile design installs into different system form factor chassis with the included full and low profile brackets
■ Each USB port features over-current protection to protect your connected device from power surges
■ Easily adds one serial port and one parallel port through an available PCI Express slot
■ 16C650 UART serial port with data transfer rate up to 250Kbps
■ Compliant with PCI Express 2.0 Gen 1
■ Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode
■ Single-lane (X1) PCI Express end-point controller with PHY integrated
■ Full serial modem control
■ Hardware and software flow control
■ 5, 6, 7, 8 and 9-bit serial format
■ Even, odd, none, space and mark parity
■ On chip 256 byte FIFO buffers in transmit, receive path
■ Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers
■ Supports PCI bus Power Management Interface Specification Revision 1.2
■ Dual-profile design fits full height and low-profile system chassis with the included spare low-profile brackets
■ Perfect solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, printers, scanners, etc.
■ Easily adds two serial port and one parallel port through an available PCI Express slot
■ 16C650 UART serial port with data transfer rate up to 250Kbps
■ Compliant with PCI Express 2.0 Gen 1
■ Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode
■ Single-lane (X1) PCI Express end-point controller with PHY integrated
■ Full serial modem control
■ Hardware and software flow control
■ 5, 6, 7, 8 and 9-bit serial format
■ Even, odd, none, space and mark parity
■ On chip 256 byte FIFO buffers in transmit, receive path
■ Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers
■ Complies with PCI bus Power Management Interface Specification Revision 1.2
■ Dual-profile design fits full height and low-profile system chassis with the included spare low-profile brackets
■ Perfect solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, printers, scanners, etc.

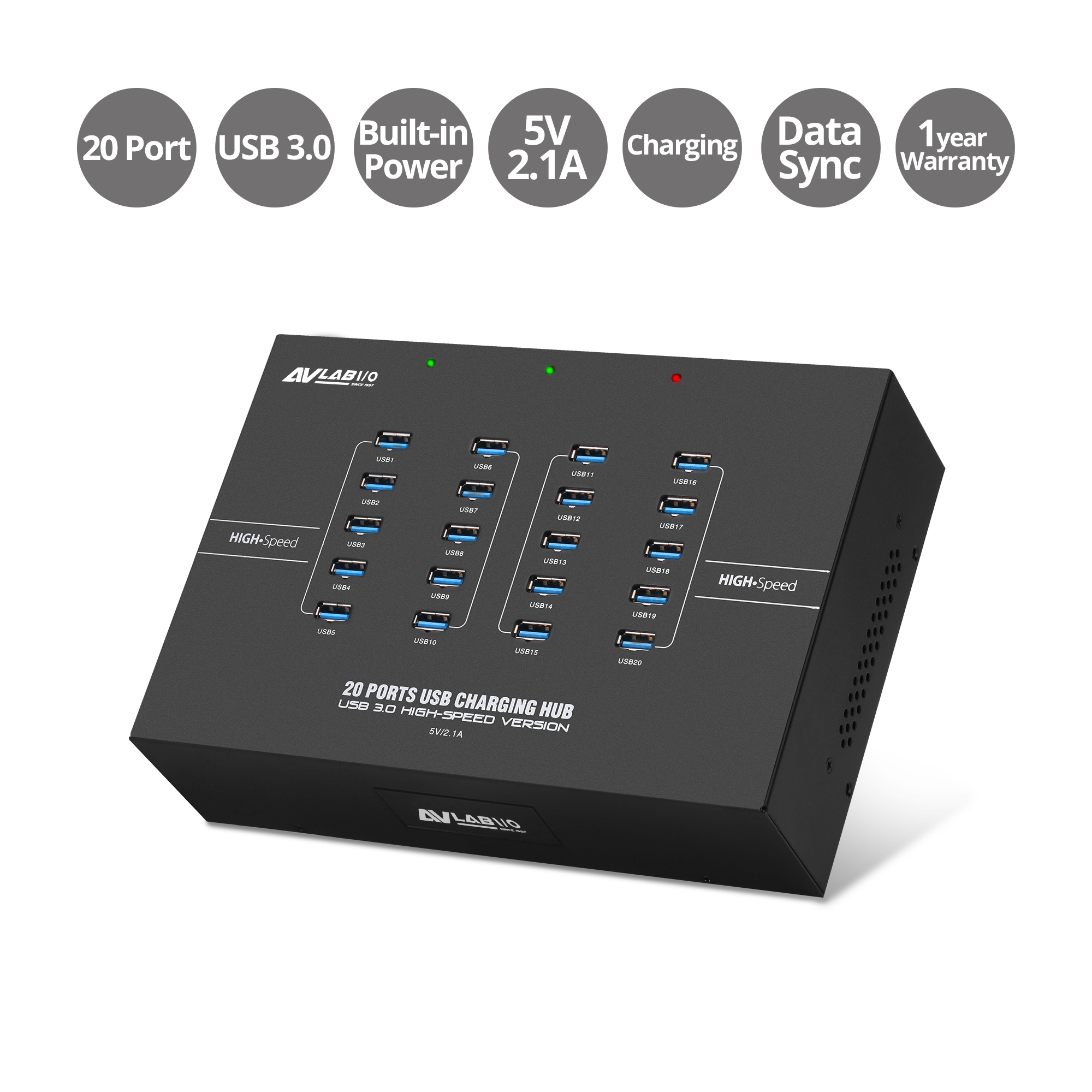

■ USB 3.1 data and fast charge up to 20 tablets, Smart Phones, Mobile devices, and other USB devices to your computer
■ USB 3.1 data transfer of up to 5Gbps with up to 5V/2.1A power output on each USB 3.1 port syncs and fast charges your devices in no time at all
■ Works with high-bandwidth USB 3.1 devices, such as external hard disks, high resolution webcams, camcorders, video surveillance cameras, digital video cameras, multi-channel audio, and backward compatible with USB 2.0 and USB 1.1 devices
■ Built-in 200 Watt (5V/40A) power supply provides reliable and safe power
■ Power switch conserves energy when not in use, built-in LED provides easy recognition of power status
■ Embedded temperature sensing cooling fan ensures reliable performance and long life
■ Wall mountable metal housing with durable attractive finish allows easy installation in any environment
■ ULTIMATE ERGONOMIC WORKSTATION: Transform your current desk into a powered standing desk, the best thing about this desk is that it is easy to customize the perfect distance between your viewing and typing position which others workstation are unable to complete.
■ ELEGANT ELECTRIC LIFTING SYSTEM: Never suffer from any heavy lifting, our powerful motor raises everything smoothly in a moment from 3.9” to 23.6”. The smart lifting system has a memory function which stores up to 3 programmable ideal heights. Timer included and designed to inform you for when it's time to stand up.
■ EXTRA LARGE SPACIOUS AREA: 28.3” x 15.7” work surface with additional 28.3” x 8.7” keyboard tray, roomy for your laptop, tablet, keyboard & mouse, and other office essentials. A cable management design keeps everything organized.
■ TRIPLE MONITOR SETUP: Lifts your 32" VESA compatible monitors in the air, which increases additional height adjustment range. It also frees up your desk surface, unlike other workstations which the display tripod occupies half of the surface.
■ STURDY AND STABLE: High density base with small footprint and counter-balanced design. The desk easily holds all your office supplies up to 55 lbs. The AVLT-MT18-1 is backed with FIVE YEAR limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, please do not hesitate to contact us.
■ ULTIMATE ERGONOMIC WORKSTATION: Transform your current desk into a powered standing desk, the best thing about this desk is that it is easy to customize the perfect distance between your viewing and typing position which others workstation are unable to complete.
■ ELEGANT ELECTRIC LIFTING SYSTEM: Never suffer from any heavy lifting, our powerful motor raises everything smoothly in a moment from 3.9” to 23.6”. The smart lifting system has a memory function which stores up to 3 programmable ideal heights. Timer included and designed to inform you for when it's time to stand up.
■ EXTRA LARGE SPACIOUS AREA: 28.3” x 15.7” work surface with additional 28.3” x 8.7” keyboard tray, roomy for your laptop, tablet, keyboard & mouse, and other office essentials. A cable management design keeps everything organized.
■ DUAL MONITOR SETUP: Lifts your 32" VESA compatible monitors in the air, which increases additional height adjustment range. It also frees up your desk surface, unlike other workstations which the display tripod occupies half of the surface.
■ STURDY AND STABLE: High density base with small footprint and counter-balanced design. The desk easily holds all your office supplies up to 55 lbs. The AVLT-MT17-1 is backed with FIVE YEAR limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, please do not hesitate to contact us.
■ POWERFUL ELECTRIC MOTOR: Raise 48.4 lbs office supplies smoothly from 6.1" to 19.1" with a finger touch. The reliable Electric Locking System allows you to customize your height at will. Decelerates to a stop safely for your monitors and beverages.
■ SPACIOUS WORKSPACE: The 37.4" x 15.7" desk space provides plenty of work space for a 27" dual monitor setup. A complete set of full sized keyboard & mouse can easily be placed on the 37.2" x 11.8" lower layer keyboard tray with deep enough space to move the mouse comfortably.
■ BENEFITS: Effortless height adjustment, boost productivity, declutter desk surface. Benefits your health by reducing risk of heart disease, pancreas problems, muscle degeneration, strained neck & shoulders, poor circulation and inflexible spine. Use an Electric Standing Desk and "NOT" a Gas Spring Standing Desk if you already have chronic back pains when doing lifting!
■ SUPER EASY ASSEMBLY: Setup takes about 15 minutes. Just place the standing desk on your existing desk or table. Attach the six screws for the keyboard tray then plug in the power to get started.
■ WE'VE GOT YOU COVERED: FIVE YEARS Warranty and a 30-day 100% money-back guarantee. Our local friendly tech support are available to help if you any questions or concerns.

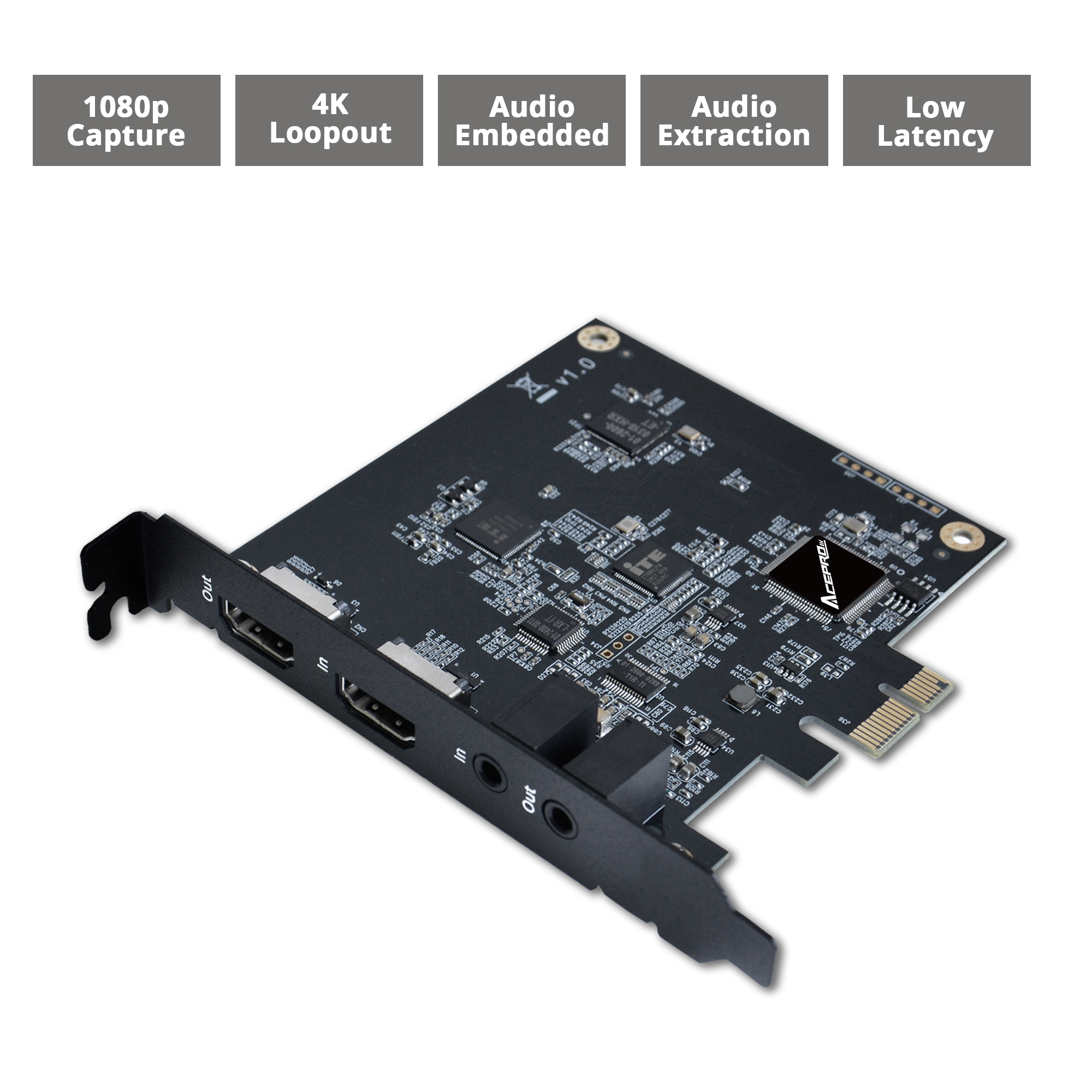

■ STREAM & RECORD - Easily records HDMI signals through PCIe slot with low latency, ideal for gaming, meetings, or live streaming. Note: Does not capture or record HDCP protected signals
■ HDMI INPUT & OUTPUT - Captures and records in 1080p @60Hz while simultaneously gaming in 4K @60Hz display through the HDMI output
■ MIXED AUDIO SUPPORT - Supports stereo audio embedding and HDMI audio stream, great for adding voice-overs on your gameplay. Also supports audio extraction to stereo out
■ UNIVERSAL COMPATIBILITY - Compatible with most 3rd party software such as OBS Studio, downloadable from https://obsproject.com
■ HDMI loop-out to monitor the HDMI signal
■ Auto-detection of video format, video recording and live streaming quality decided by software setting
■ Plug and play - no driver installation required
Compatibility Notes:
- Does not capture or record HDCP protected signals
- HDCP protected signals will pass through to the HDMI loop-out port

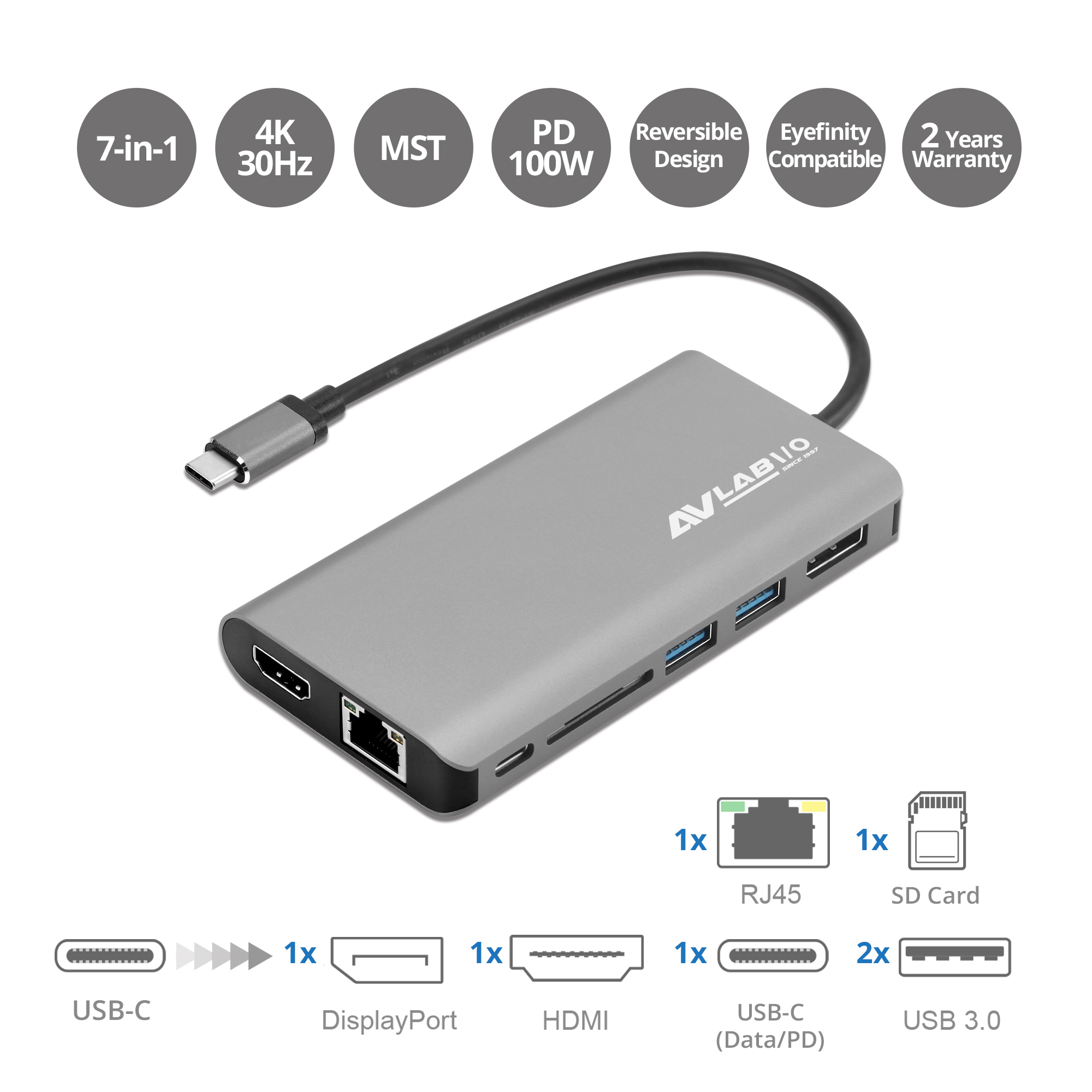

■ Transforms a single USB-C port, with DP Alt mode* or Thunderbolt 3 technology, into multiple connectivity ports including one USB-C port (Charge and Data), one HDMI port, one DisplayPort port,
one Gigabit Ethernet, two USB 3.0 ports and one SD memory card slot
■ Supports Mirror mode with identical content displayed on each display, Extended mode** with individual content displayed on each screen
■ DisplayPort Multi-Stream Transport (MST) technology supports single 4K @30Hz Ultra HD video output, dual Full-HD 1080p video outputs***
■ Supports PD 3.0**** specification, provides up to 100W to power/charge Laptops, Notebooks, and other peripheral devices
■ Supports USB-C with DisplayPort Alternate mode and Thunderbolt 3 technology
■ Enables you to connect multiple USB peripherals simultaneously such as a mouse, keyboard, flash drive, printer and more
■ SuperSpeed USB 3.0 ports support data transfer rate up to 5Gb/s
■ SD flash memory card slots support various SD memory cards of up to 2TB capacity, perfect solution for transferring files from your portable devices to your computer
■ Plug-n-play, no driver installation or power adapter required
■ Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performance, a great tool to increase your productivity for home, office or on-the-
go
Notes:
*Requires a USB-C port that supports “DisplayPort Alternate Mode” (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality.
**Mac OS does not support MST function and will only mirror the displays.
***Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode.
****The computer and power adapter must support PD 3.0 specification, otherwise the dock will reset when power delivery is disconnected.
■ Provides reliable EDID data between the source and display to ensure audio and video signal compatibility to provide a smooth stable high quality audio and video experience
■ Amplifies and equalizes the HDMI signal transmission for use with longer HDMI cables and allows for multiple layers of cascading
■ Supports video resolution up to 4Kx2K 60Hz (YUV 4:4:4 8bit) or HDR 4Kx2K (YUV 4:2:0 10bit)
■ Supports 3D, CEC, HDMI 2.0 and HDCP 2.2 protocols
■ Supports 17 EDID modes including default EDID and EDID learning from the display
■ Built-in Micro USB power connector provides external power and also can be used for firmware updating as needed
■ Wall mount metal housing enhances durability and provides excellent heat dissipation for reliable performance and long lifespan

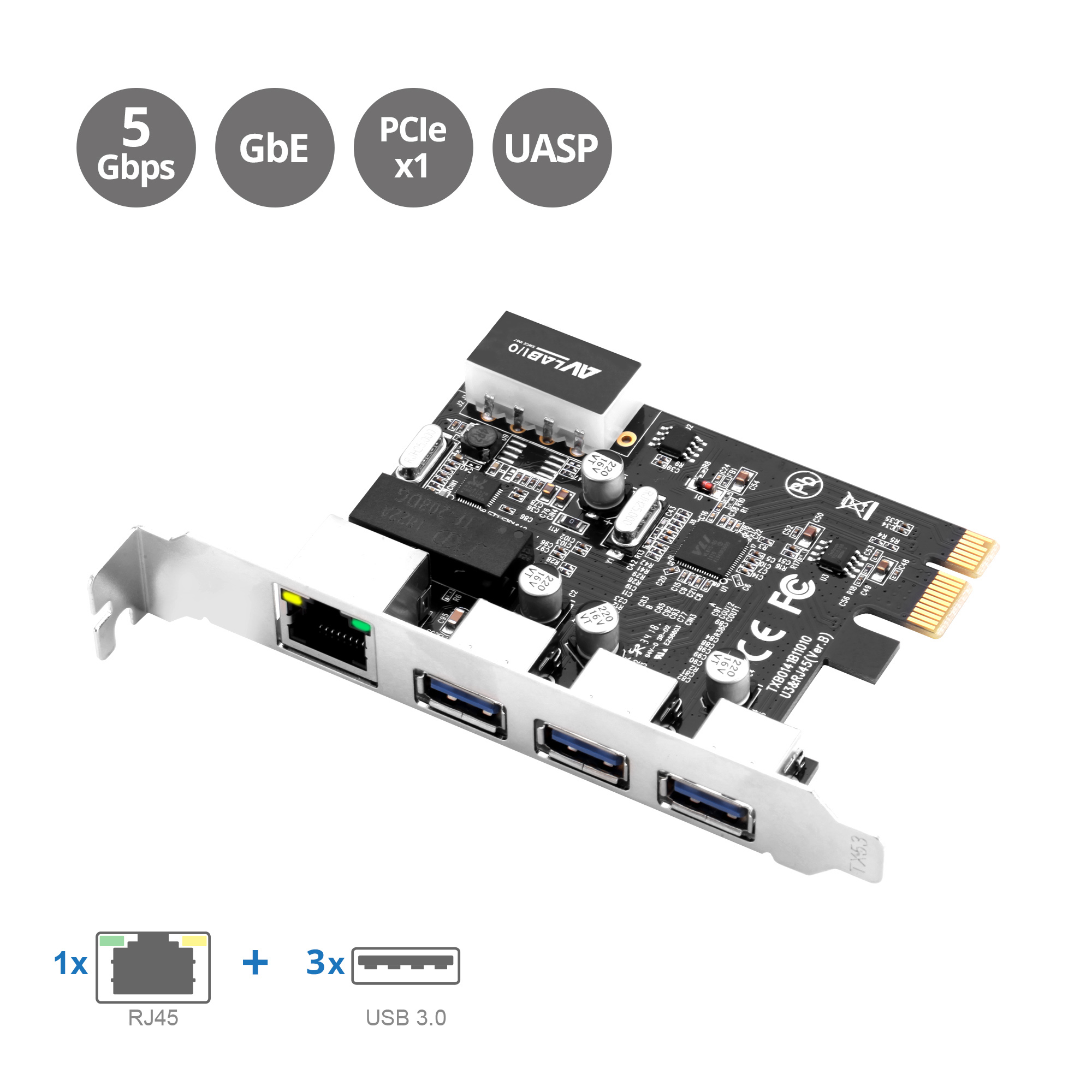

■ Adds three USB 3.0 ports and one Gigabit Ethernet (RJ45) port through an available PCI Express slot
■ Supports USB data transfer rates up to 5Gb/s shared among the 3 USB ports, and backward compatible with USB 2.0/1.1 devices
■ Provides reliable wired network connection with speeds up to 1000Mbps
■ Supports UASP (USB Attached SCSI Protocol), dramatically increases data transfer speed when used with UASP supported storage enclosures with SSD media
Note: Windows 10 and 8 have built-in UASP support using their embedded USB 3.0 drivers only
■ Each USB 3.0 port provides power output up to 5V/900mA
■ The multi-port feature allows connecting up to 3 USB devices simultaneously avoiding frequent swapping in and out of your devices
■ Adds seven SuperSpeed USB 3.0 5Gbps Type-A ports, 6 external and one internal, to your desktop system
■ Industry recognized high performance Renesas uPD720201/uPD720210 chipset
■ Supports the following speed data rates: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5 Gbps)
■ Complies with PCIe 2.0 standard
■ Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
■ Supports USB legacy function and UASP mode (UASP supports Windows 10 and 8 embedded drivers only)
■ Supports PCI Bus Power Management Interface Specification Revision 1.2
■ Dual-profile bracket included (full & low profile) designed to fit multiple system form factors with included brackets
■ Each USB port features independent over-current protection to further protect your connected devices and the PCIe board itself from unforeseen power spikes
Hardware Installaton Note:
SATA power connection is required

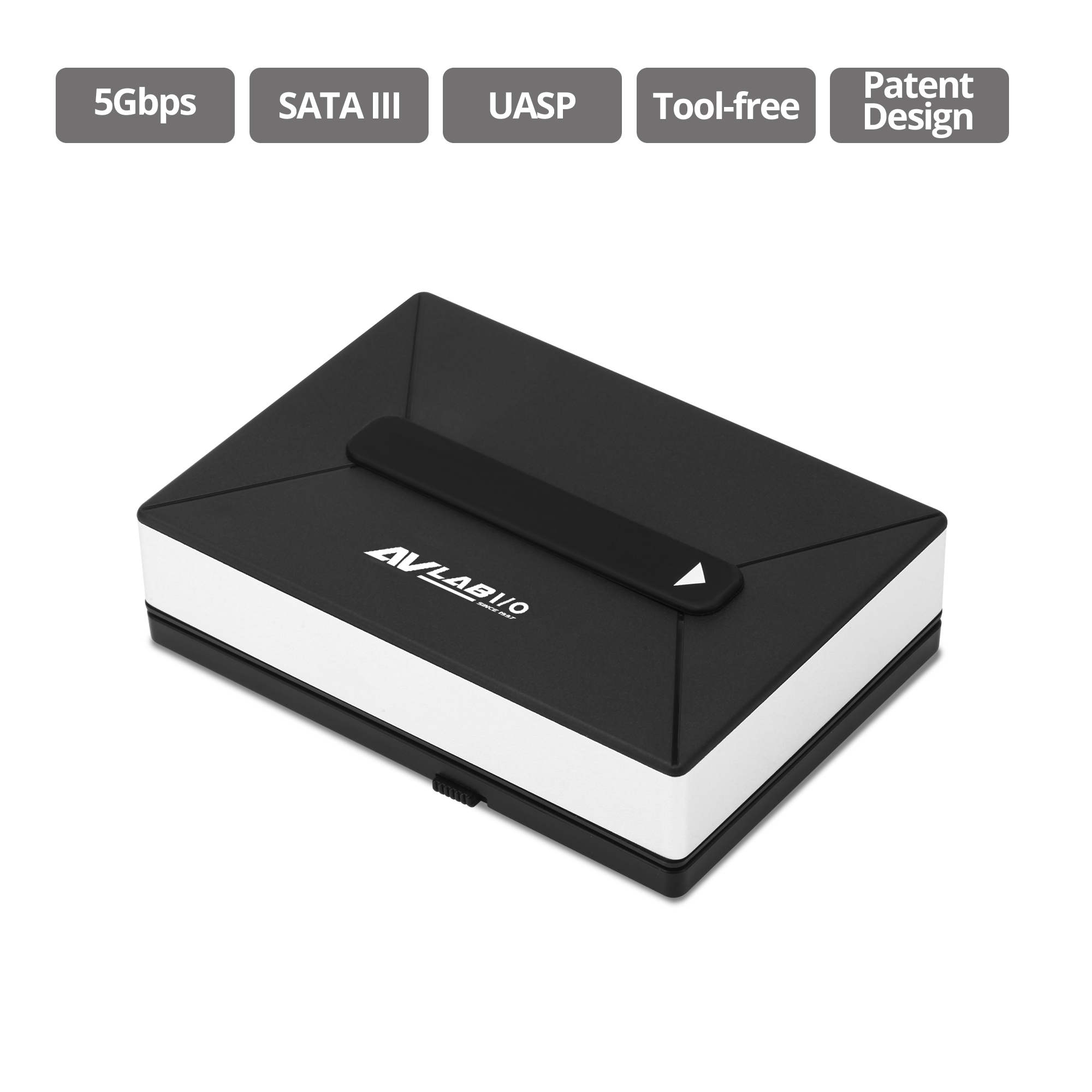

■ Ultra portable drive dock easily adds more storage to Windows or Mac computers through USB 3.0 Type-A port
■ Compatible with 9.5mm and 7mm 2.5" SATA I/II/III hard drives and SSDs, with capacity up to 2TB
■ Supports USB 3.0 data transfer rates up to 5Gbps
■ Supports UASP feature for enhanced data transmission speed. UASP requires native Windows 10 and Windows 8 USB 3.0 host controller drivers
■ Built-in SSD/HDD storage compartment provides easy storage and protects your drive when not in use
■ USB Plug-n-Play installation, no additional driver installation needed
■ Included USB 3.0 Type-A to Micro B cable supplies power to storage device, no additional power adapter is needed
■ This ultra-small enclosure easily adds fast PCIe NVMe SSD storage to Windows or Mac computers through USB 3.1 Gen 2 Type-A or Type-C ports
■ Accommodates 2230, 2242, 2260 and 2280 form factor M.2 M Key PCIe NVMe SSDs
■ USB 3.1 Gen 2 provides ultra-fast data transfer rates up to 10Gbps with UASP support. Requires UASP compatible USB 3.1 host controller hardware along with Windows 10 and Windows 8 native USB
3.1 host controller drivers
■ USB Type-C interface features reversible connection design supports non-directional plug-in
■ Built-in LED for power and data transfer status
■ Bus-powered for extra portability, no need to take along a separate power adapter when on the go
■ Ultra-slim, lightweight and compact design aluminum housing offers durability and excellent heat dissipation for long life and reliable performance
■ Plug-n-Play installation, no driver installation required
■ Features four independent SuperSpeed USB 3.0 Type-A ports delivering up to 5Gbps data transfer per port for a total USB bandwidth of up to 20Gbps
■ Industry recognized high performance Renesas uPD720202 chipset
■ Supports the following speed data rate as follows: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5Gbps)
■ Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
■ Compliant with PCIe 2.0 standard
■ Supports USB legacy function and UASP mode (UASP requires Windows 10 and 8 embedded drivers only)
■ Supports PCI Bus Power Management Interface Specification Revision 1.2
■ Low-profile bracket design fits lower size system form factor with included low profile bracket
■ Each USB port featured with independent over-current protection to further protect your devices and the board itself from unforeseen power spikes
■ Professional quality High Speed HDMI® cable with Ethernet
■ Ready for today's high-definition and tomorrow’s – supports up to 4K@30Hz resolution, as well as today’s 1080p
■ Supports 3D video over HDMI with compatible video equipment
■ 120/240Hz refresh rate support offers clear, smooth and flicker-free video
■ High Speed HDMI - single-link bandwidth speeds up to 340MHz (10.2Gb/s) to support current high-definition and future HD devices
■ x.v.ColorTM – removes the color space limitations and allows the display of any visible color by the human eye
■ Deep Color - supports 8-bit, 10-bit, 12-bit, and 16-bit (RGB or YCbCr) color depths – offering over one billion colors providing stunning detail
■ Audio Return Channel – enables TVs to send audio data “upstream” to A/V receivers via the HDMI cable, eliminating the need for separate cables
■ Supports high-bandwidth uncompressed digital audio (such as Dolby® Digital and DTSTM) and lossless compressed digital audio formats (such as Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master AudioTM)
■ High-quality Toslink digital optical audio cable delivers high-definition digital audio
■ Toslink digital optical cable delivers consistent high-quality digital signal using light, for pure digital sound quality
■ Perfect for connecting DVD/Blu-Ray players, CD players, satellite receivers, computers/game consoles or other digital audio equipment
■ Optical signal eliminates RFI, EMI, or other interference
■ Thin and flexible PVC jacket for easy installation
■ Plastic protective cover shield lens from dirt, dust, or other materials
■ High-quality Toslink digital optical audio cable delivers high-definition digital audio
■ Toslink digital optical cable delivers consistent high-quality digital signal using light, for pure digital sound quality
■ Perfect for connecting DVD/Blu-Ray players, CD, satellite receiver, computer/game console or other digital audio equipment
■ Optical signal eliminates RFI, EMI, or other interference
■ Thin and flexible PVC jacket for easy installation
■ Plastic protective cover shield lens from dirt, dust, or other materials
■ High-quality Toslink digital optical audio cable delivers high-definition digital audio
■ Toslink digital optical cable delivers consistent high-quality digital signal using light, for pure digital sound quality
■ Perfect for connecting DVD/Blu-Ray players, CD players, satellite receivers, computers/game consoles or other digital audio equipment
■ Optical signal eliminates RFI, EMI, or other interference
■ Thin and flexible PVC jacket for easy installation
■ Plastic protective cover shield lens from dirt, dust, or other materials
■ Converts one USB Type-A port into one 9-Pin RS-232 serial port on a Windows desktop or notebook computer
■ Supports USB 1.1 specifications with serial port data transfer rates up to 230Kbps
■ Features built-in 512 byte FIFO buffers, 15KV DC ESD serial interface protection with software flow control
■ Works flawlessly with RS-232 serial devices such as modems, ISDN terminal adapters, PDAs, bar code scanners, label printers, and many more
■ Plug-and-play and powered by the USB bus, no external power adapter is needed
