■ Connects Ultra HD 4K HDMI source devices such as Blu-ray players, set-top boxes, and game consoles to 4K HDMI display devices such as TVs, monitors or projectors up to 60 meters away with no
signal loss
■ Compliant with HDMI 2.0 and HDCP 2.2 standards
■ 18Gbps signal bandwidth and [email protected] YUV 4:4:4 video resolution
■ AOC (Active Optical Cable) Fiber/Copper inner conductor material and 24K gold-plated connectors provide maximum video clarity
■ Features unidirectional connection requiring the cable to be installed in a specific direction, the end marked Source plugs into an HDMI source and the end marked Display plugs into a TV,
monitor, projector, and other display devices
■ Supports 16bit/24bit (RGB/YCbCr) Deep Color depth, HDR, CEC, 3D and ARC
■ Premium zinc alloy HDMI connector housing with the easy-grip design for the trouble-free plugin or remove
■ Triple-shielded cable effectively blocks electronic interference and radio frequency interference to prevent signal loss and screen ghosting
■ Connects DisplayPort source devices to DisplayPort equipped monitors or displays over long distances
■ Transmits Ultra HD 4K signals up to 60 meters (197ft)
■ Compliant with DisplayPort 1.2 specification, 1, 2 and 4 lanes at 1.62Gbps, 2.7Gbps & 5.4Gbps
■ 21.6Gbps signal bandwidth and up to 4Kx2K 60Hz YUV 4:4:4 resolution
■ AOC (Active Optical Cable) Fiber/Copper inner conductor material and gold-plated connectors provide maximum video clarity
■ Very low Electro-Magnetic Interference (EMI) and Radio Frequency Interference (RFI) profile allows installing the cable into sensitive environments
■ Features unidirectional connection requiring the cable to be installed in a specific direction, the end marked Source plugs into a DisplayPort source and the end marked Display plugs into a
DisplayPort TV, monitor, projector, and other display devices
■ Premium quality latching DisplayPort connector prevents accidental disconnection
■ Plug and Play and hot swappable

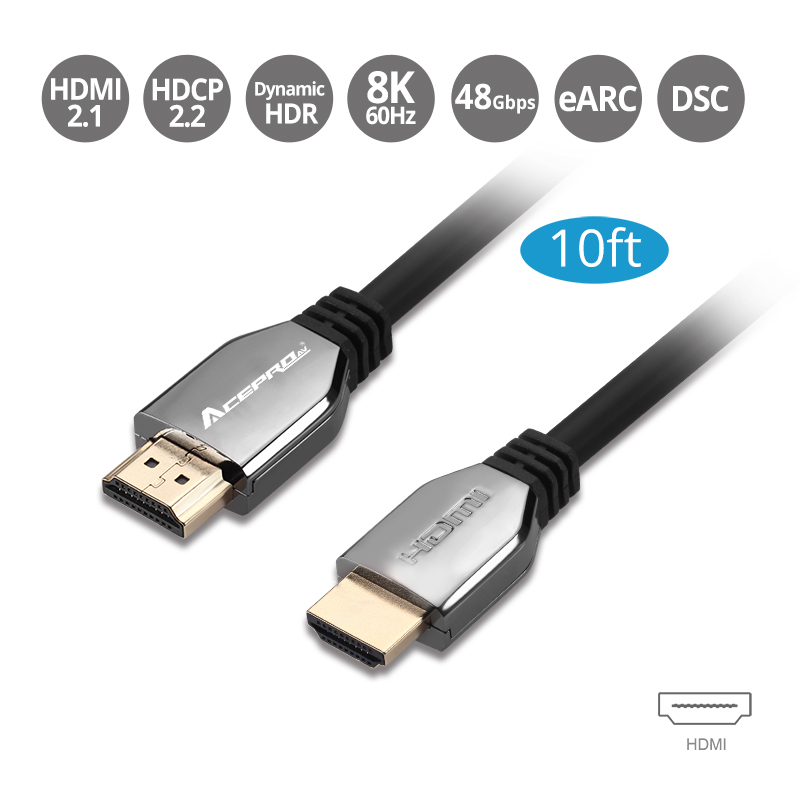

■ Premium Quality - Transmits Ultra High Definition signals up to 8K resolution
■ HDMI 2.1 Standard - Compatible with HDMI 2.1 specification, and backward compatible with earlier versions
■ Triple Shielded Cable - Effectively blocks EMI and RFI interference for maximum video performance with no signal loss
■ Gold Plated Connectors - Provides ultimate conductivity and delivers flawless UHD A/V signals
■ Pure Copper Wires - Prevents signal degradation and transmits signal in optimal quality
■ Advanced Features - 4K HDR, HDCP 2.2, Ethernet, Audio Return Channel and 3D technologies
■ Premium Quality - Transmits Ultra High Definition signals up to 8K resolution
■ HDMI 2.1 Standard - Compatible with HDMI 2.1 specification, and backward compatible with earlier versions
■ Triple Shielded Cable - Effectively blocks EMI and RFI interference for maximum video performance with no signal loss
■ Gold Plated Connectors - Provides ultimate conductivity and delivers flawless UHD A/V signals
■ Pure Copper Wires - Prevents signal degradation and transmits signal in optimal quality
■ Advanced Features - 4K HDR, HDCP 2.2, Ethernet, Audio Return Channel and 3D technologies
■ An advanced SDI pattern generator with multi-format (12G/6G/3G/HD/SD) and multi-pattern support provides a cost effective way to calibrate and test SDI enable video devices and displays
■ Dual SDI outputs support SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI signal standards
■ Supports up to 8 channel AES compliant audio with 48KHz sample rate
■ Easy device control by four push buttons with LCM display screen
■ Metal housing provides excellent shielding and efficient heat dissipation for durability, long life, and reliable performance
■ HDMI 2.0a and HDCP 2.2 compliant
■ Supports HDMI input up to [email protected] YUV 4:4:4 8bit, HDMI output up to [email protected]
■ Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch
■ Supports 4K signals including High Dynamic Range (HDR)*, PoE, Bi-directional IR path, and Video Wall. *Due to the video compression, some distortion may occur in HDR mode
■ Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture
■ Easy DIP switch matching for multi-casting group configuration
■ Supports full frequency IR signal from 20KHz to 60KHz
■ Full Duplex RS-232 control up to 115,200 bps
■ Supports 180° and 270° clockwise image rotation
■ Designed to work with HDMI 2.0 Over IP Matrix and Video Wall - Receiver, part # CE-H25311-S1 sold separately, and HDMI 2.0 Over IP Matrix and Video Wall - Controller, part # CE-H25411-S1 sold
separately
■ HDMI 2.0a and HDCP 2.2 compliant
■ Supports HDMI input up to [email protected] YUV 4:4:4 8bit, HDMI output up to [email protected]
■ Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch
■ Supports 4K signals including High Dynamic Range (HDR)*, PoE, Bi-directional IR path, and Video Wall. *Due to the video compression, some distortion may occur in HDR mode
■ Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture
■ Easy DIP switch matching for multi-casting group configuration
■ Supports full frequency IR signal from 20KHz to 60KHz
■ Full Duplex RS-232 control up to 115,200 bps
■ Supports 180° and 270° clockwise image rotation
■ Designed to work with HDMI 2.0 Over IP Matrix and Video Wall - Transmitter, part # CE-H25211-S1 sold separately, and HDMI 2.0 Over IP Matrix and Video Wall - Controller, part # CE-H25411-S1 sold
separately
■ Control center for the IP-based HDMI 2.0 Over IP Matrix and Video Wall - Transmitter, part # CE-H25211-S1 sold separately, and HDMI 2.0 Over IP Matrix and Video Wall - Receiver, part # CE-
H25311-S1, sold separately
■ Monitors all devices in one central system
■ Cost effective IoT platform
■ Intuitive and Powerful - User interface includes web interface and mobile support
■ Easy Installation - auto-detects the transmitter and receiver units on the network
■ Supports Video Wall Function - Easy to create multiple video walls. Configurable up to 5x5 display mode
■ Drag-and-drop easy matrix switching
■ Allows you to create custom OSD modes

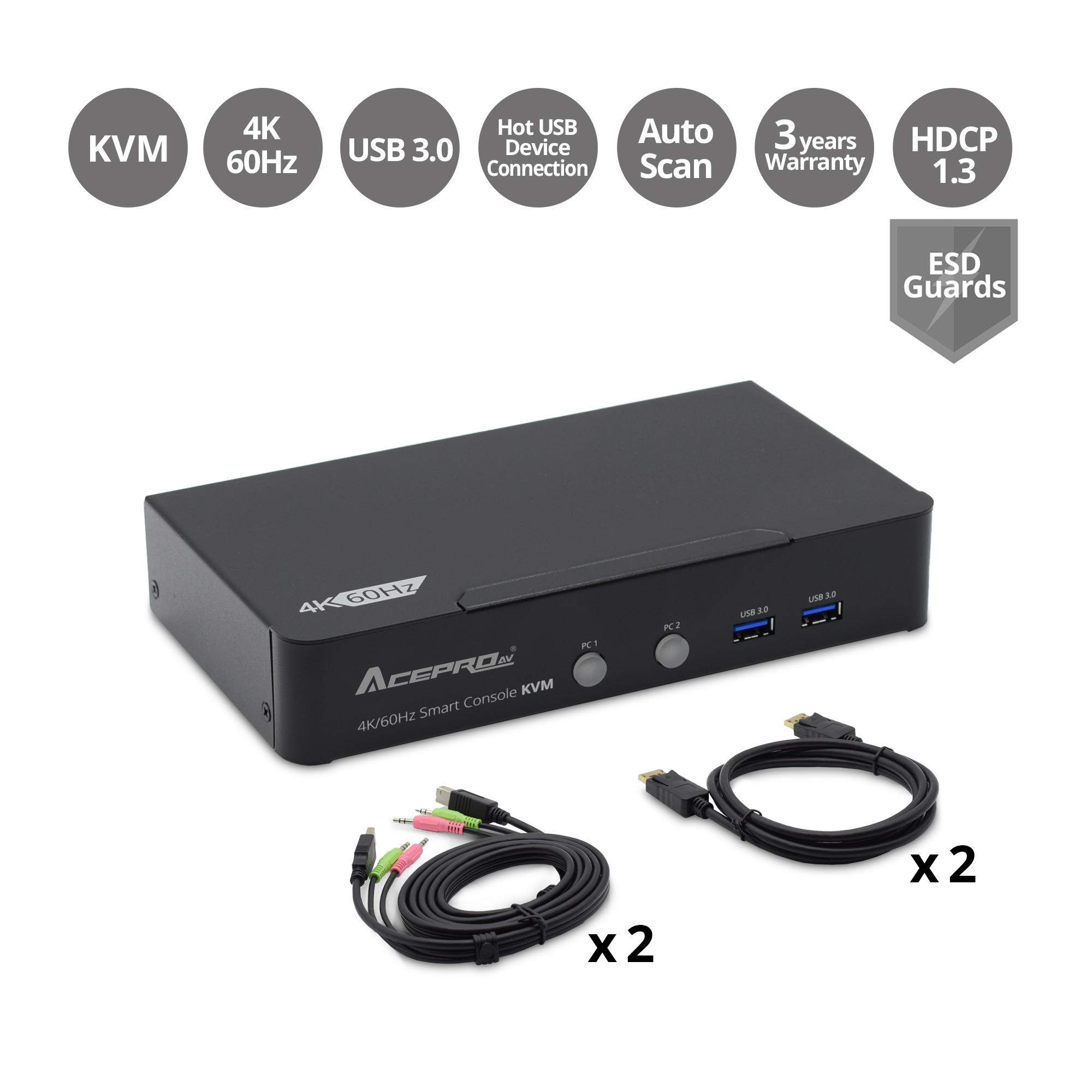

■ Control two computers with 4K HDMI video with one keyboard, mouse and display
■ Compatible with resolutions up to Ultra-HD 4K 60Hz with HDR, and 18Gbps video bandwidth
■ Features Auto-EDID detection for easy display detection
■ Easy system selection via front panel push button or keyboard hot-key commands
■ Comes with 2 USB 1.1 ports for keyboard and mouse connection, and 4 USB 3.0 ports. Connect multiple USB peripherals such as flash drives, printers and more simultaneously
■ Includes 3.5mm jack for microphone input and stereo speakers/headphones
■ Auto-scan feature for quick browsing and system monitoring
■ Firmware upgrade feature via Micro USB port for future compatibility
■ Plug-n-play, no driver installation
Compatibility Notes:
- Not DDM fast switching compliant

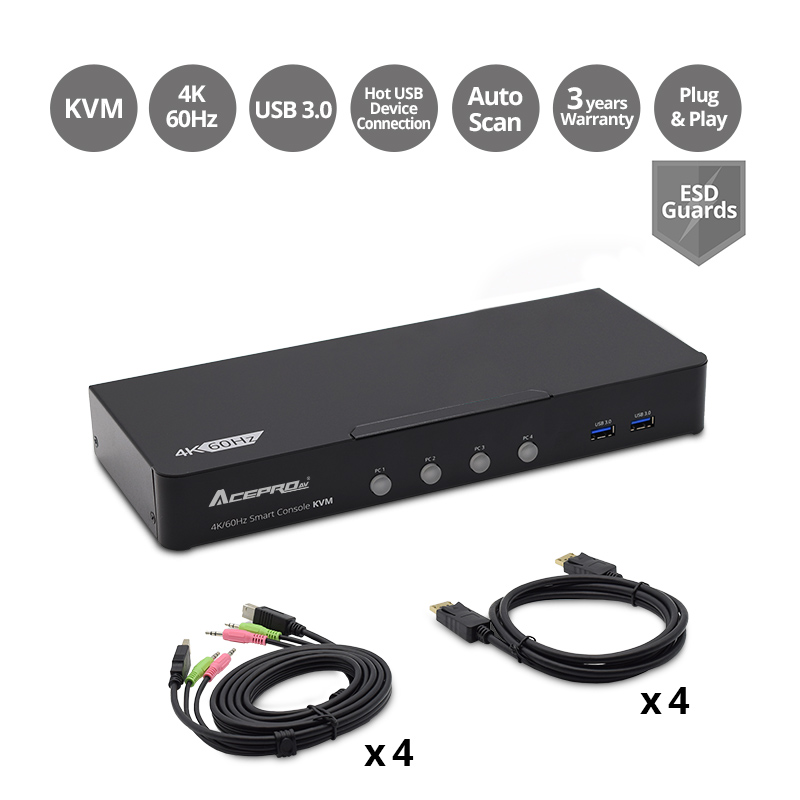

■ Control up to 4 computers with 4K HDMI video with one keyboard, mouse and display
■ Compatible with resolutions up to Ultra-HD 4K 60Hz with HDR, and 18Gbps video bandwidth
■ Features Auto-EDID detection for easy display detection
■ Easy system selection via front panel selection buttons or user programmable keyboard hot-key commands
■ Comes with 2 USB 1.1 ports for keyboard and mouse connection, and 4 USB 3.0 ports. Connect multiple USB peripherals such as flash drives, printers and more simultaneously
■ Includes 3.5mm jack for microphone input and stereo speakers/headphones
■ Auto-scan feature for quick browsing and system monitoring
■ Firmware upgrade feature via Micro USB port for future compatibility
■ Plug-n-play, no driver installation
Compatibility Notes:
- Not DDM fast switching compliant
■ Control two computers with DVI-D Dual Link video system via one set of keyboard and mouse
■ Compatible with DVI-D Dual Link resolutions 2560x1600 @60Hz / [email protected]
■ Features Auto-EDID detection for easy display detection
■ Easy system selection via front panel selection button or user programmable keyboard hot-key commands
■ Comes with 2 USB 1.1 ports for keyboard and mouse connection, and 4 USB 3.0 ports. Connect multiple USB peripherals such as flash drives, printers and more simultaneously
■ Includes 3.5mm jack for microphone input and stereo speakers/headphones
■ Auto-scan feature for quick browsing and system monitoring
■ Firmware upgrade feature via Micro USB port for future compatibility
■ Plug-n-play, no driver installation
Compatibility Notes:
- Not DDM fast switching compliant
■ Control up to four computers with DVI-D Dual Link video system via one keyboard, mouse, and display
■ Compatible with DVI-D Dual Link resolutions 2560x1600 @60Hz / [email protected]
■ Features Auto-EDID detection for easy display detection
■ Easy system selection via front panel selection button or user programmable keyboard hot-key commands
■ Comes with 2 USB 1.1 ports for keyboard and mouse connection, and 4 USB 3.0 ports. Connect multiple USB peripherals such as flash drives, printers and more simultaneously
■ Includes 3.5mm jack for microphone input and stereo speakers/headphones
■ Auto-scan feature for quick browsing and system monitoring
■ Firmware upgrade feature via Micro USB port for future compatibility
■ Plug-n-play, no driver installation
Compatibility Notes:
- Not DDM fast switching compliant
■ 24-Port Dedicated Ethernet Switch designed to work exclusively with IP HDMI Extenders
■ Works with SIIG IP HDMI Extenders part # CE-H23T11-S1 and CE-H24B11-S1 plus many others
■ Works flawlessly with 1-to-1, One-to-many, and Many-to-many modes
■ Extends transmission distance up to 394ft (120m) from the switch to TX or RX
■ User-friendly Web GUI for easy matrix switching
■ Assign any input to any output on the fly
■ Supports Unknown Unicast / Broadcast / Multicast Storm Control
NOTE: Do not connect to traditional LAN Ethernet switches
■ Transmits 4K HDMI signals with stereo audio to a remote display over Cat5e/6/7 cabling up to 120 meters
Note: A good quality Cat5e/6/7 cable is essential in delivering quality content, Cat6/6a/7 is recommended over Cat5e
■ Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 255 total units, limited to 100 transmitters. Additional transmitter units (part # CE-H25B11-S1) and receiver units (part # CE-H25C11-S1) sold separately
Note: Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability
■ Delivers up to [email protected] video resolution to deliver stunning and crystal clear images
■ IR pass back function to control the source device from RX location
■ Computer control software to select and switch between source devices (Matrix only)
■ HDbitT protocol with H.264 compression over IP delivers superior performance and reliability
■ Receives HDMI signals with stereo audio and transmits it to a remote display over Cat5e/6/7 cabling up to 120 meters,
requires HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Transmitter (part # CE-H25B11-S1) sold separately
Note: A good quality Cat5e/6/7 cable is essential in delivering quality content. Cat6/6a/7 is recommended over Cat5e
■ Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 255 total units, limited to 100 transmitters.
Additional transmitter units (part # CE-H25B11-S1) and Extender/Matrix Kits (part # CE-H25A11-S1) sold separately
Note: Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability
■ Delivers up to [email protected] video resolution to deliver stunning and crystal clear images
■ IR pass back function to control the source device from RX location
■ Computer control software to select and switch between source devices (Matrix only)
■ HDbitT protocol with H.264 compression over IP delivers superior performance and reliability
■ With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft. Connect your HDMI source device (PC, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver
■ Supports up to 4K @30Hz and 1080p. HDMI 1.4 and HDCP 2.2 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high performance pure copper Cat6 cables to ensure reliable performance
■ Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, you can connect up to 30 Receivers* per Transmitter to not only extend but split HDMI signals to multiple displays. *Additional Receivers (CE-H25E11-S1) are sold separately
■ One-directional IR control from RX side to TX side. Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6 cable
■ High quality surface mountable metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation
■ With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft. Connect your HDMI source device (PC, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver
■ Supports up to 4K @30Hz and 1080p. HDMI 1.4 and HDCP 2.2 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high performance pure copper Cat6 cables to ensure reliable performance
■ Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. *The kit (CE-H25D11-S1) and additional Receivers (CE-H25E11-S1) are sold separately
■ One-directional IR control from RX side to TX side. Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6 cable
■ High quality surface mountable metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation
■ Extends HDMI signals up to 120m (394ft) over economical Cat6 cabling to up to 4 displays
■ Features Cascade connection extends HDMI signal through unmanaged Gigabit network routers or switches
With HDBitT® transport protocol, you can not only extend but split HDMI signals to additional displays
Note: Additional receivers, HDMI Extender over CAT6 with IR - Receiver, part # CE-H23U11-S1, sold separately
■ Delivers crystal clear Full HD content up to [email protected] resolution
■ IR remote control through Cat6 cable allows you to control the HDMI source device at the remote display location
■ High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
■ Plug-n-Play installation, no software installation required
■ Extends HDMI signals up to 120m (394ft) over economical Cat6 cabling to up to 8 displays
■ Features Cascade connection extends HDMI signal through unmanaged Gigabit network routers or switches, With HDBitT® transport protocol, you can not only extend but split HDMI signals to additional displays
Note: Additional receivers, HDMI Extender over CAT6 with IR - Receiver, part # CE-H23U11-S1, sold separately
■ Delivers crystal clear Full HD content up to [email protected] resolution
■ IR remote control through Cat6 cable allows you to control the HDMI source device at the remote display location
■ High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
■ Plug-n-Play installation, no software installation required
