■ Adds one ECP/EPP parallel port to your PCI enabled desktop computer
■ ECP/EPP parallel port delivers data transfer rates of up to 1.5MB/s
■ Installs in standard height or low profile chassis with included spare enhanced low profile bracket
■ Adds 2 ECP/EPP parallel ports to your PCI enabled system
■ Can be installed in 32-/64-bit, 3.3v/5v PCI and PCI-X slot
■ Dual Profile design to install in standard height or low profile chassis with included brackets
■ PCI Express (PCIe) adapter with 1 high-speed 16950 UART serial (9-pin) and ECP/EPP parallel (DB25) port
■ Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.). Configurable via jumpers
■ Adds 2 RS-232 9-pin serial and 1 ECP/EPP parallel port to your PCIe enabled system
■ Two 16C650 UART serial ports support data rate up to 16Mbps
■ Supports ECP, EPP and Buffered SPP parallel port modes
■ Adds 2 external SATA (eSATA) 6Gb/s channels to your PCIe system
■ Supports port multiplier - up to 5 hard disks (max) on each eSATA port and up to 7 hard disks amongst the connected port multipliers. Note: The included Asmedia driver must be installed for port multiplier operation
■ Installs in standard height or low profile chassis with included brackets
■ Works with the latest 6Gb/s SATA HDDs and backwards compatible with 3Gb/s and 1.5Gb/s HDDs
■ Adds 1 external SATA (eSATA) and 1 internal 6Gb/s channels to your PCIe system
■ Supports port multiplier - up to 5 hard disks (max) on each eSATA port and up to 7 hard disks amongst the connected port multipliers. Note: The included Asmedia driver must be installed for port multiplier operation
■ Installs in standard height or low profile chassis with included brackets
■ Works with the latest 6Gb/s SATA HDDs and backwards compatible with 3Gb/s and 1.5Gb/s HDDs
■ Add 4 SATA 6Gb/s channels to your PCIe system
■ Flexible port configurations:
4 internal
2 external and 2 internal
1 external and 3 internal
■ Built-in the latest breakthrough Hybrid HyperDuo tiering technology
■ An economical way to enable SSD performance at 1/3 the cost
Note: HyperDuo automatic storage tiering is only compatible with Windows XP, Vista, 7 and 8. This feature is not fully supported in the Server OSes
■ Improve system performance to reduce boot up time of system with demanding applications such as graphic editing tools, gaming, media player and more
■ Allow large data to be stored on the high capacity HDDs for cost saving
■ Fully automated HyperDuo tiering technology, no need to monitor hot/cold data manually
■ HyperDuo mode supports Safe mode and Capacity mode
■ Supports Port Multiplier FIS-based and Native Command Queuing (NCQ)
Note: Only one Port Multiplier is supported at any one time. Supports up to 4 drives connected via Port Multiplier plus 3 single drives for 7 drives total
■ Hardware RAID (RAID 0, 1, 10) to offload the host CPU for max performance
■ Inbox drivers enable users to take advantage of OS commands like TRIM to extend the life of SSDs for maximum durability
■ Installs in standard height or low profile chassis with included brackets
■ Works with the latest 6Gb/s SATA HDDs and backwards compatible with 3Gb/s and 1.5Gb/s HDDs
■ PCI Express 1-lane (x1) SATA II adapter works with PCI Express slots with different lane width
■ Installs in any available PCI Express slot
■ Supports two independent Serial ATA channels
■ Dual profile design to work with full height and low profile chassis with included brackets
■ PCI Express 1-lane (x1) SATA II adapter works with PCI Express slots with different lane width
■ Installs in any available PCI Express slot
■ Supports two independent Serial ATA channels
■ Spare enhanced low profile bracket is included to work in low profile chassis
■ Transmits high definition video resolutions up to 4Kx2K/60Hz with 24-bit color and up to 8-channel audio
■ Supports RGB up to 12-bit and YCbCr in 4:4:4/4:2:2 pixel formats
■ Supports AMD Eyefinity with SLS (Single Large Surface) video wall mode (requires connecting multiple adapters) allows combining multiple monitors into one large display for panoramic display
■ Compatible with both HDCP 1.4 and HDCP 2.2 content protection
■ Plug-n-play with no driver installation or external power source required
■ Compact and lightweight design offers great portability while on-the-go
■ Easily connect a DisplayPort monitor to a HDMI equipped notebook, desktop or other HDMI source device. Note: This is NOT a bi-directional adapter. DO NOT use for Displayport to HDMI conversion
■ Compliant with DisplayPort specification v1.2, supporting 1.62, 2.7Gbps and 5.4Gbps
■ Compliant with HDMI 1.4a specification, link rate up to 2.97Gbps/data pair
■ Supports video resolution up to 1920x1080 @60Hz and 4Kx2K @30Hz
■ Supports 7.1-ch audio, sample rate up to 192kHz
■ USB-Powered and Plug and play, no software required
■ Designed for connecting the latest Mini DisplayPort equipped computers to work with analog VGA equipped monitors, providing optimal video quality
■ Compatible with Mini DisplayPort equipped Mac® computers, including MacBook®, MacBook Air®, MacBook Pro® and others
■ Compliant with Mini DisplayPort 1.1a (both 1.62 and 2.7 Gbps) specifications
■ Supports full Mini DisplayPort link tracking
■ Display modes:
PC VGA, SVGA, XGA, SXGA and UXGA display modes
HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p
■ Supports HDCP (High-bandwidth Digital Content Protection) on HDCP compliant VGA displays
■ "Dongle" style DisplayPort to HDMI converter
■ Designed for connecting the latest DisplayPort equipped computer systems to HDMI equipped monitors and televisions, providing optimal video quality
■ Compliant with DisplayPort 1.1 (both 1.62 and 2.7 Gbps) specifications
■ Display modes:
PC VGA, SVGA, XGA, SXGA, and UXGA display modes (up to 1900 x 1200)
HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p
■ Supports digital audio (system's DisplayPort must support audio)
■ Supports HDCP (High-bandwidth Digital Content Protection) on HDCP compliant HDMI displays
■ Latching DisplayPort connector to prevent accidental disconnection
■ Video bandwidth: Up to 2.25 Gbps
■ Designed for connecting the DisplayPort equipped computer systems to HDMI equipped televisions and monitors to provide optimal video and audio quality
■ Triple-shielded 9.5” (24cm) cable with 20-pin DisplayPort male to 19-pin HDMI female connectors
■ PVC jacket for maximum audio/video performance with virtually no signal loss
■ Compliant with DisplayPort 1.1 (both 1.62 and 2.7 Gb/s) and HDMI 1.3a (up to 2.25 Gb/s) specifications
■ Supports HDCP (High-bandwidth Digital Content Protection)
■ Designed for connecting the DisplayPort equipped computer systems to analog VGA equipped monitors to provide optimal video quality
■ Triple-shielded cable with PVC jacket for maximum video performance and prevention of signal loss
■ Features 20-pin DisplayPort (male) to 15-pin VGA (female) connectors
■ Delivers video bandwidth of up to 5.7 Gb/s and offers up to 5.4 Gb/s over two lanes
■ Supports HDTV resolutions of 480i, 576i, 480p, 576p, 1080i, and 1080p, PC VGA, SVGA, XGA, SXGA and UXGA display modes
■ Compliant with DisplayPort 1.1 and supports HDCP (High-bandwidth Digital Content Protection) on HDCP compliant VGA displays
■ Boost your productivity by connecting three HDMI displays to single DisplayPort output with Multi-Stream Transport (MST) technology
■ Provides multiple display modes for various applications such as Mirror* mode same content on each display, Extended mode with individual content on each display, and Video Wall mode** which combines multiple monitors to use as one large display
Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
■ Supports UHD video resolutions up to 3840x2160 @30Hz (4K) and 7.1-ch surround audio
■ Compatible with DisplayPort 1.2 MST graphics adapters such as AMD Eyefinity, NVIDIA Surround technology, or various Intel Graphics
■ Plug-n-play, hassle-free set up without complicated hardware or driver installation
■ Premium aluminum housing reduces outside interference and provides optimal video quality
■ Built-in woven braided DisplayPort cable for enhanced durability
■ Boost your productivity by connecting three DisplayPort displays to single DisplayPort output with Multi-Stream Transport (MST) technology
■ Provides multiple display modes for various applications such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large display
Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
■ Supports UHD video resolutions up to 3840x2160 @30Hz (4Kx2K) and 7.1-ch surround audio
■ Compatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity or NVIDIA Surround technology
■ Plug-n-play, hassle-free set up without complicated hardware or driver installation
■ Premium aluminum housing decreases surrounding interference and provides optimal video quality. Built-in woven braided cable for enhanced durability
■ Boost your productivity by connecting three DisplayPort displays to single DisplayPort output with Multi-Stream Transport (MST) technology
■ Provides multiple display modes for various applications such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large display
Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
■ Supports UHD video resolutions up to 3840x2160 @30Hz (4Kx2K) and 7.1-ch surround audio
■ Compatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity or NVIDIA Surround technology
■ Plug-n-play, hassle-free set up without complicated hardware or driver installation
■ Premium aluminum housing decreases surrounding interference and provides optimal video quality. Built-in woven braided cable for enhanced durability
■ Embedded woven braided DisplayPort cable for enhanced durability
■ Adds a high-speed Gigabit Ethernet port into PCI Express (PCIe) enabled computers
■ Supports crossover detection & auto-correction
■ Supports full duplex mode that doubles the network connection speed
■ Supports Wake On LAN (WOL) power management
■ Checksum and Segmentation Task-offload reduce CPU workloads for enhanced system response and network scalability
■ Automatic MDI/MDIX crossover at all speeds
■ Supports Flow Control, Layer 2 Priority Queuing, VLAN Tang and Jumbo Frames
■ LEDs indicate the Link/Activity status and 10/100/1000 Mbps
■ Easy plug-n-play installation
■ Works in any available PCI Express slot
■ Dual Profile design to work with standard height and low profile chassis

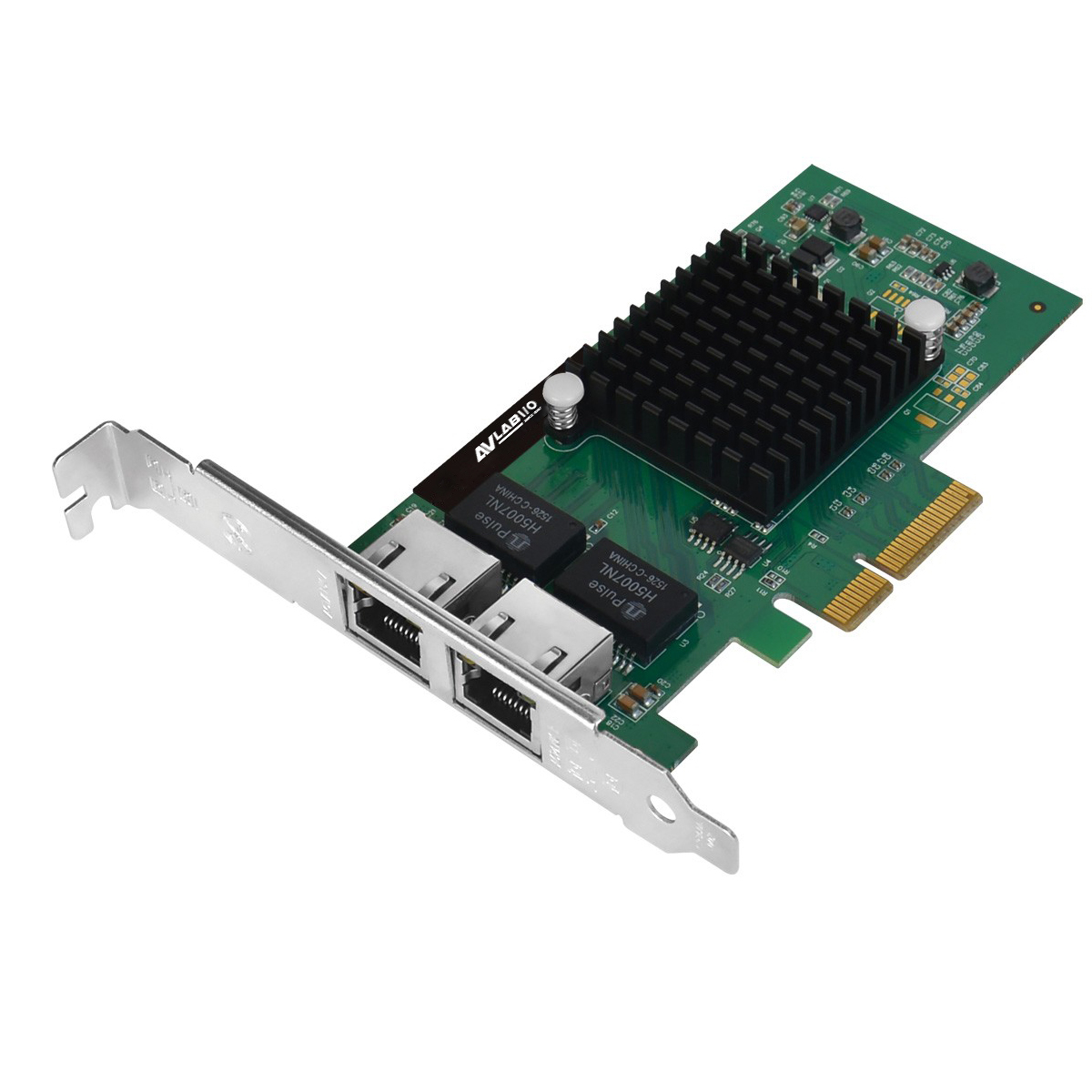

■ Adds two high-speed Gigabit Ethernet port to PCI Express enabled computers with low profile or standard height chassis
■ Supports 10/100/1000 Mb/s data rate auto-negotiation
■ Supports full duplex mode that doubles the network connection speed
■ Supports Wake On LAN (WOL) power management
